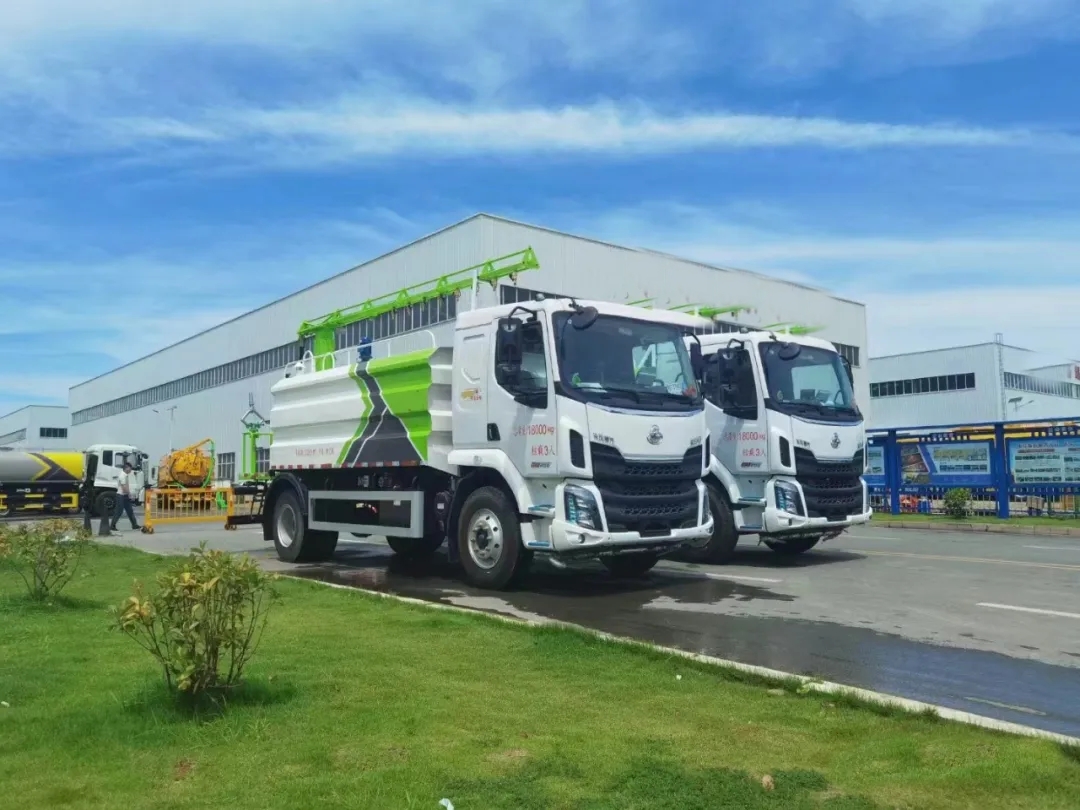

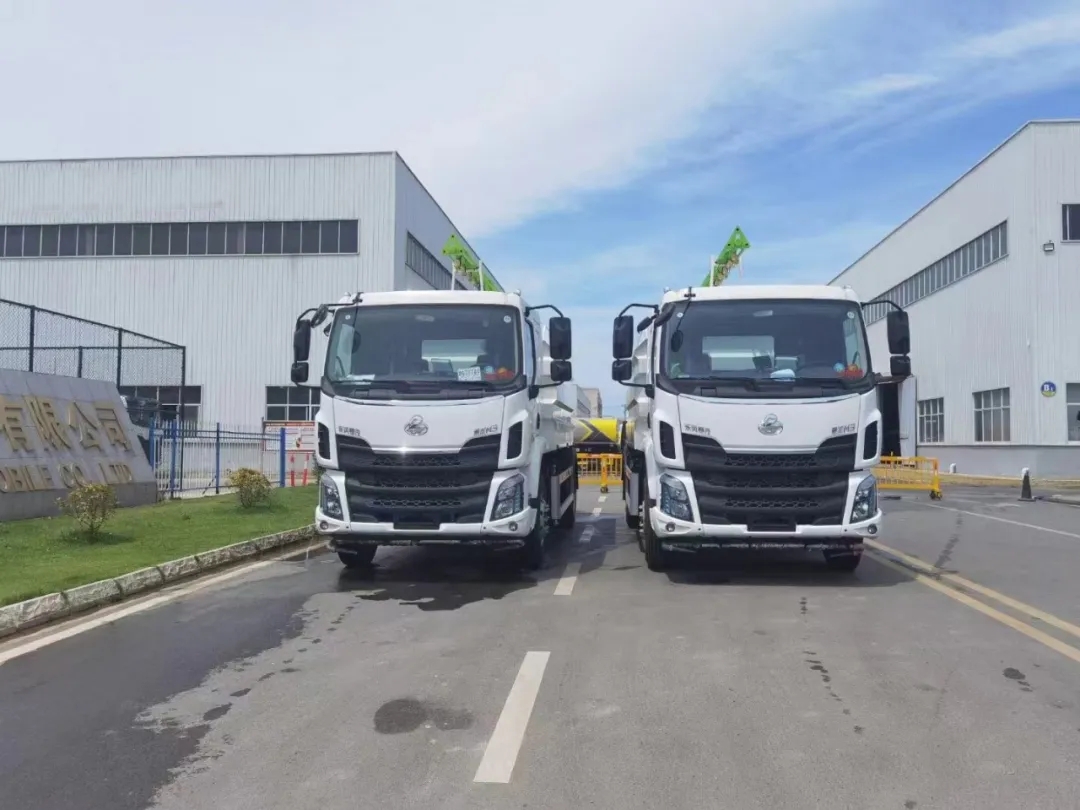

Dongfeng Liuqi M3 12m³ dust suppression vehicle for railway

Dongfeng Liuqi M3 12m³ dust suppression vehicle for railway

2024-10-09 15:48:19 Source：chusheng

Chassis configuration:

1.Cab:SHACMAN X9 cab
2. Engine: YCS04200-61,Yuchai 200hp

3.Transmission type: 8 forward gears and 1 reverse gear

4.Tyre: 10.00R20 steel wire tire

5.Wheelbase: 4500mm

6. Other: Air brake, directional assistance, airbag seats, central locking system, electric doors and windows, high-power air conditioning.
Upper configuration:

1. The tank is approximately 12 cubic meters
2. The side lights are electrified, and two red clearance lights are standard above the tail of the tank
3. Standard front spray duckbill, standard rear punch, users can adjust the hedge position according to their own needs
4. Large patterned platform (with enhanced load-bearing capacity), customized bolt buckle for the rear cover of the barrel
5. Front spraying, rear flushing, rear spraying, side spraying, and the green anti-aircraft gun switch ball valve all use engineering specific 50 meter valves
Diameter ball valve

Product Name

Dongfeng Liuqi M3 12m³ dust suppression vehicle for railway

Engine Model

YCS04200-61

Engine horsepower

Yuchai 200hp

Engine displacement

4.2L

Gearbox

8 forward gears and 1 reverse gear

Tire specification

10.00R20 steel wire tire

Wheel base (mm)

4500

Gross vehicle weight(Kg)

18000

Curb weight(Kg)

7000,7540

Rated weight(Kg)

10805,10265

Vehicle dimensions (mm)

8350,8450,8620,8720,8580,8680,9120,9220,9080,9180×2550,2500×3300,3350,3400,3230

Tank volume(cbm)

Fuel type

diesel

Emission standard

Euro 6 (option:Euro3/4/5)

Water pump model

60/90

Tank material

Q235 carbon steel

Notice

The above information is for reference only, and vehicles can be customized depending on your requirements.

Dongfeng Liuqi M3 12m³ dust suppression vehicle for railway

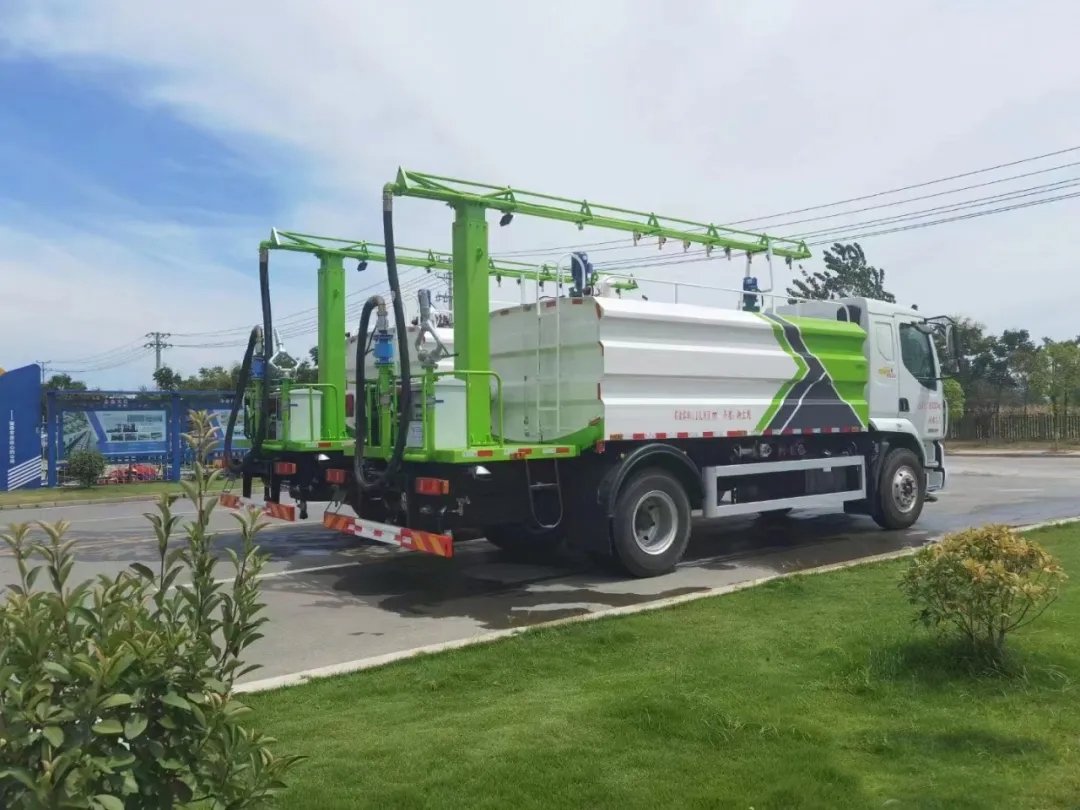

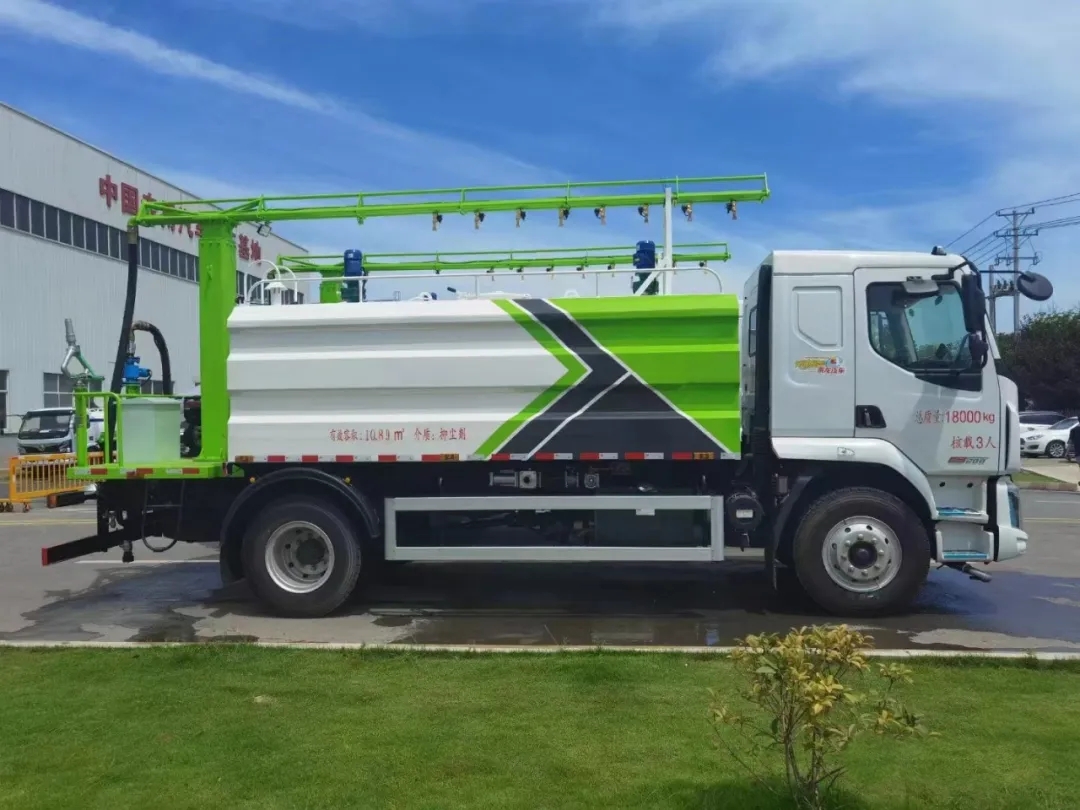

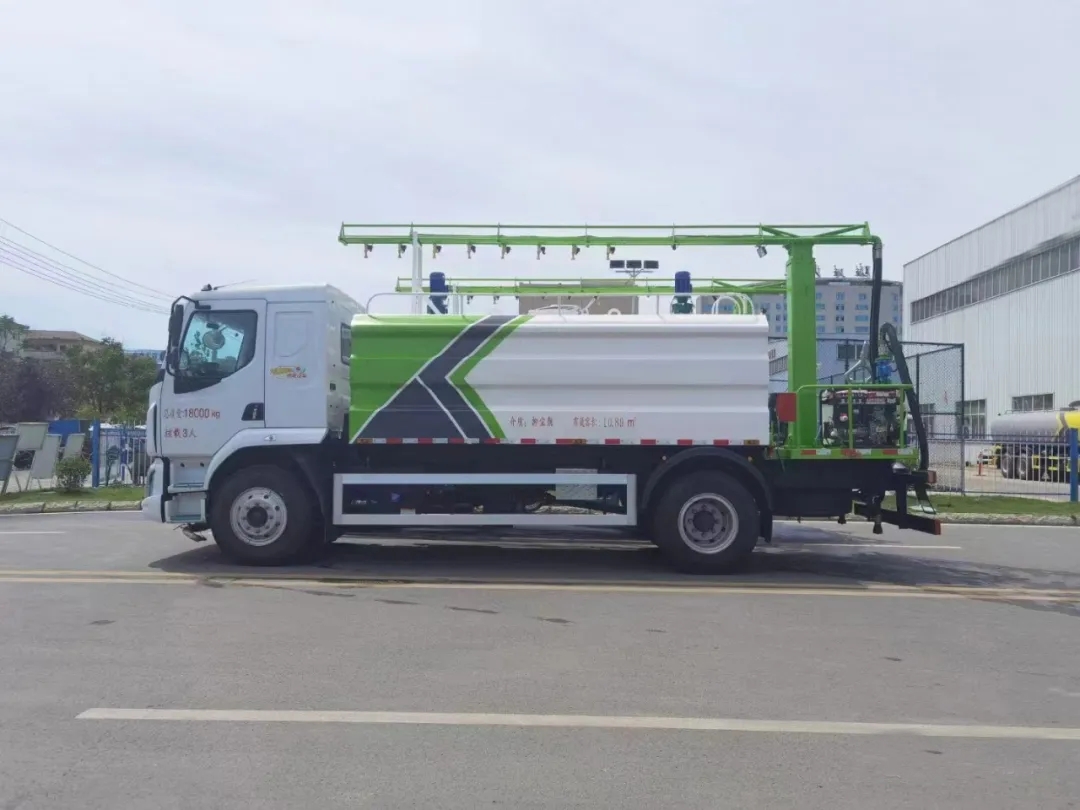

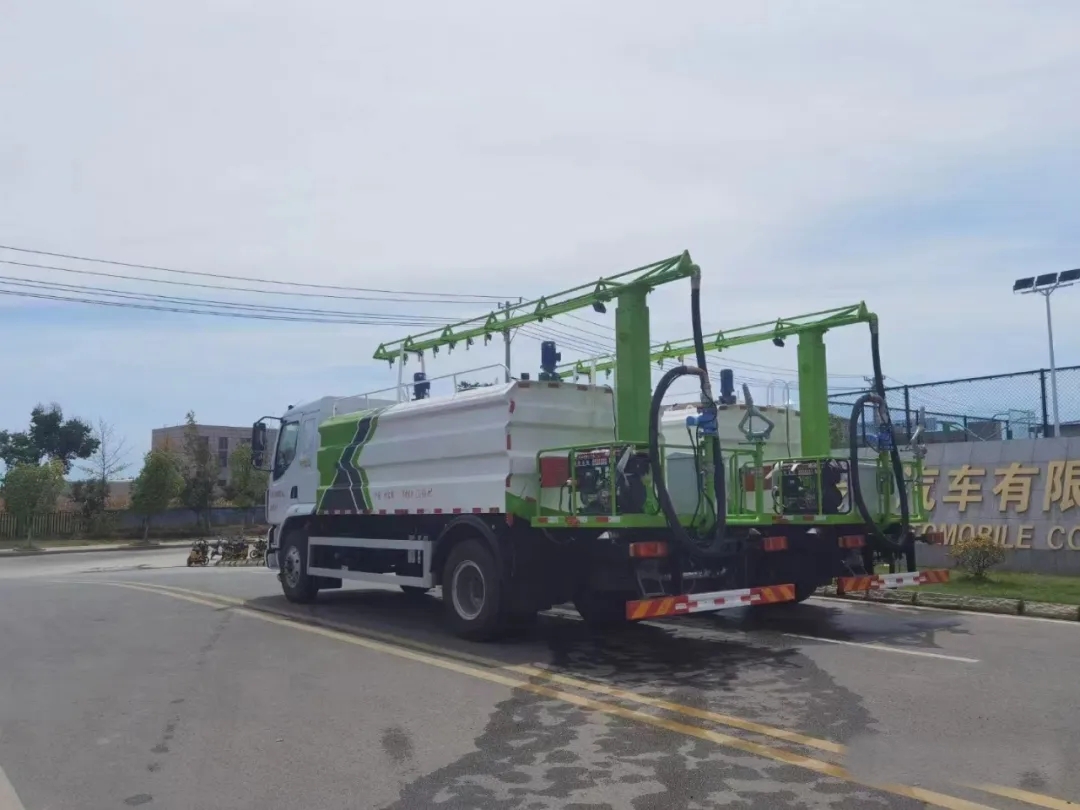

Dust suppression vehicle is a special type of vehicle that suppresses dust pollution by spraying dust suppression solidifying agents and other spraying liquids. Mainly serving railways, roads, and other dust prone areas. In terms of structure, the dust suppression vehicle mainly consists of a swing arm spray device, a liquid storage tank, a self-propelled vehicle, and a control system.

Dust suppression vehicles need to install insulation and heating systems on their tanks, spray nozzles, and pump bodies in northern regions during winter in order to operate normally.
