| Product Name |
Dayun G6 4X2 flatbed transport vehicle |
| Cab |
Dayun G6 cab |
| Drive wheel |
4X2 |
| Steering wheel |
Left/Right hand drive |
| Seat capacity |
2-3 person |
| Engine |
D30TCIF1, Yunnei 170hp |
| Gearbox |
Fast 8-speed gearbox |
| Carframe |
232mm reinforced frame beam |
| Wheel base |
3600(mm) |
| Axle numbers |
2 |
| Tire sepcification and quantity |
8.25R20 14PR,8.25R16LT 18PR, 6+1 spare tire |
| Vehicle dimension |
11000,10000×2550×3110(mm) |
| Flatbed dimension |
6790,6870,7220,7300,7570,7650×2400,2500,2550×2650,2750,2850,2700(mm) |
| Gross vehicle weight(Kg) |
11200(Kg) |
| Curb weight(Kg) |
5300,5800(Kg) |
| Rated weight(Kg) |
5770,5705,5270,5205(Kg) |
| Top configuration |
The board is 4.7 meters long, and the flat plate is made of 5mm thick patterned board. The crossbeam adopts a 100x100x6mm square tube sleeve, with a spacing of 250-300mm between crossbeams. The double spring manganese steel reinforced ladder (optional double section hydraulic folding ladder) is used. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |

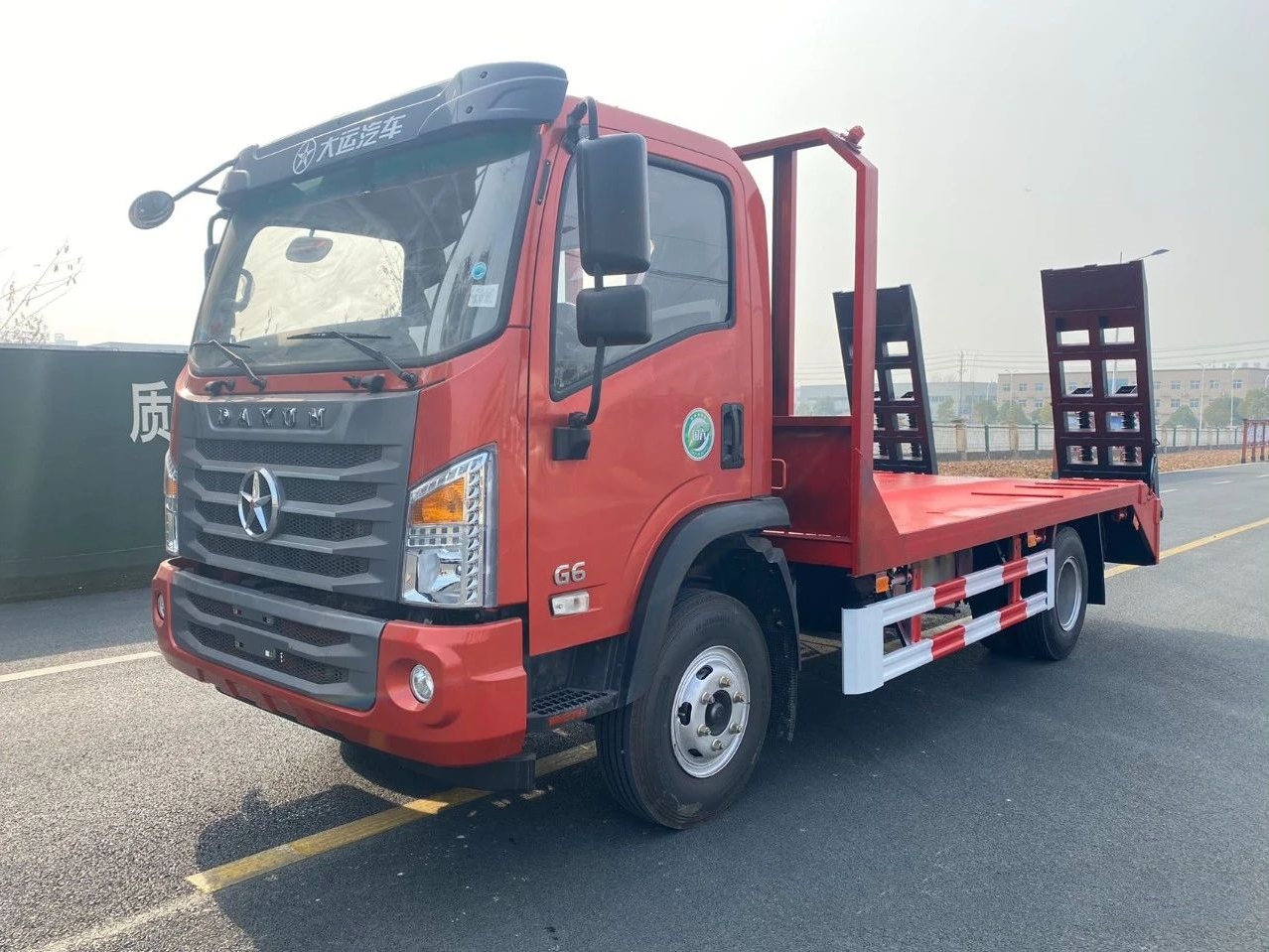

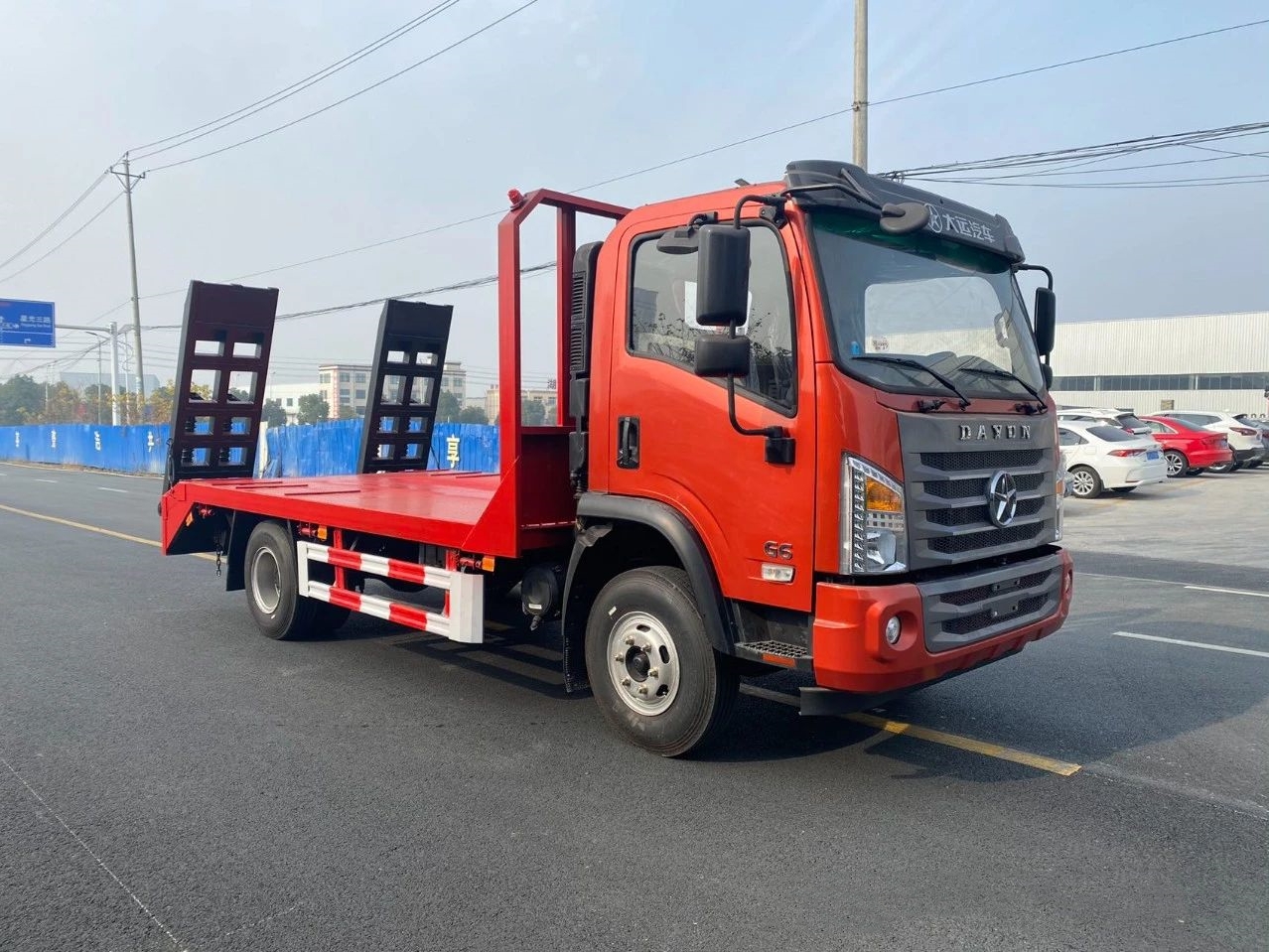

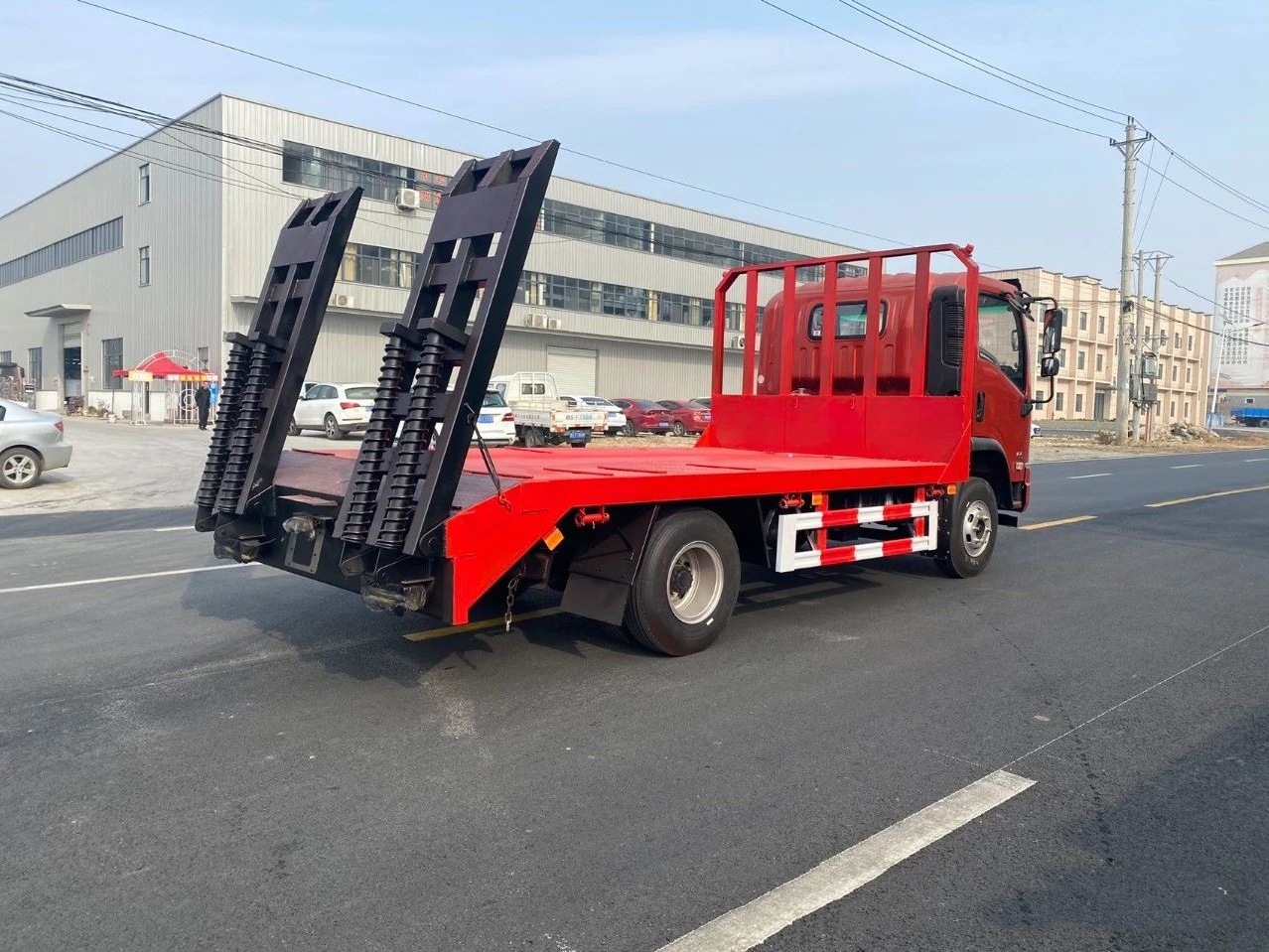

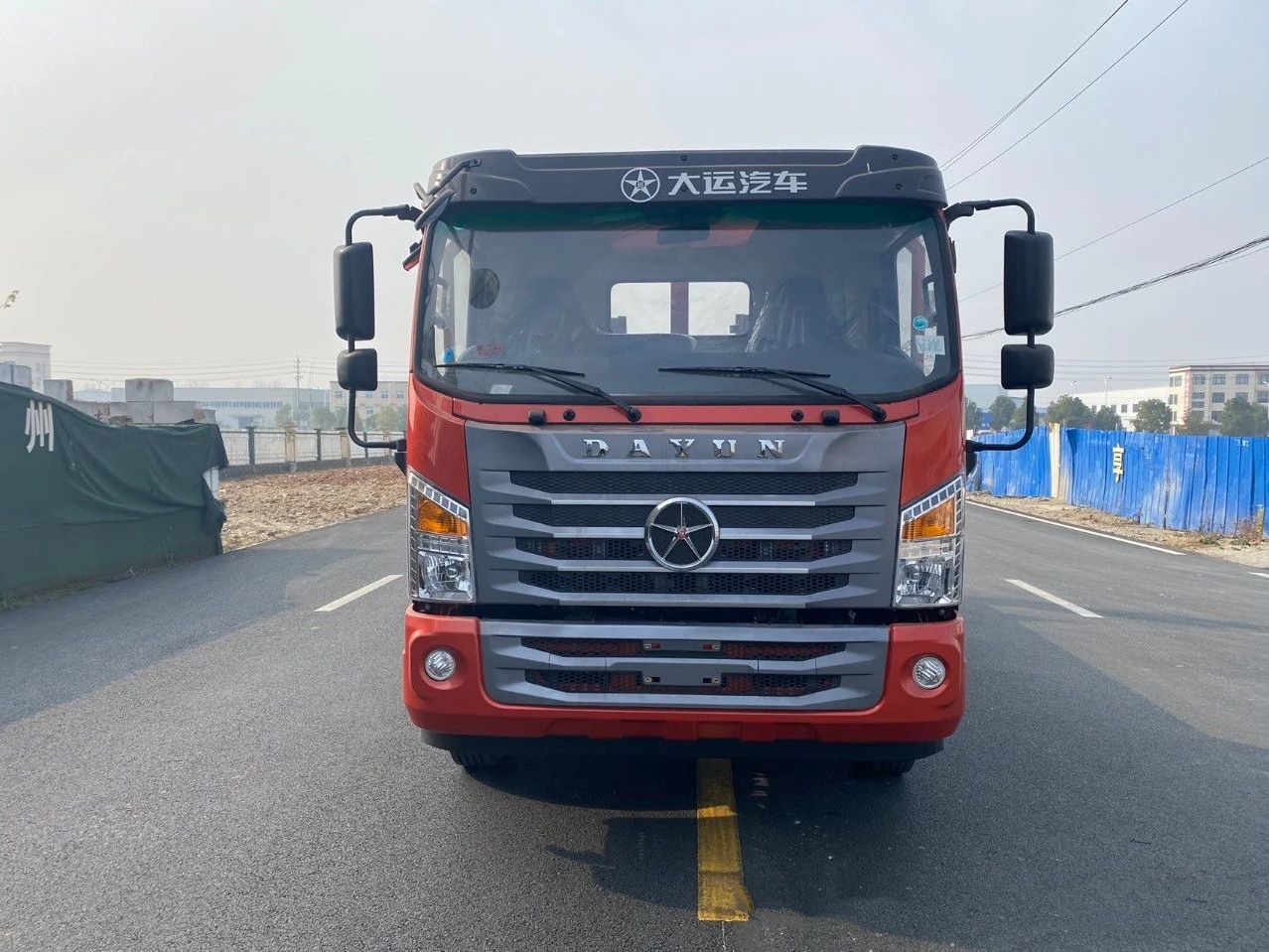

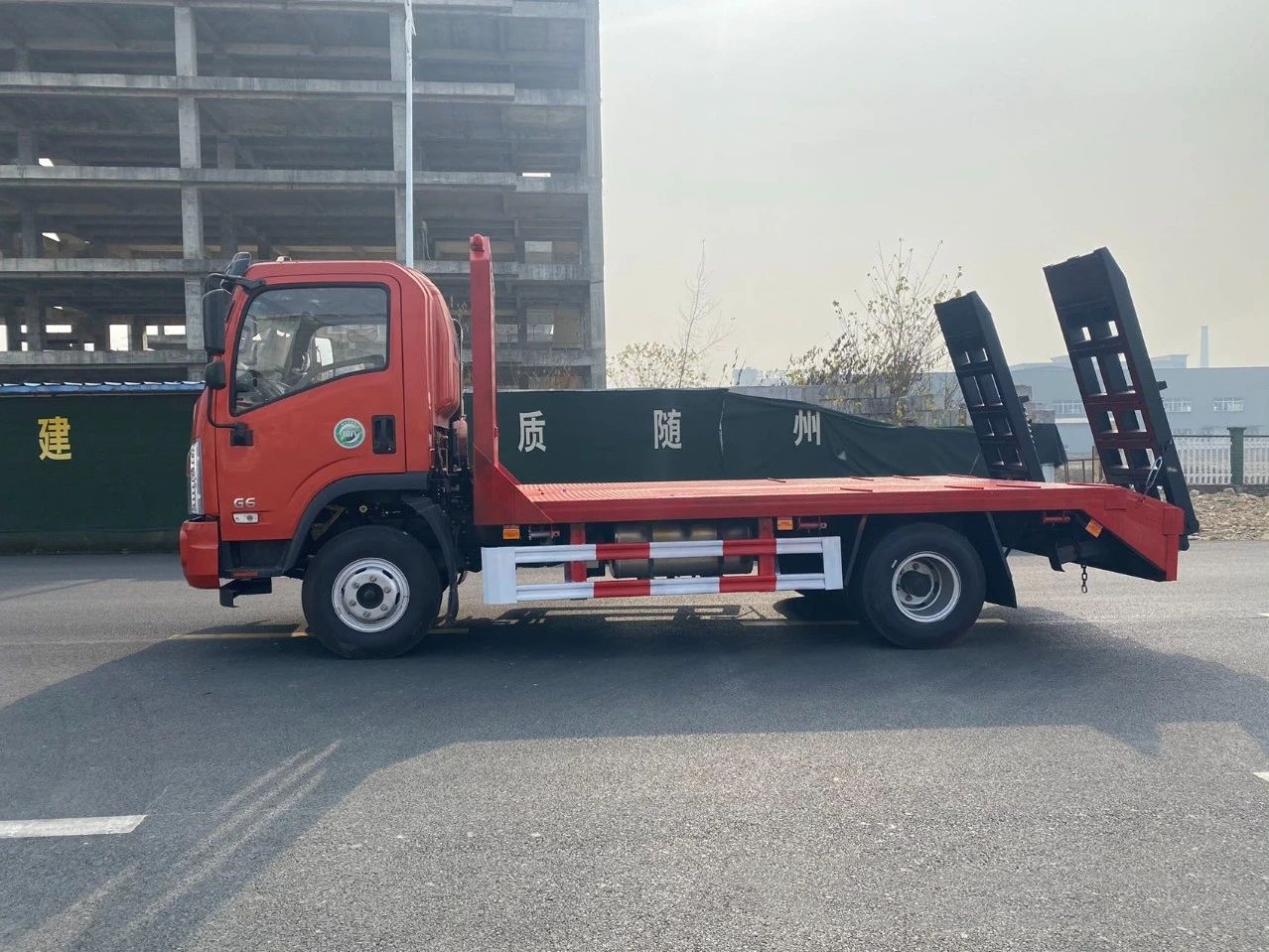

Dayun G6 4X2 flatbed transport vehicle
A flatbed transport vehicle also known as a flat trailer, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.
Top configuration:
The board is 4.7 meters long, and the flat plate is made of 5mm thick patterned board. The crossbeam adopts a 100x100x6mm square tube sleeve, with a spacing of 250-300mm between crossbeams. The double spring manganese steel reinforced ladder (optional double section hydraulic folding ladder) is used.
Main Parameter
