| Product Name |
Jiefang 8X4 flatbed trailer vehicle |
| Cab |
Jiefang cab |
| Drive wheel |
8X4 |
| Steering wheel |
Left/Right hand drive |
| Seat capacity |
2-3 person |
| Engine |
350hp |
| Gearbox |
Fast 10-speed gearbox |
| Carframe |
300mm double layered beam |
| Wheel base |
1900+3200+1350,1900+3450+1350(mm) |
| Axle numbers |
4 |
| Tire sepcification and quantity |
11.00R20 18PR,11.00R20 16PR, 12+1 spare tire |
| Vehicle dimension |
11000,10000×2550×3110(mm) |
| Flatbed dimension |
7300,8300x2550x-mm |
| Gross vehicle weight(Kg) |
31000(Kg) |
| Curb weight(Kg) |
14240,13860(Kg) |
| Rated weight(Kg) |
16630,16565,17010,16945(Kg) |
| Top configuration |
The tablet can reach a maximum length of 8.7 meters and can be optionally equipped with a hydraulic ladder |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |

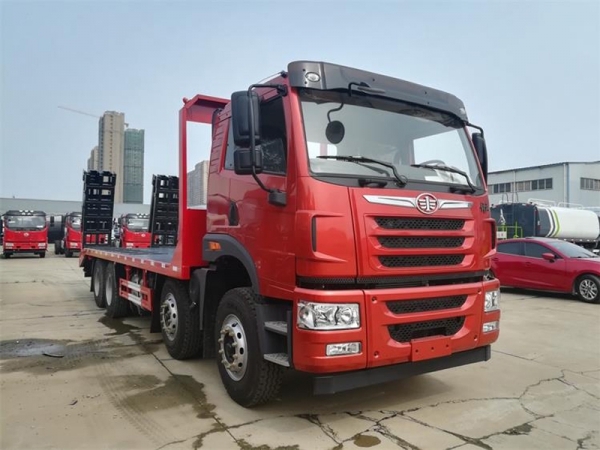

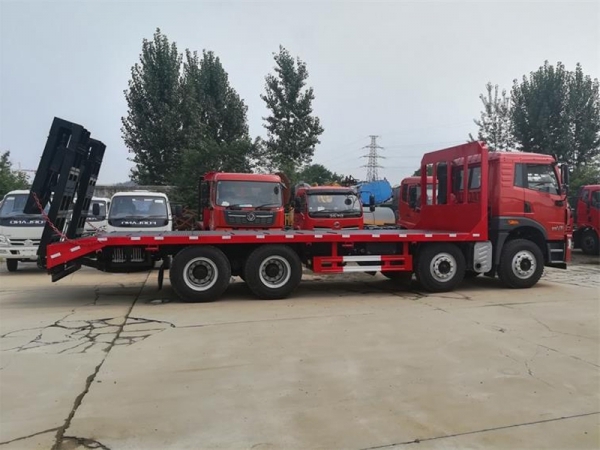

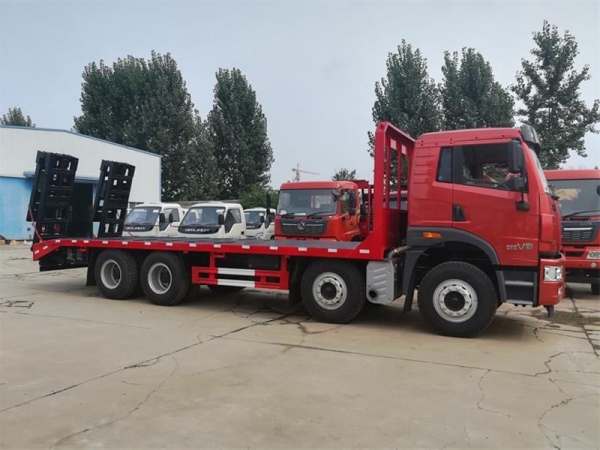

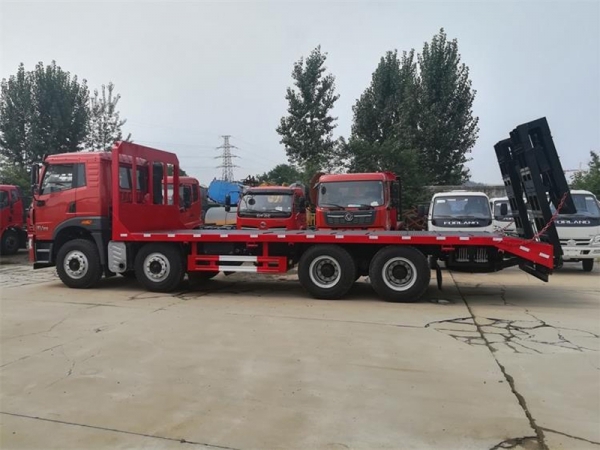

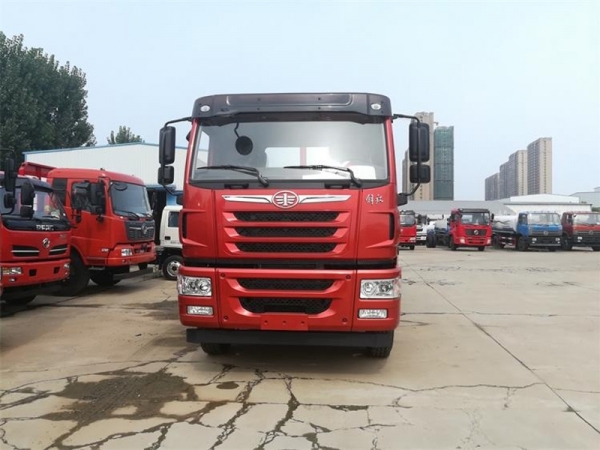

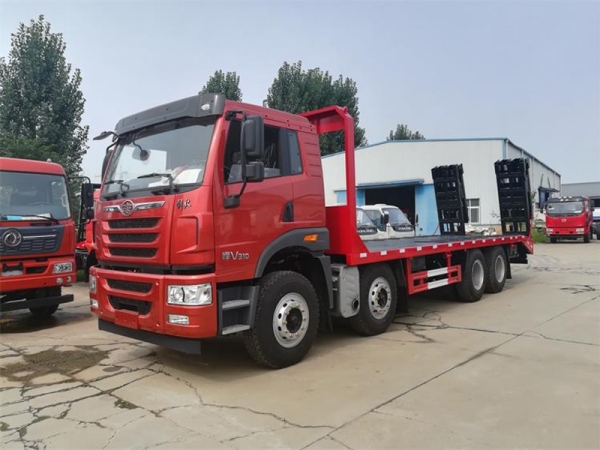

Jiefang 8X4 flatbed trailer vehicle
A flat trailer also known as a flatbed transport vehicle, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.
Top configuration:
The upper part is made of 8mm thick patterned plate, which can be manually extended to 3 meters (with optional hydraulic extension). The crossbeam adopts a 120x120x6 square tube, with a built-in 100x100x6 square tube. The crossbeam spacing is 280-300mm, and the double spring manganese steel reinforced ladder is used.
Main Parameter
