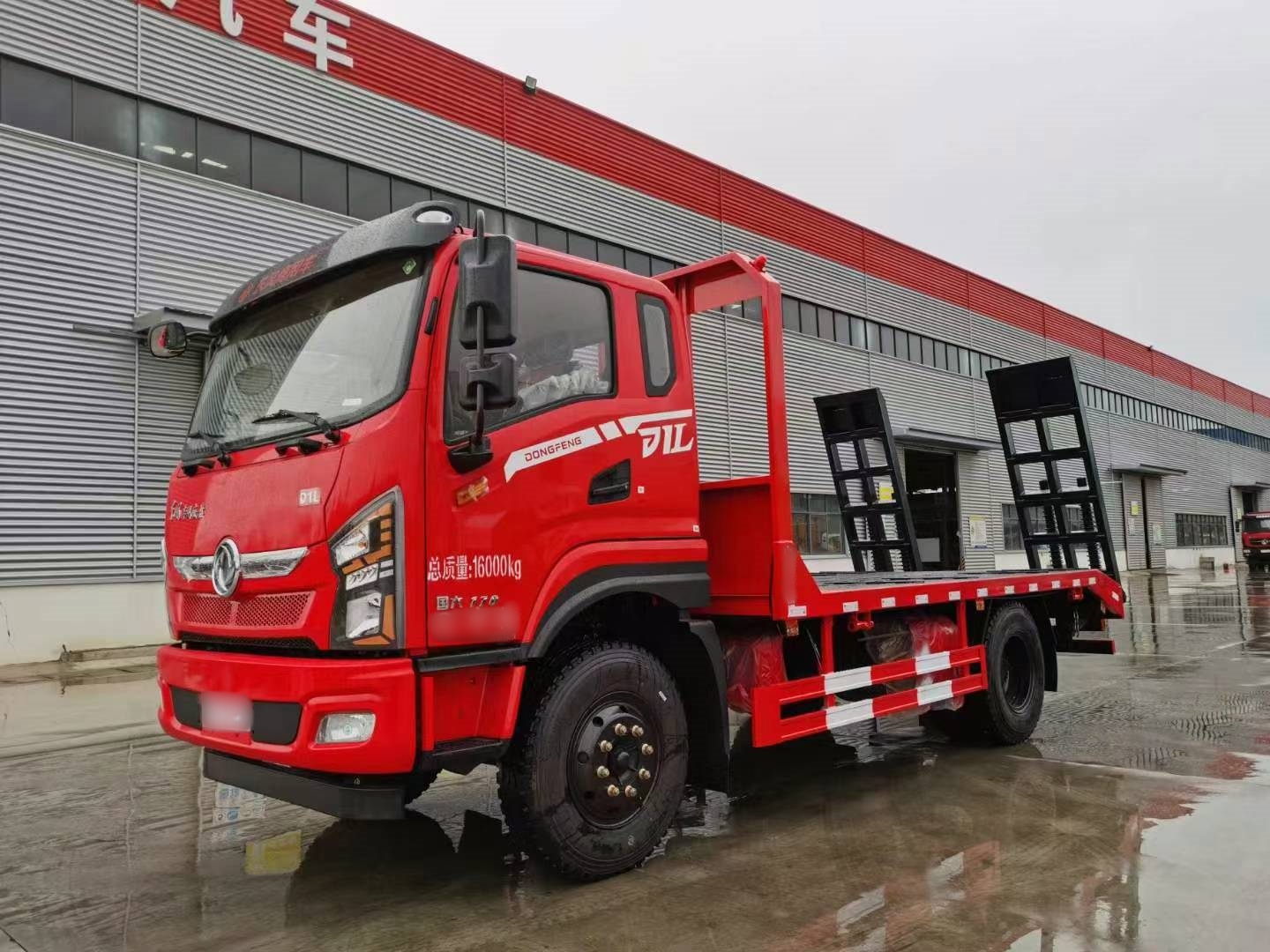

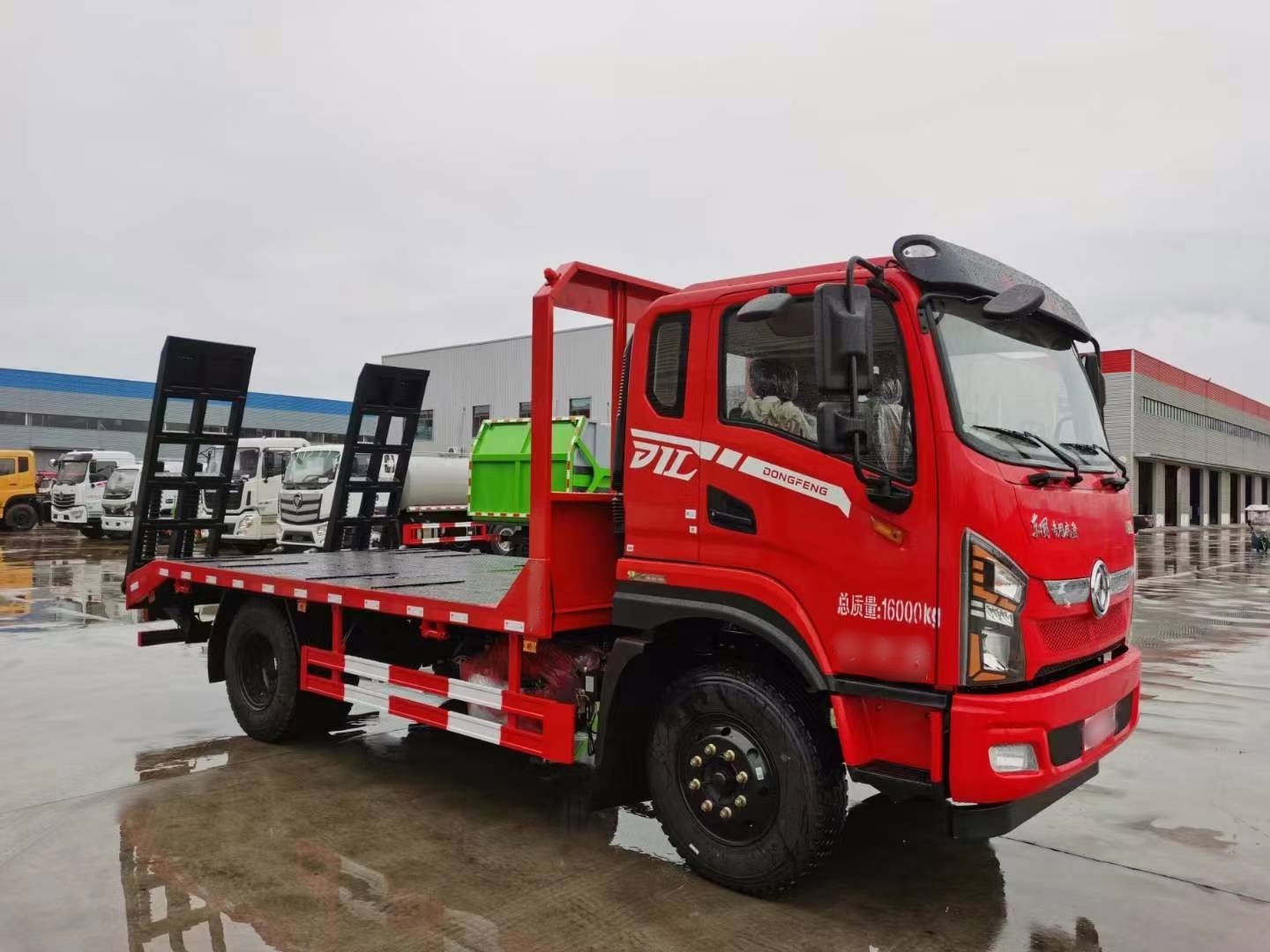

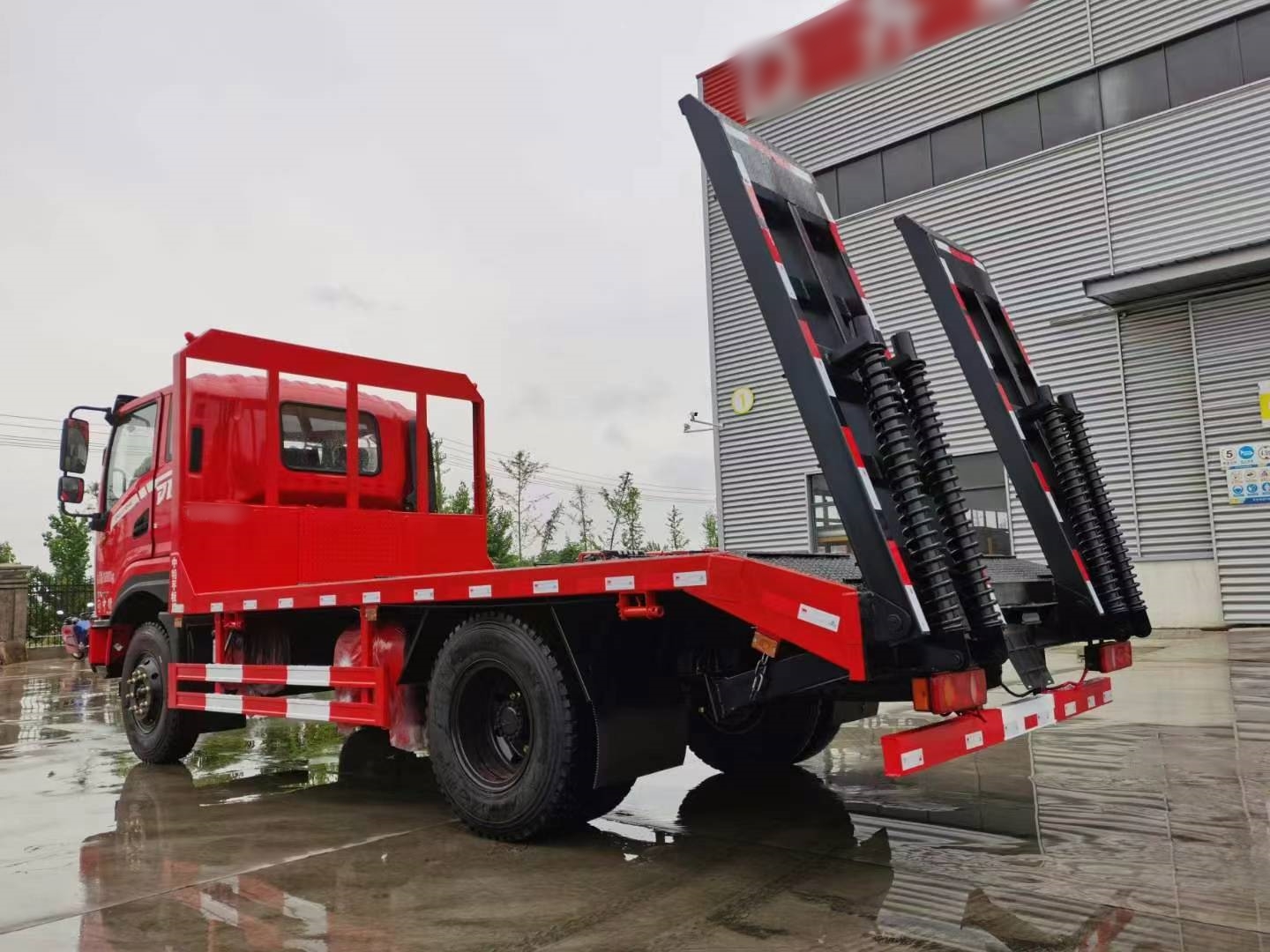

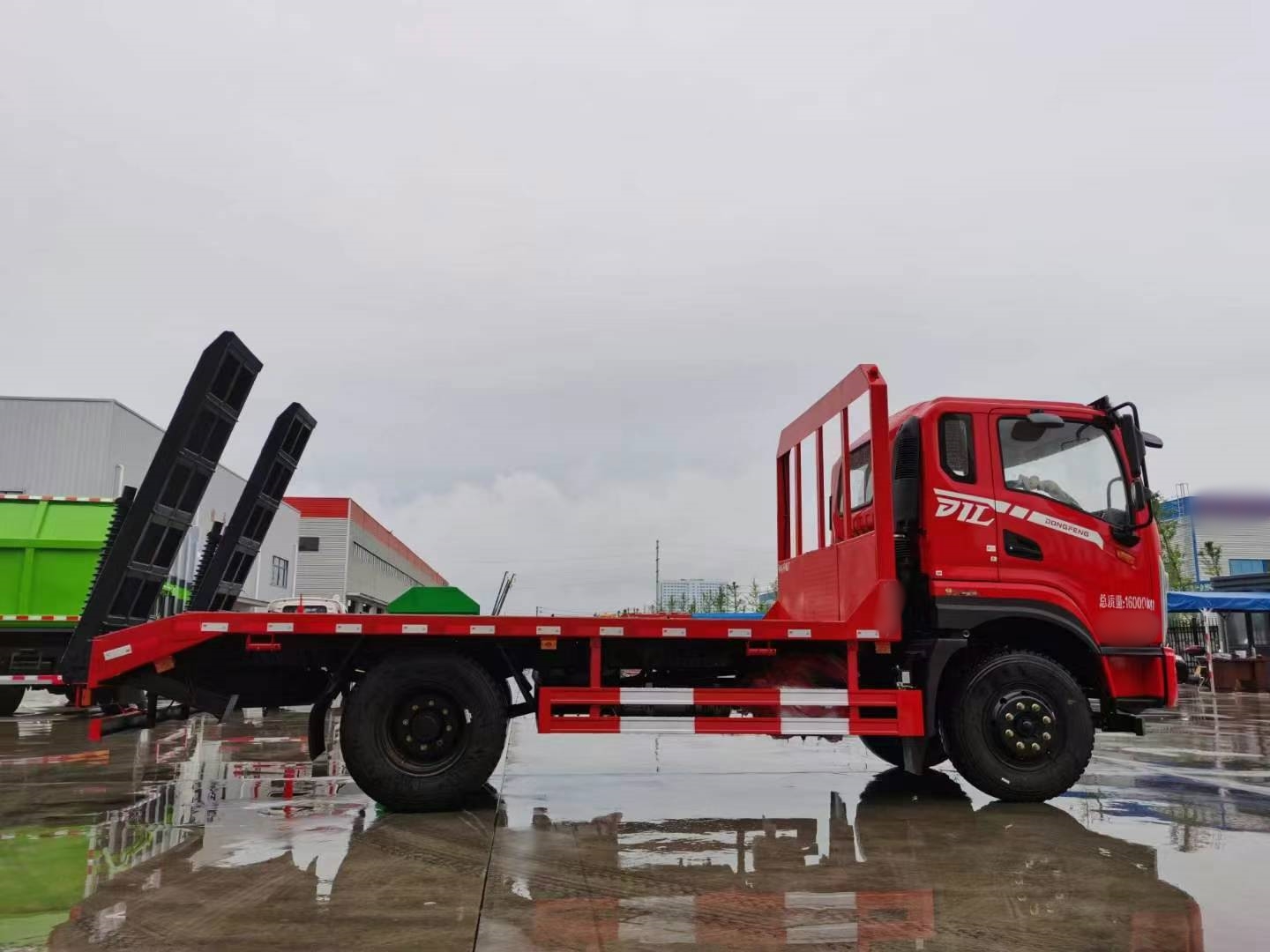

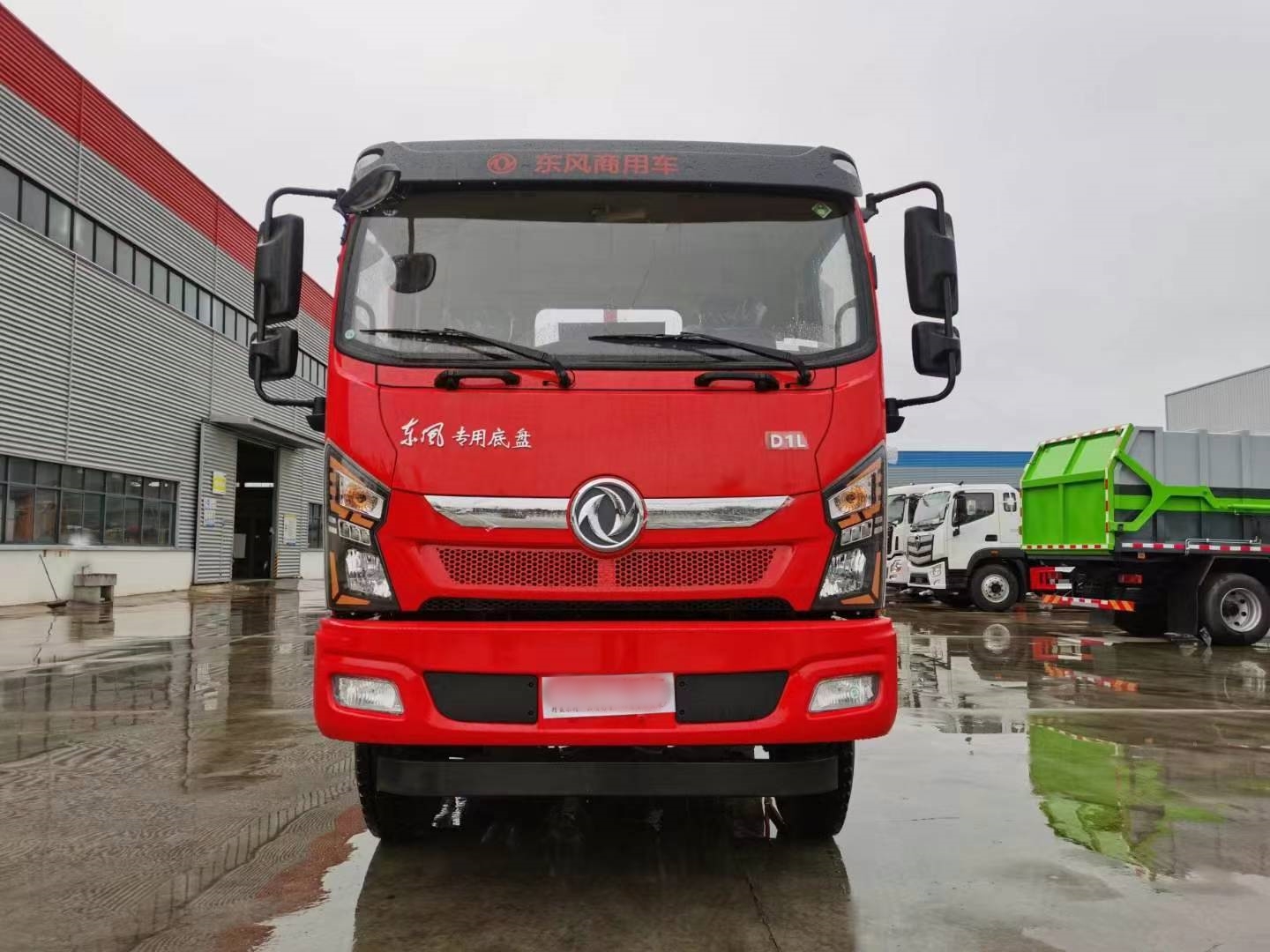

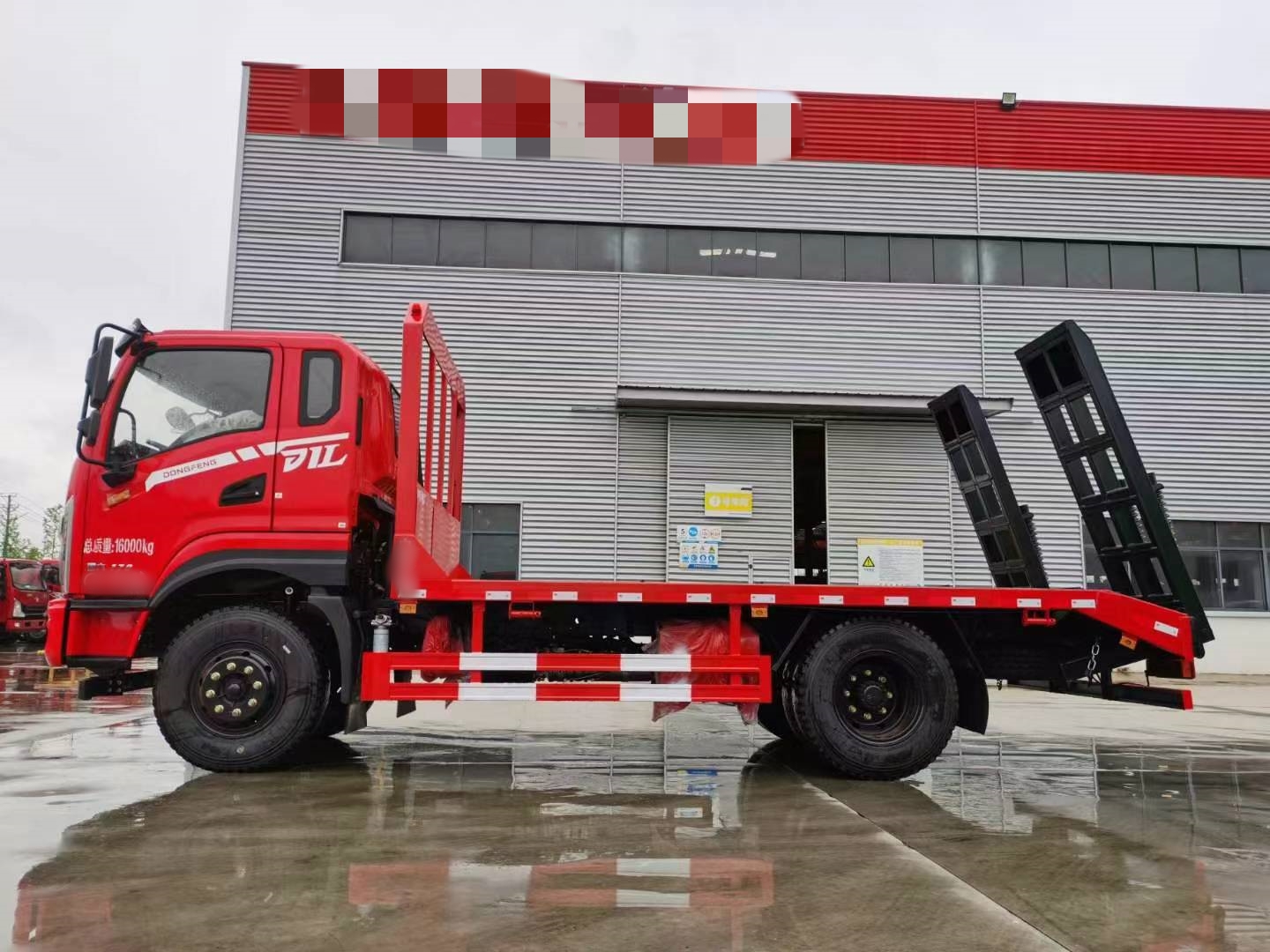

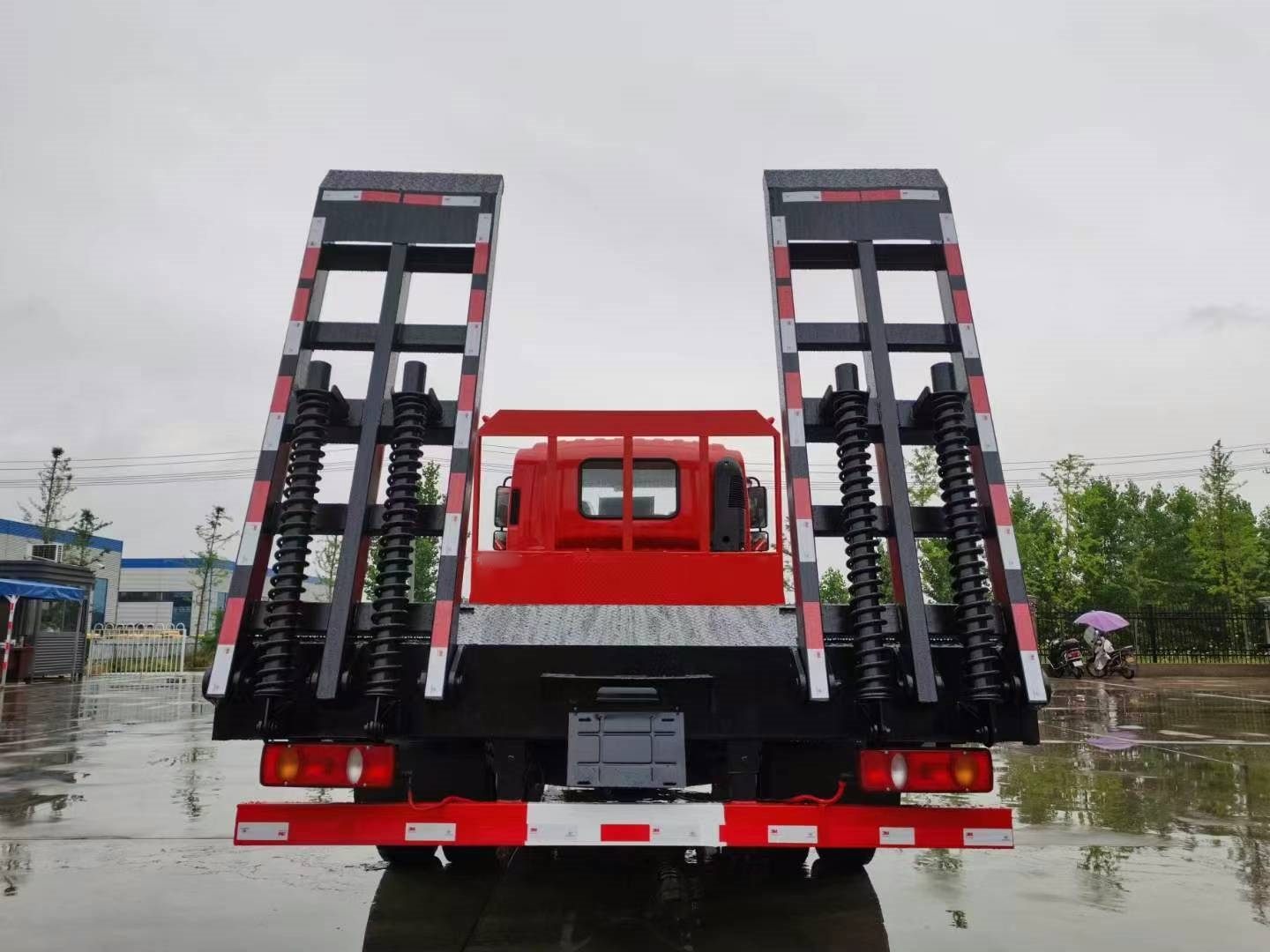

Dongfeng D1L 4X2 flatbed transport vehicle
2024-09-18 10:36:10 Source：chusheng
Chassis configuration:
1.Engine: YCY30170-60, Yuchai 170hp
2.Transmission type: Fast 8-speed transmission with high and low speed
3.Wheelbase: 3950/4500(mm)
4.Tyre: 9.00R20 steel wire tire, 6+1 spare tire
5.Other: Dongfeng D1L has a one and a half row cab, equipped with new LED daytime running lights, multifunctional steering wheel, airbag seats, central locking system, electric doors and windows, remote key, and original air conditioning.
| Product Name |
Dongfeng D1L 4X2 flatbed transport vehicle |
| Cab |
Dongfeng D1L one and a half row cab |
| Drive wheel |
4X2 |
| Steering wheel |
Left/Right hand drive |
| Seat capacity |
2-3 person |
| Engine |
YCY30170-60, Yuchai 170hp |
| Gearbox |
Fast 8-speed transmission with high and low speed |
| Carframe |
230mm double-layer frame |
| Wheel base |
3950/4500(mm) |
| Axle numbers |
2 |
| Tire sepcification and quantity |
9.00R20 steel wire tire, 6+1 spare tire |
| Vehicle dimension |
7400/8400X2500X2960(mm) |
| Flatbed dimension |
4800,5200,5400,5800x2500,25 50x-(mm) |
| Gross vehicle weight(Kg) |
16000(Kg) |
| Curb weight(Kg) |
5975,6500(Kg) |
| Rated weight(Kg) |
9830,9895,9305,9370(Kg) |
| Top configuration |
The board is 5m/5.8m long, and the flat plate is made of 5mm thick patterned board. The crossbeam adopts a 100x100x6mm square tube sleeve, with a spacing of 250-300mm between crossbeams. The double spring manganese steel reinforced ladder (optional double section hydraulic folding ladder) is used. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng D1L 4X2 flatbed transport vehicle
Aflatbed transport vehicle also known as a flat trailer, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.
Top configuration:
The board is 5m/5.8m long, and the flat plate is made of 5mm thick patterned board. The crossbeam adopts a 100x100x6mm square tube sleeve, with a spacing of 250-300mm between crossbeams. The double spring manganese steel reinforced ladder (optional double section hydraulic folding ladder) is used.
Main Parameter
