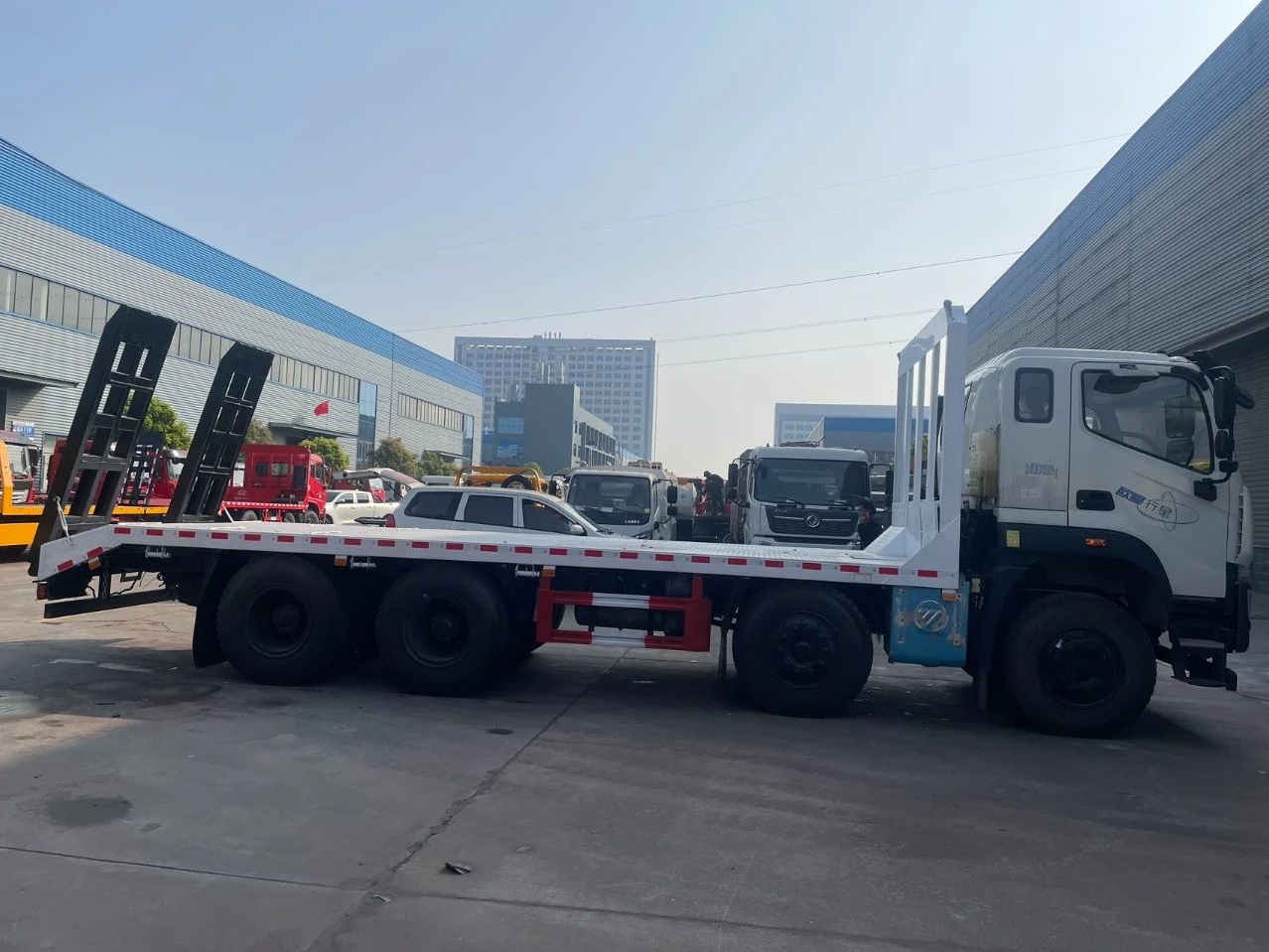

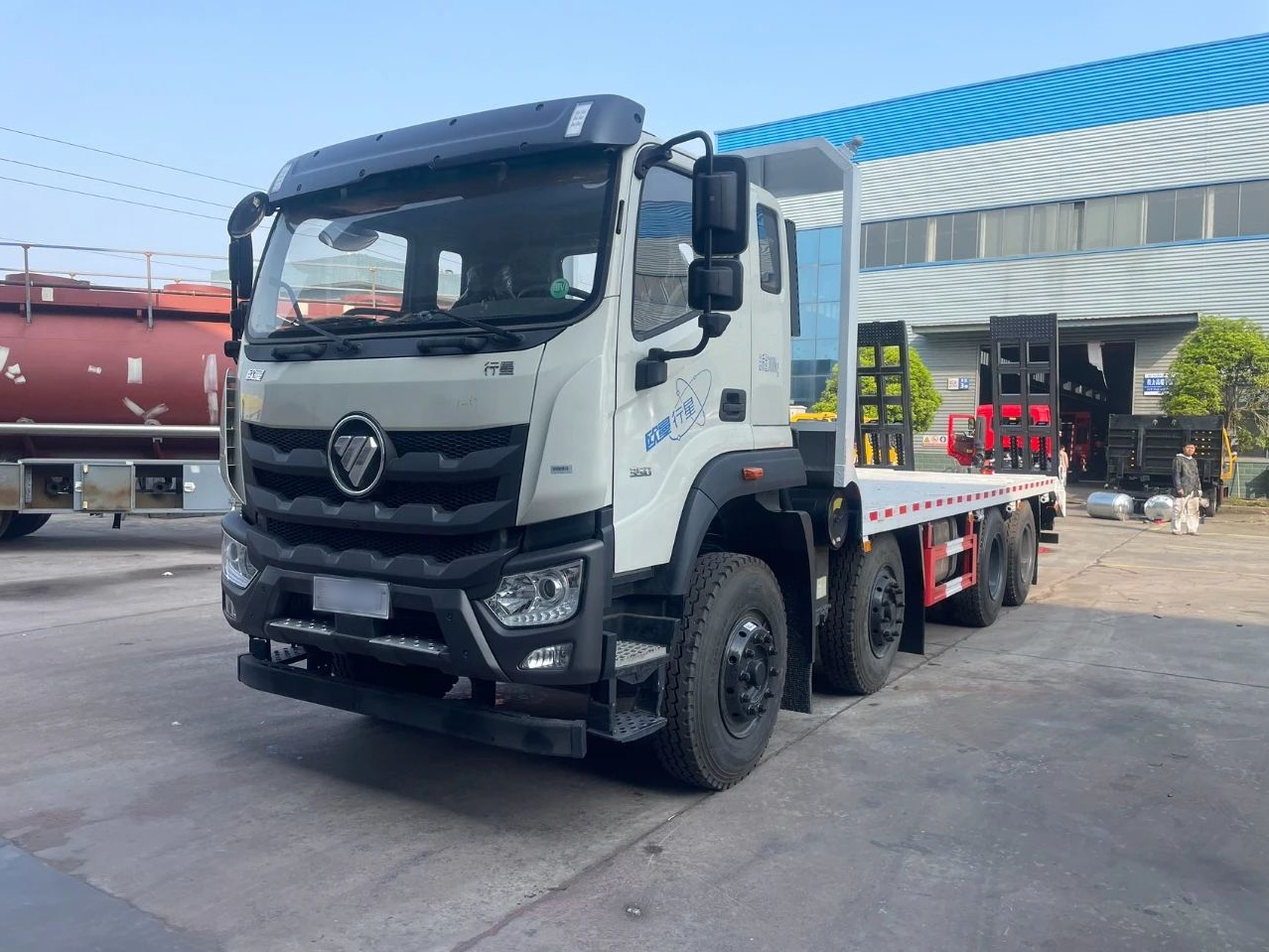

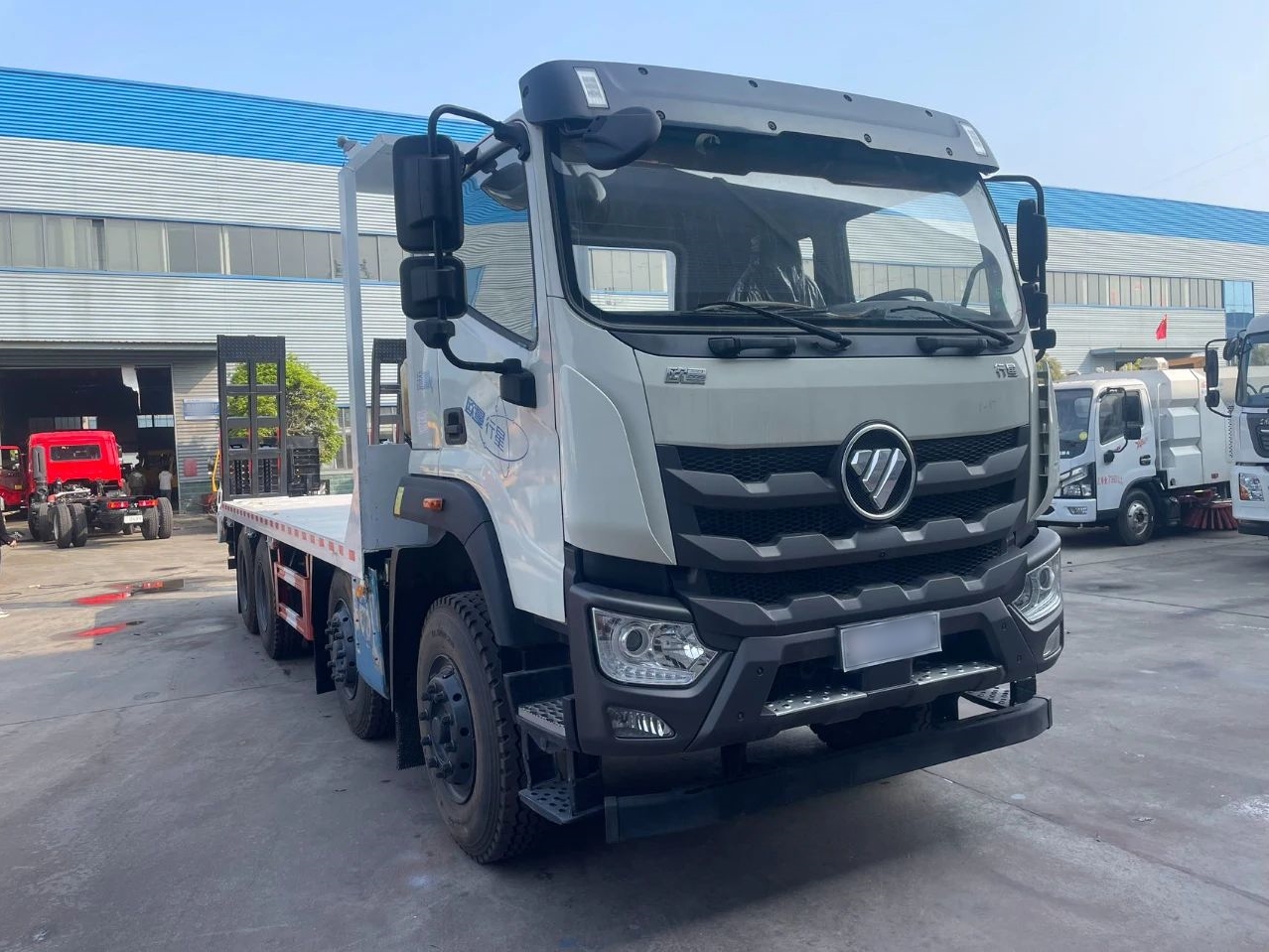

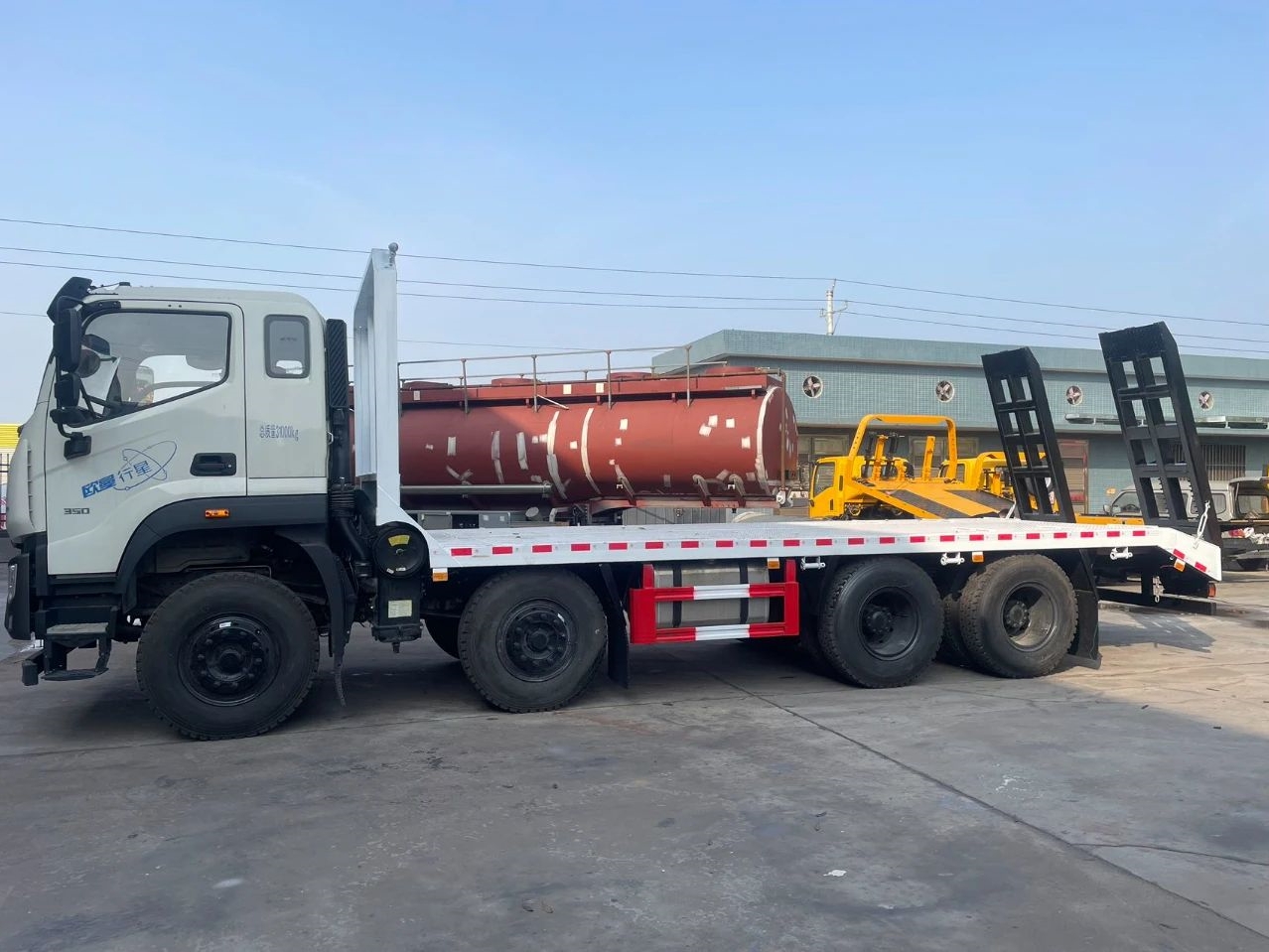

Foton Auman 8x4 flatbed truck

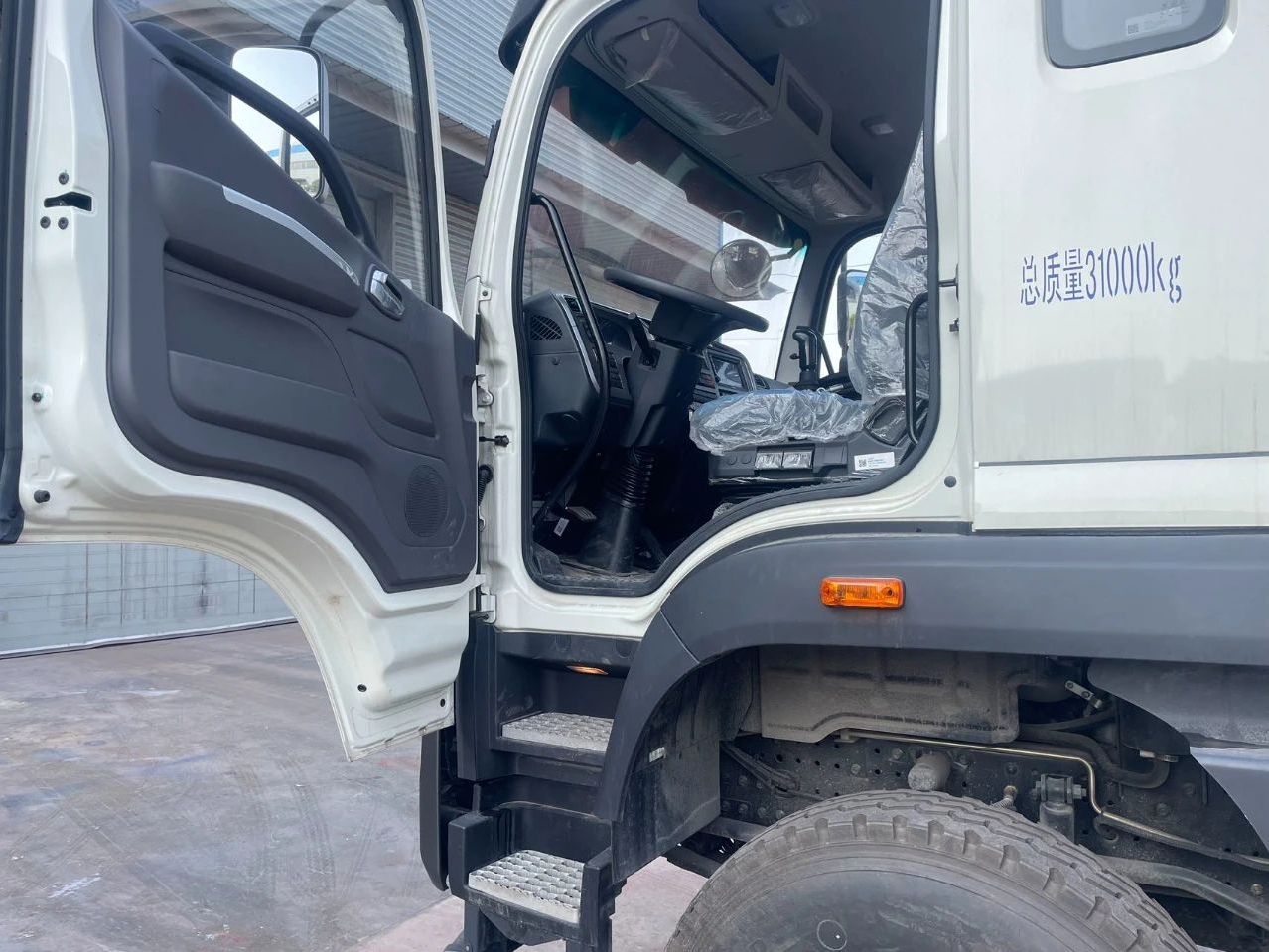

Cab: Foton Auman Planet
Engine: Yuchai 350 horsepower
Transmission: Fast 10 speed
Frame: 286mm double-layer frame
Tire: 11.00R20 steel wire tire
Rear axle: 440 maintenance free 13 ton rear axle
Wheelbase: 2100+2850+1350mm
Exterior length: 9900/10500mm

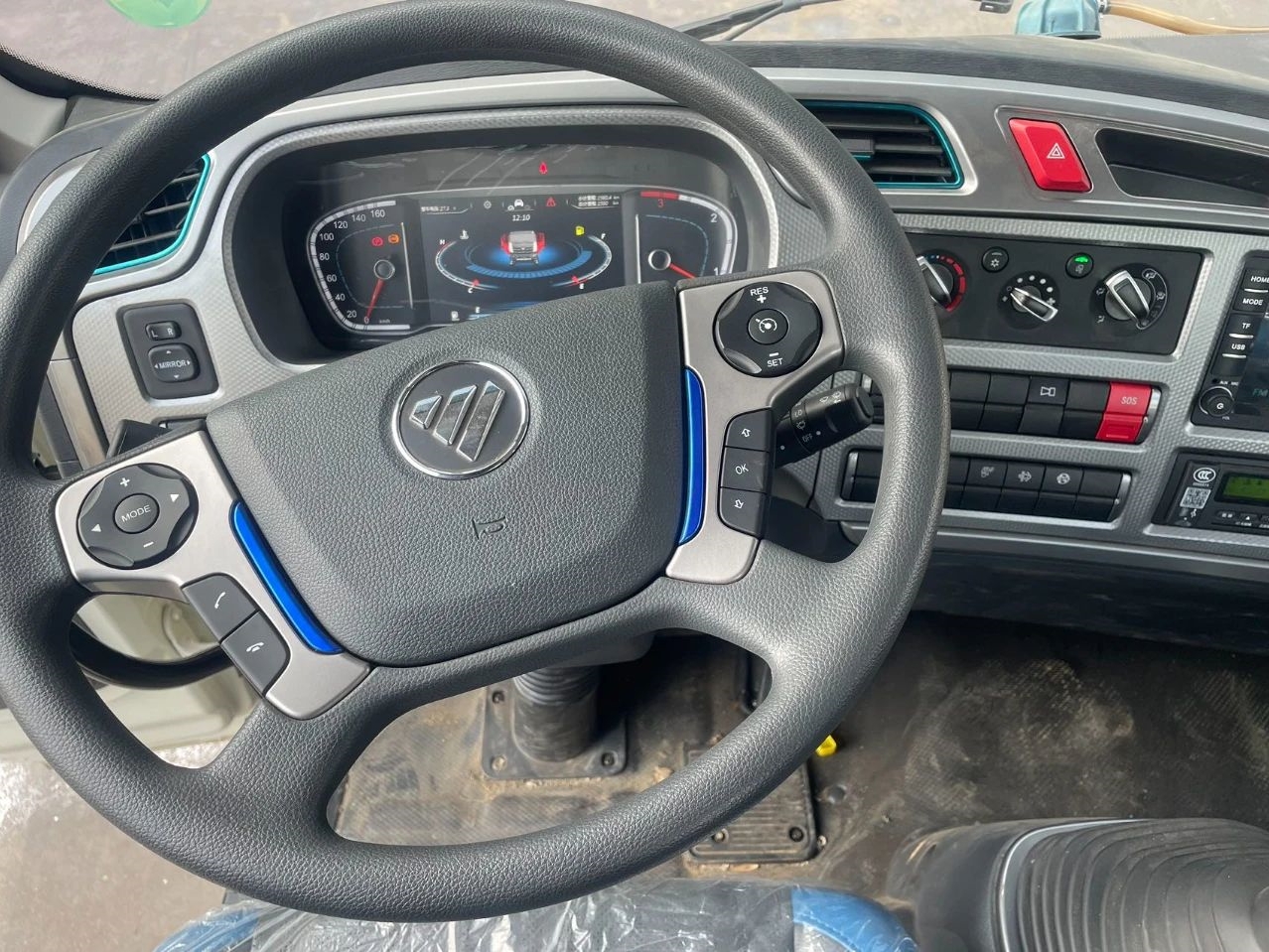

Chassis configuration: Four point suspension, electric flip, electric doors and windows, electric glass, airbag seats, multifunctional steering wheel, full-color LCD display screen, original air conditioning, electric defrosting rearview mirror, 350L aluminum alloy fuel tank.

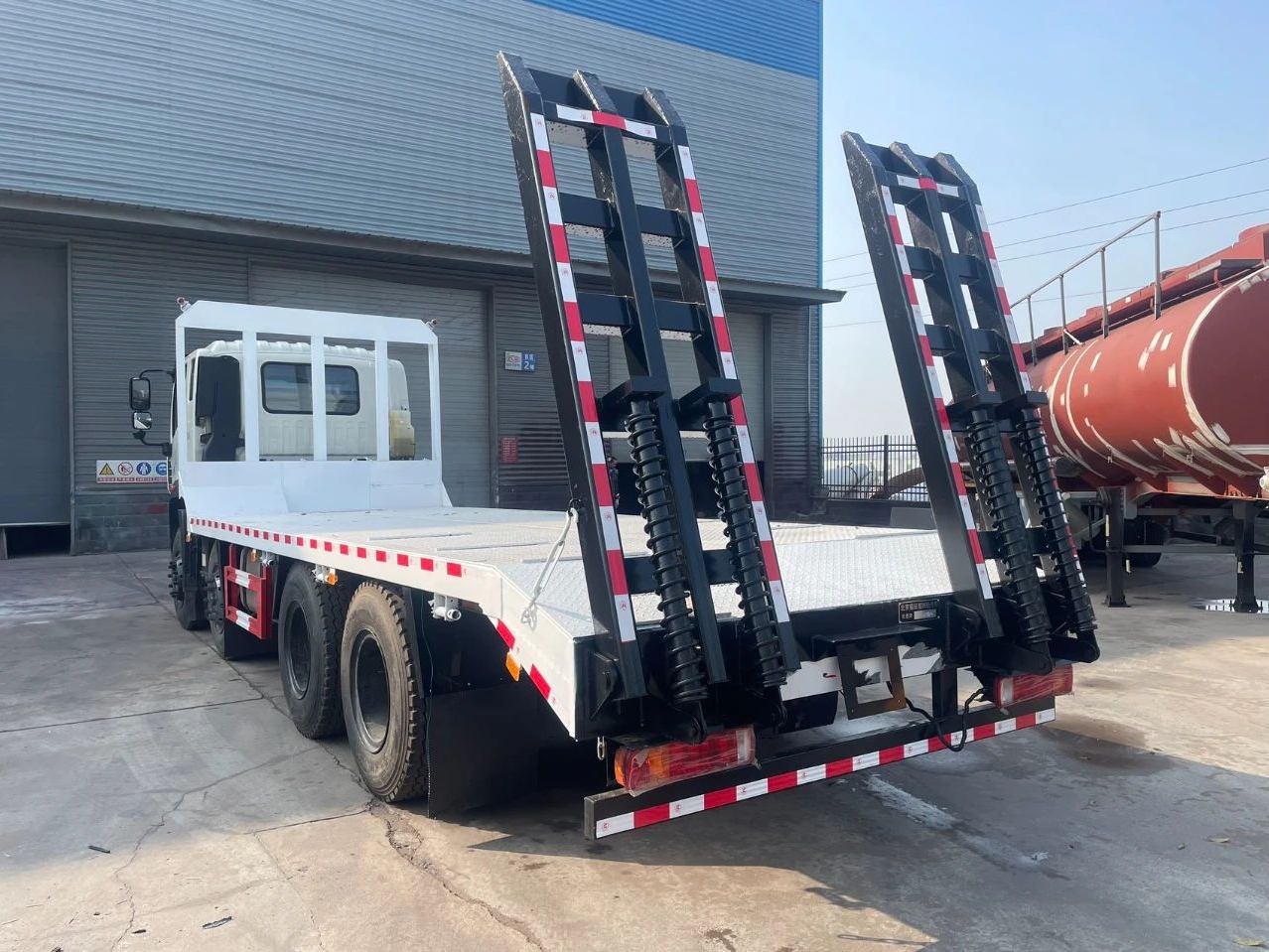

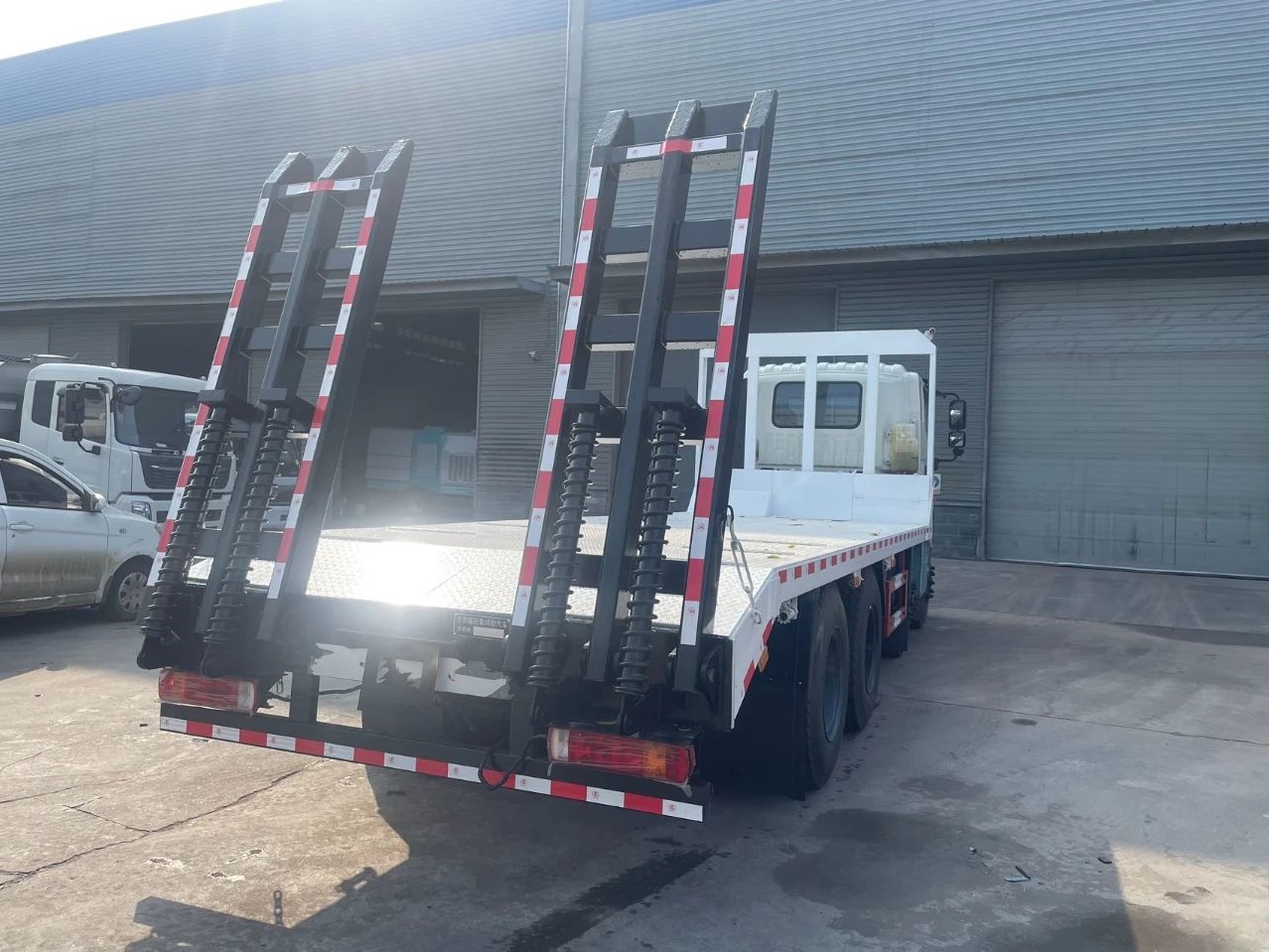

Upper configuration: 120 × 60 × 6 square tube, 8mm patterned plate, crossbeam connection using distance tube connection, overall stronger, more advanced technology, standard double spring ladder, optional single section or double section hydraulic ladder!
We have many different brands and tonnages of flatbed trucks, please feel free to inquire.
| Product Name | Foton Auman 8x4 flatbed truck |
| Cab | Foton Auman Planet cab, Four point suspension, electric flip, electric doors and windows, electric glass, airbag seats, multifunctional steering wheel, full-color LCD display screen, original air conditioning, electric defrosting rearview mirror, 350L aluminum alloy fuel tank. |
| Drive wheel | 8x4 |
| Steering wheel | Left/Right hand drive |
| Seat capacity | 2-3 person |
| Engine Model and displacement | BJ5311TPBY6GRS-02 and 7.69L |
| Gearbox | Fast 10-speed gearbox |
| Carframe | 286mm double layered frame |
| Wheel base | 2100+2850+1350(mm) |
| Axle numbers | 4 |
| Tire sepcification and quantity | 11.00R20 steel wire tire, 12 with 1 spare tire |
| Vehicle dimension | 9900,10500×2530×3230(mm) |
| Flatbed dimension | 8300x2530x_ |
| Gross vehicle weight(Kg) | 31000(Kg) |
| Curb weight(Kg) | 11530,12250,12650(Kg) |
| Rated weight(Kg) | 19340,18620,18220(Kg) |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Foton Auman 8x4 flatbed truck
A flatbed transport vehicle, also known as a flatbed trailer, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.
Main Parameter
