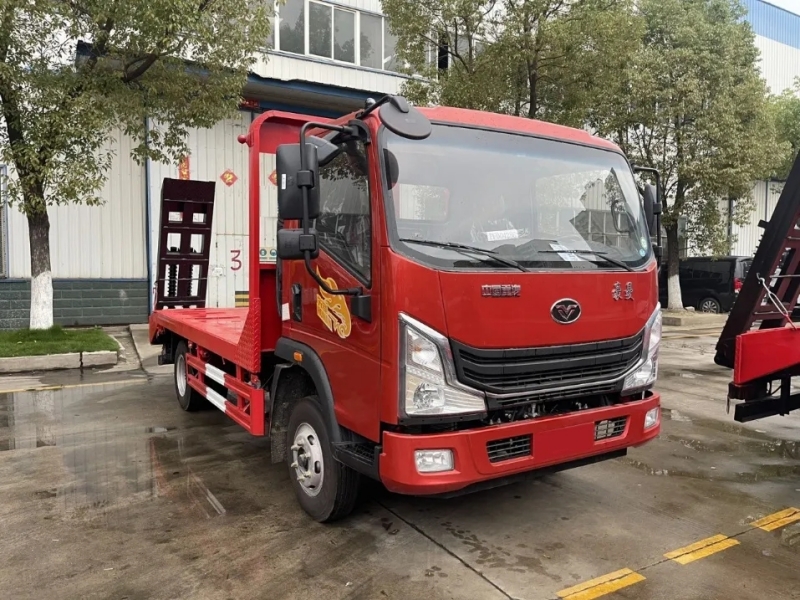

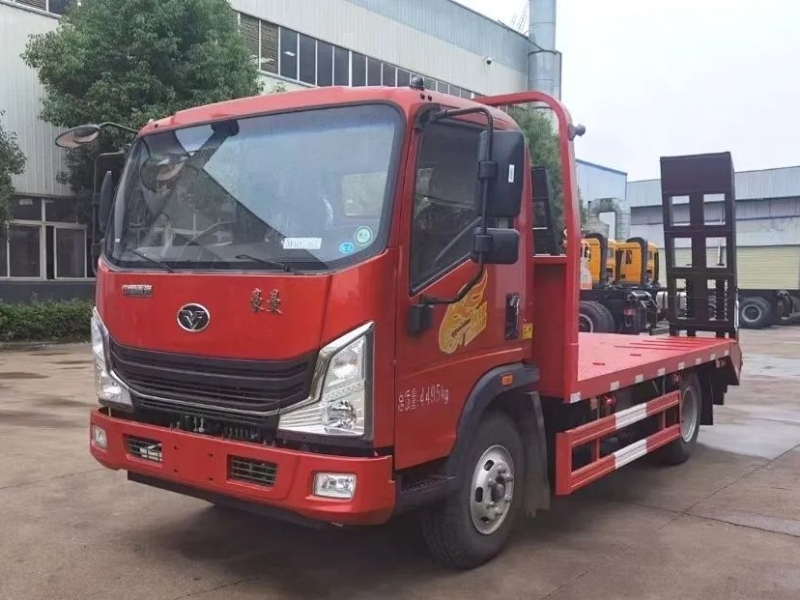

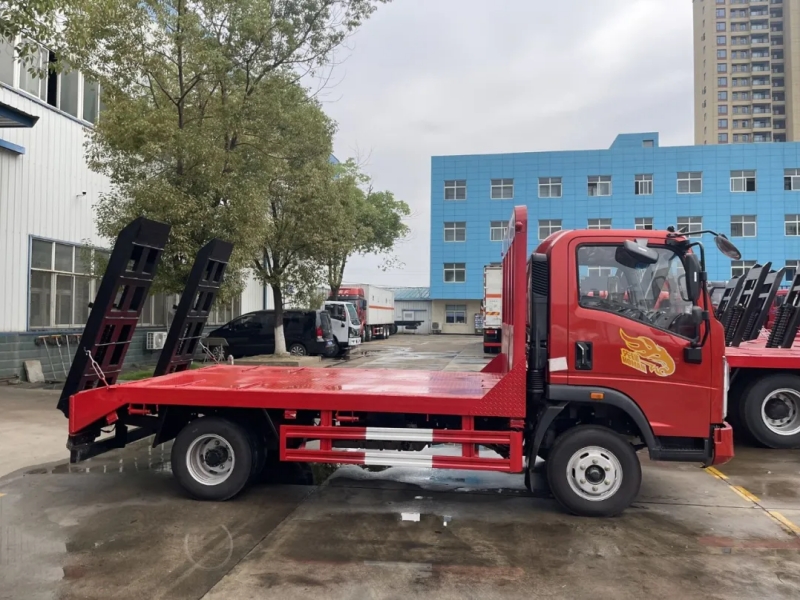

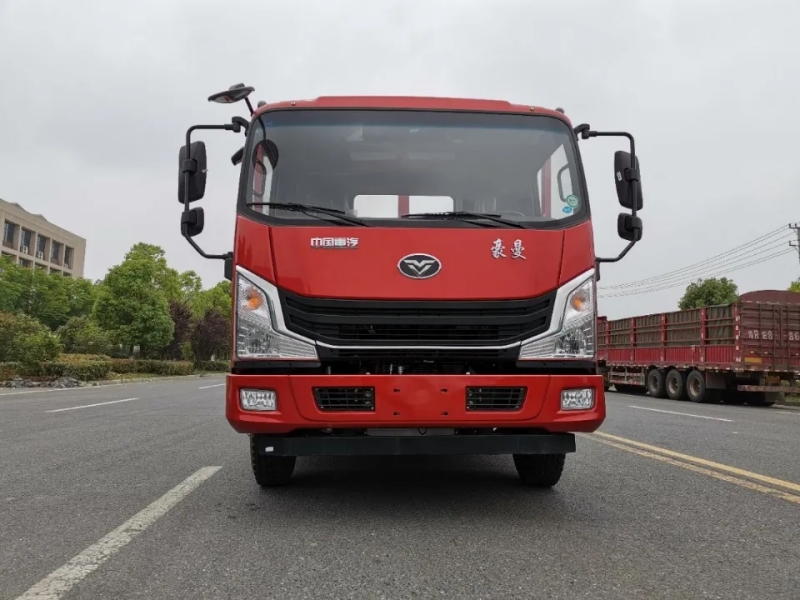

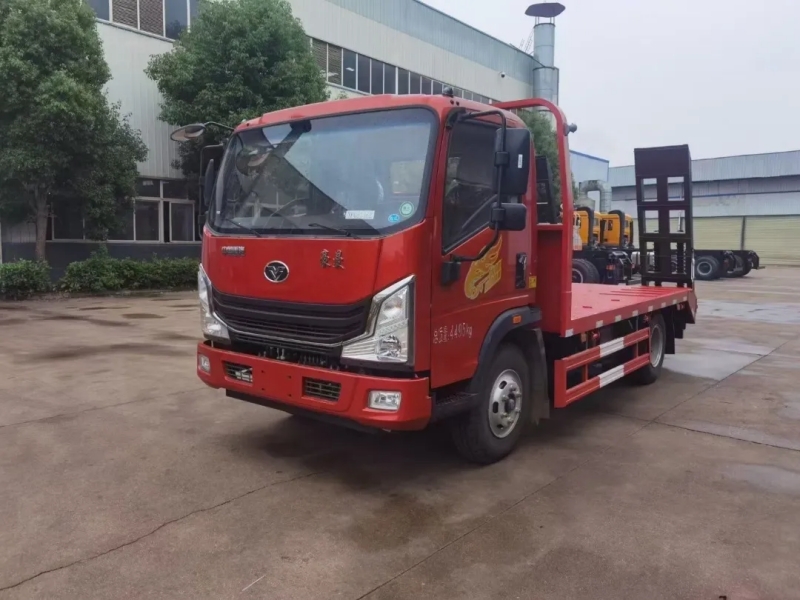

Sinotruk Homan 4x2 flatbed truck

Sinotruk Homan 4x2 flatbed truck

2024-09-18 10:36:10 Source：chusheng

Chassis configuration:

Cab: 2.1 meters, the widest in its class, with a large sleeper, fully equipped interior, and leather seats
Wheelbase: 3650mm
Engine: Weichai 160 horsepower WP3NQ160E61 four valve engine with an extended maintenance cycle of 20000 kilometers
Transmission: Fast 8-speed with high and low gears, high torque, strong starting and climbing ability
Rear axle: 8-ton engineering grade rear axle
Frame: Double layered straight through beam, super strong load-bearing capacity
Leaf spring: 11/9+7 load-bearing thickened multi plate leaf spring
Tire: 8.25R16 steel wire tire
Braking: air brake, shut-off brake, exhaust brake
Advantages: Multi functional steering wheel, cruise control, electrically controlled constant temperature air conditioning, fully soft interior, leather seats, electric doors and windows, power steering. Central control lock, remote key

Installation configuration:
Dimensions 6780 × 2430/2500 × 2750mm

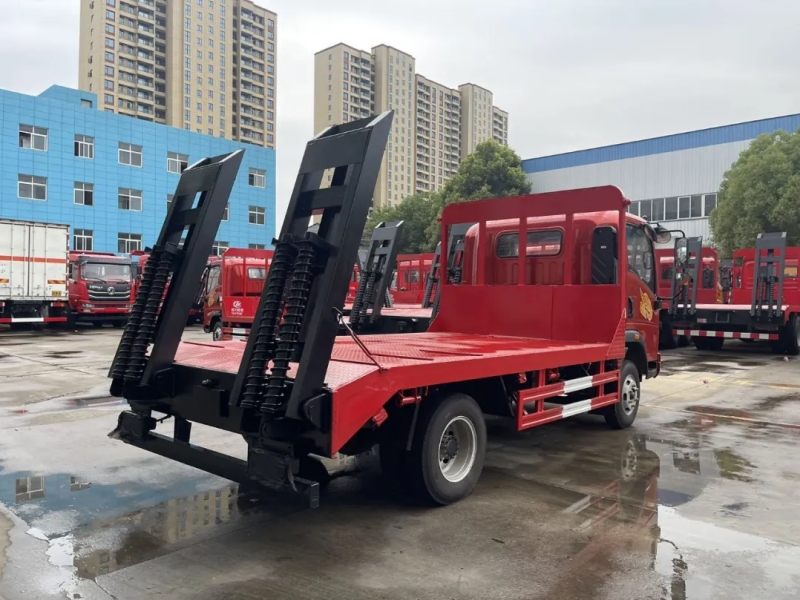

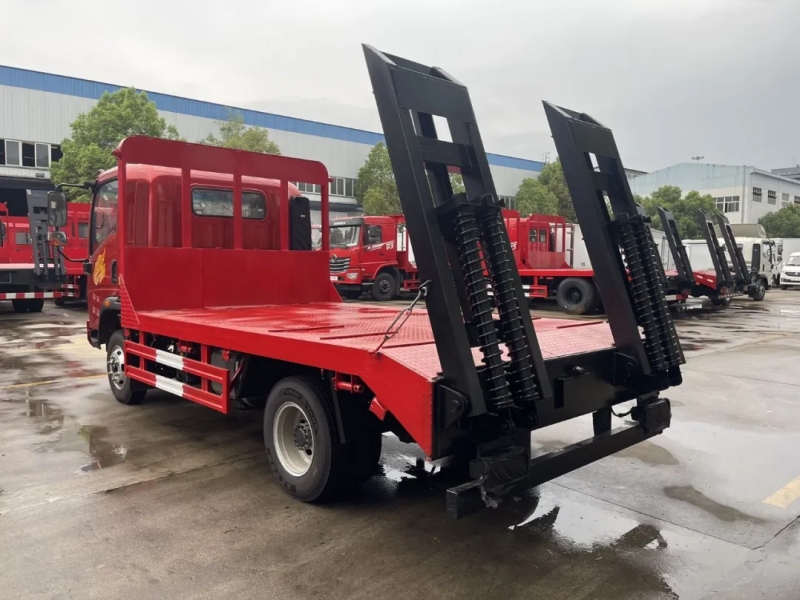

Board length of 4.7 meters including slope, capable of pulling excavators up to 13 tons

We have many different brands and tonnages of flatbed trucks, please feel free to inquire.

Product Name

Sinotruk Homan 4x2 flatbed truck

Cab

2.1 meters, the widest in its class, with a large sleeper, fully equipped interior, and leather seats

Drive wheel

4x2

Steering wheel

Left/Right hand drive

Seat capacity

2-3 person

Engine Model and displacement

Weichai 160 horsepower WP3NQ160E61

Gearbox

Fast 8-speed with high and low gears

Carframe

Double layered straight through beam, super strong load-bearing capacity

Wheel base

3650mm

Axle numbers

Tire sepcification and quantity

8.25R16 steel wire tire, 6 with 1 spare tire

Vehicle dimension

6780 × 2430/2500 × 2750mm

Flatbed dimension

4600x2300,2500,2545x-

Gross vehicle weight(Kg)

11200(Kg)

Curb weight(Kg)

4730,5200(Kg)

Rated weight(Kg)

6275,6340,5805,5870(Kg)

Notice

The above information is for reference only, and vehicles can be customized depending on your requirements.

Sinotruk Homan 4x2 flatbed truck

A flatbed transport vehicle, also known as a flatbed trailer, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.

Main Parameter
