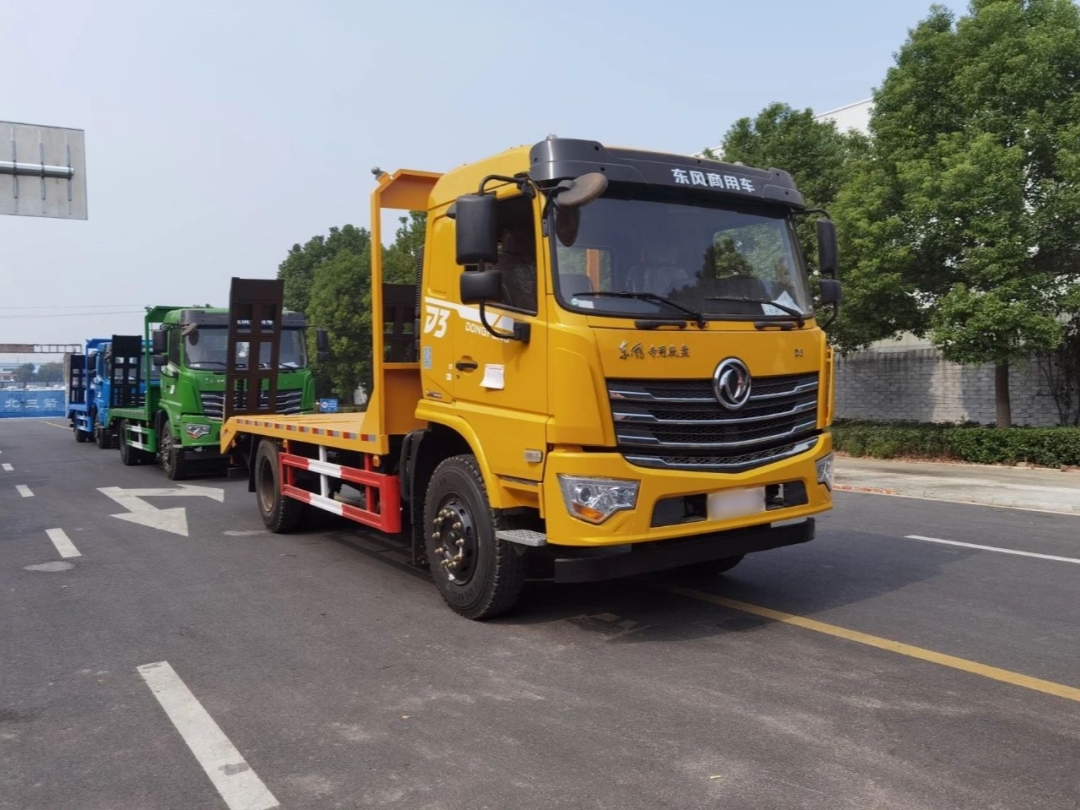

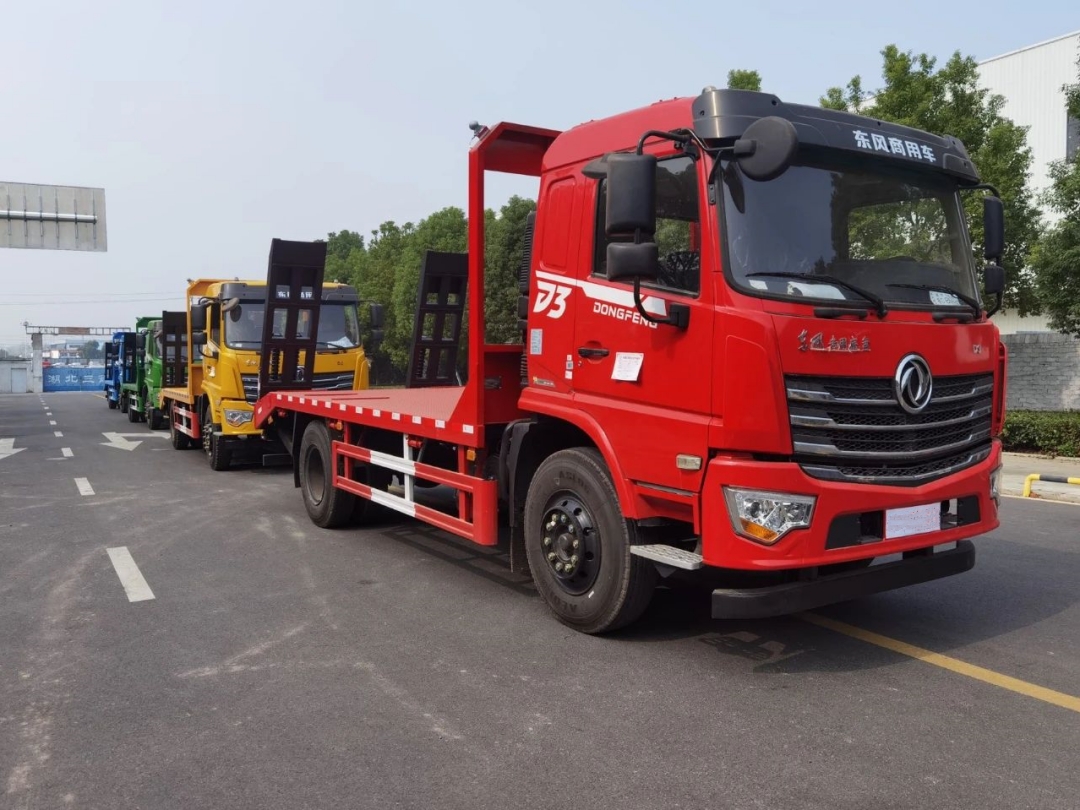

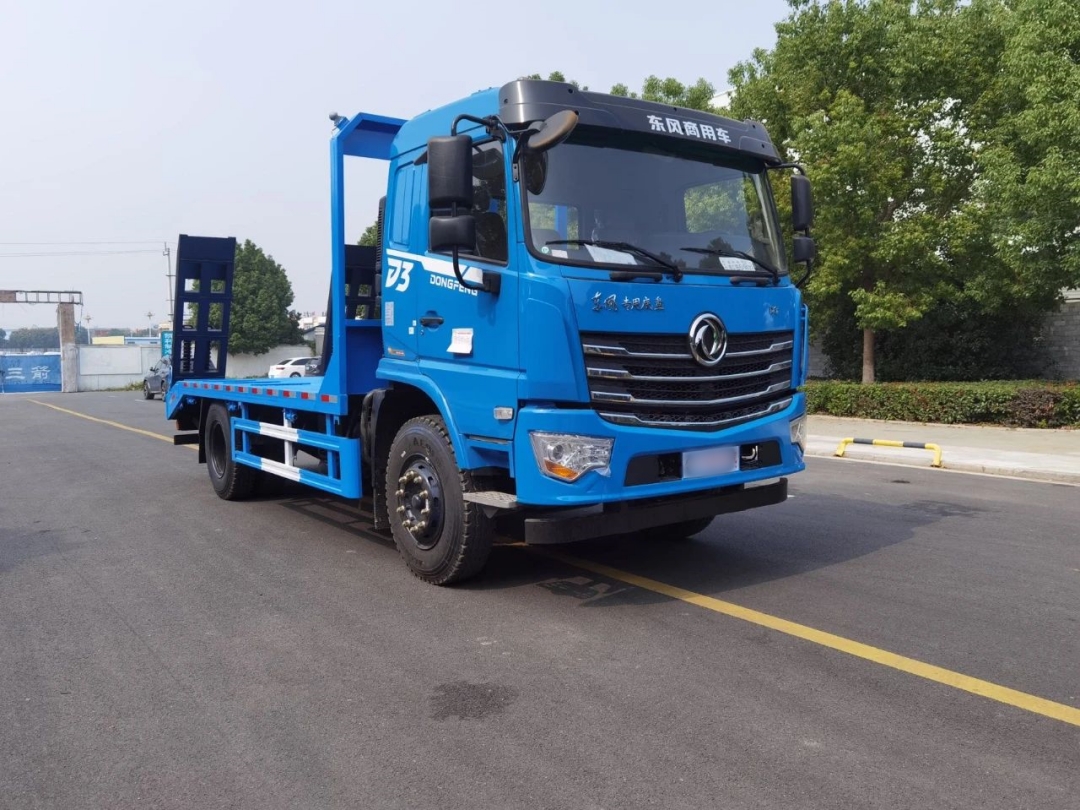

Dongfeng D3 4x2 flatbed truck
Chassis configuration:
Yuchai 200 horsepower national 64 cylinder engine, 4200/4500/5100 wheelbase, Fast 8-speed high-low gearbox, 250 double-layer beam, 1000R20 steel tires, 9/10 ton rear axle, multifunctional steering wheel, factory air conditioning, airbag seats, central locking, electric doors and windows. Vehicle dimensions: 780084159000 × 2550 × 3050.
Installation configuration:
The upper part is made of 100 * 100 square steel, 5mm thick patterned plate, and double spring ladder. The total weight is 18 tons, with a rated weight of 11.105 tons and a curb weight of 6.7 tons. (Optional pure straight board, single cylinder single section, double section folding hydraulic ladder.)
We have many different brands and tonnages of flatbed trucks, please feel free to inquire.
| Product Name | Dongfeng D3 4x2 flatbed truck |

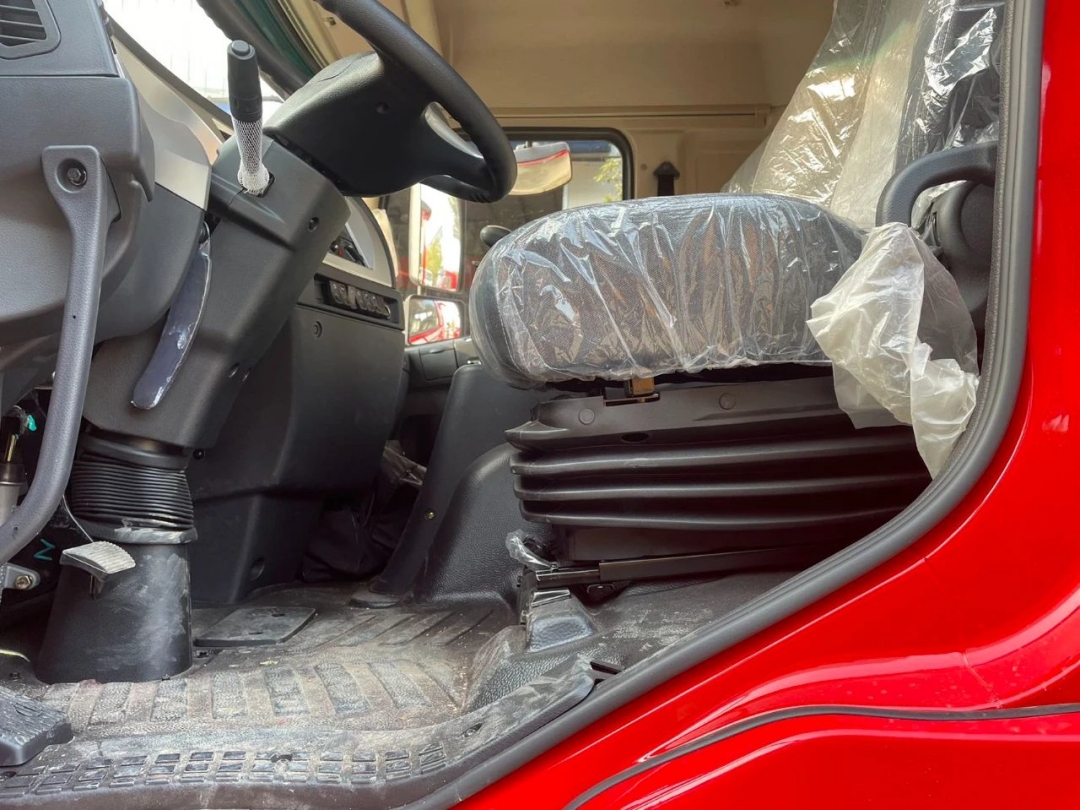

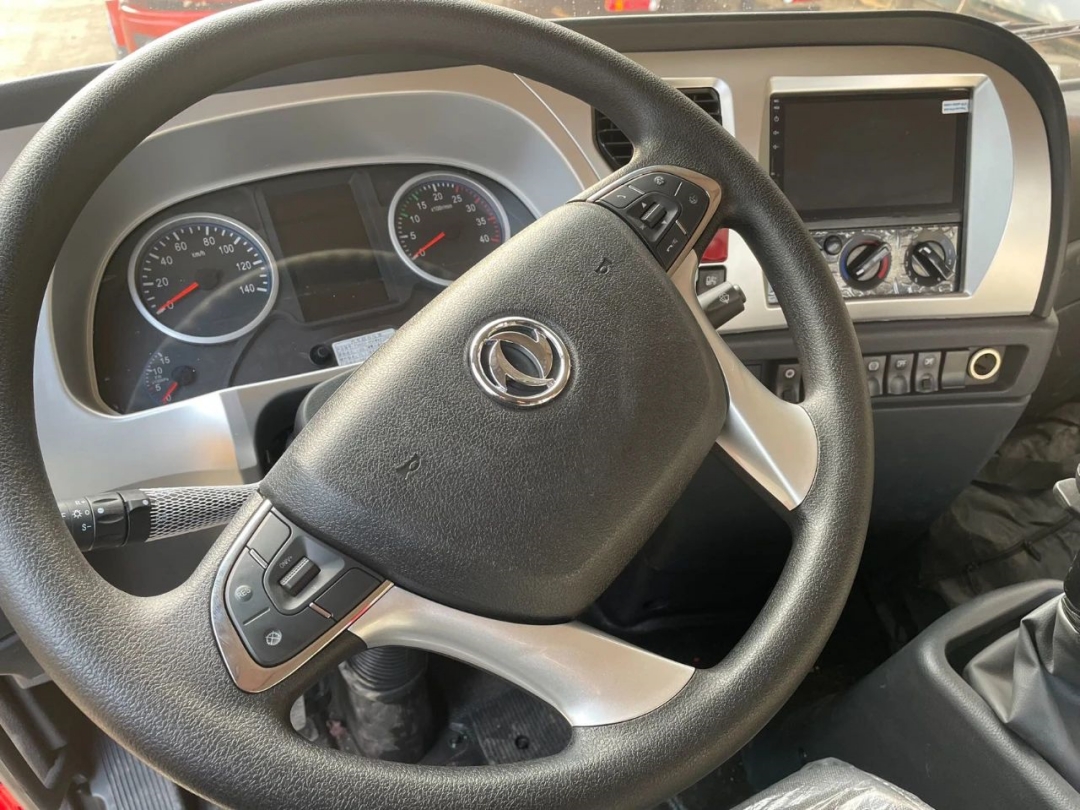

| Cab | Dongfeng D3 cab, Multi functional steering wheel, original air conditioning, airbag seats, central locking system, electric doors and windows |
| Drive wheel | 4x2 |
| Steering wheel | Left/Right hand drive |
| Seat capacity | 2-3 person |
| Engine Model and displacement | DFV5183TPBGP6D and 4.15L |
| Gearbox | Fast 8-speed high and low speed gearbox |
| Carframe | 250mm double layered frame |
| Wheel base | 4200/4500/5100(mm) |
| Axle numbers | 2 |
| Tire sepcification and quantity | 1000R20 steel wire tire, 6 with 1 spare tire |
| Vehicle dimension | 7800,8415,9000,8000,7250,7400×2550,2500×2960,3050,3150(mm) |
| Flatbed dimension | / |
| Gross vehicle weight(Kg) | 18000(Kg) |
| Curb weight(Kg) | 6700,7350(Kg) |
| Rated weight(Kg) | 11105,11170,10455,10520(Kg) |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng D3 4x2 flatbed truck
A flatbed transport vehicle, also known as a flatbed trailer, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.
Main Parameter
