Advantage
1. Special chassis for flatbed transport vehicles, video recorder, with middle seat, central locking, cruise control system, and emergency steering.
2. U-shaped post-processing unit, iron air storage cylinder, 150Ah battery electric control silicone oil fan clutch, speed limit 89KM/H, ABS.

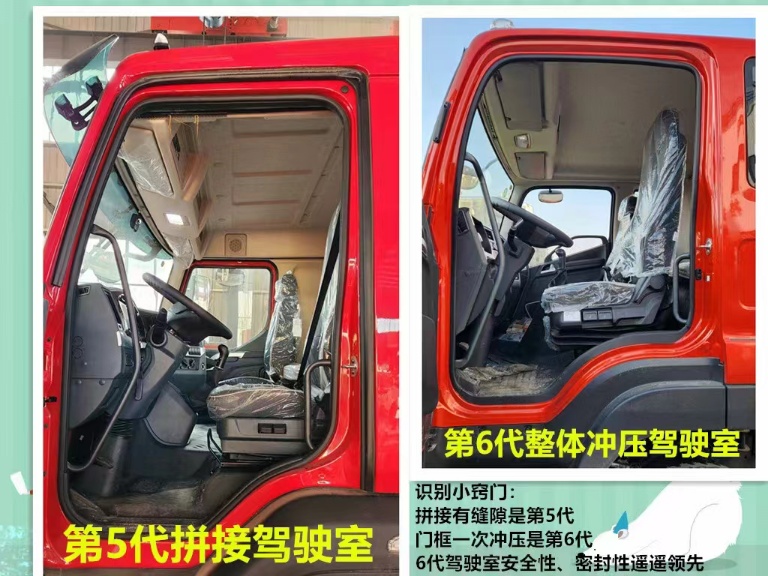

3. The sixth generation cab of the actual vehicle is far ahead in terms of sealing and safety.

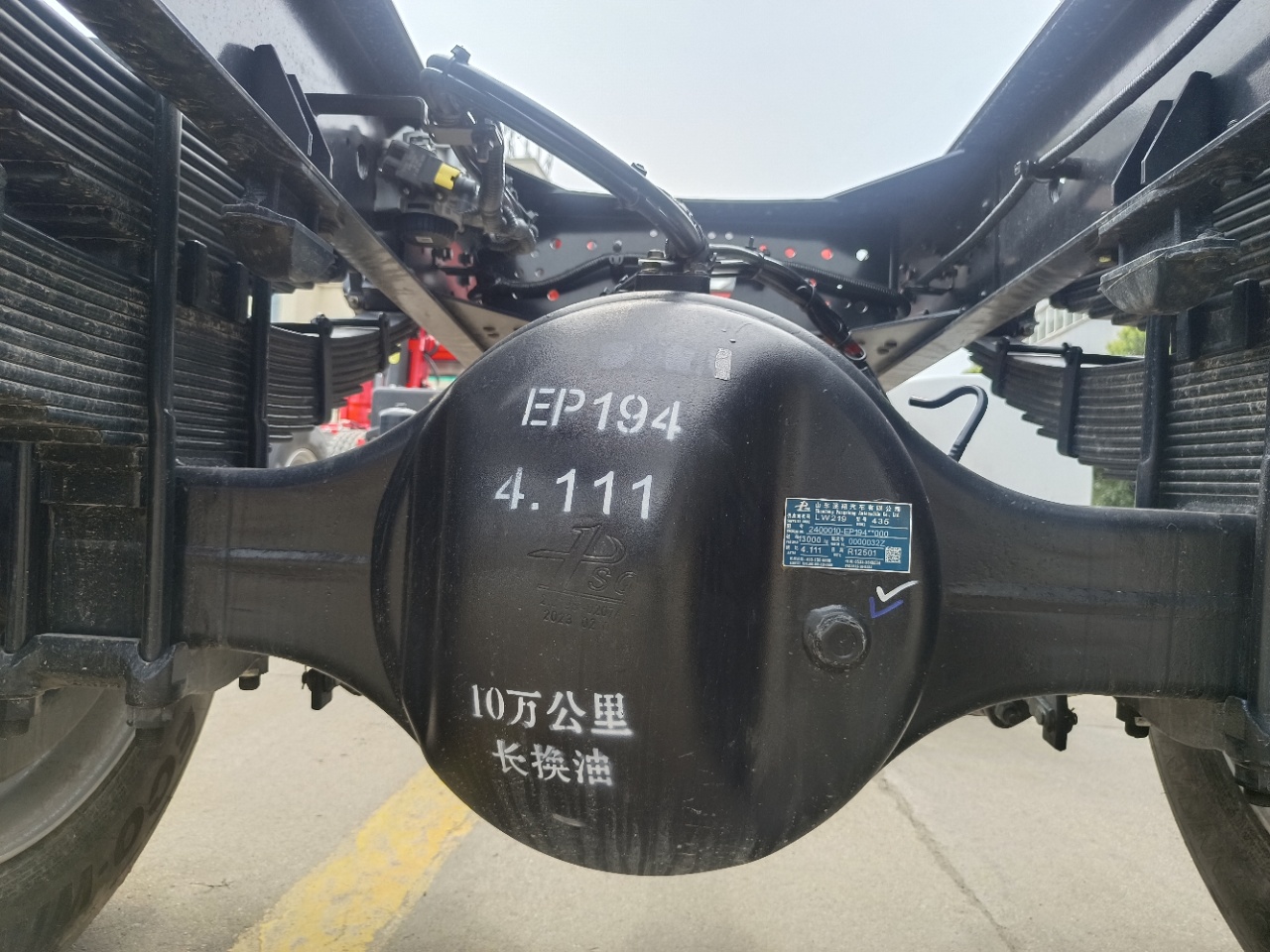

4. 11.5 ton rear axle+gearbox axle long oil change 6/10/100000 kilometers, with differential lock, saving maintenance and upkeep costs.

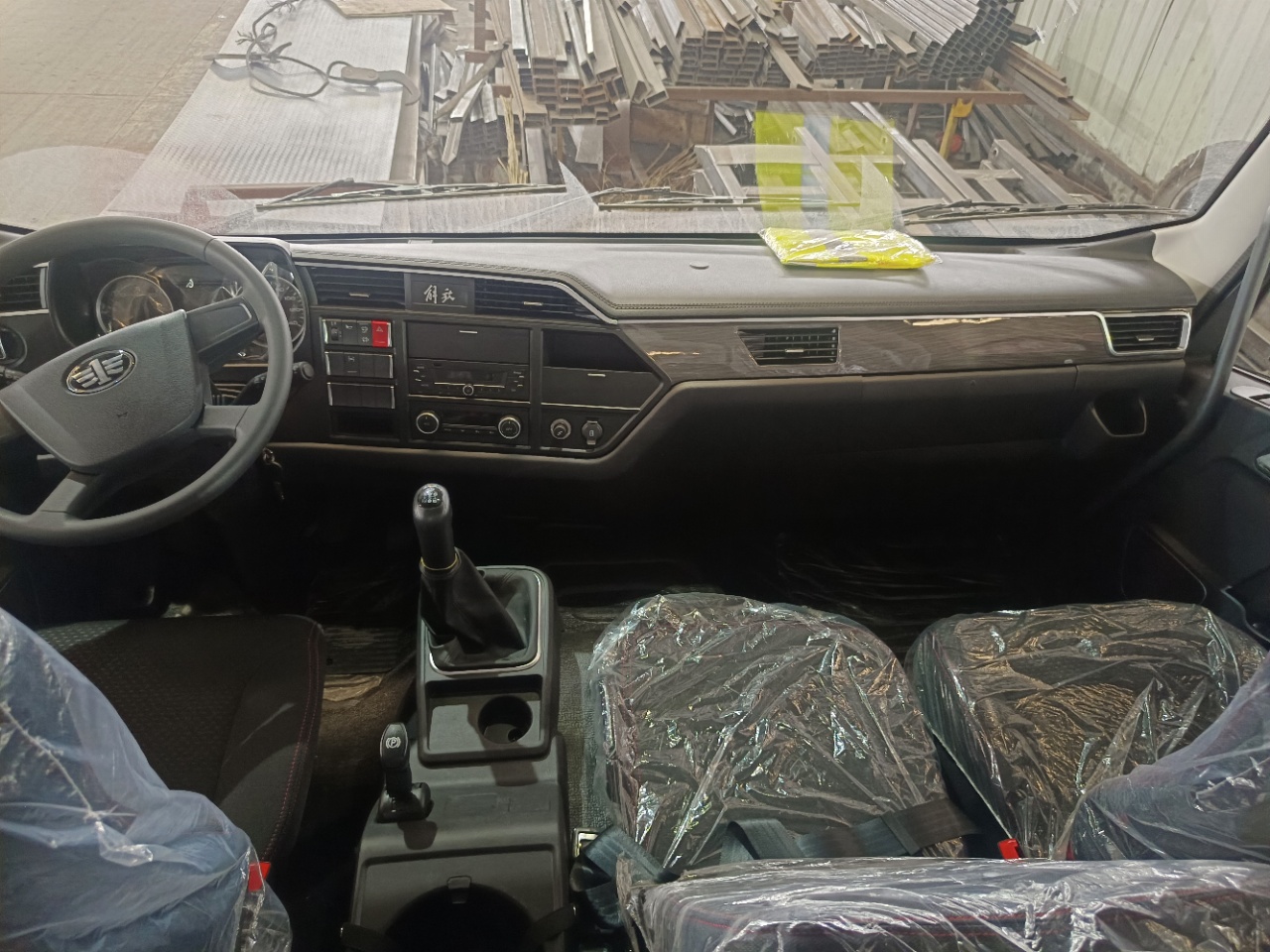

5. The interior is simple and smooth, with a wide field of view, air conditioning, video recorder, central locking system, cruise control system, and a middle seat (which can be folded down to serve as a small coffee table).
We have many different brands and tonnages of flatbed trucks, please feel free to inquire.
| Product Name | Jiefang JK6 6X2 flat truck |
| Chassis brand | Jiefang |
| Cab | JK6 flat top fully floating cab |
| Drive wheel | 6X2 |
| Steering wheel | Left/Right hand drive |
| Seat capacity | 2-3 person |
| Engine Model and displacement | YCS06270-61 and 6.23L |
| Gearbox | 9 forward gears and 1 reverse gear |
| Carframe | double layered frame |
| Wheel base | 1900+4700(mm) |
| Front wheel track | 1965/1965(mm) |
| Rear wheel track | 1878(mm) |
| Approach angle/departure angle | 20/15(°) |
| Front/rear suspension | 1410/3090,1410/2590,1410/2490,1410/2890,1410/2990,1410/3490,1410/3390(mm) |
| Axle numbers | 3 |
| F/R axle load | 6750/6750/11500 |
| Tire sepcification and quantity | 295/60R22.5 18PR, 8 with 1 spare tire |
| Vehicle dimension | 11500x2550x3300(mm) |
| Flatbed dimension | 9000x2550,2500x_____(mm) |
| Gross vehicle weight(Kg) | 25000(Kg) |
| Curb weight(Kg) | 10700(Kg) |
| Rated weight(Kg) | 14170(Kg) |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Product Introduction
A flatbed transport vehicle, also known as a flatbed trailer, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.
Main Parameter
