Core advantages:
1. Pulling 21 tons without overloading, suitable for long-distance transportation.
2. The transportation cost is 40% lower than that of a semi-trailer, and the purchase cost is 50% lower.
We have many different brands and tonnages of flatbed trucks, please feel free to inquire.

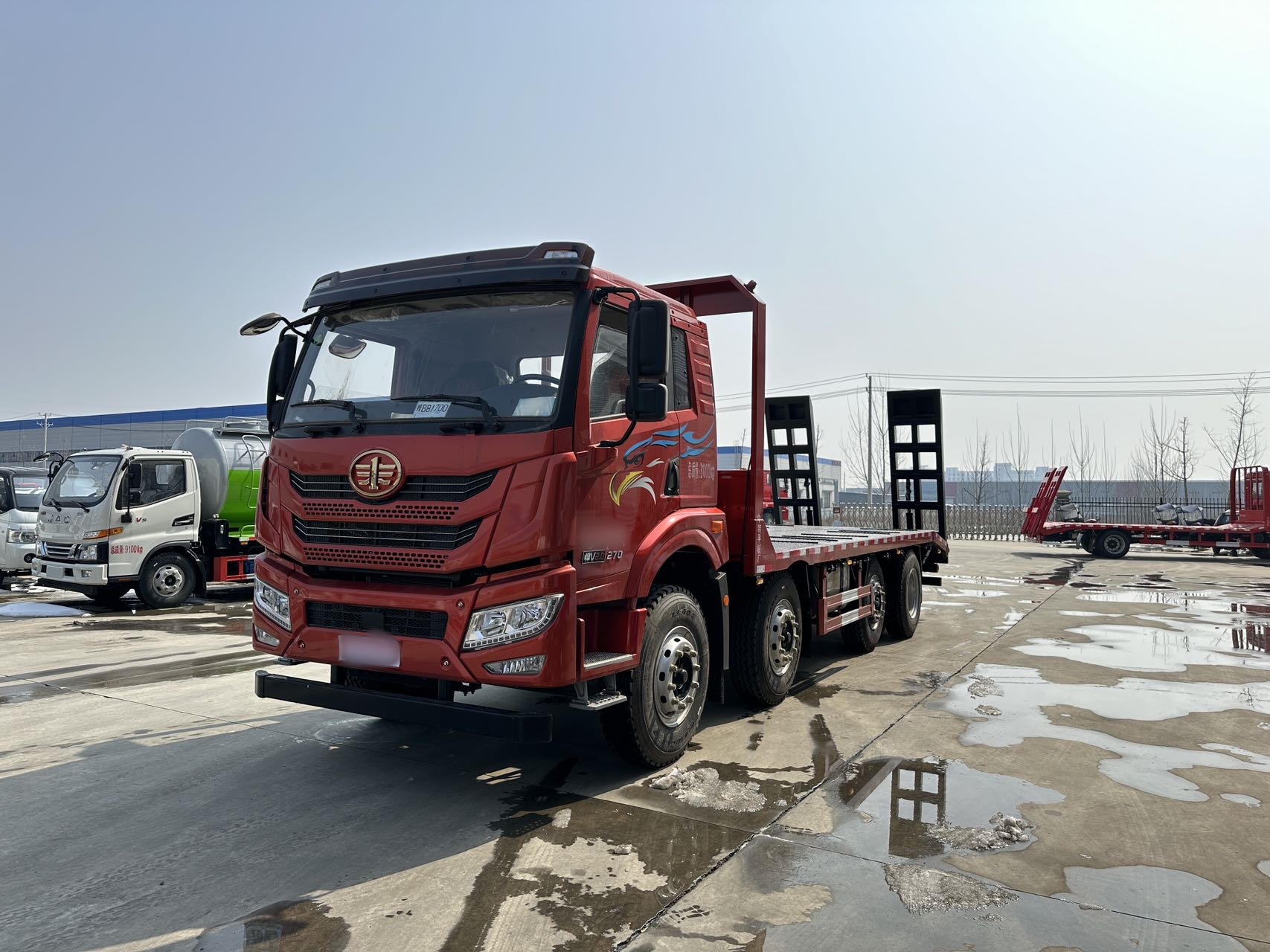

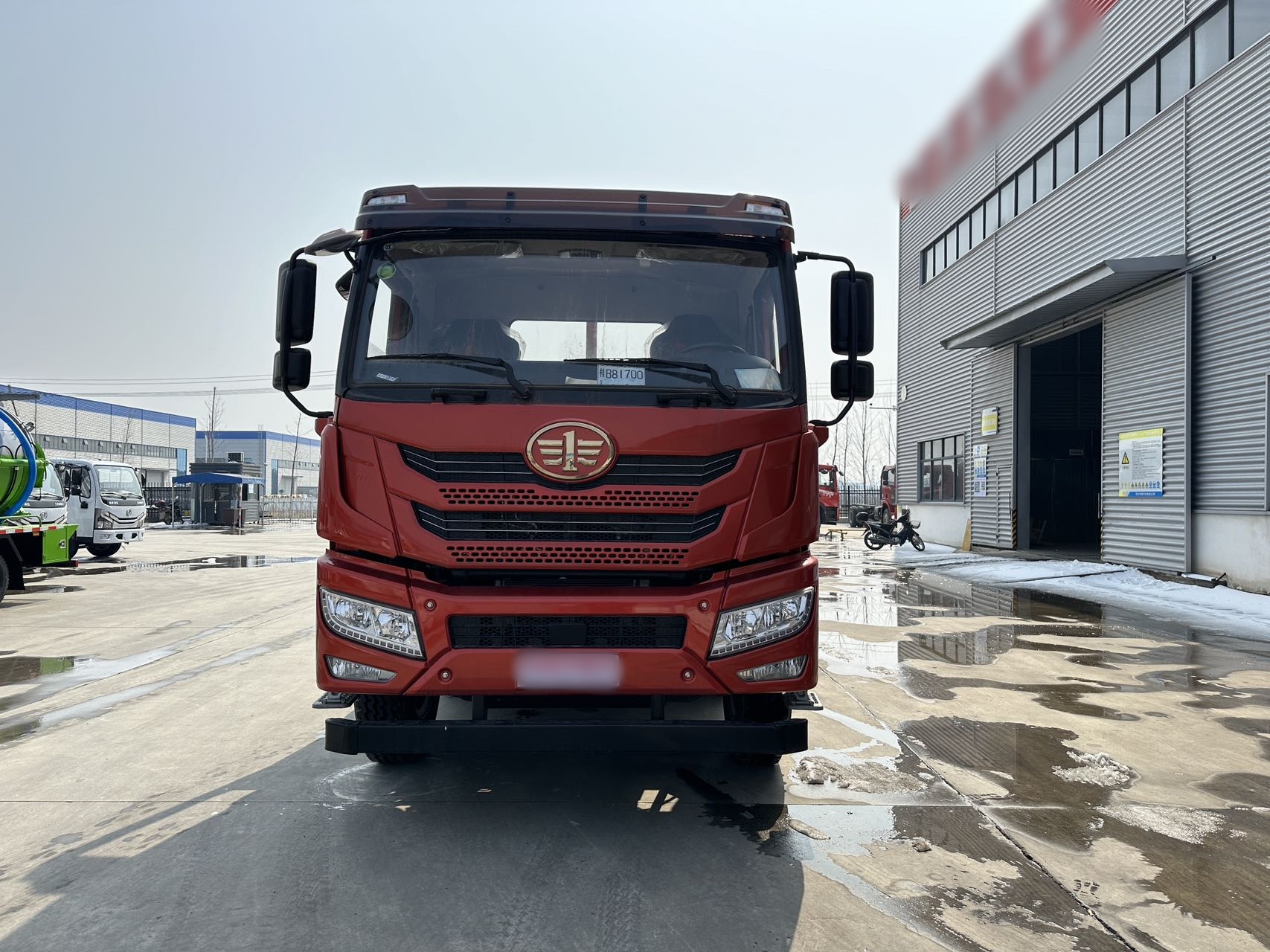

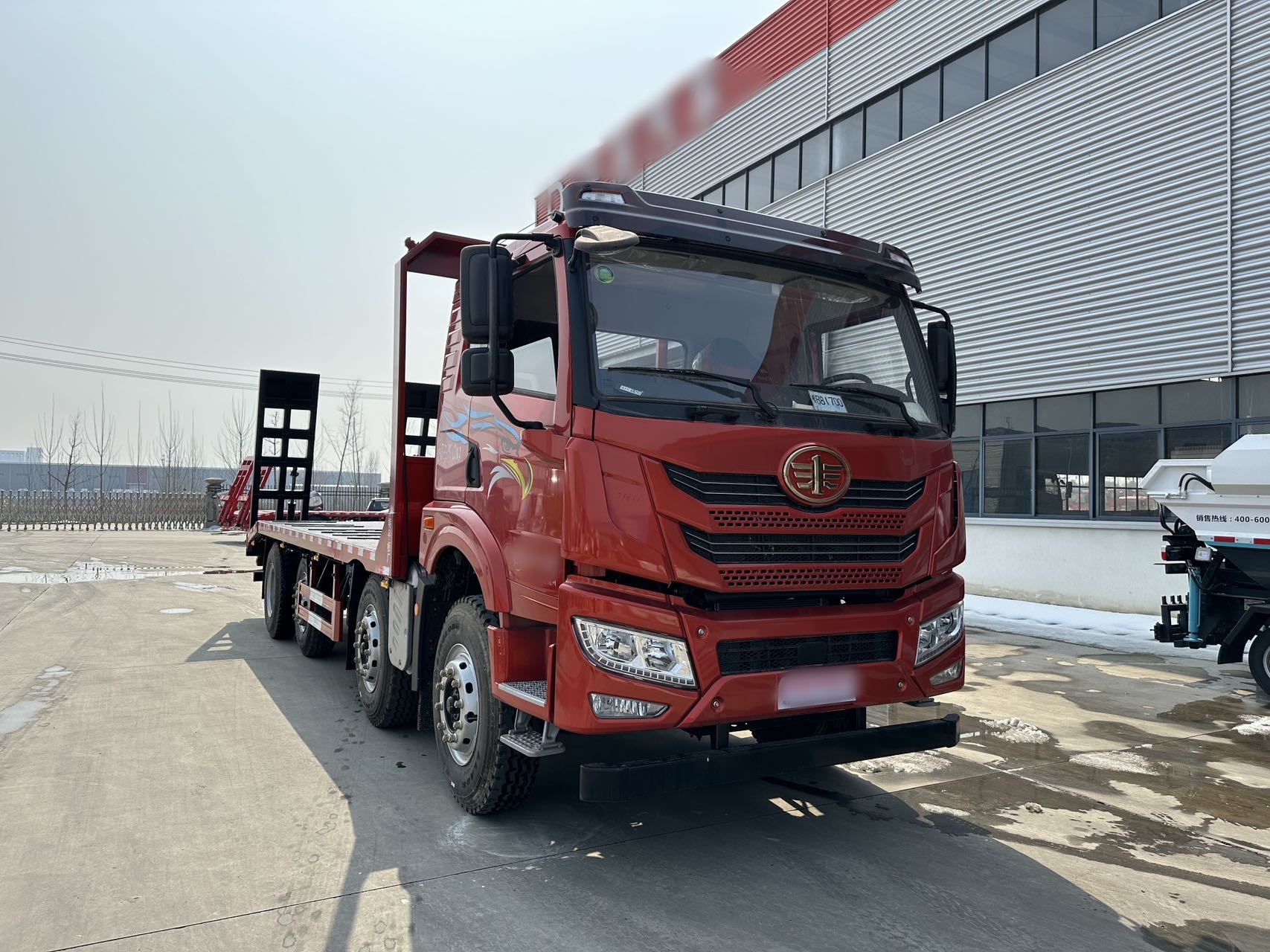

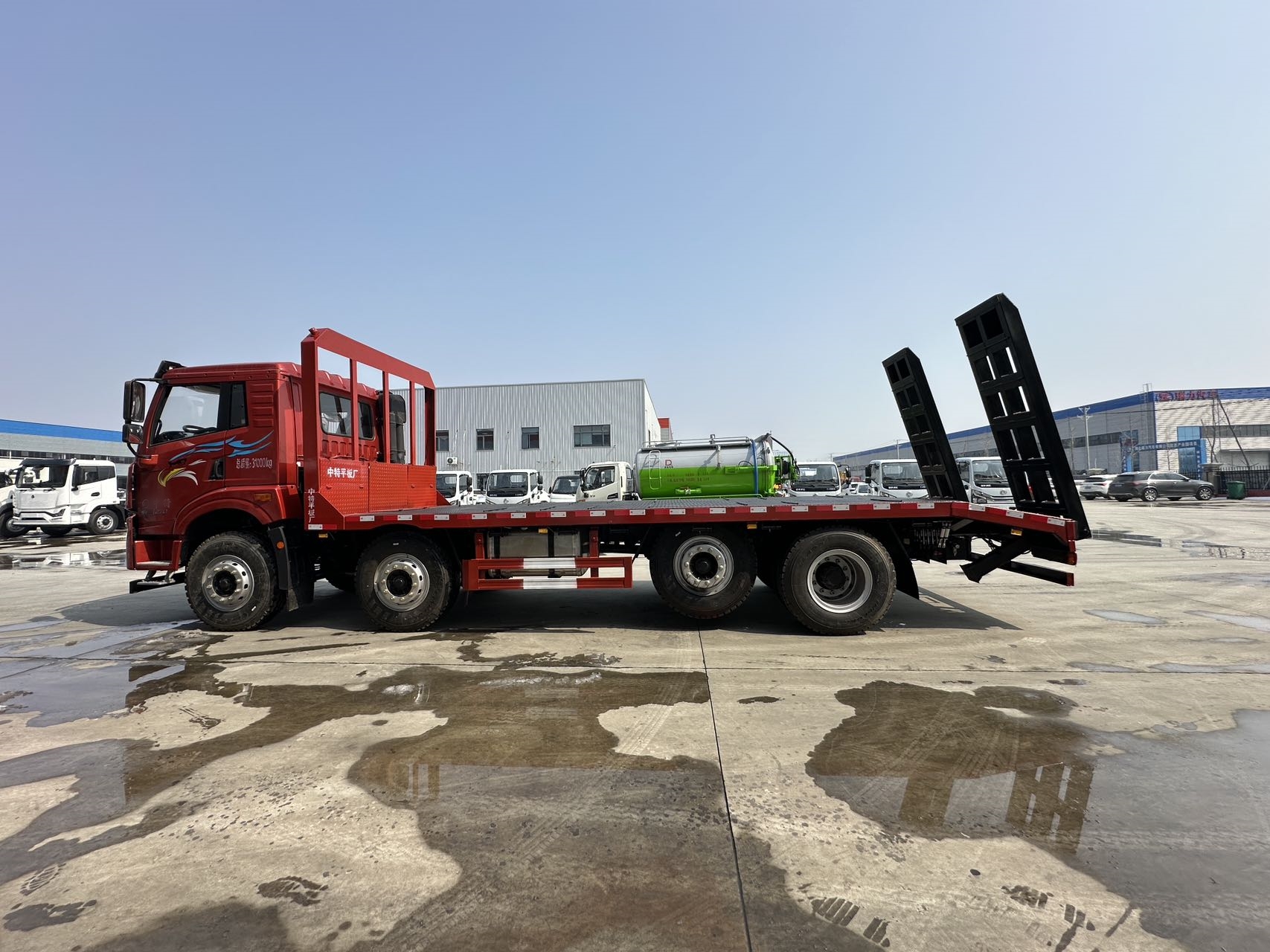

| Product Name | Jiefang 8X2 21T platform trailer, flat truck |
| Chassis brand | Jiefang |

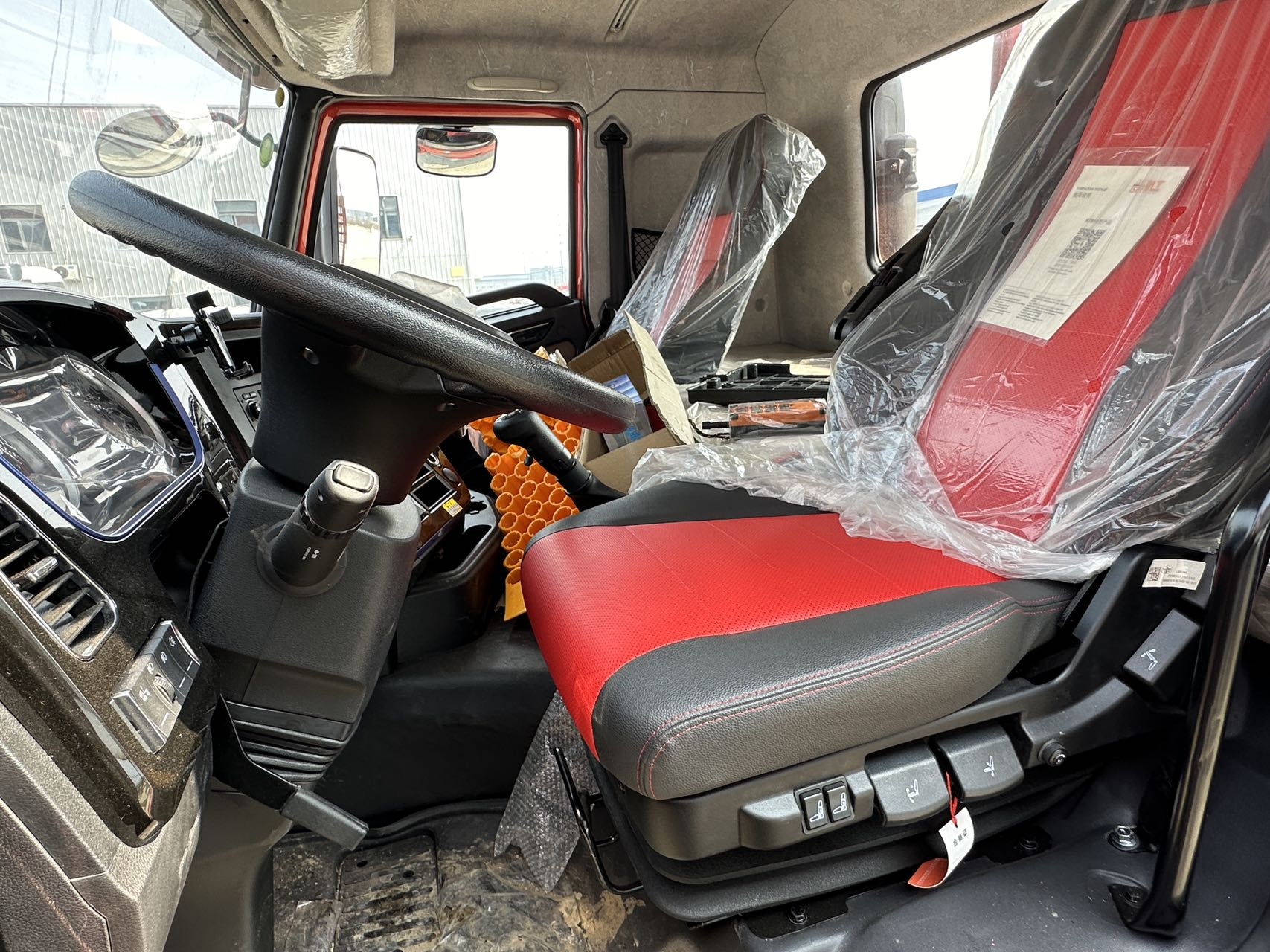

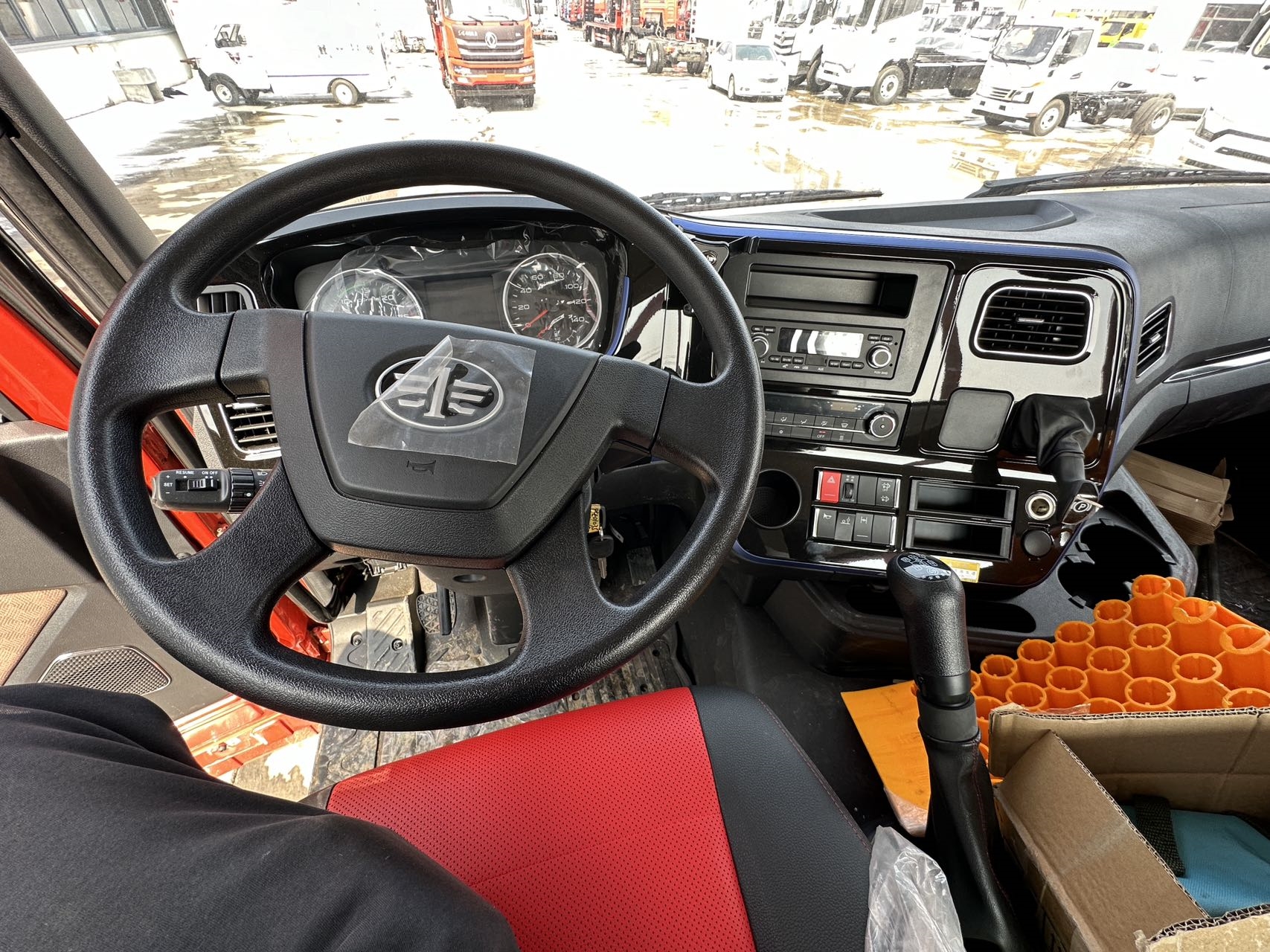

| Cab | Four point suspension cab |
| Drive wheel | 8X2 |
| Steering wheel | Left/Right hand drive |
| Seat capacity | 2-3 person |
| Engine Model and displacement | YCS06270-60 and 6.23L |
| Gearbox | 10 forward gears and 1 reverse gear |
| Carframe | 280*80*（8+5）double layered frame |

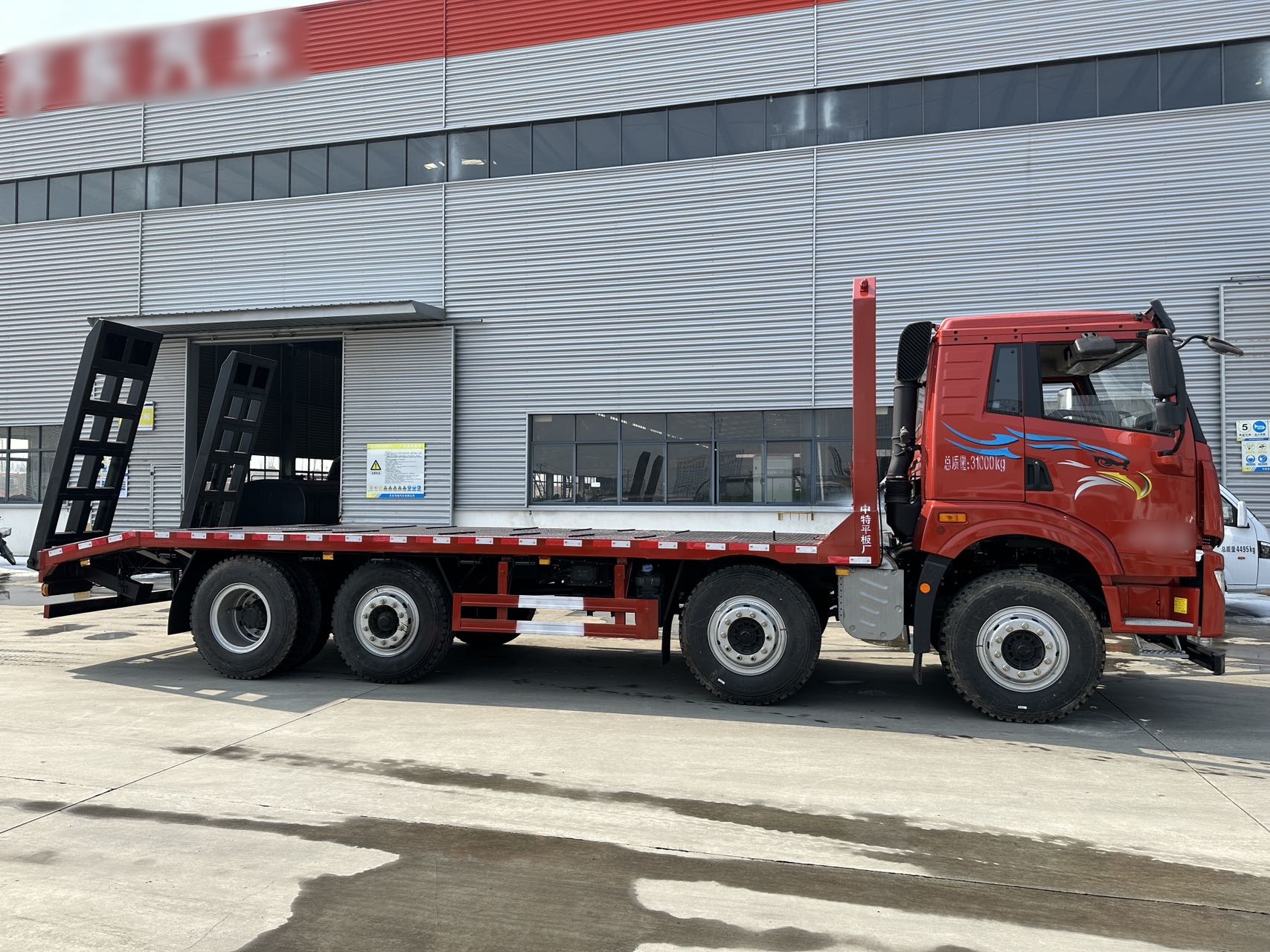

| Wheel base | 1900+3050+1300,1900+3750+1300(mm) |
| Front wheel track | 1940/1940, 2020/2020(mm) |
| Rear wheel track | 1940/1878,1940/1760(mm) |
| Approach angle/departure angle | 16/13,16/10(°) |
| Front/rear suspension | 1375/2375,1375/2675(mm) |
| Axle numbers | 4 |
| F/R axle load | 6500/6500/18000 |
| Tire sepcification and quantity | 11.00R20 18PR, 10 with 1 spare tire |
| Vehicle dimension | 10000,11000×2550×3200,3300,3400mm (mm) |

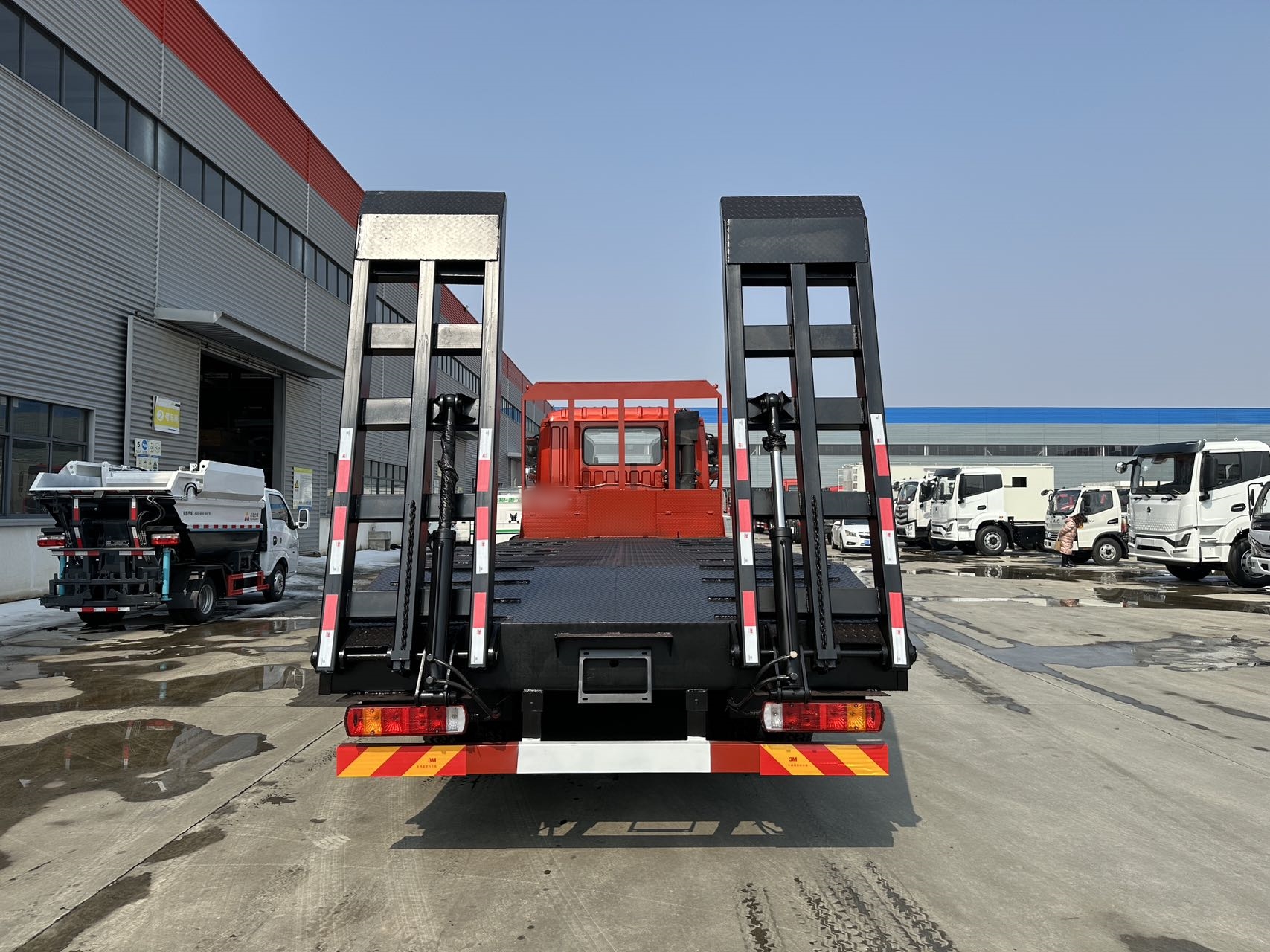

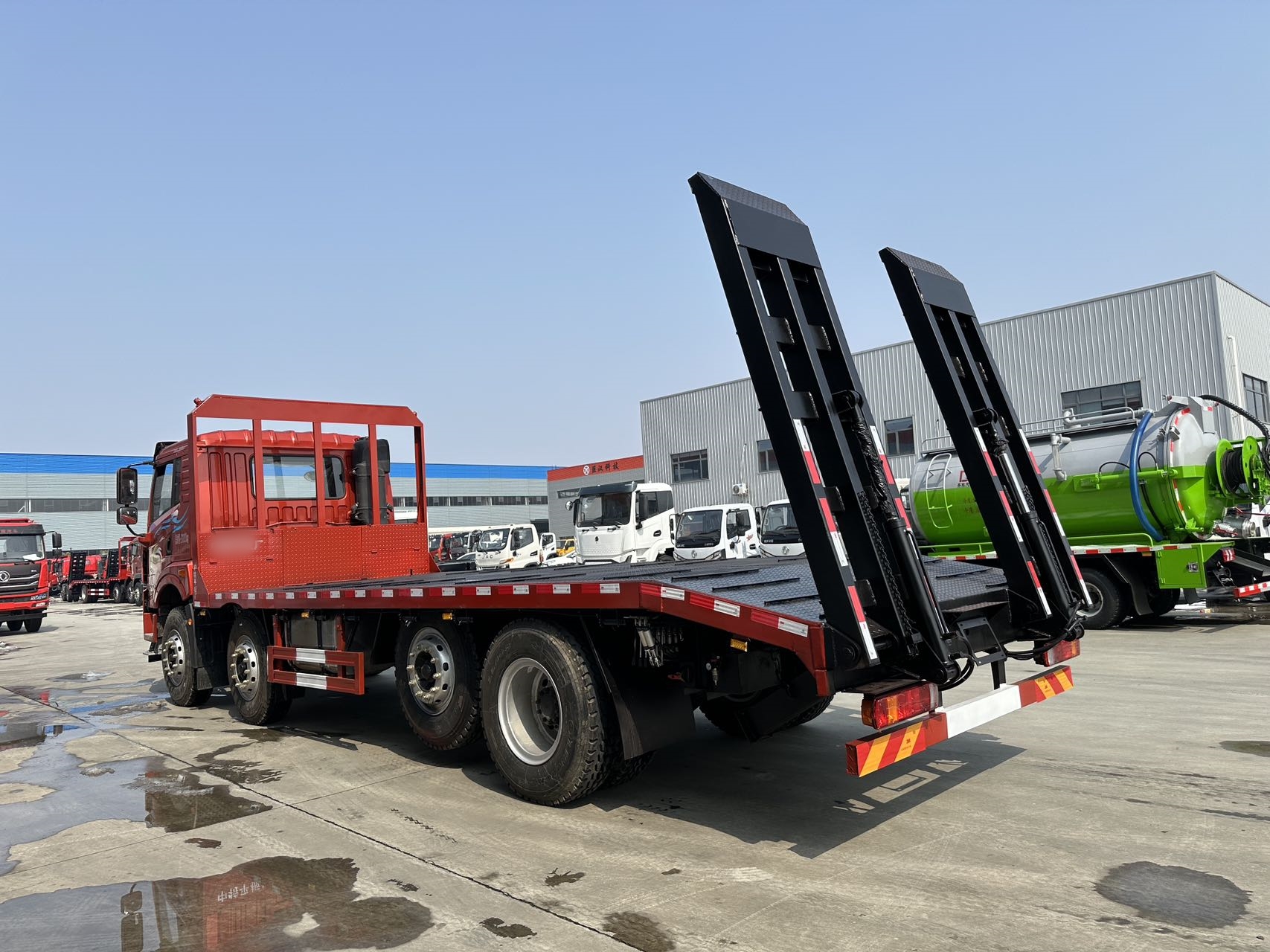

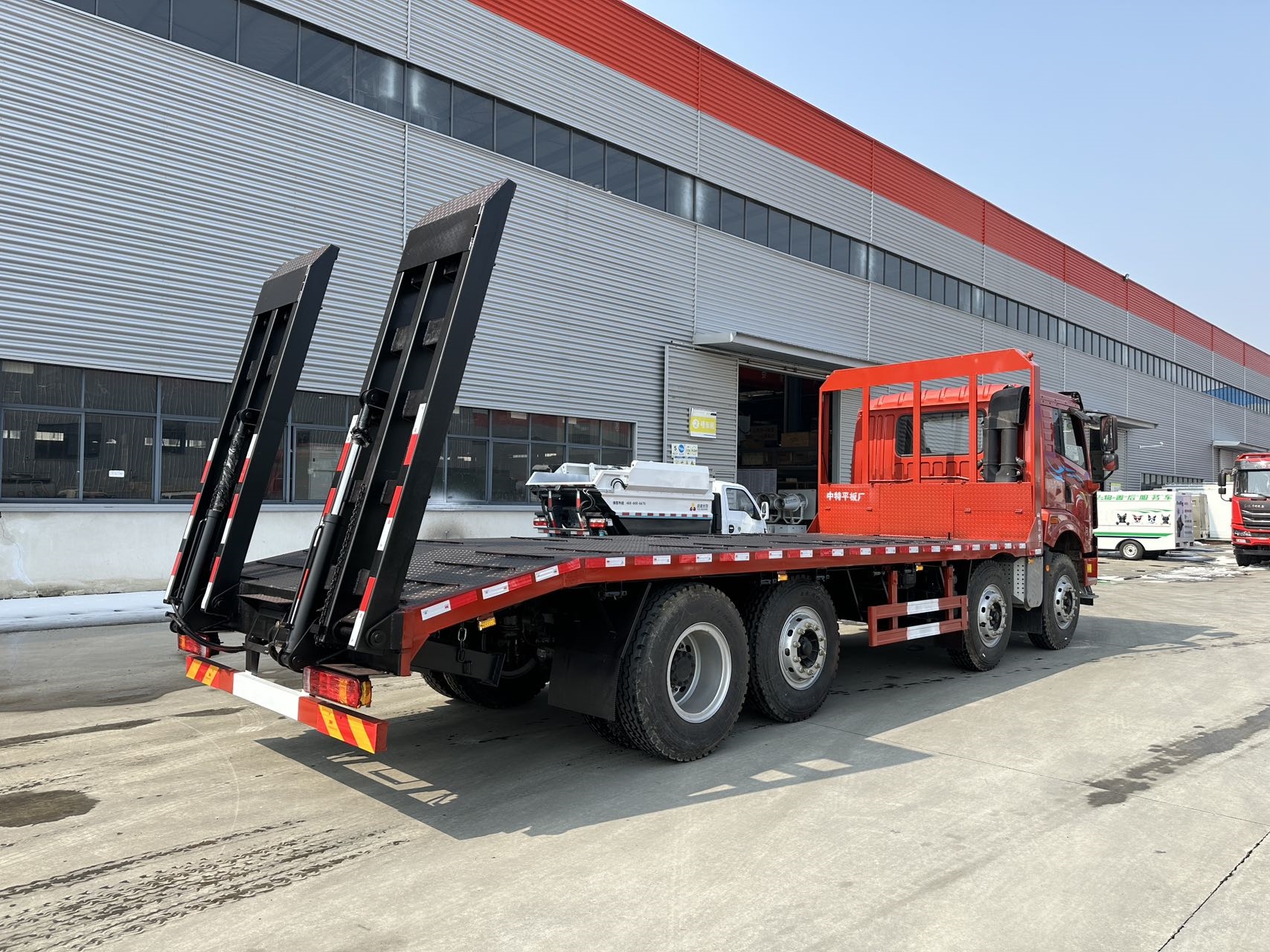

| Flatbed dimension | 7700x6700x2550x_____(mm) |
| Gross vehicle weight(Kg) | 31000(Kg) |
| Curb weight(Kg) | 10800,11870(Kg) |
| Rated weight(Kg) | 20070,20005,19000,18935(Kg) |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Product Introduction
A flatbed transport vehicle, also known as a flatbed trailer, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.
Main Parameter
