Classification of flatbed trucks
By drive type: 4×2 flatbed trucks,6×2 flatbed trucks,6×4 flatbed trucks,8×2flatbed trucks,8×4flatbed trucks。
By load capacity: from 5t to 30tflatbed trucks.
By chassis brand: Dongfengflatbed trucks, Jiefangflatbed trucks, JACflatbed trucks, HOWOflatbed trucks, Sinotrukflatbed trucks, FOTONflatbed trucks, etc.
We have many different brands and tonnages of flatbed trucks, please feel free to inquire.

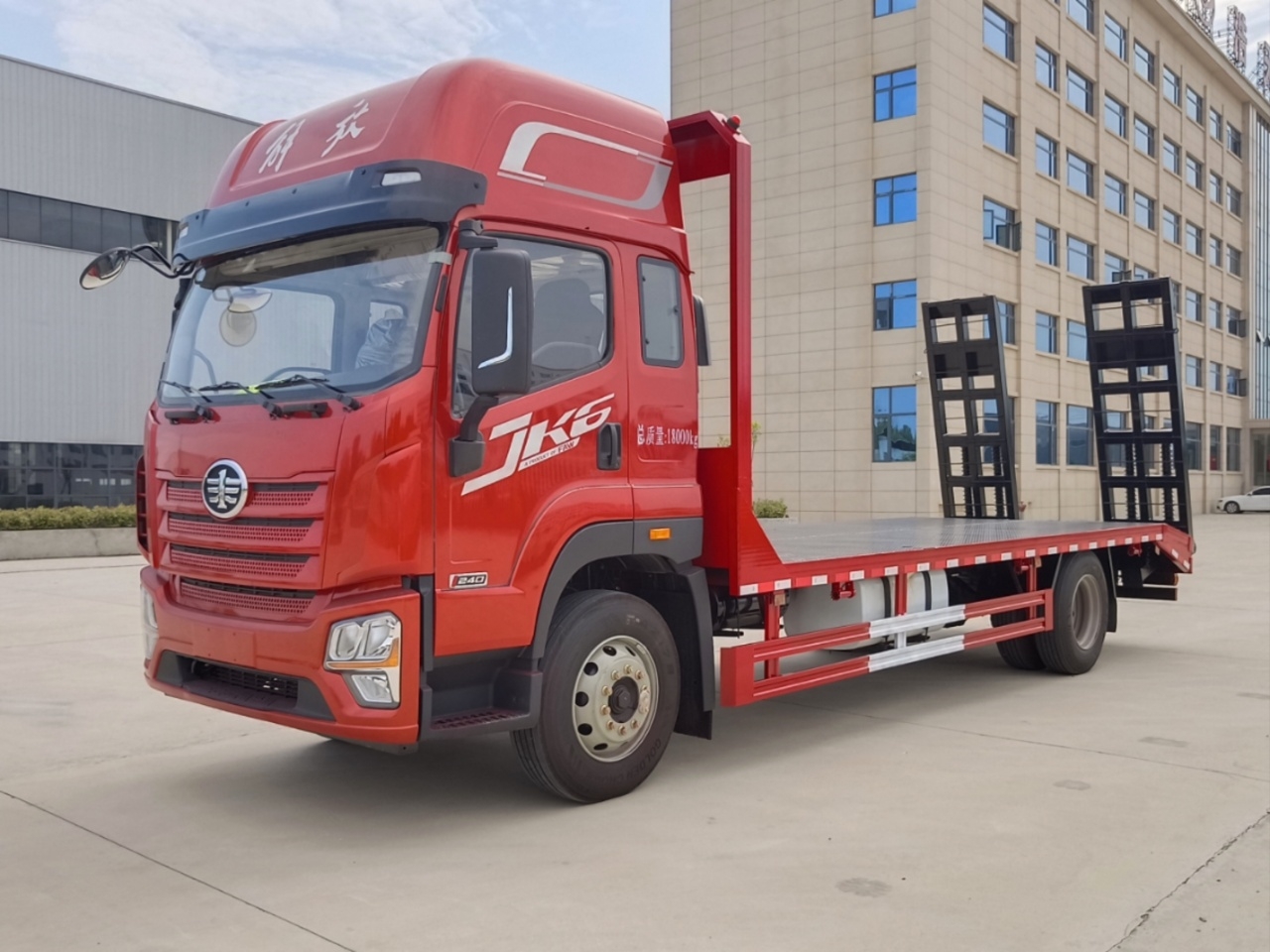

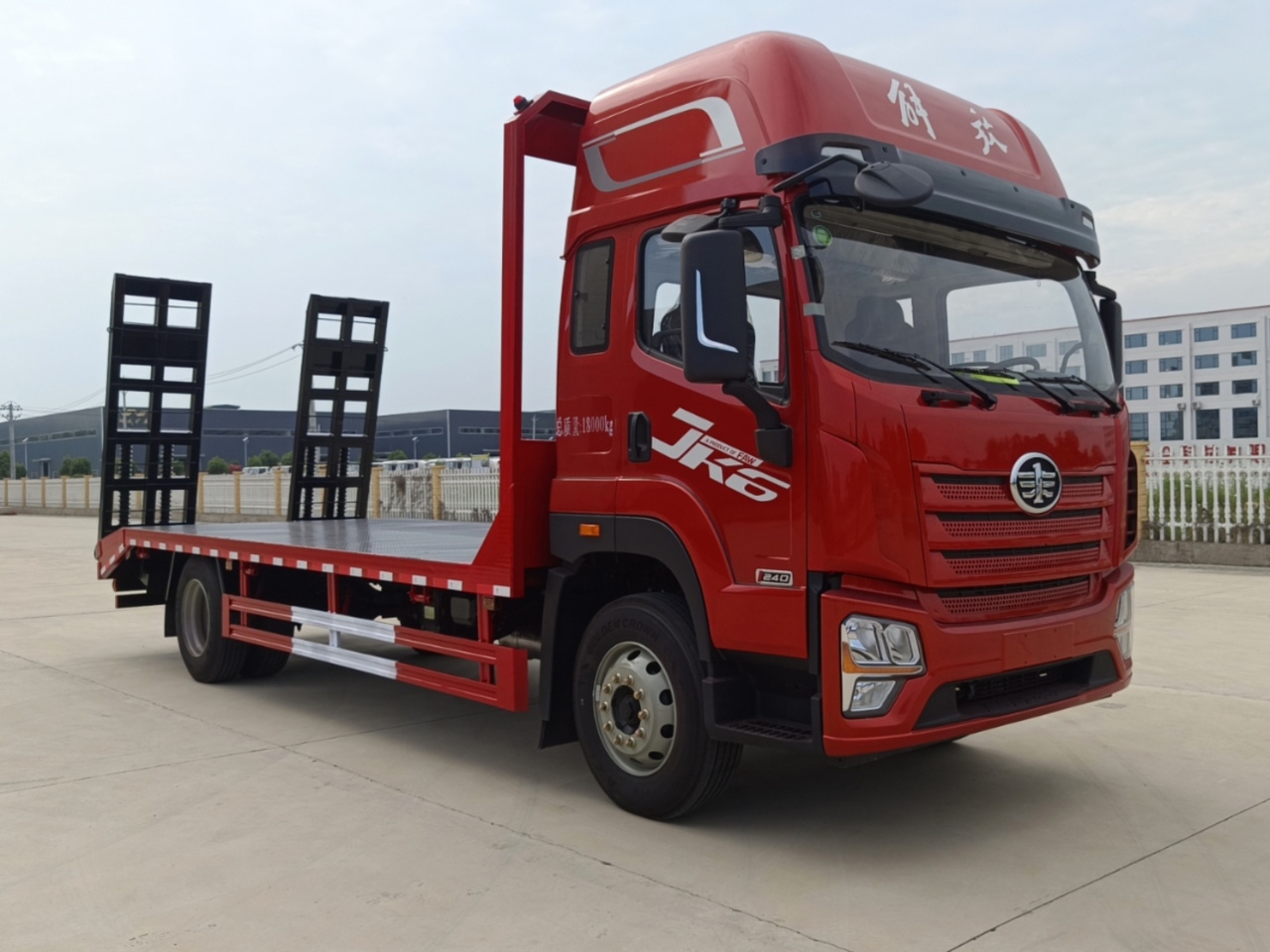

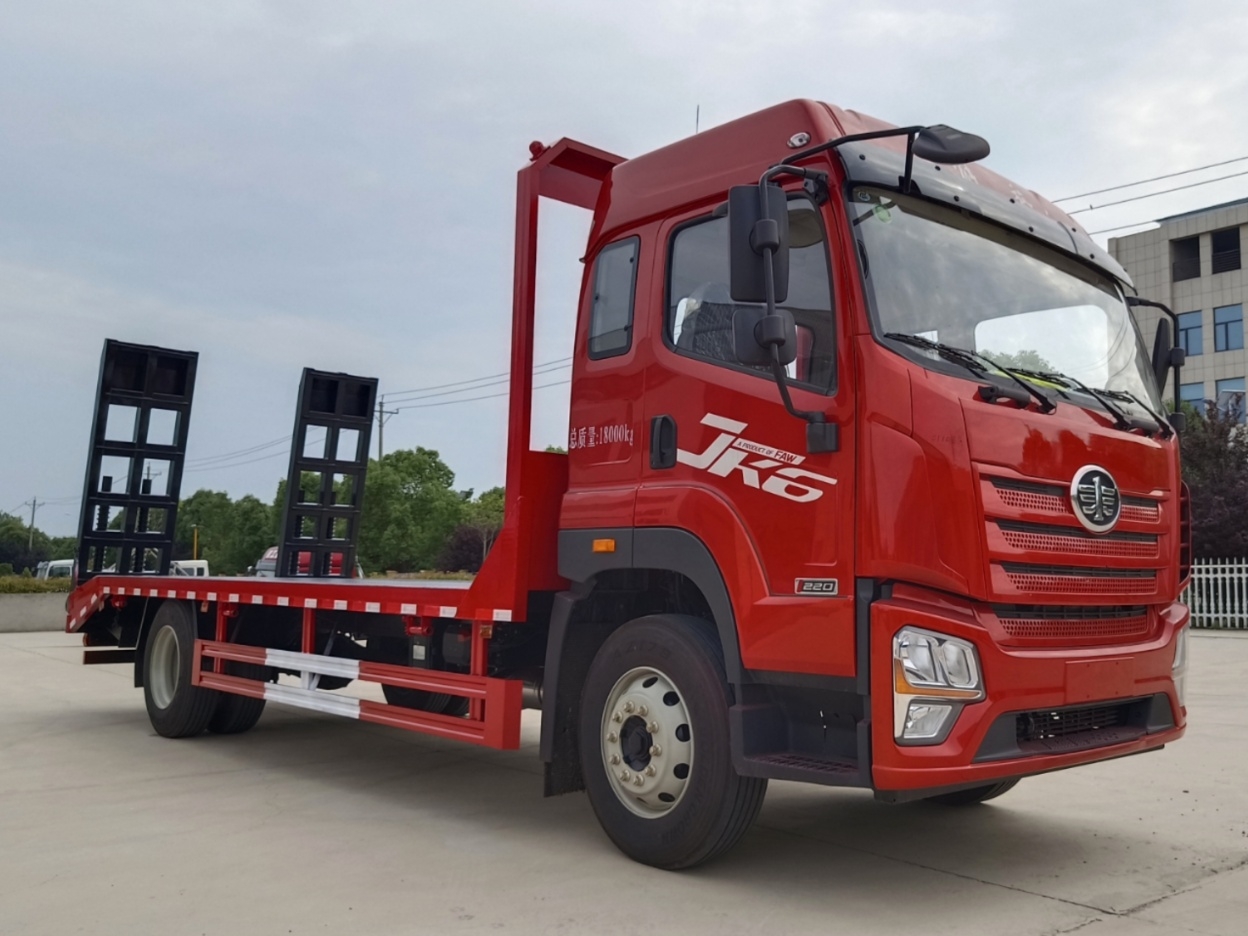

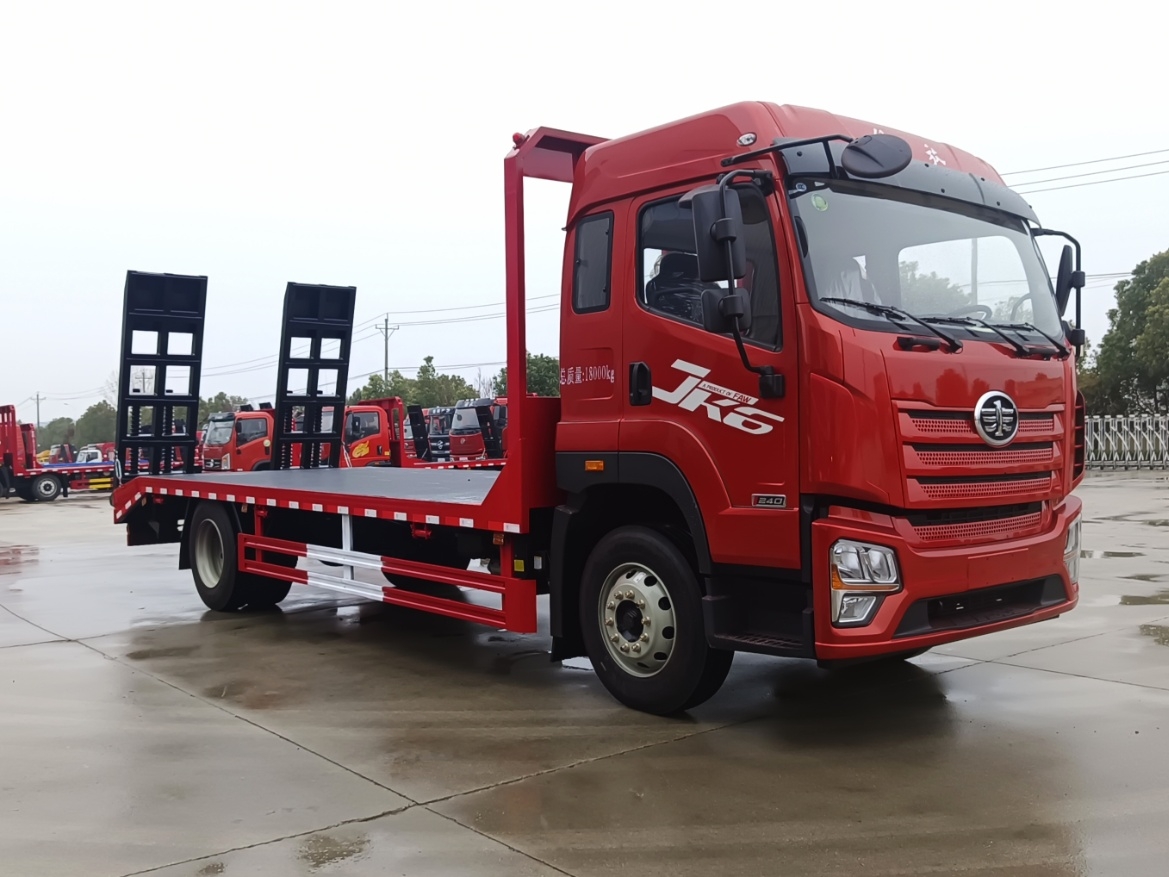

| Product Name | 4X2 Jiefang JK6 platform trailer, 15T excavator flatbed transport vehicle |
| Chassis brand | Jiefang |
| Cab | JK6 cab |
| Drive wheel | 4X2 |
| Steering wheel | Left/Right hand drive |
| Seat capacity | 2-3 person |
| Engine Model and displacement | YCS06245-60A, 6.23L |
| Carframe | 237mm single layered beam |
| Wheel base | 4500/5000/5300(mm) |
| Front wheel track | 1914,1946,1965(mm) |
| Rear wheel track | 1800,1860(mm) |
| Approach angle/departure angle | 21/9(°) |
| Front/rear suspension | 1332/2418(mm) |
| Axle numbers | 2 |
| F/R axle load | 6500/11500 |
| Tire sepcification and quantity | 275/80, 6 with 1 spare tire |
| Vehicle dimension | 9000×2550×2800,2960,3110(mm) |
| Flatbed dimension | 6500x2550x__(mm) |
| Gross vehicle weight(Kg) | 18000(Kg) |
| Curb weight(Kg) | 7880,7170(Kg) |
| Rated weight(Kg) | 9990,9925,10700,10635(Kg) |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Product Introduction
A flatbed transport vehicle, also known as a flatbed trailer, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.
Main Parameter
