Jiefang J6P 8X4 refrigerated truck with double sleeping berth
2024-10-07 09:54:11 Source：chusheng
Jiefang J6P 8X4 refrigerated truck with double sleeping berth
Chassis configuration:
2020 new J6P high top large row semi cab, electric glass lift, electric rearview mirror, single DIN Beidou compatible in car system, driver's seat with ventilated and heated seat (lumbar support, armrest), (EGR+DOC+DPF+SCR air drive), CA12TAX230M transmission (all aluminum shell), 435 axle, 1900+4700+1350mm, 12R22.5 type 18 level tubeless (domestic first tier brand), speed ratio 4.111, automatic air conditioning, 600L+400L double-sided fuel tanks, metal bumper, all aluminum front and lower protection device, high-efficiency single air filter, four point air suspension in the cab, electric hydraulic lifting device, front and rear wedge brakes, chassis reflecting a length of 10/100000 kilometers Oil change cycle, T-box 1.1, left side of the vehicle with "Quality Benefit Edition Green Pass" lettering, suspension of 3/3/10, remote sales and loan function, 150Ah battery, brake lining replacement alarm, seat belt wearing reminder, speed limit of 89km/h.
Installation configuration:
1.The interior and exterior fabrics of the cabin are made of the latest nano glass fiber reinforced plastic (non light absorbing, good insulation, strong hardness, oxidation resistance), with a thickness of 8cm. The inner lining skeleton is made of rust resistant high-quality light steel profiles from WISCO, and the insulation material is filled with polyurethane foam without gaps. The bottom of the cabin is made of aluminum alloy patterned board or flat nano glass fiber reinforced plastic. The cabin is wrapped with galvanized stainless steel corners and thickened aluminum alloy edges. The rear door frame is made of stainless steel, and the thickened stainless steel rear door hinges and locks are used. LED lighting and cabin width lights are used inside the cabin.
2.Customers can choose different units according to their vehicle needs, including -5 ℃, -10 ℃, -15 ℃, and -18 to -20 ℃ refrigeration units
| Product Name |
Jiefang J6P 8X4 refrigerated truck with double sleeping berth |
| Driving Type |
8X4 |
| Total weight(kg) |
31000(Kg) |
| Curb weight(kg) |
12700,13700(Kg) |
| Rated weight(kg) |
18170,18105,17170,17105(Kg) |
| Wheel base(mm) |
1900+4700+1350(mm) |
| Overall Dimension(mm) |
12000×2600×4000(mm) |
| Cargo box size(mm) |
9270×2440×2500(mm) |
| Engine brand & model |
CA6DM2-46E6, Xichai 464hp |
| Displacement(L)/Power(kw) |
11.05L/341KW |
| Axle Quantity |
4 |
| Transmission Type |
12-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
12R22.5 18PR, 12+1 spare |
| Cab |

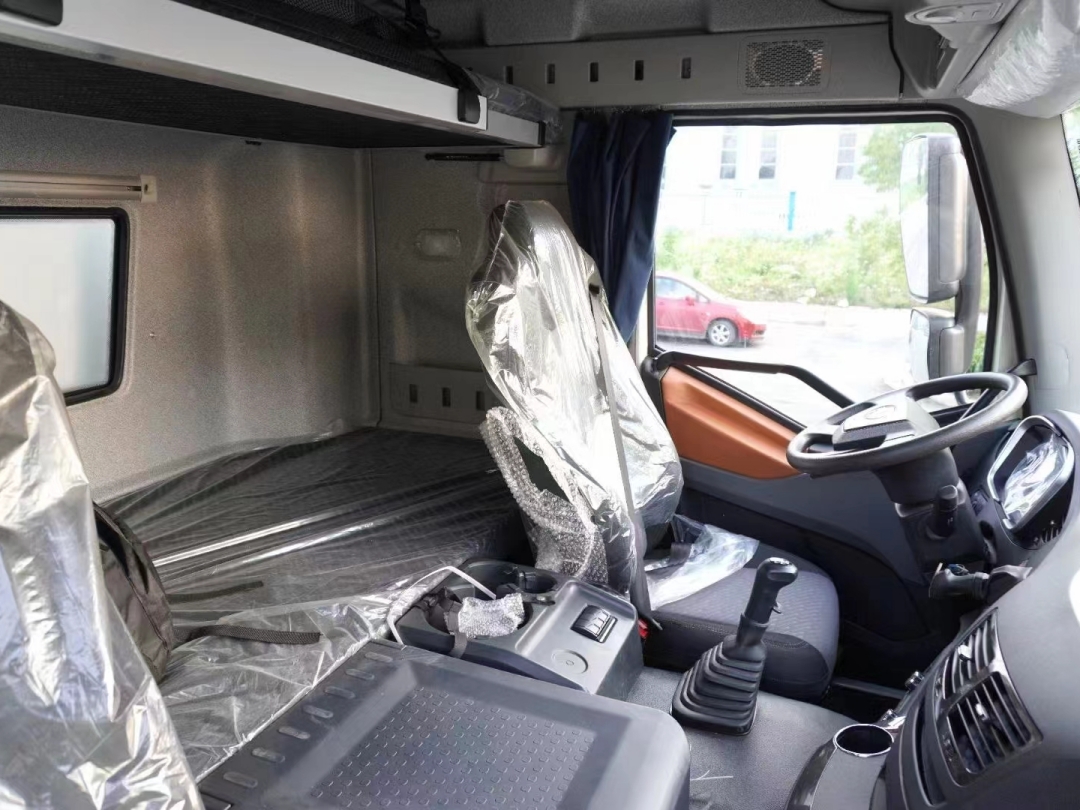

The 2020 new J6P features a high top, large row semi cab, electric glass lift, electric rearview mirror, single DIN Beidou compatible in car system, ventilated and heated driver's seat (lumbar support, armrest), automatic air conditioning, and double decker sleeper |
| Cargo box configuration |
The interior and exterior fabrics of the cabin are made of the latest nano glass fiber reinforced plastic (non light absorbing, good insulation, strong hardness, oxidation resistance), with a thickness of 8cm. The inner lining skeleton is made of rust resistant high-quality light steel profiles from WISCO, and the insulation material is filled with polyurethane foam without gaps. The bottom of the cabin is made of aluminum alloy patterned board or flat nano glass fiber reinforced plastic. The cabin is wrapped with galvanized stainless steel corners and thickened aluminum alloy edges. The rear door frame is made of stainless steel, and the thickened stainless steel rear door hinges and locks are used. LED lighting and cabin width lights are used inside the cabin. |
| Compartment structure |
Do not open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory. |
| Refrigerated Unit |
Customers can choose different units according to their vehicle needs, including -5 ℃, -10 ℃, -15 ℃, and -18 to -20 ℃ refrigeration units |
| Optional |
The car can be equipped with an optional tailboard. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Jiefang J6P 8X4 refrigerated truck with double sleeping berth
Refrigerated truck is a closed van vehicle used to transport frozen or fresh
goods. It is a specialized refrigerated transport vehicle equipped with a
refrigeration unit and a polyurethane insulated compartment. It is commonly
used to transport frozen food (refrigerated truck), dairy products (dairy
transport truck), vegetables and fruits (fresh goods transport truck), vaccines
and drugs (vaccine transport truck), etc.
Refrigerated truck consists of the walking part of a specialized vehicle
chassis, as well as insulation and thermal insulation compartment (usually made
of polyurethane material, fiberglass, color steel plate, stainless steel,
etc.), refrigeration unit, temperature recorder inside the compartment, and
other components. For vehicles with special requirements, such as meat hook
trucks, optional accessories such as meat hooks, cargo blocking troughs,
aluminum alloy guide rails, ventilation troughs, etc. can be added.
Product parameters
