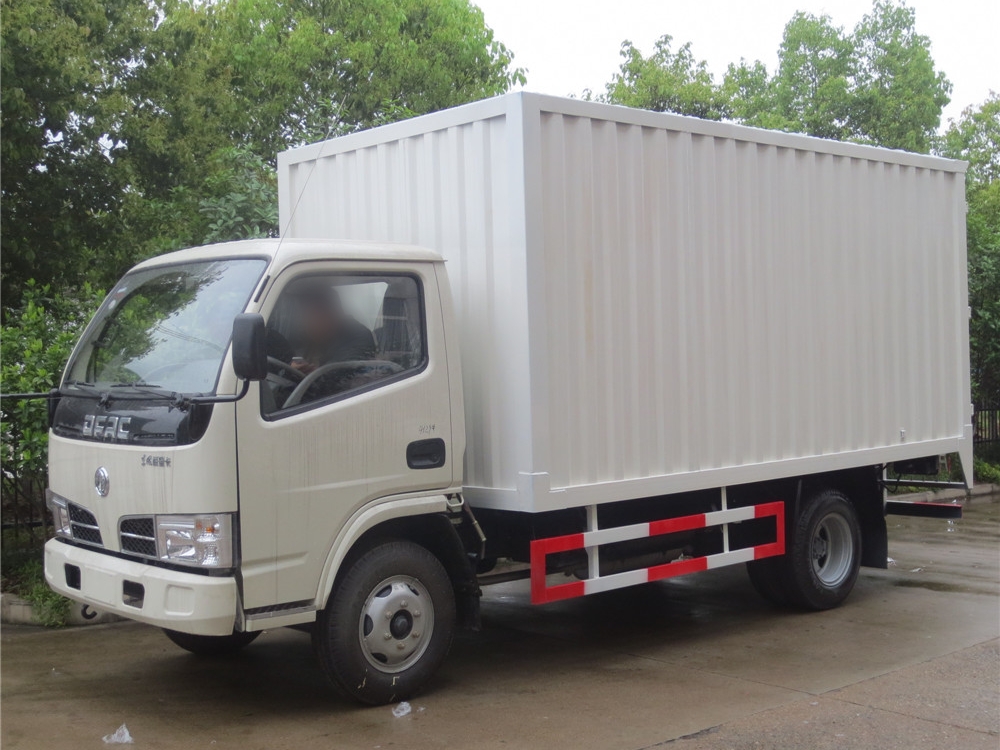

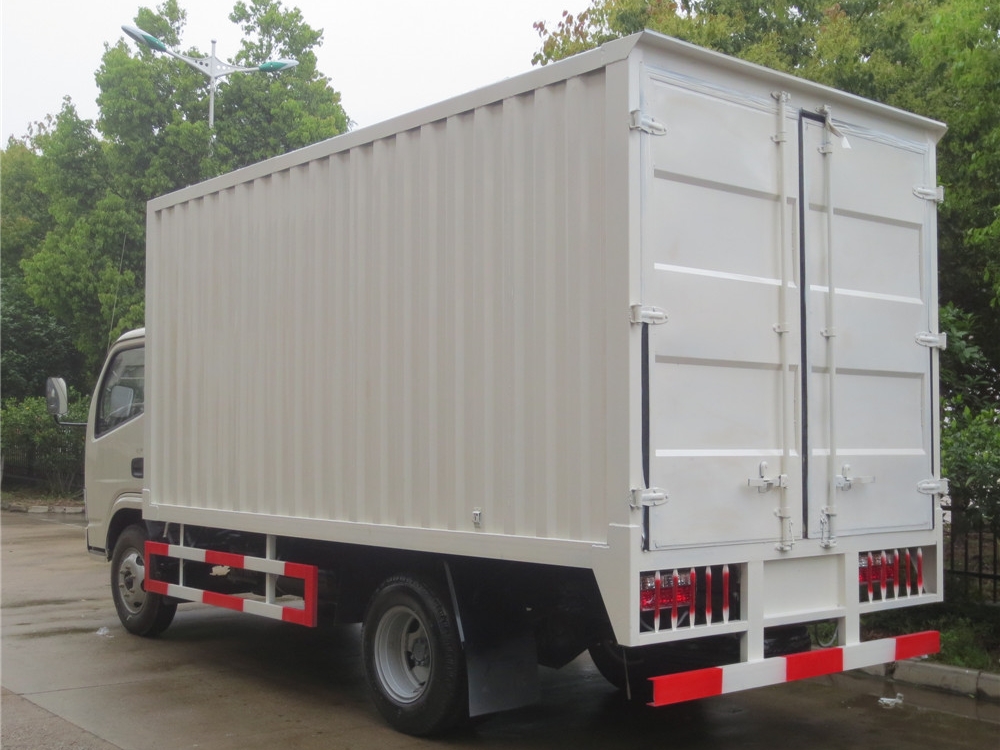

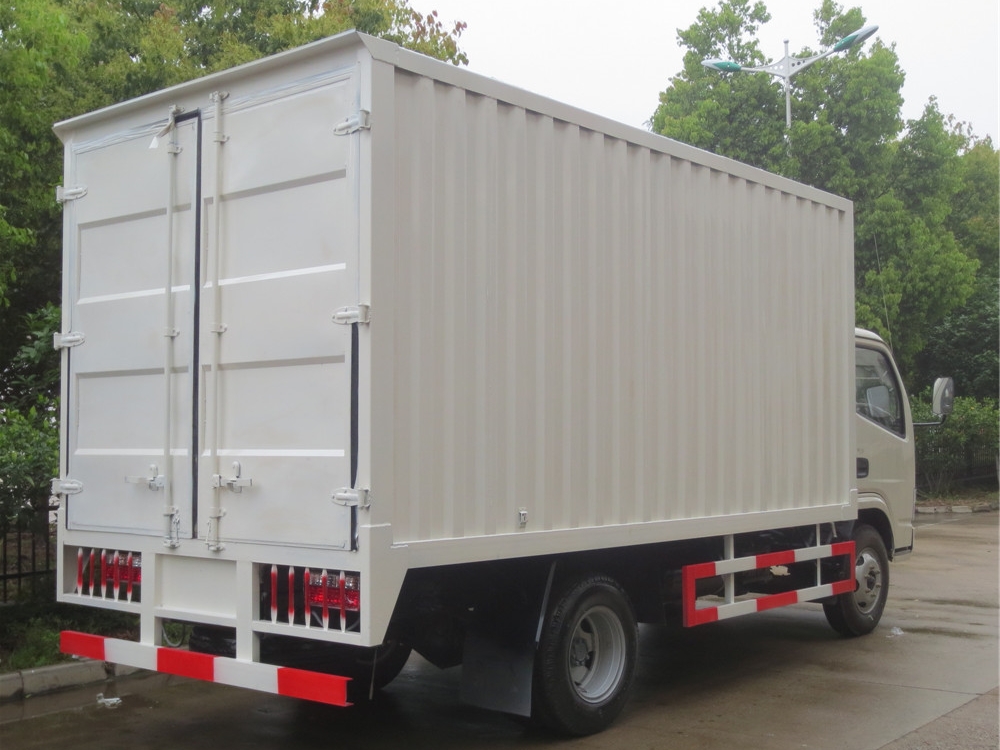

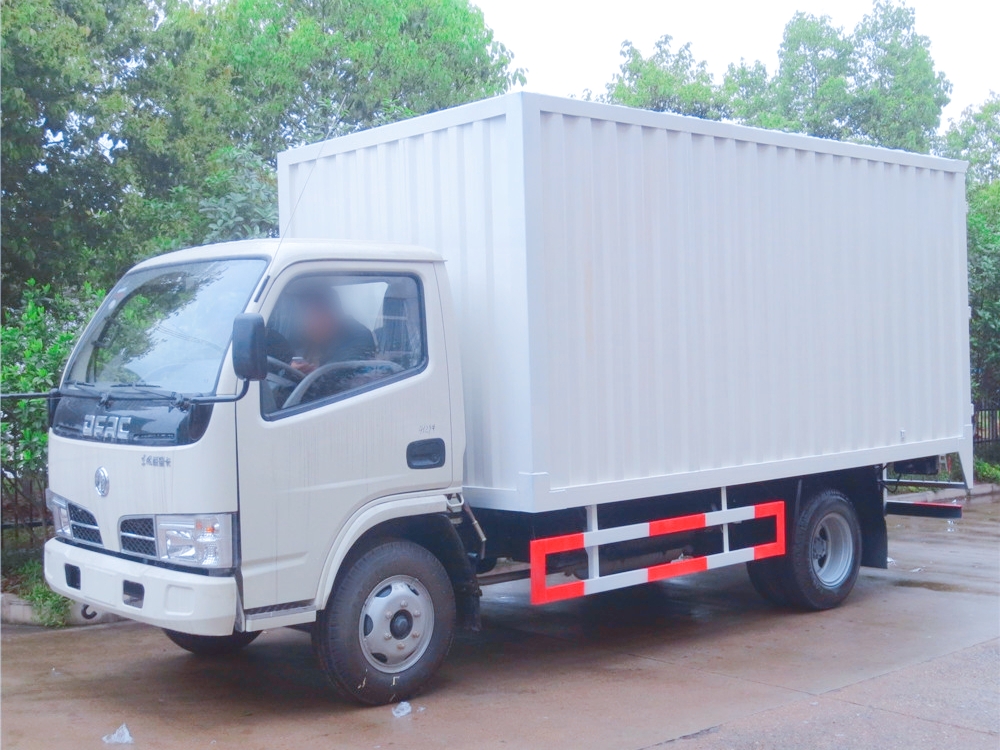

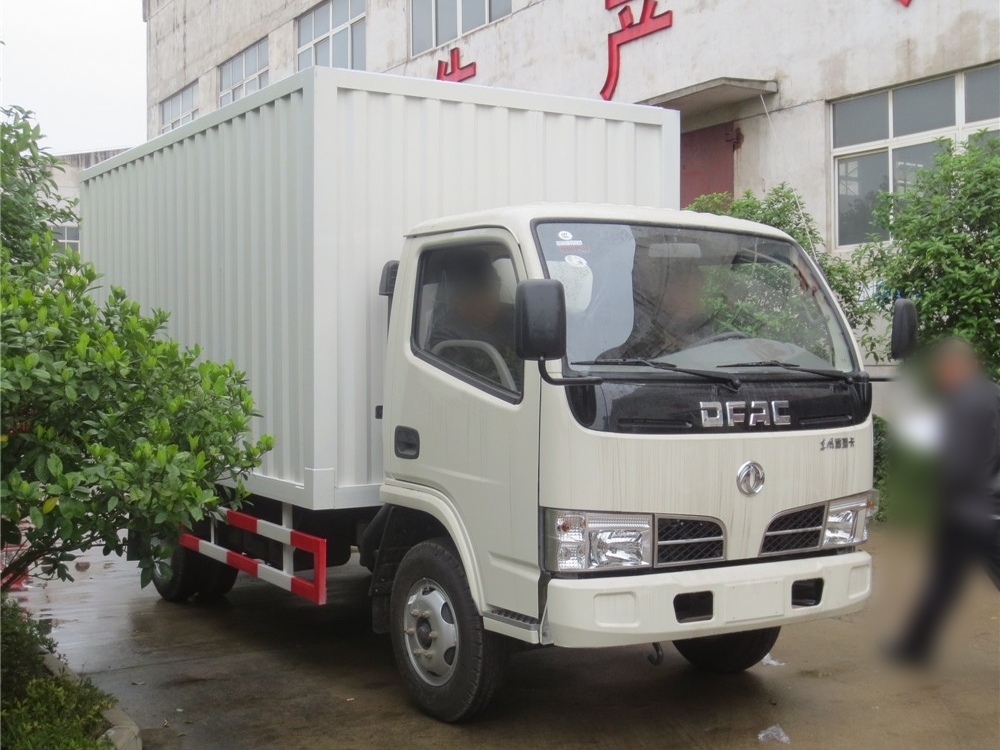

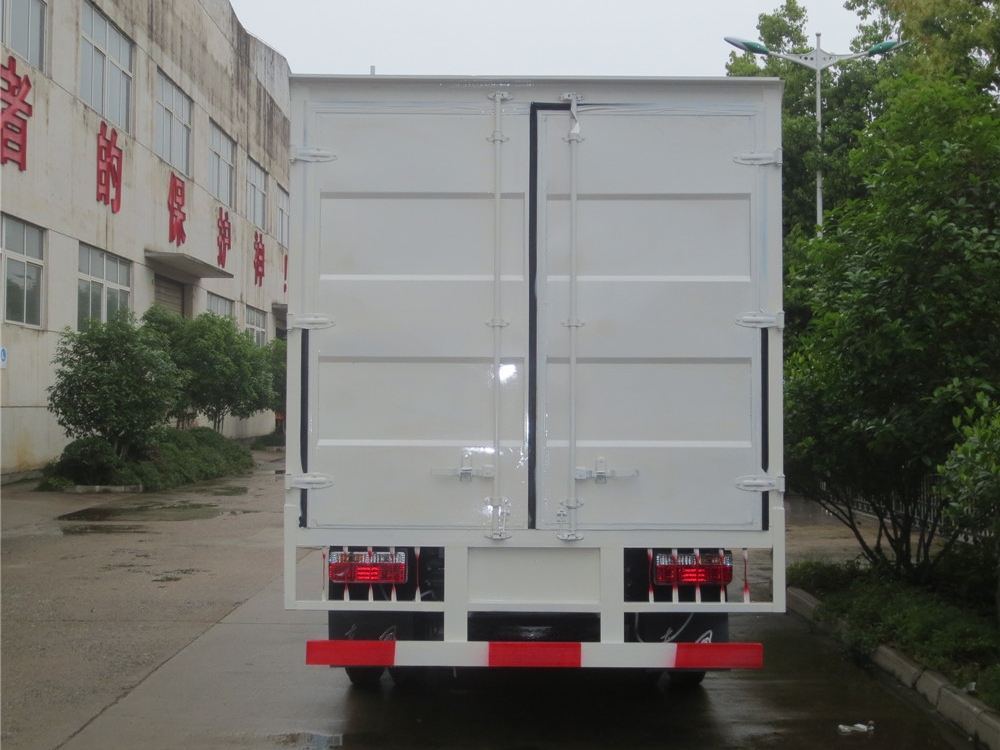

4x2 Dongfeng 5 Ton Cargo Van Truck
2024-11-14 14:20:20 Source：chusheng
4x2 Dongfeng 5 Ton Cargo Van Truck
Chassis brand Dongfeng
Product origin China, Hubei
Delivery time around 10 working days
Supply capacity 2,000 units one year
Van truck applies to transport all kinds
goods or merchandise, usually the van type is closed van. Closed van truck can
keep the good safety and avoid the goods from rain or snow.
Van truck can be matched with all truck
chassis brand from China and world. The chassis brand can be Changan, Jingbei,
Dongfeng, foton, forland,s hacman, Howo, lVECO Yuejing, (Qingling) lsuzu, etc.
We can customize the stake height and
structure layout according to the end user use condition.
| Product Name |
4x2 Dongfeng 5 Ton Cargo Van Truck |
| Driving type |
4X2/4x4 |
| Weight /Volume |
As follows |
| Stake box volume(cbm) |
20 |
| Rated weight(kg) |
5000 |
| Dimmensions |
As follows |
| Wheel base(mm) |
3300 |
| Overall Dimension(mm) |
5995x2420x3180 |
| Van body dimension(mm) |
4170x2300x2100 |
| Engine |
As follows |
| Engine brand & model |
DONGFENG CHAOYANG & CY4100Q |
| Engine type |
4 stroke, water-cooled, straight line 4 cylinders, diesel |
| Displacement(L)/Power(kw) |
3.707/60 |
| Chassis |
As follows |
| Axle Quantity |
2 |
| Transmission Type |
5 forwards,1 reverse gear, manual |
| Brake system |
Air brake |
| Tire Spec. & size |
7.00R16, 6 with a spare |
| Cab |
Flat proof, single row ,radio,electric glass, central lock, air conditioner |
| Performance parameter |
As follows |
| Box stake material |
Q235 carbon steel +lron corrugated |
| Van type |
Closed top type |
| Warm prompt |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
4x2 Dongfeng 5 Ton Cargo Van Truck
A box truck, also known as a box truck, is mainly used for fully sealed transportation of various goods. Special types of box trucks can also transport hazardous chemicals. It has the advantages of maneuverability, easy operation, high work efficiency, large transportation volume, full utilization of space, safety, and reliability.
Body material
Box trucks can use:
① Iron tile ridge
② Color steel plate
③ Aluminum flat plate
④ Aluminum alloy corrugated
⑤ Foam insulation box type
Van type trucks can be selected from: rear door, left and right door, fully enclosed, semi enclosed, and storage rack
Main Parameter
