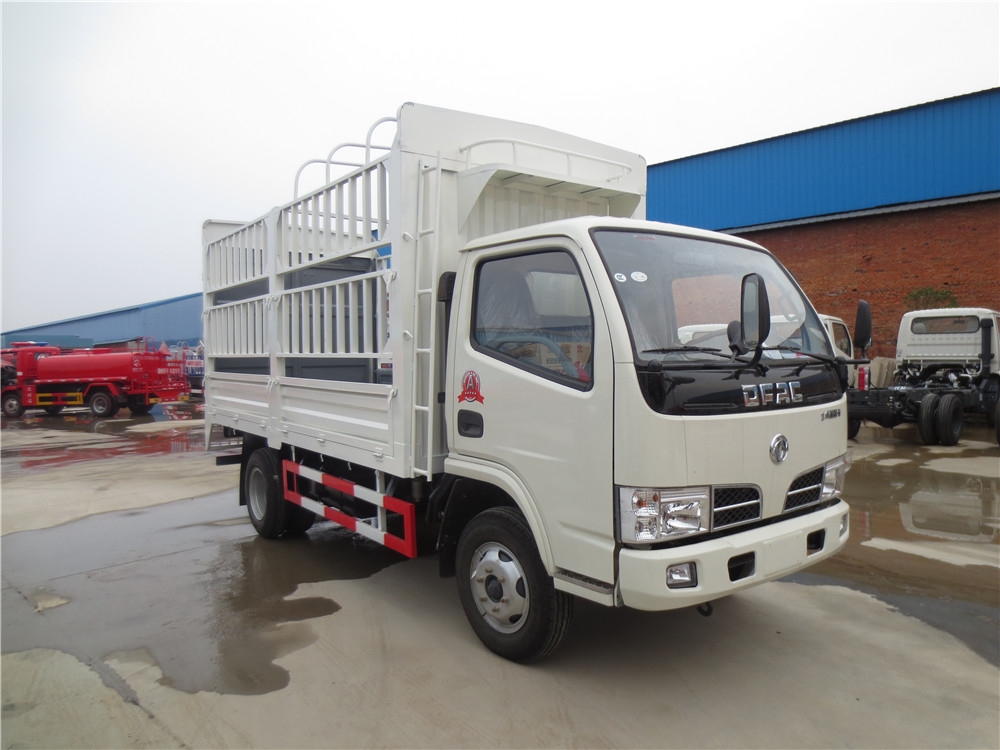

Dongfeng 3 Ton Box Stake Truck
Chassis brand Dongfeng
Product origin China, Hubei
Delivery time around 7 working days
Supply capacity 2,000 units one year
Stake truckis also one main type of cargo truck. Stake truck usually applies to transport some goods , also can transport sheep, cattle, pigs, chickens, etc. some animals
Stake truck is composed of side plate made of 550mm height corrugated board +1600mm height stake and cargo truck chassis. Stake truck is widely used all over the world.
We can customize the stake height and structure layout according to the end user use condition.
| Product Name | Dongfeng 3 Ton Box Stake Truck |
| Driving type | 4X2/4x4 |
| Weight /Volume | As follows |
| Stake box volume(cbm) | 18 |
| Rated weight(kg) | 3000 |
| Dimmensions | As follows |
| Wheel base(mm) | 3300 |
| Overall Dimension(mm) | 5995x2470x3045 |
| Stake box dimension(mm) | 4150x2150x550+1600 |
| Engine | As follows |
| Engine brand & model | Yunnei & 4100Q |
| Engine type | 4 stroke, water-cooled, straight line 4 cylinders, diesel |
| Displacement(L)/Power(kw) | 3.707/60 |
| Chassis | As follows |
| Axle Quantity | 2 |
| Transmission Type | 5 forwards,1 reverse gear, manual |
| Brake system | Air brake |
| Tire Spec. & size | 7.00R16, 6 with a spare |
| Cab | Flat proof, single row , radio, heater, air conditioner |
| Performance parameter | As follows |
| Box stake material | Q235 carbon steel +lron corrugated |
| Warm prompt | The above information is for reference only, and vehicles can be customized depending on your requirements. |

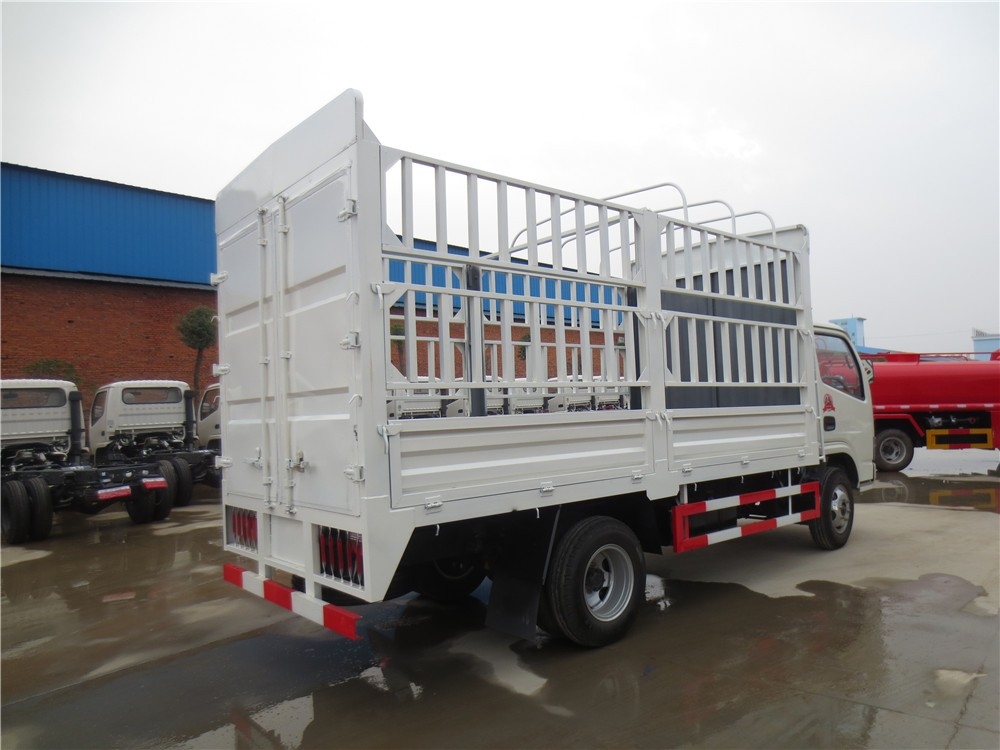

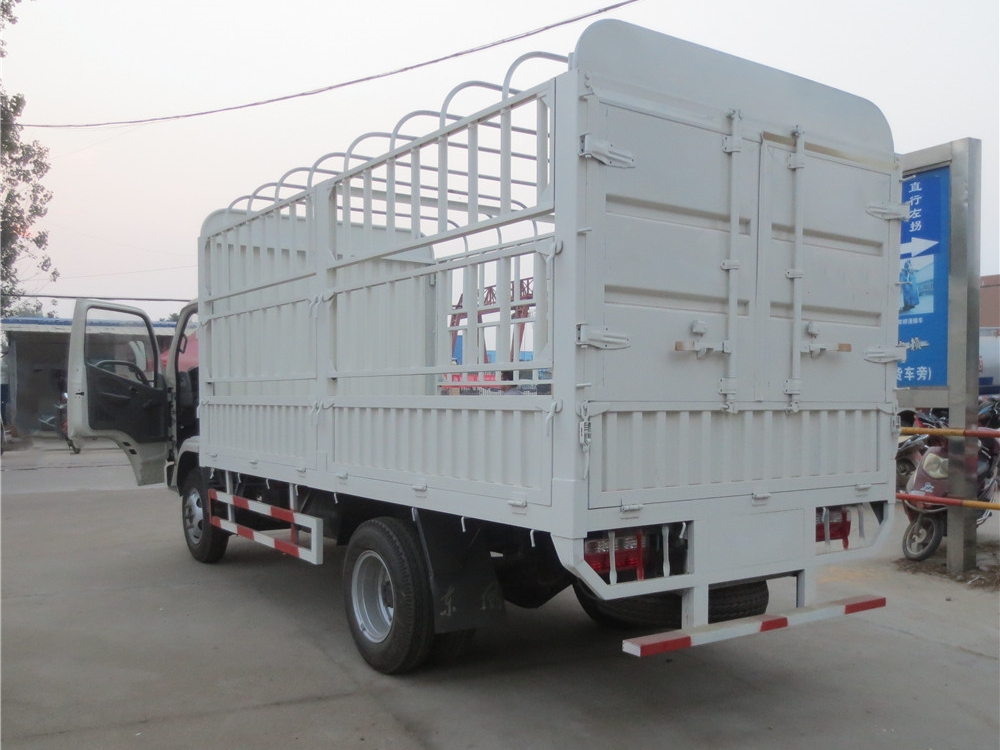

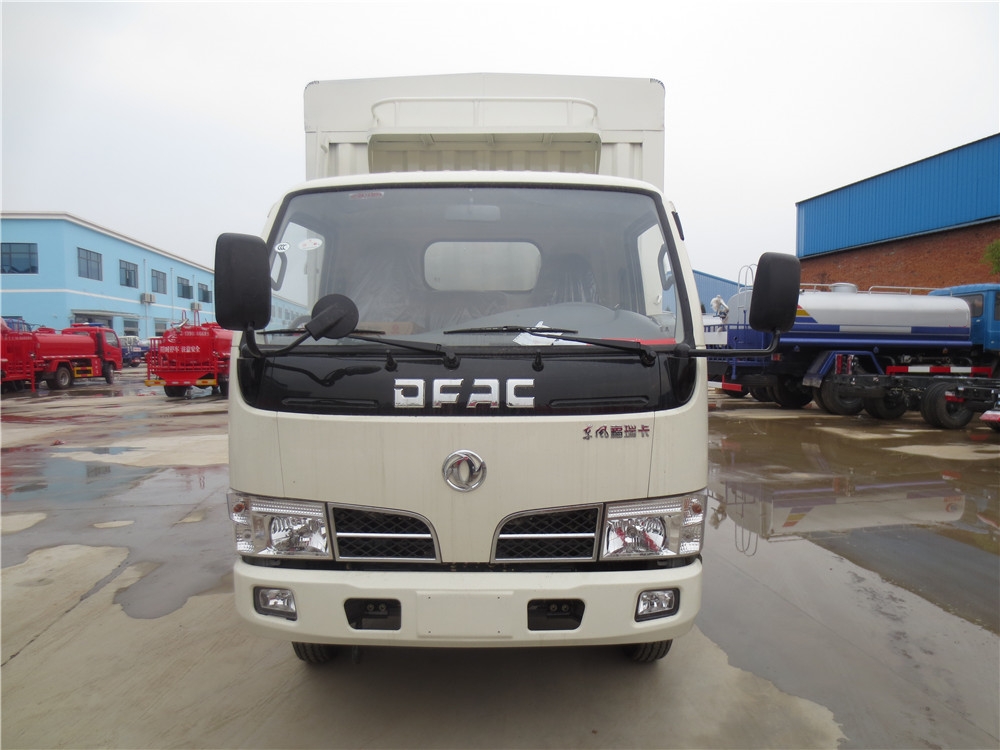

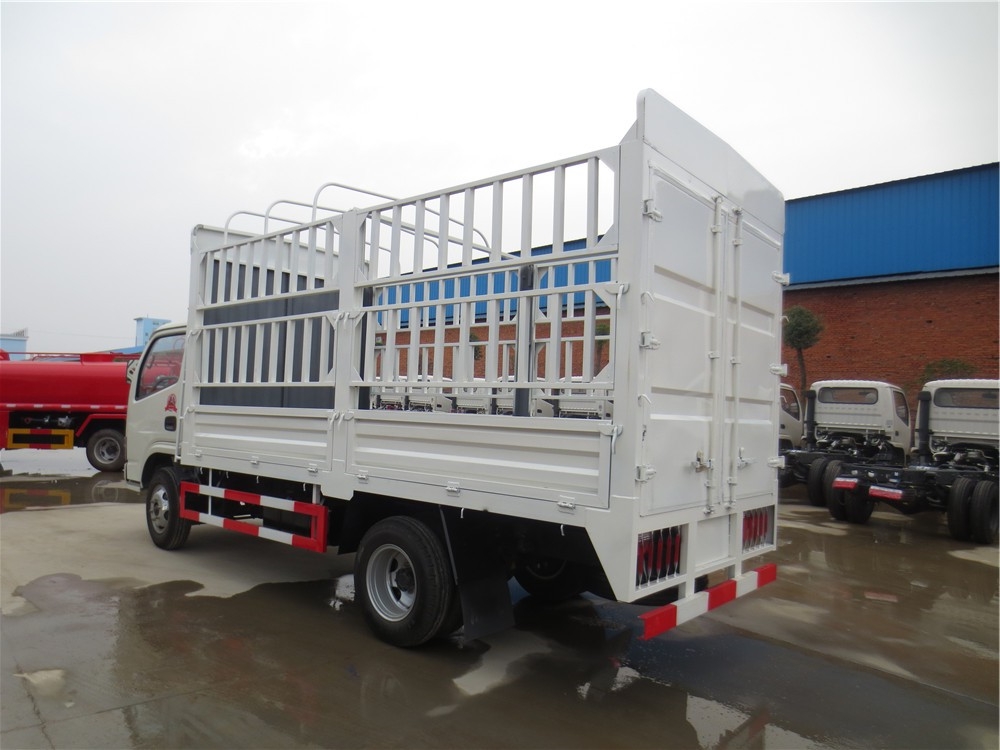

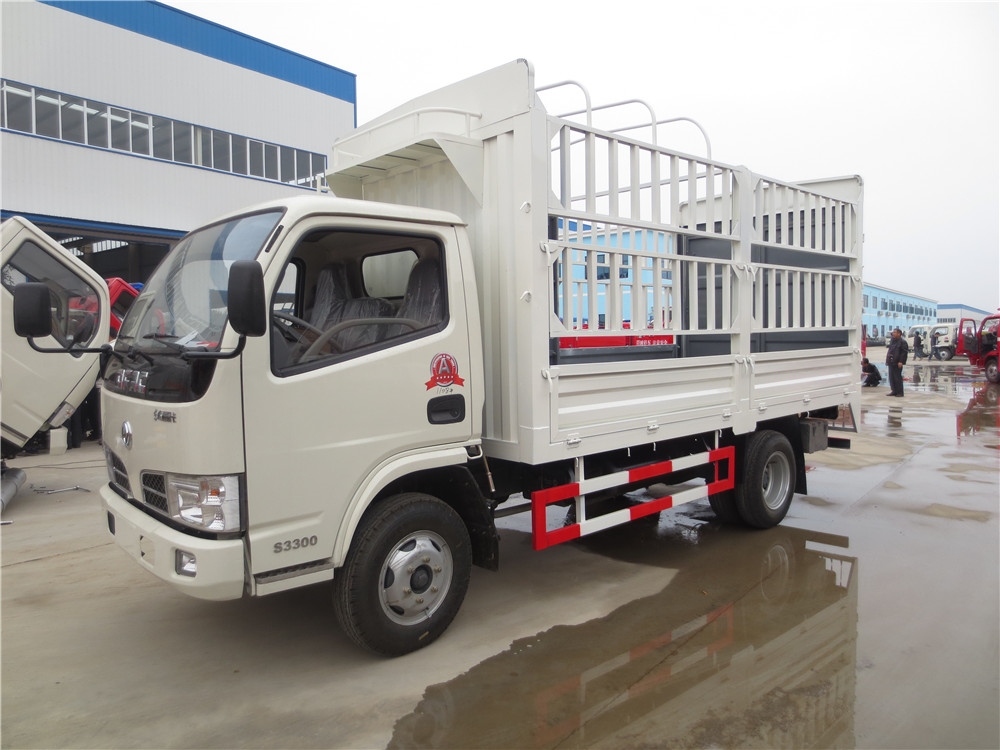

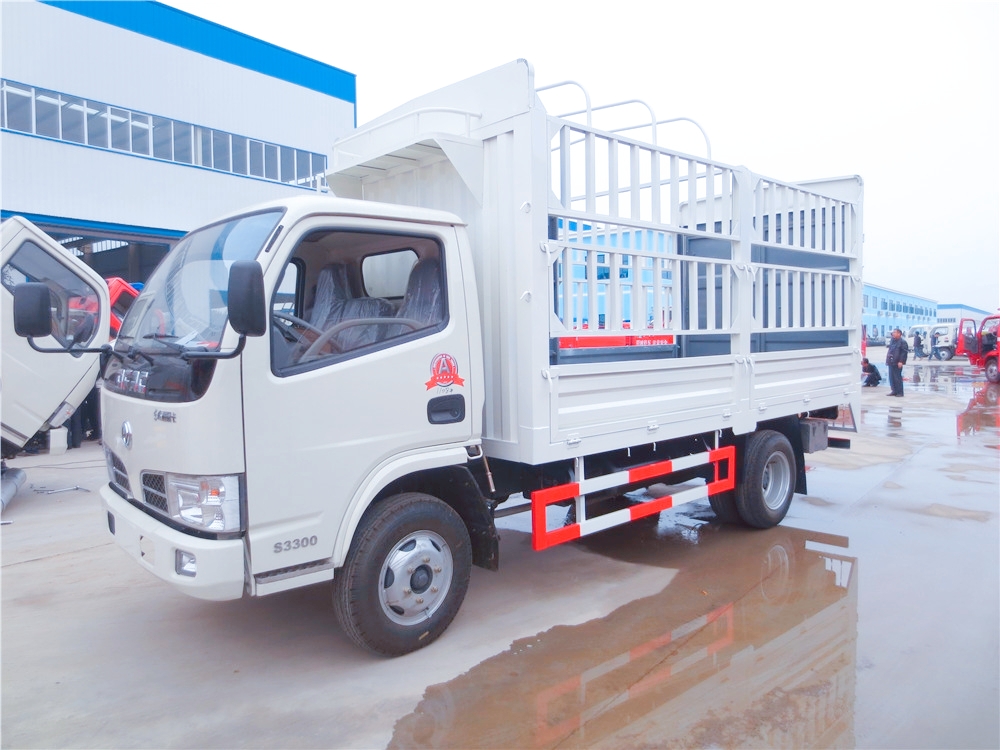

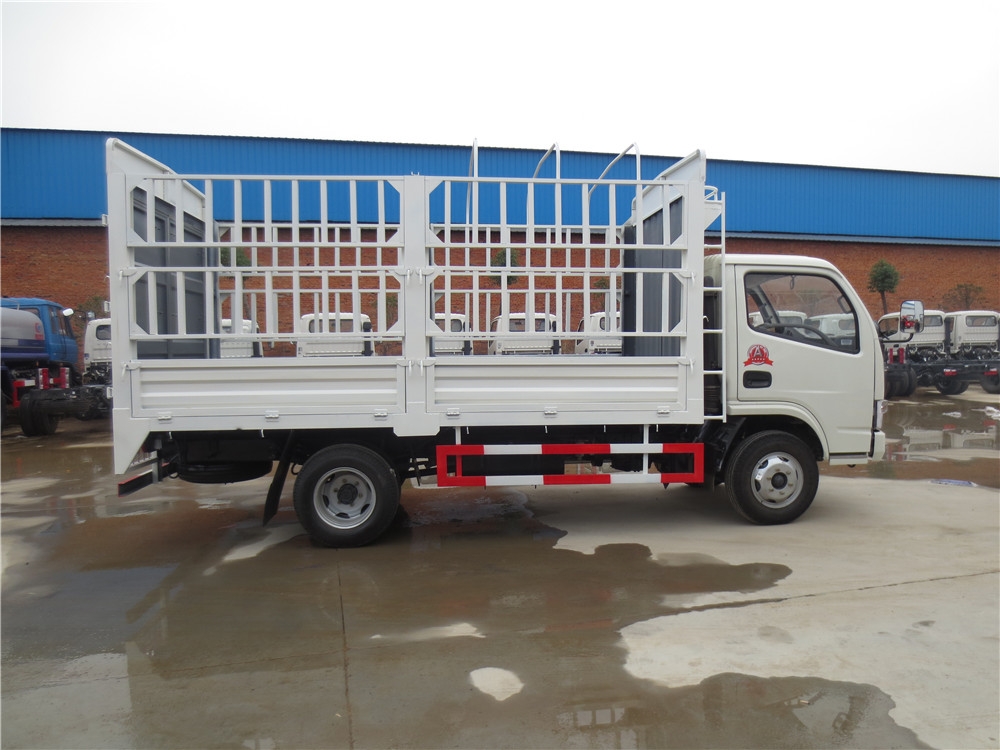

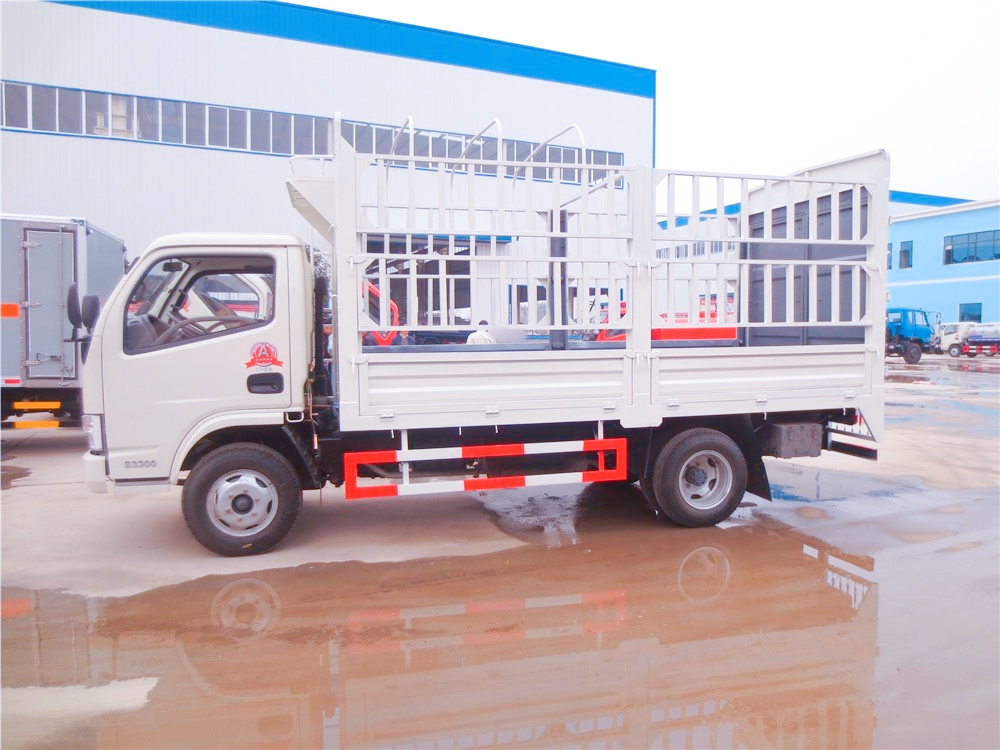

Dongfeng 3 Ton Box Stake Truck
Stake Truck is also called box cargo truck, Van cargo truck, stake cargo truck, etc, is mainly used to transport kinds of Goods or material
Product feature of Dongfeng 3 Ton Box Stake Truck
1. Dongfeng light duty cargo chassis
2. 3 ton payload capacity
3. Customized production of stake size and layout
4. Widely use
Main Parameter
