| Product Name |
Dongfeng Huashen 4.5-ton electric road maintenance vehicle |
| Drive type |
4X2 |
| Battery |
Battery brand/type: CATL/Lithium Iron Phosphate; Battery level: 55.7Kwh; Battery layout: Side mounted; Charging time: about 0.5 hours (recommended charging power); Recommended charging power: 120Kwh |
| Gearbox |
Wanliyang 6-speed gearbox |
| Wheel base (mm) |
3000(mm) |
| Vehicle dimensions (mm) |
5995，5630x1900x2500(mm) |
| Tire specification |
7.00R16 steel wire tire, 6+1 spare |
| Gross vehicle weight(Kg) |
4495(Kg) |
| Curb weight(Kg) |
1265(Kg) |
| Rated weight(Kg) |
3100(Kg) |
| Tank volume(m³) |
3m³ |
| Upper configuration |
The chassis battery provides power, driven by a permanent magnet synchronous motor, and can adjust speed in real time according to needs. The power take-off operation is not related to the chassis driving system, and the driving experience is excellent. Carbon steel box with electrophoresis, Pinfu high-pressure water pump, new front water spray rack, Siemens electronic control switch, 15m high-pressure reel, low water level alarm system, indoor monitoring system for reverse status. Centrifugal low-pressure water pump, with automatic control for both flushing and rear spraying. Tail LED arrow light. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |

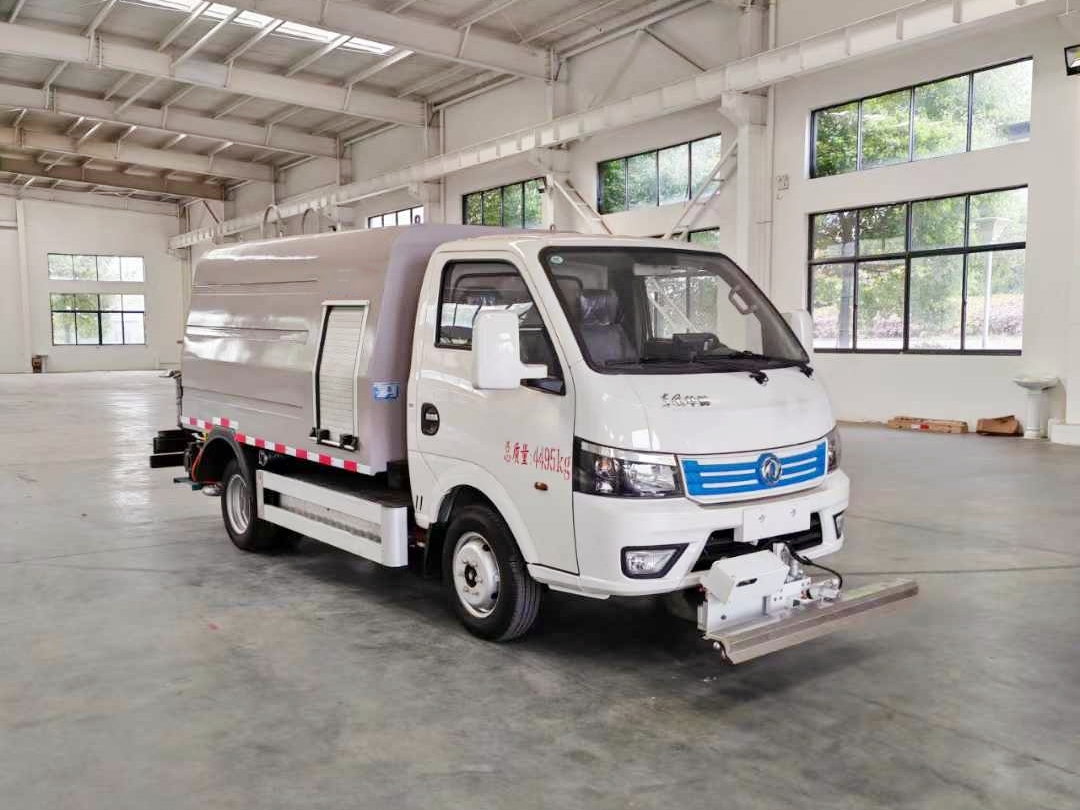

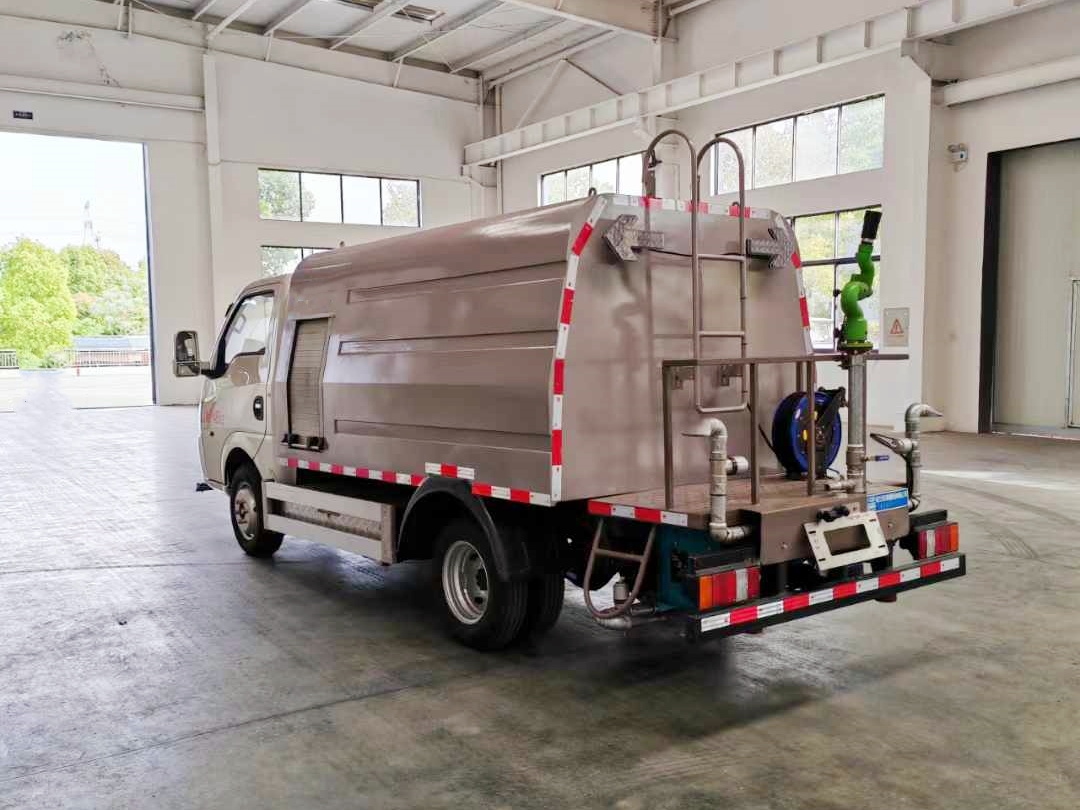

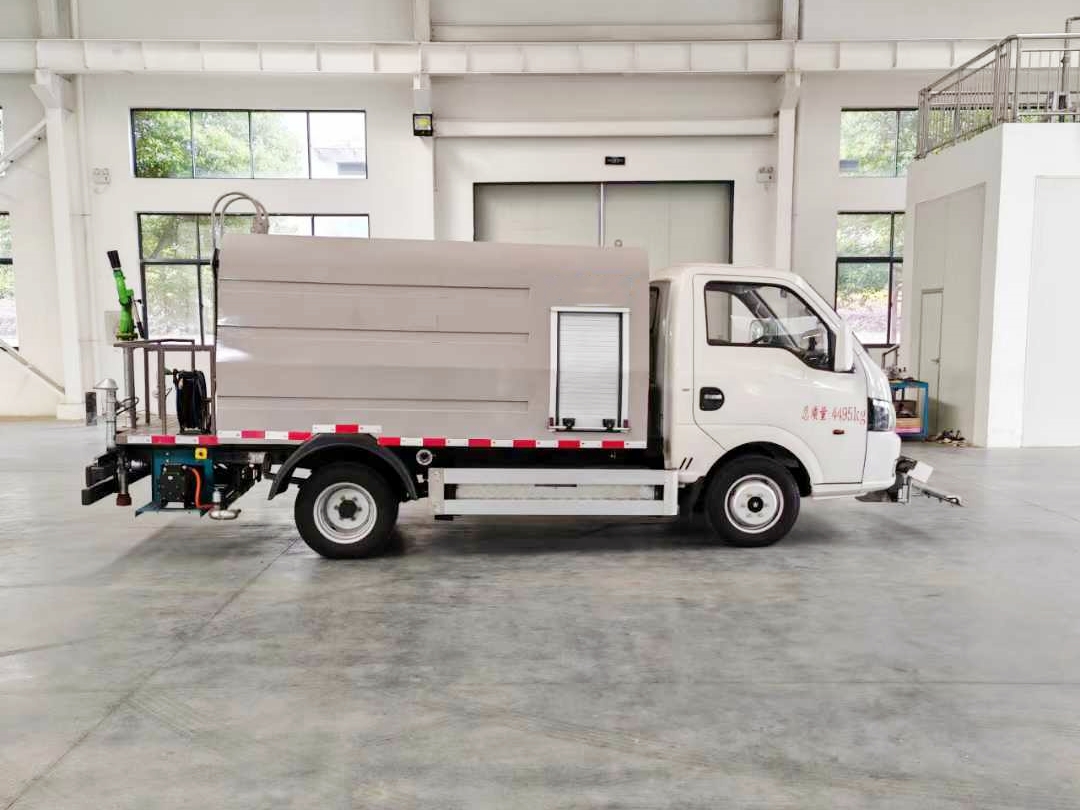

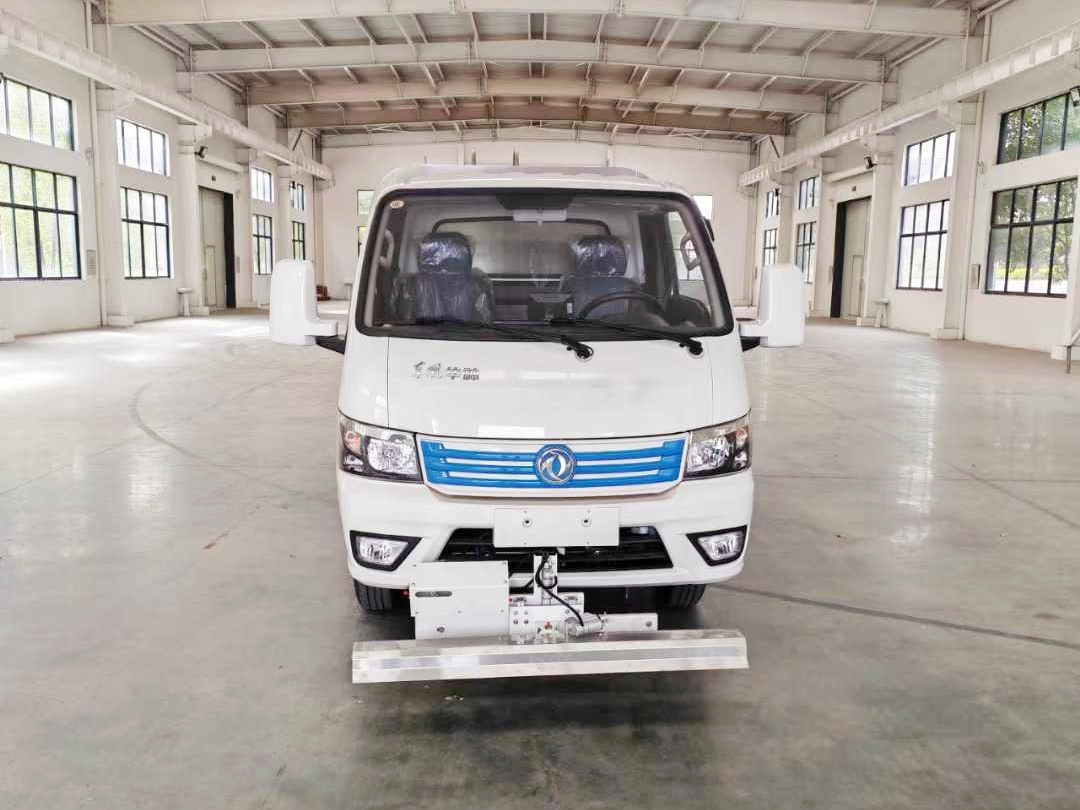

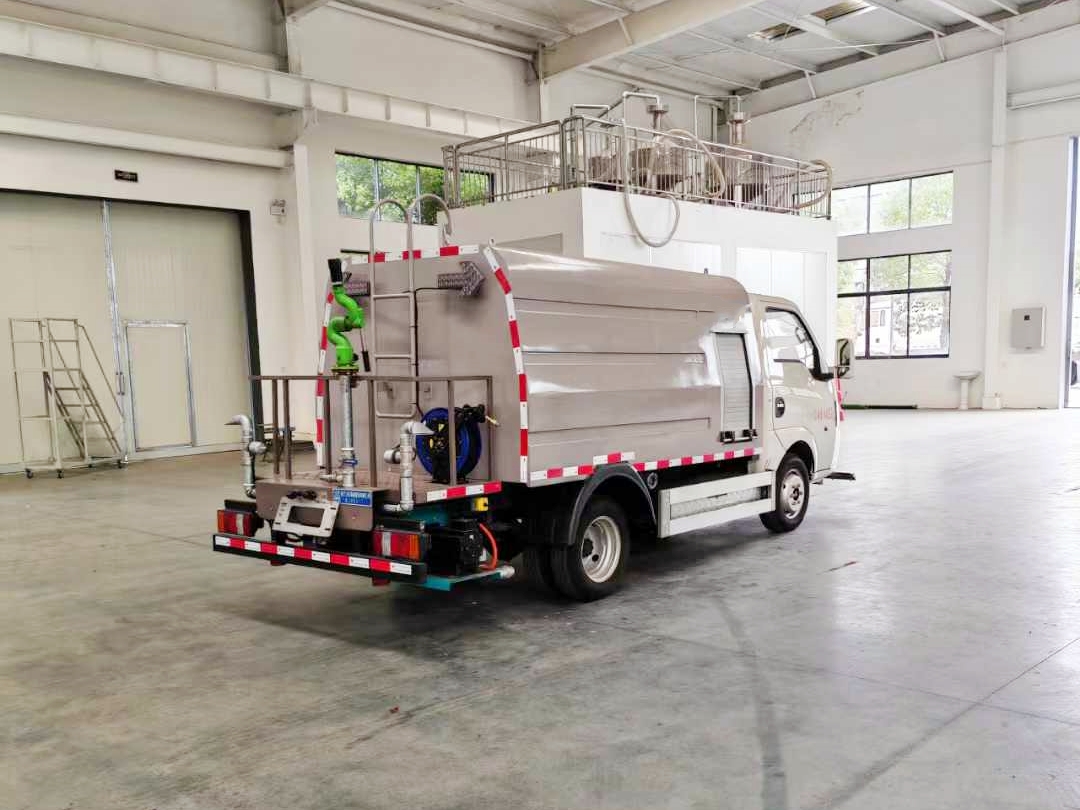

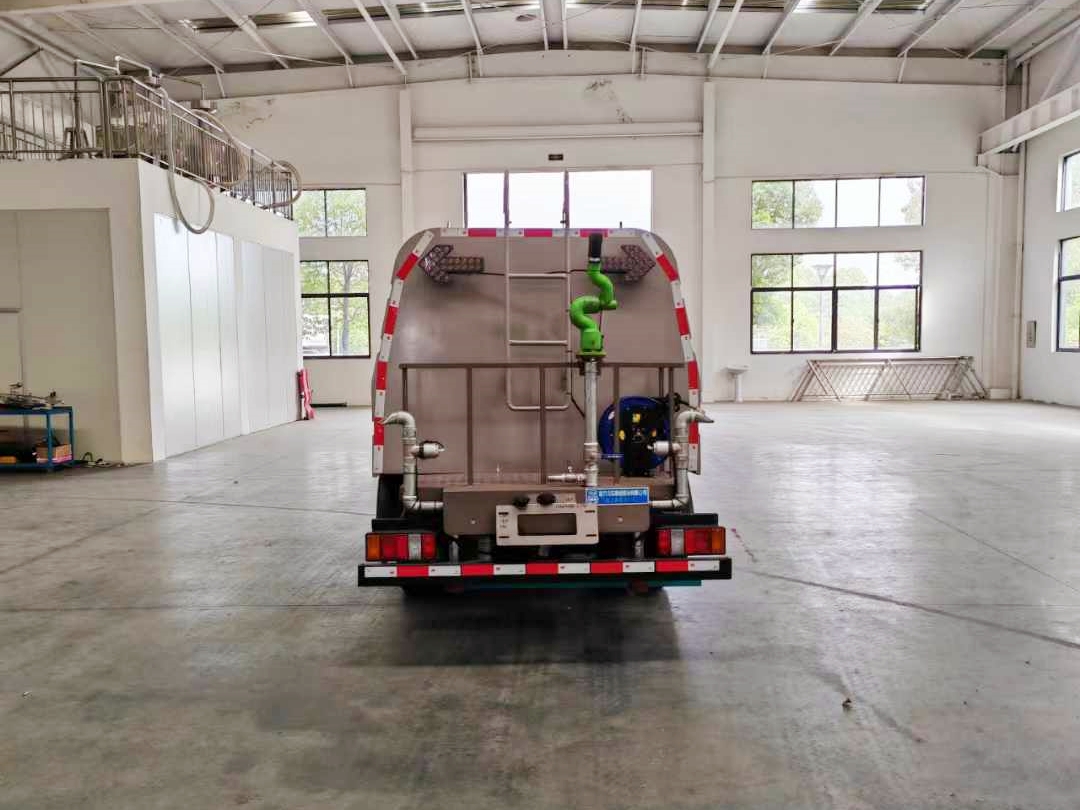

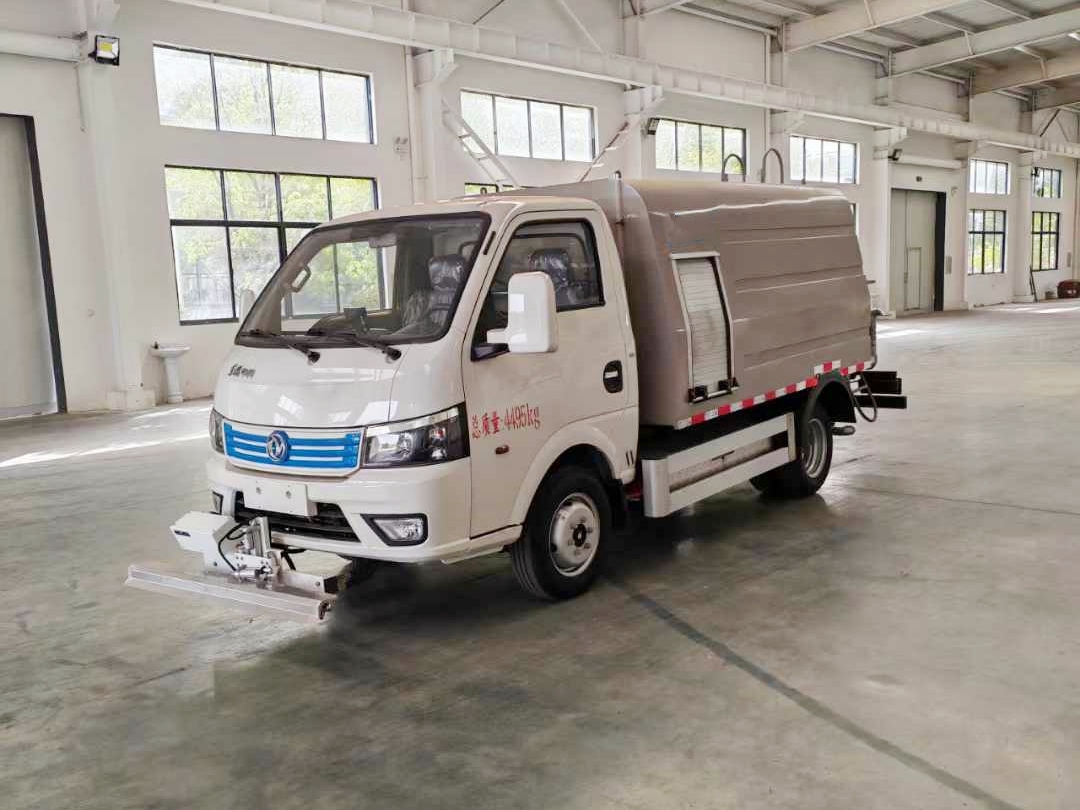

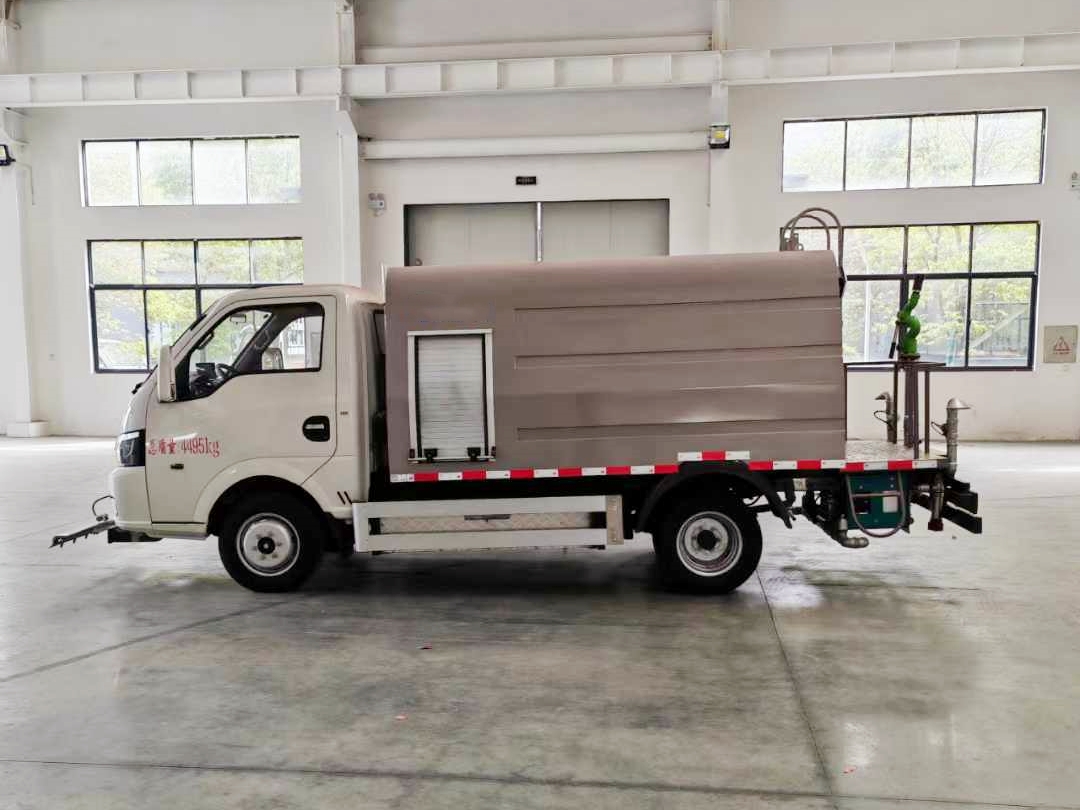

Dongfeng Huashen 4.5-ton electric road maintenance vehicle
Electric road maintenance vehicle is a pure electric driven cleaning equipment, mainly used for cleaning and maintenance of urban roads, sidewalks, pedestrian streets and other areas. It has the characteristics of environmental protection, energy saving, and low noise, and is suitable for various working conditions and complex environments.
Main features and functions:
1. Environmental protection and energy conservation: Pure electric road maintenance vehicles are driven by electric energy, with zero emissions, no pollution, and meet environmental protection requirements.
2. Low noise: Due to the use of electricity, there is no noise during operation and it will not cause interference to the surrounding environment.
3. Multi functional: equipped with high-pressure water gun, brush scanning system, vacuum cleaner, etc., capable of cleaning road surfaces, green belts, billboards, etc.
4. Intelligence: Equipped with a central control screen, work camera, voice alarm device, etc., it can achieve real-time monitoring and intelligent operation.
5. High battery life: With a large battery capacity, it can work continuously for several hours after being fully charged, meeting the needs of long-term operations
Main Parameter
