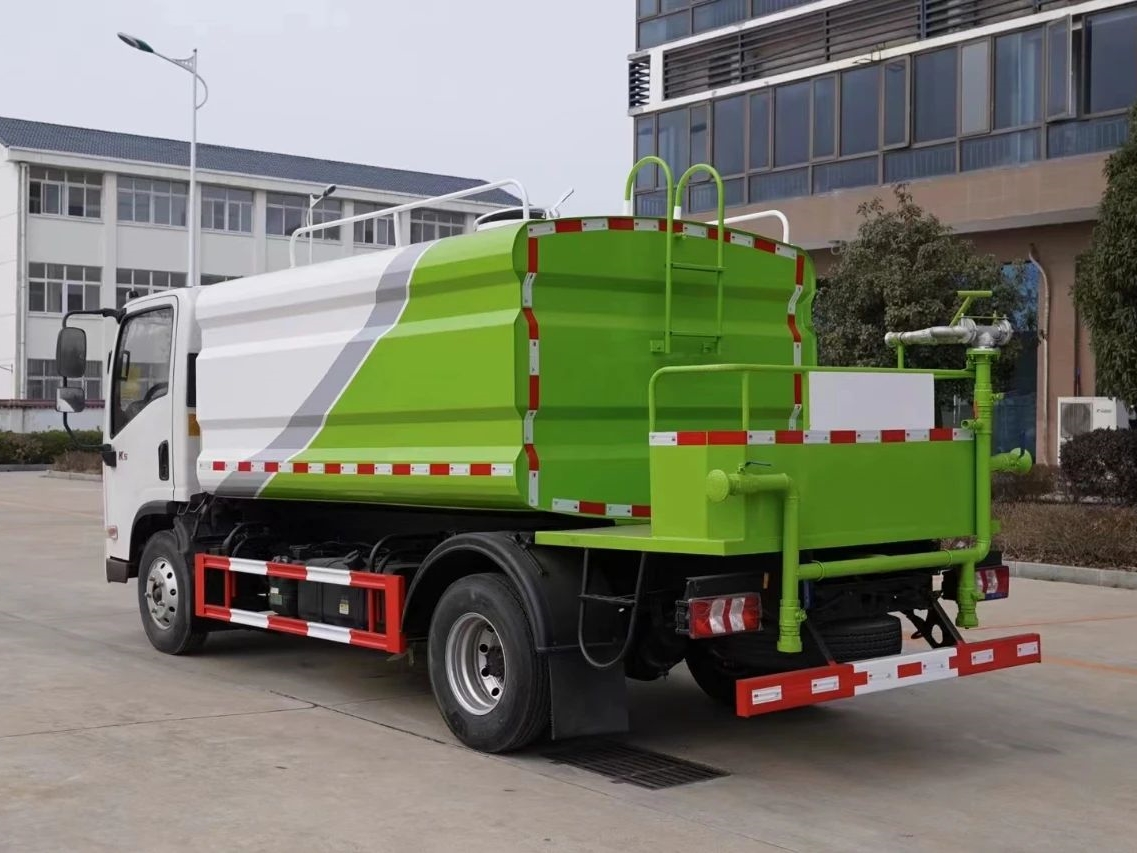

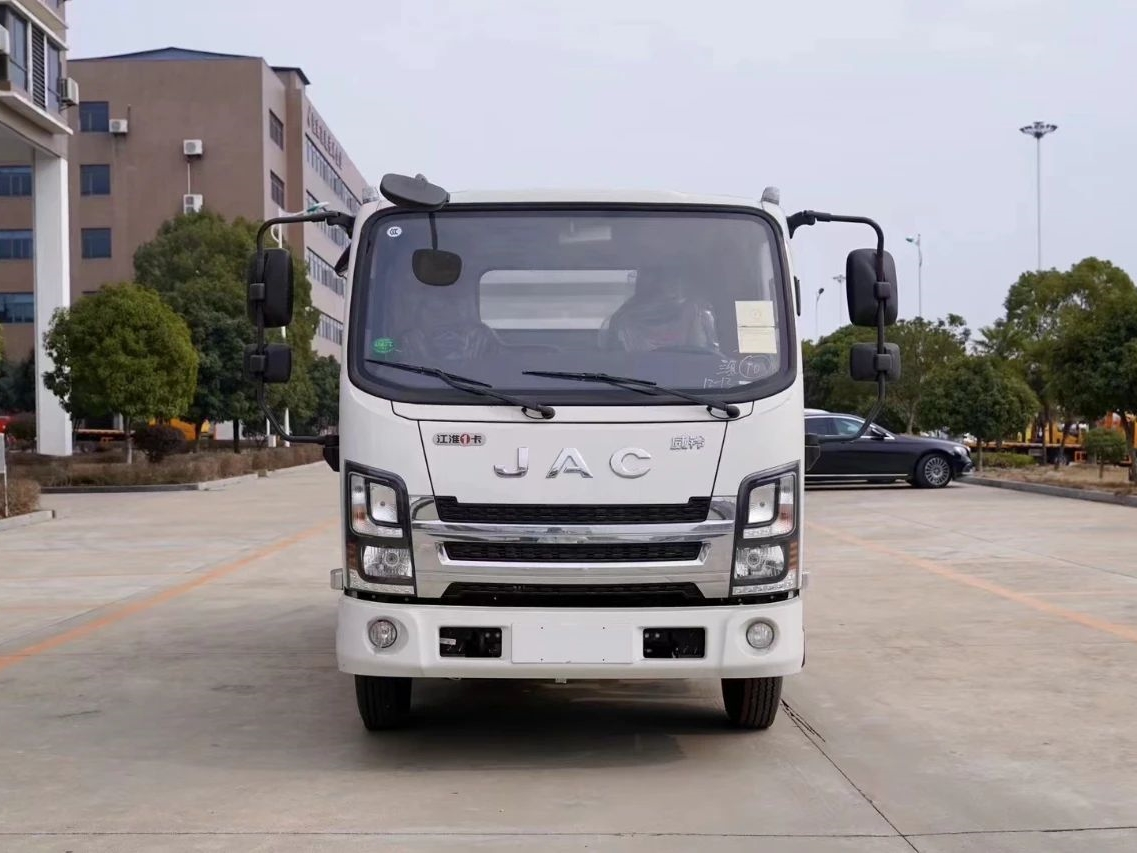

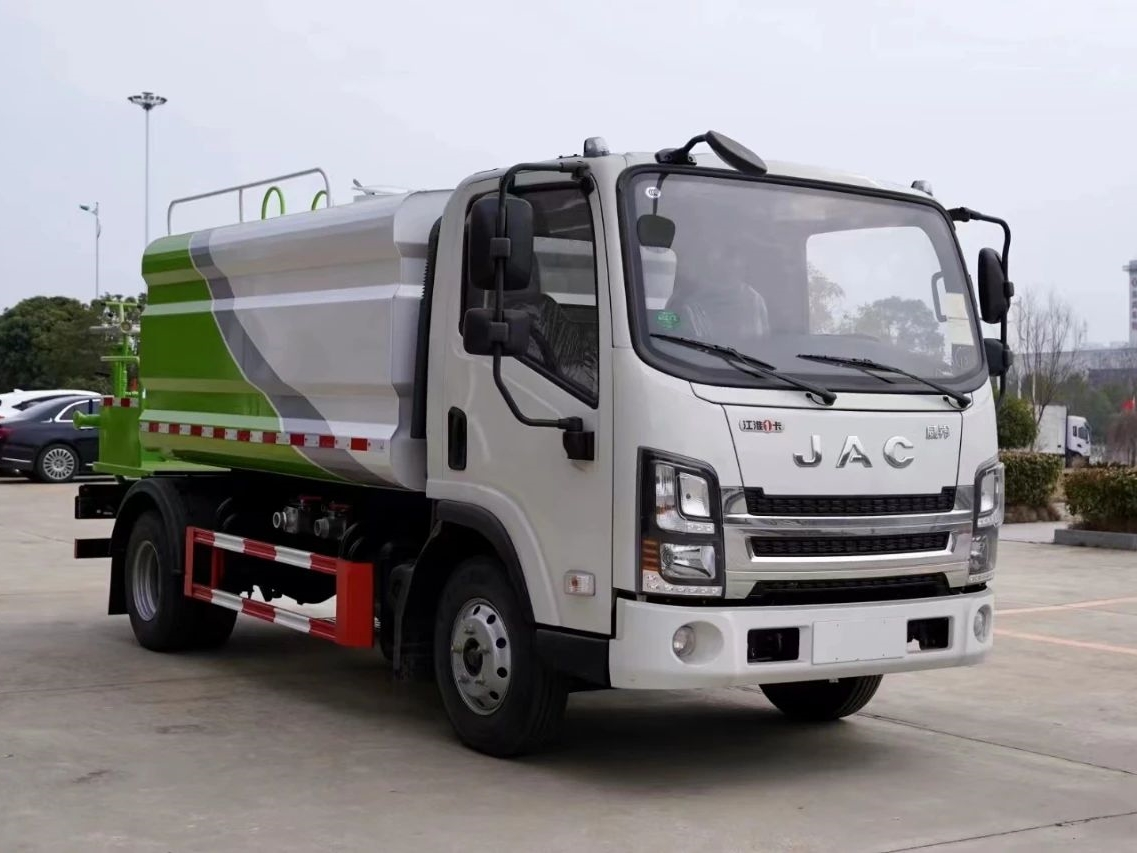

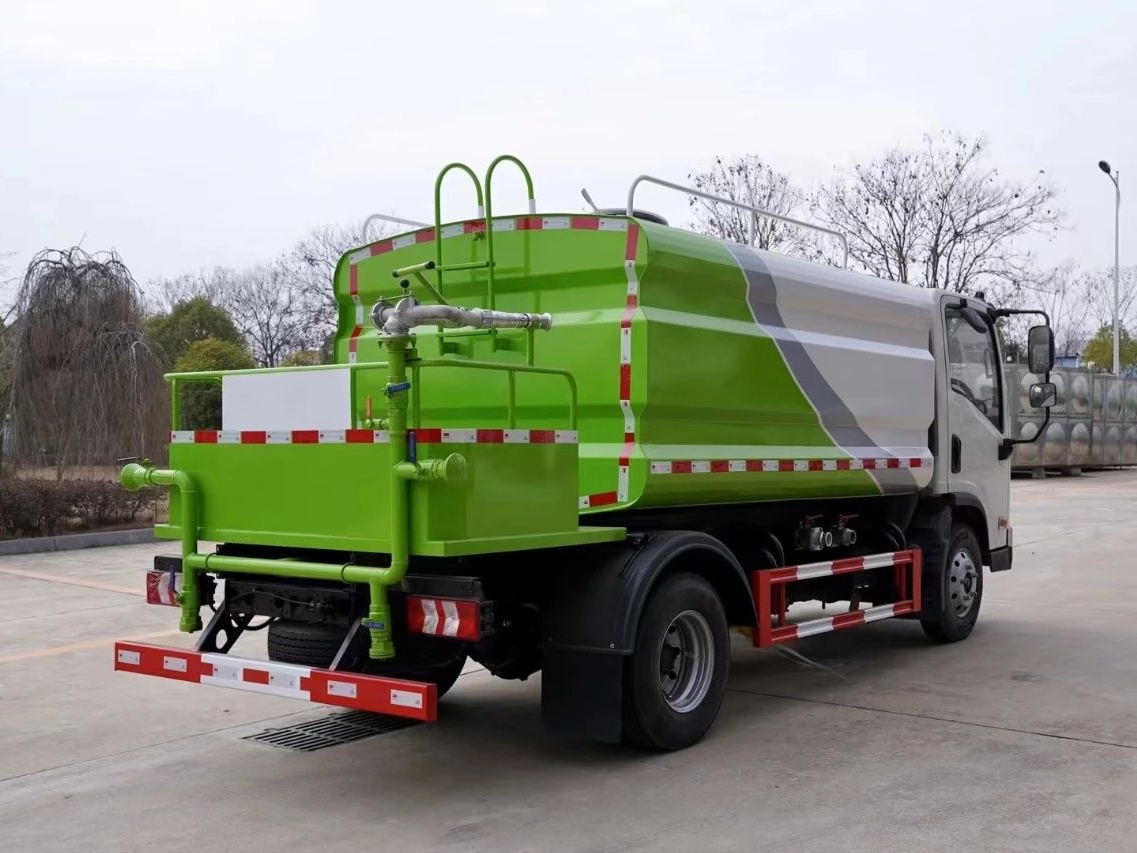

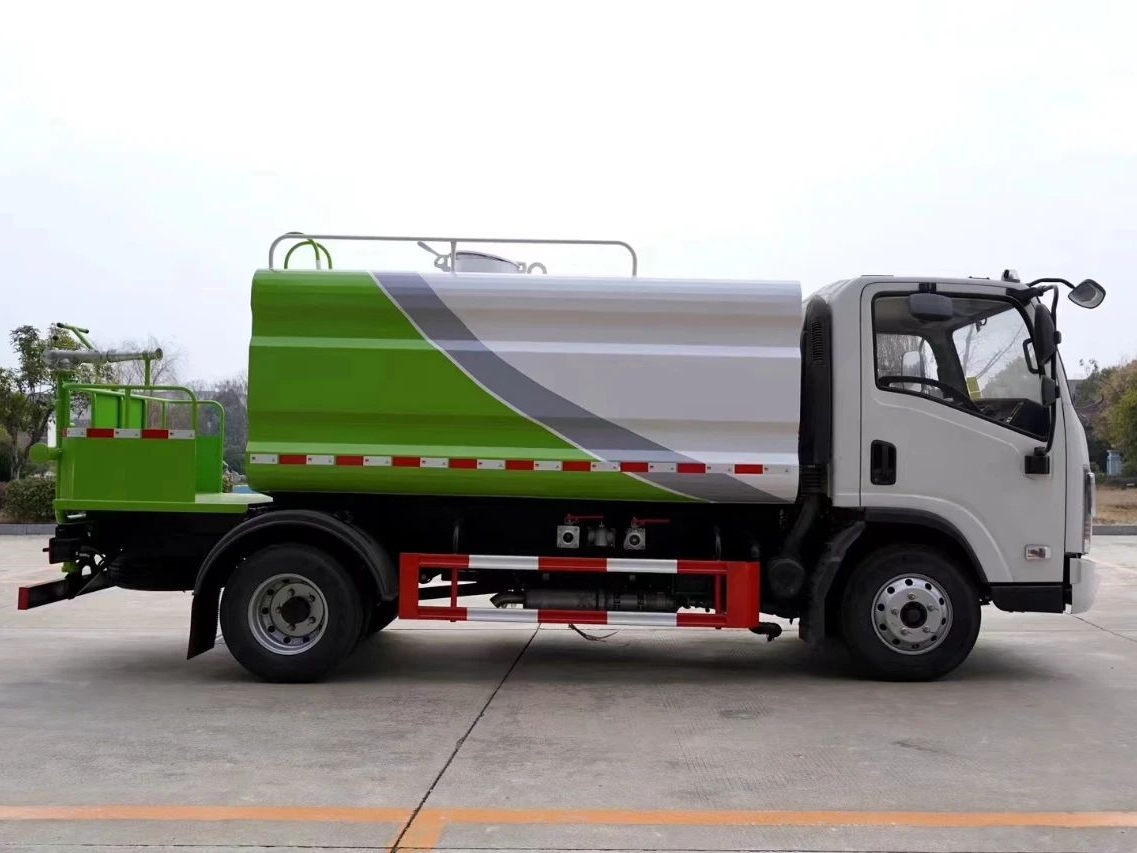

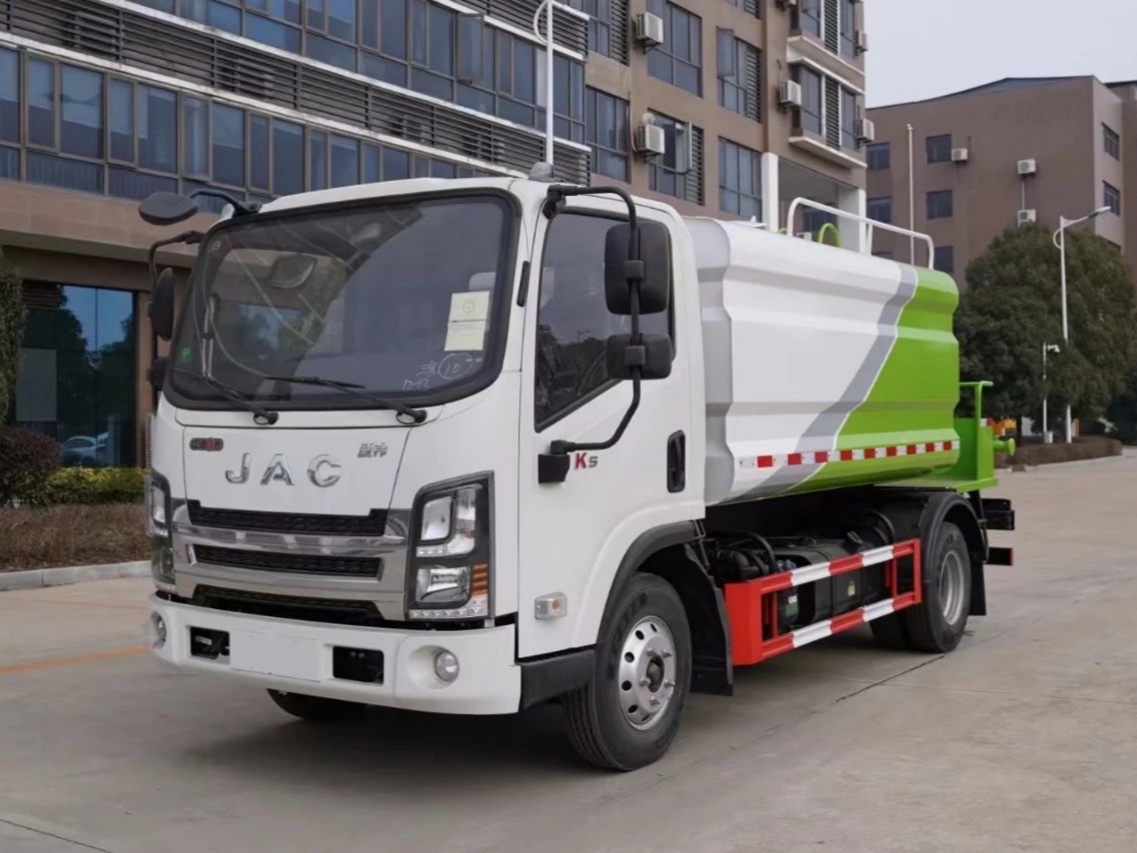

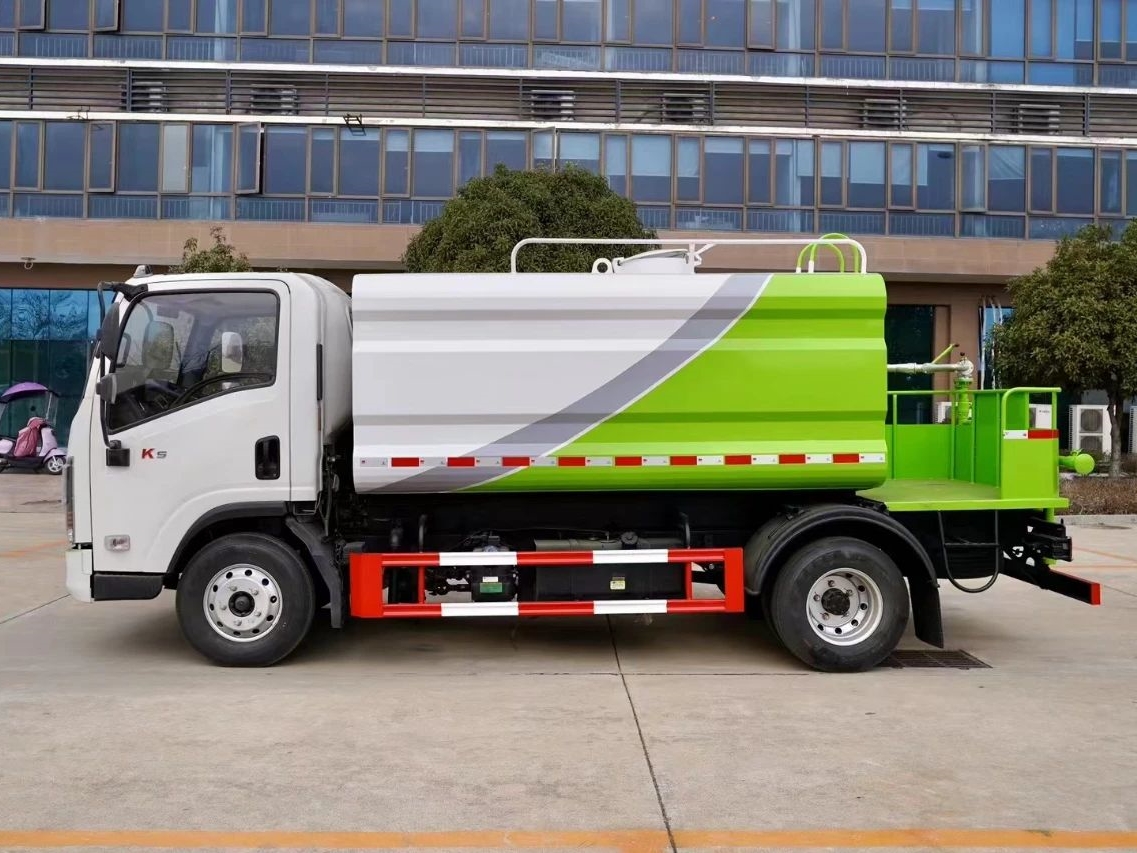

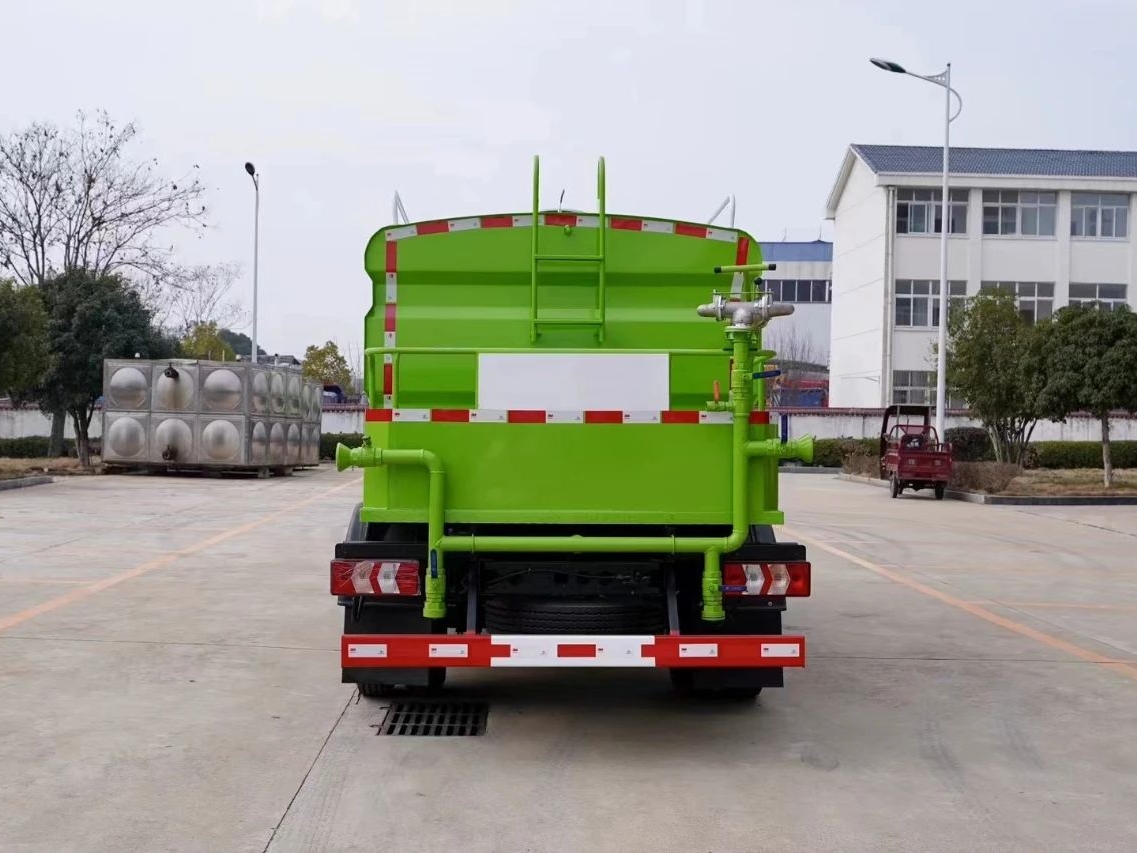

4X2 JAC 7m³ road maintenance vehicle
2024-10-09 15:48:19 Source:chusheng
4X2 JAC 7m³ road maintenance vehicle
Chassis configuration:
1. 3365 wheelbase, larger vehicle space.
2. Adopting AAM American axle, energy-saving and efficient, long-lasting gear oil, high attendance rate.
3. The 137 horsepower engine using German technology is powerful, fuel-efficient, and has good stability.
4. The main beam is made of Baosteel 650L high-strength steel, which has both strength and the ability to reduce the weight of the entire vehicle. The chassis weight is lighter than that of competitors.
5. Standard configuration includes 4 shock absorbers for the front and rear axles, while competitors have little or only two shock absorbers.
6. The interior of the driver's cabin is fully covered, providing comfortable driving and good sound insulation
Installation configuration:
1.The tank body is about 7 cbm.
2.The side lights are electrified, and two red width indicator lights are standard above the tail of the tank.
3.The standard front spray is duckbill straight jet, and the standard rear spray allows users to adjust the offset position according to their own needs.
Product Name |
4X2 JAC 7m³ road maintenance vehicle |
Engine Model |
YN25PLUS2 |
Engine horsepower |
kuming Yunnei 137hp |
Engine displacement |
2.49L |
Gearbox |
5 forward gears and 1 reverse gear |
Tire specification |
6.50R16LT 8PR,7.00R16LT 8PR,6.50R16LT 10PR, 6+1 spare |
Wheel base (mm) |
3365,2850,3600(mm) |
Gross vehicle weight(Kg) |
4485(Kg) |
Curb weight(Kg) |
3500,3050(Kg) |
Rated weight(Kg) |
790,855,1240,1305(Kg) |
Vehicle dimensions (mm) |
5995,5800×2090×2850(mm) |
Tank volume(cbm) |
7 |
Fuel type |
diesel |
Emission standard |
Euro 6 (option:Euro3/4/5) |
Water pump model |
50/50 |
Tank material |
Q235 carbon steel |
Additional configuration |
Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light |
Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
4X2 JAC 7m³ road maintenance vehicle
A road maintenance truck is a specialized vehicle designed to support the upkeep and repair of roadways, ensuring they remain safe and functional for public use. These trucks are equipped with a variety of tools and features tailored to address the specific needs of road maintenance tasks. They play a crucial role in municipal and state infrastructure management, handling everything from minor repairs to significant construction efforts.
Main Parameter
