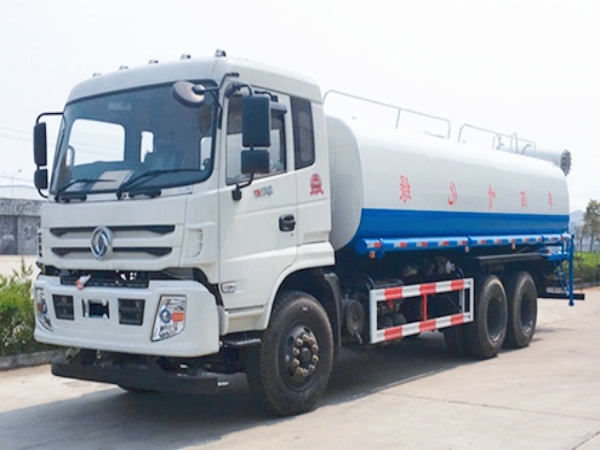

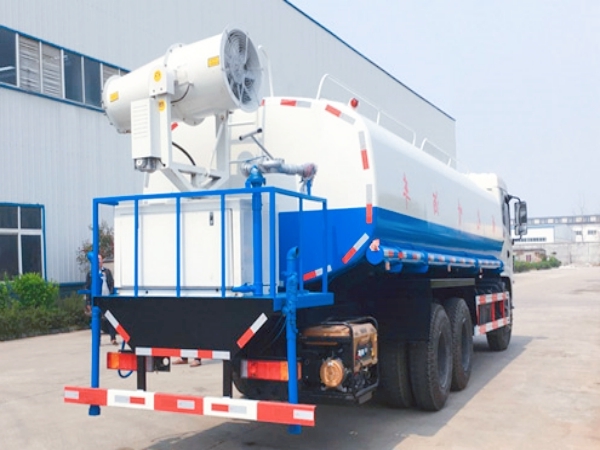

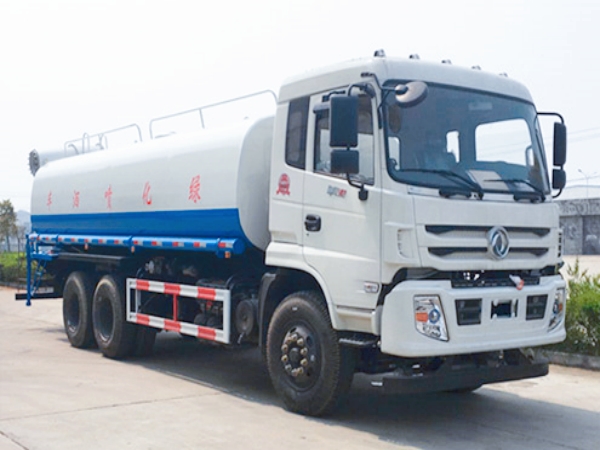

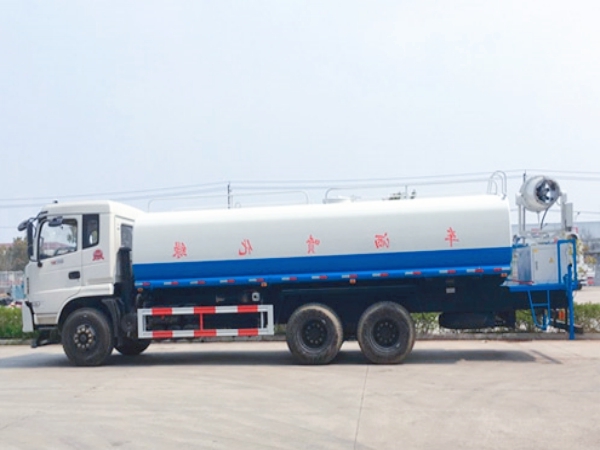

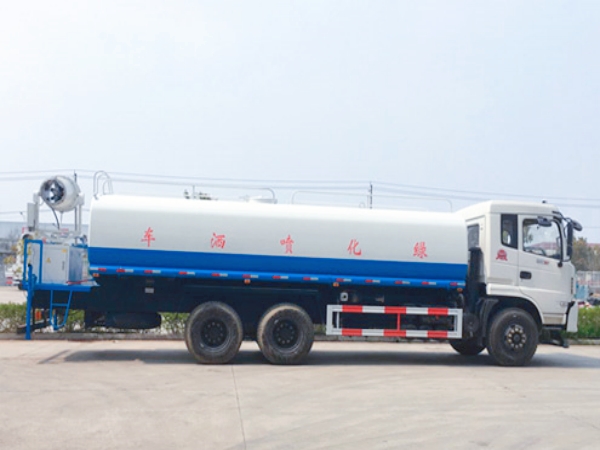

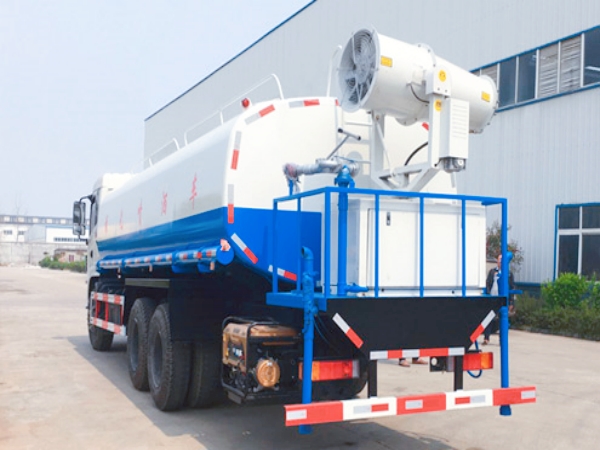

Dongfeng 6X4 18m³ multifunctional dust suppression vehicle
2024-10-09 15:48:19 Source：chusheng
Chassis configuration:
Dongfeng 6X4 18m³ multifunctional dust suppression vehicle， Can spray front, spray back, spray side, anti-aircraft gun, with work platform. With spray at the back, spray with range can be optionally installed.
Dongfeng chassis configuration: new D913-001 cab, Cummins B6.2NS6B230 engine, Shaanxi Gear 8JS105TA transmission with power take-off, 4350+1350mm wheelbase, 5t front axle/10t rear axle, 11.00 steel wire tires,.
| Product Name |
Dongfeng 6X4 18m³ multifunctional dust suppression vehicle |
| Drive type |
6X4 |
| Engine |
B6.2NS6B230, Cummins 230hp |
| Gearbox |
Shaanxi Gear 8JS105TA Transmission with Power Takeoff |
| Tire specification |
11.00 steel wire tire, 10+1 spare |
| Wheel base (mm) |
4350+1350(mm) |
| Vehicle dimensions (mm) |
5800,5450×1980,1920×2650,2500(mm) |
| Gross vehicle weight(Kg) |
25000(Kg) |
| Curb weight(Kg) |
14450,13700(Kg) |
| Rated weight(Kg) |
10355,10420,11105,11170(Kg) |
| Tank volume(cbm) |
18m³ |
| Fuel type |
diesel |
| Emission standard |
Euro 6 (option:Euro3/4/5) |
| Water pump model |
50/50 |
| Tank material |
4mm carbon steel plate |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng 6X4 18m³ multifunctional dust suppression vehicle
Dust suppression
vehicle is a special type of vehicle that suppresses dust pollution by spraying
dust suppression solidifying agents and other spraying liquids. Mainly serving
railways, roads, and other dust prone areas. In terms of structure, the dust
suppression vehicle mainly consists of a swing arm spray device, a liquid
storage tank, a self-propelled vehicle, and a control system.
Dust
suppression vehicles need to install insulation and heating systems on their
tanks, spray nozzles, and pump bodies in northern regions during winter in
order to operate normally.
