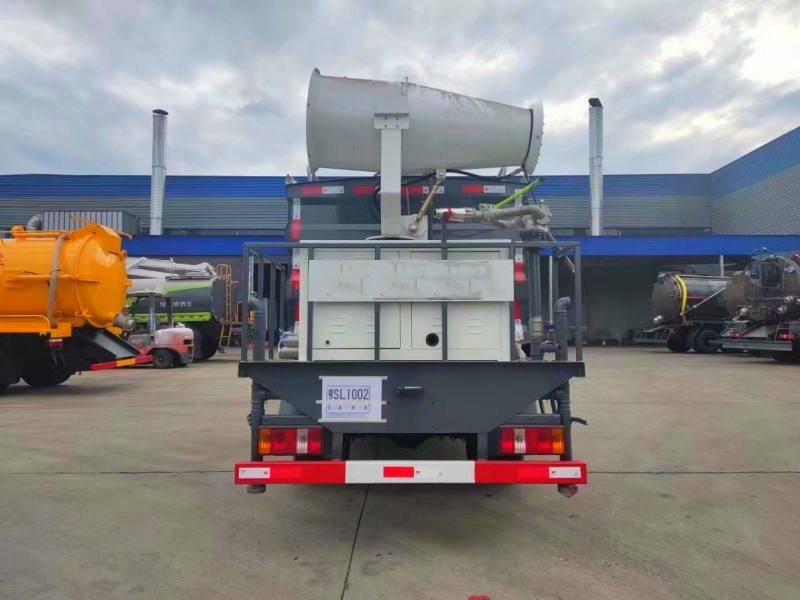

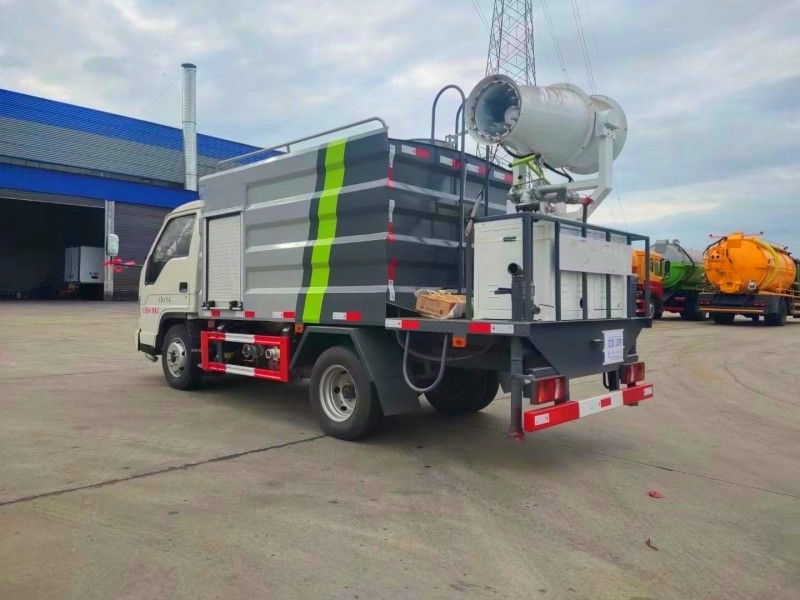

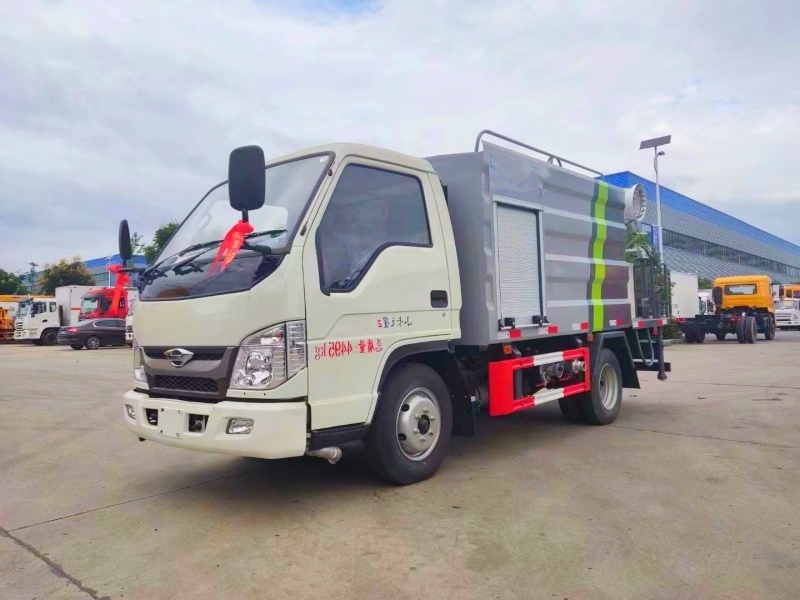

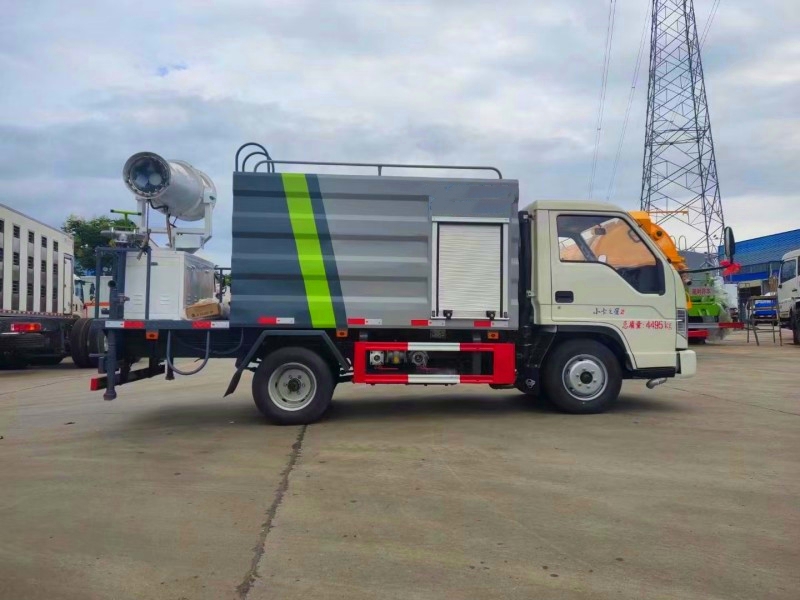

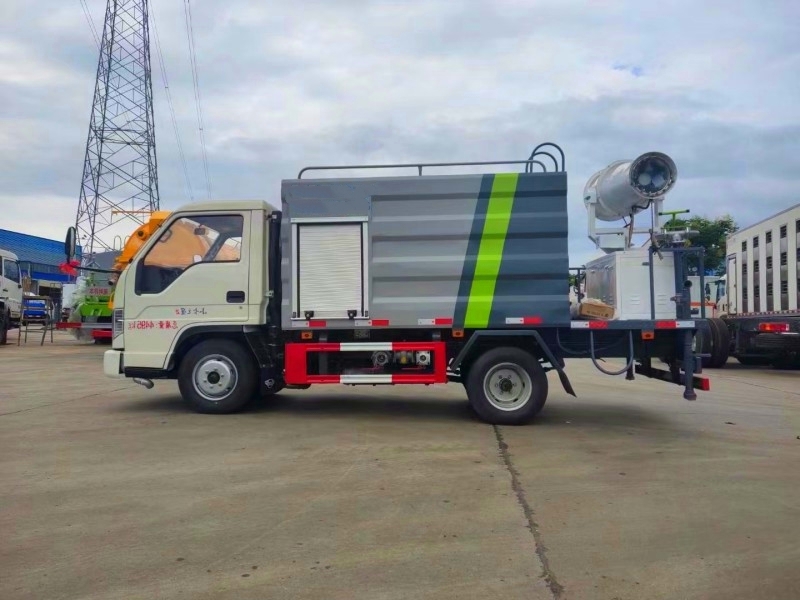

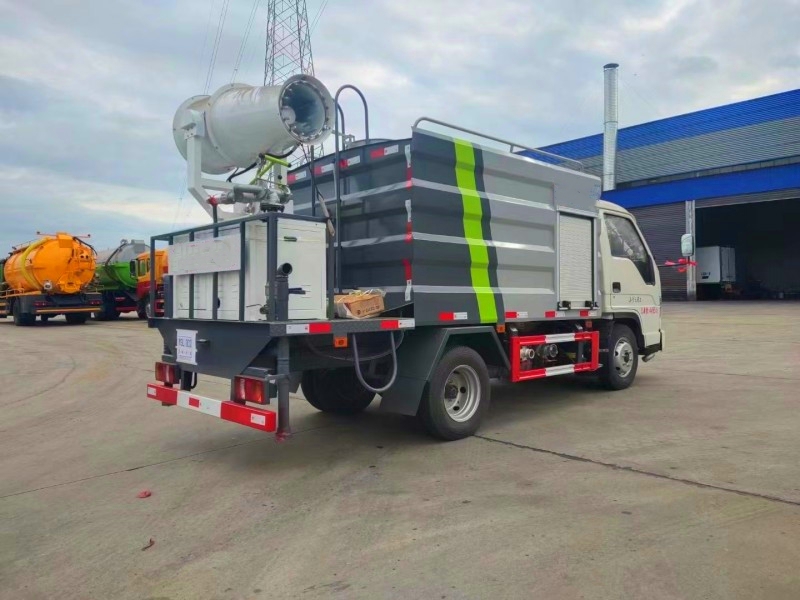

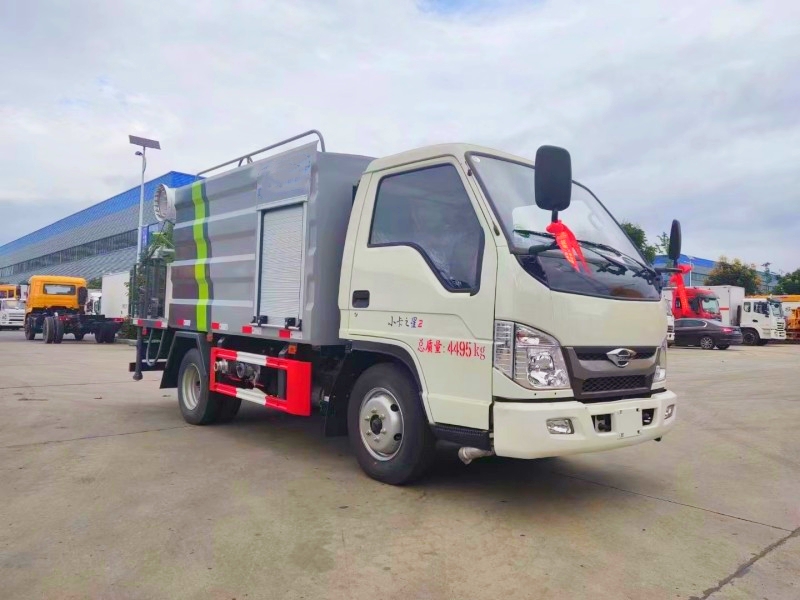

Foton H2 4X2 dust suppression vehicle
2024-10-09 15:48:19 Source：chusheng
Chassis configuration:
Foton H2 dust suppression vehicle, with a capacity of 7 cubic meters, a fully diesel 115 horsepower engine, a 5TS32-5 gearbox, a 2850 wheelbase, a 130 rear axle, 6.50R16 tires, and a C license for driving. The size of water mist of the rear 30m spray can be adjusted.
| Product Name |
Foton H2 4X2 dust suppression vehicle |
| Drive type |
4X2 |
| Engine |
Q23-115E60, Quanchai 115hp |
| Gearbox |
5-speed gearbox |
| Tire specification |
6.50R16LT 10PR, 6+1 spare |
| Wheel base (mm) |
2850,3360(mm) |
| Vehicle dimensions (mm) |
5800,5450×1980,1920×2650,2500(mm) |
| Gross vehicle weight(Kg) |
4495(Kg) |
| Curb weight(Kg) |
3120,2800(Kg) |
| Rated weight(Kg) |
1245,1565(Kg) |
| Tank volume(cbm) |
7 |
| Fuel type |
diesel |
| Emission standard |
Euro 6 (option:Euro3/4/5) |
| Water pump model |
50/50 |
| Tank material |
4mm carbon steel plate |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Foton H2 4X2 dust suppression vehicle
Dust suppression
vehicle is a special type of vehicle that suppresses dust pollution by spraying
dust suppression solidifying agents and other spraying liquids. Mainly serving
railways, roads, and other dust prone areas. In terms of structure, the dust
suppression vehicle mainly consists of a swing arm spray device, a liquid
storage tank, a self-propelled vehicle, and a control system.
Dust
suppression vehicles need to install insulation and heating systems on their
tanks, spray nozzles, and pump bodies in northern regions during winter in
order to operate normally.
