Chassis configuration:

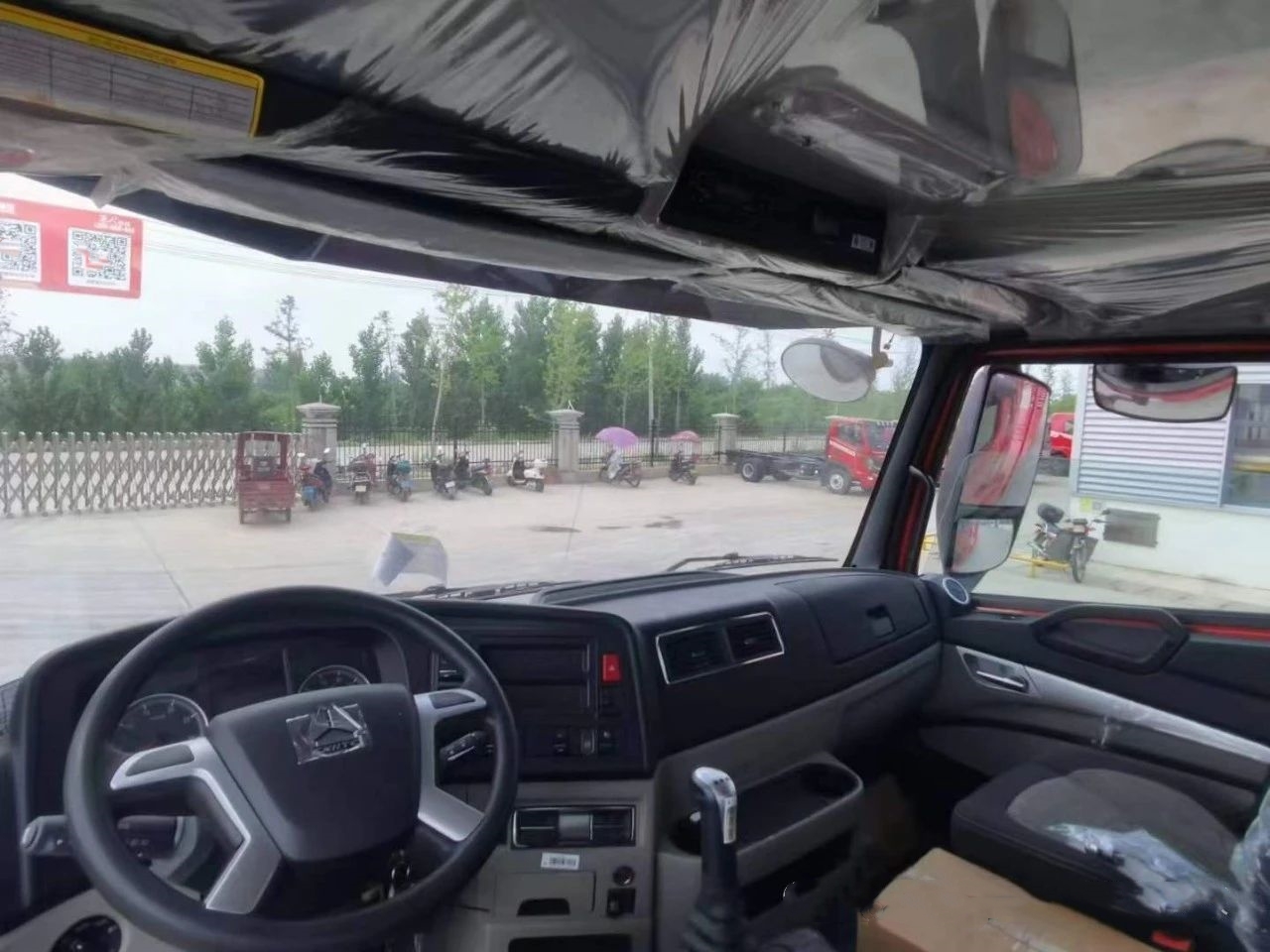

Sinotruk Hohan cab Luxury Edition; Multi functional steering wheel; Electric heated rearview mirror; Main airbag+auxiliary simplified seat; H653 self-adjusting arm front axle (drum); MCJ11 self-adjusting arm single rear axle (drum); Speed ratio 4.11; Double layered frame (8+5/280); Front and rear standard version with multiple leaf springs (9/9/9+6); Domestic steering gear; Standard version exhaust system; ABS(4S/4M)； Low bumper (non-metallic); JAHFK_TPB_20190901； Ordinary wheels; 315/60R22.5； 200L fuel tank;
Installation configuration:

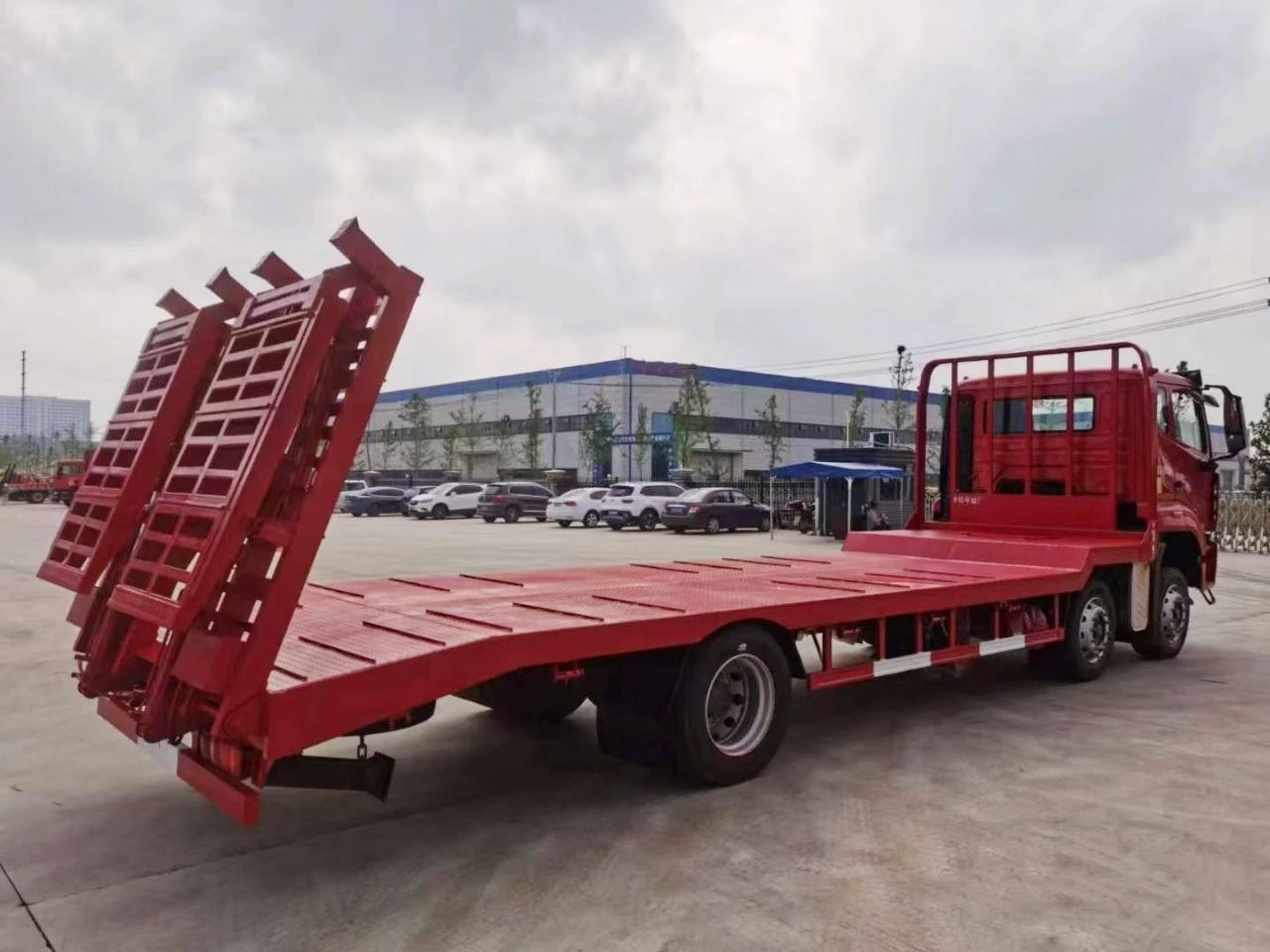

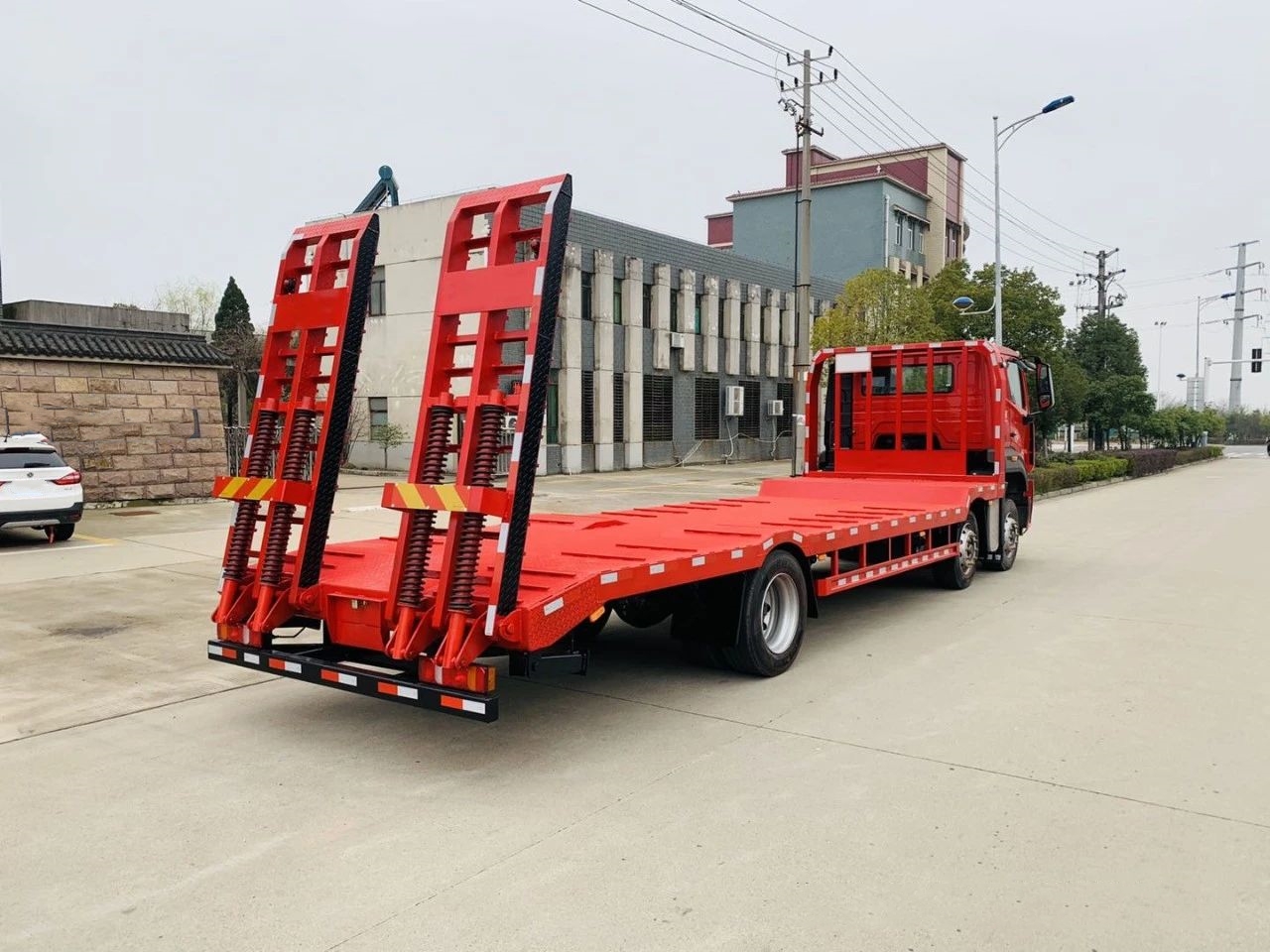

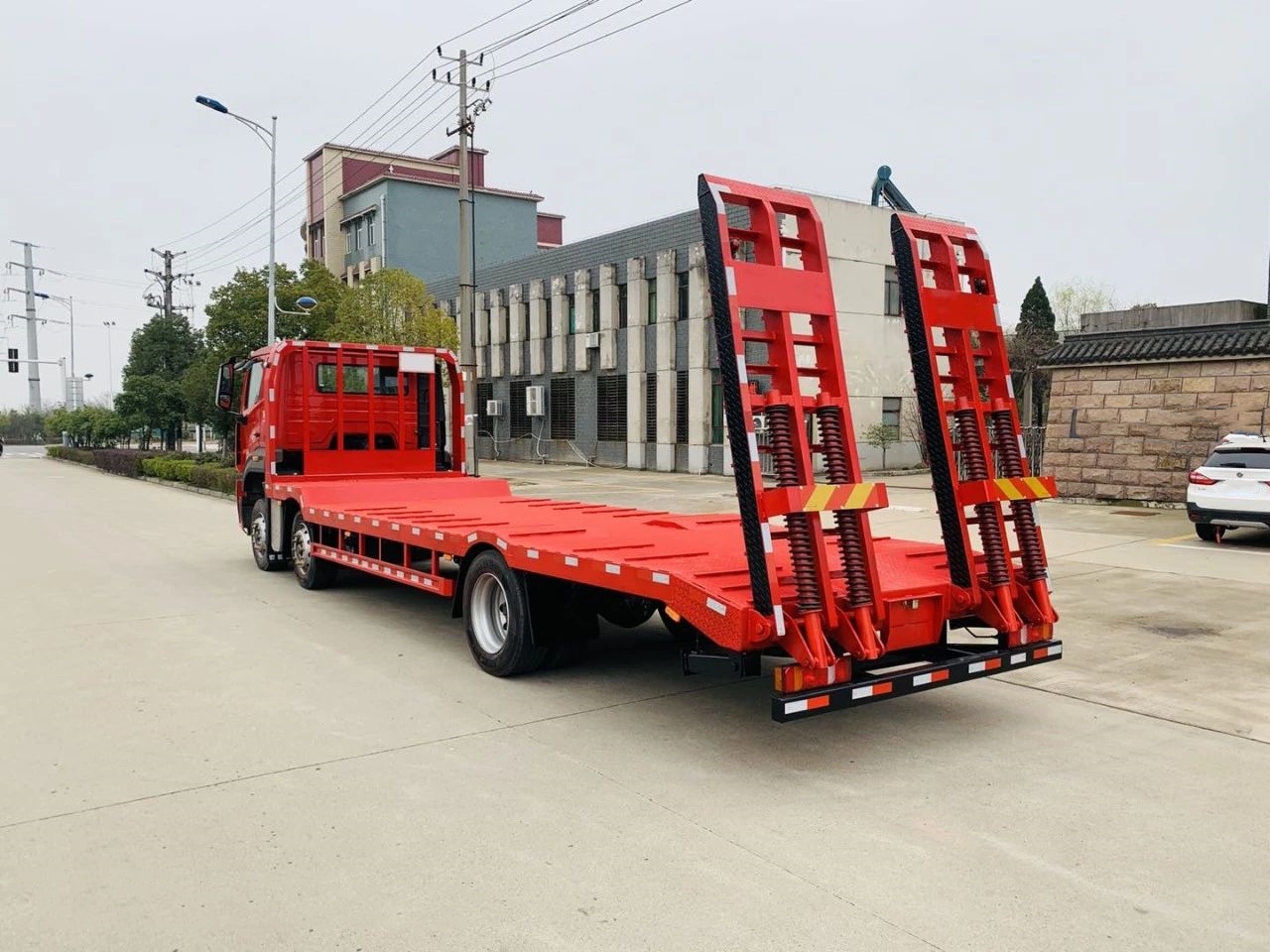

The height of the flat plate above the ground is 1.02 meters. The flat plate is made of 8mm thick patterned plate and can be manually extended to 3 meters (optional hydraulic extension). The crossbeam is made of 120x120x6 sets of 100x100x6 square tubes, with a spacing of 250-300mm between crossbeams. The double spring manganese steel reinforced climbing ladder (optional double section hydraulic folding climbing ladder)
| Product Name | Sinotruk Hohan 6x2 flatbed truck |
| Cab | Sinotruk Hohan cab |
| Drive wheel | 6X2 |
| Steering wheel | Left/Right hand drive |
| Seat capacity | 2-3 person |
| Engine | MC07.31-60, 310hp |
| Gearbox | Sinotruk 10-speed gearbox |
| Carframe | 280(8+5)mm double-layer beam |
| Wheel base | 1800+4800(mm) |
| Axle numbers | 3 |
| Tire sepcification and quantity | 315/60R22.5, 8+1 spare tire |
| Vehicle dimension | 10600,11250×2550×3200 mm |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

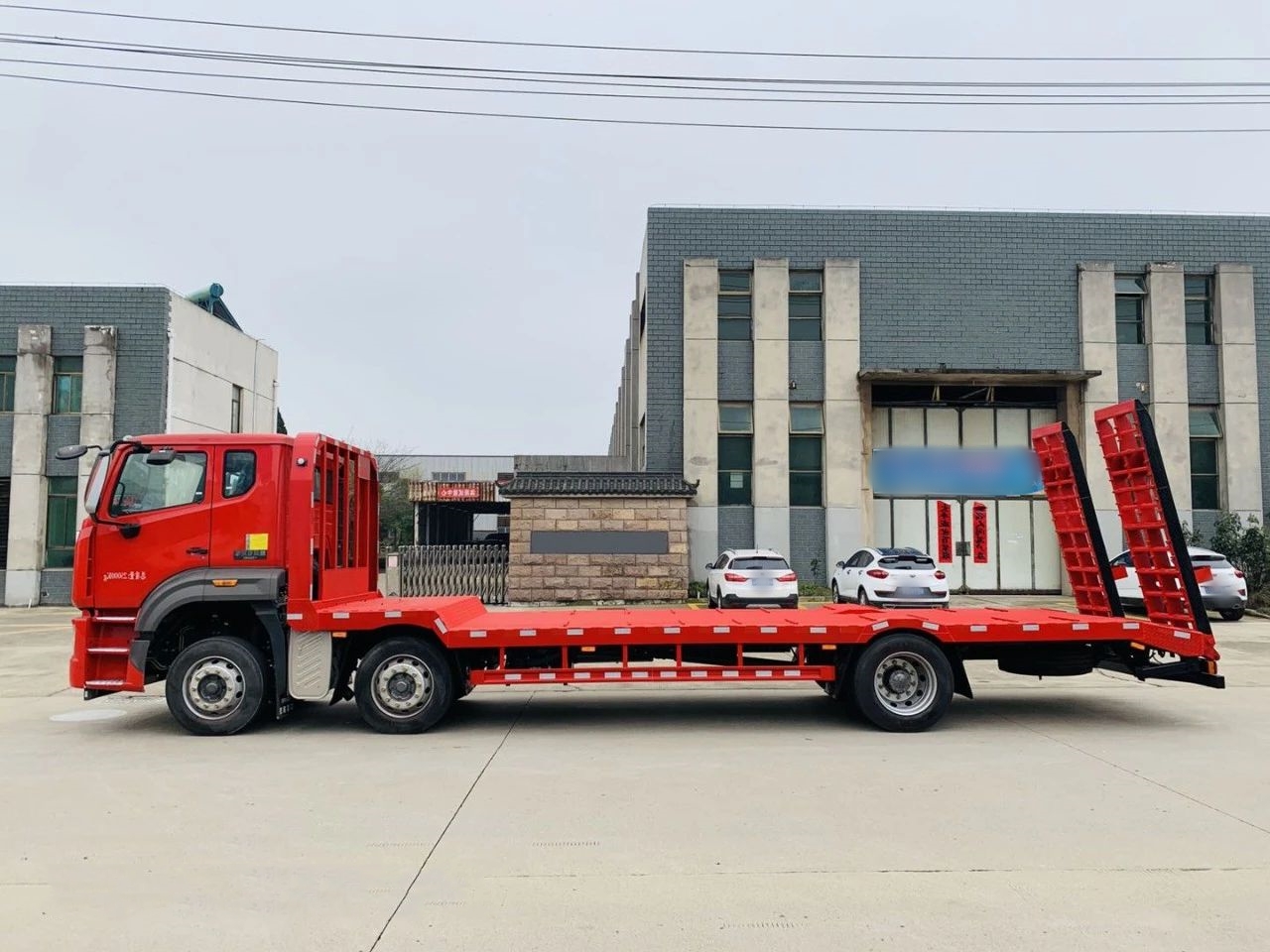

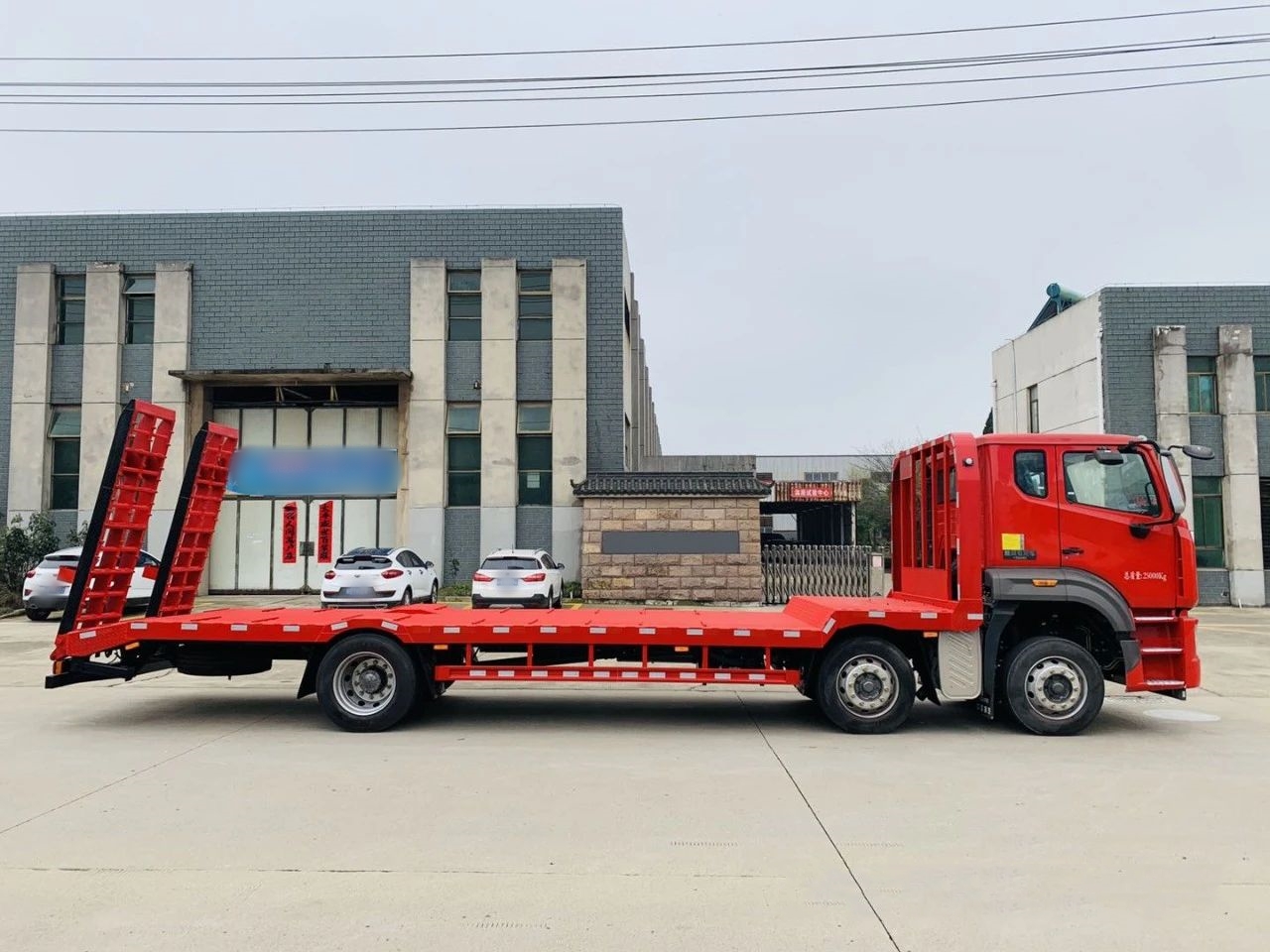

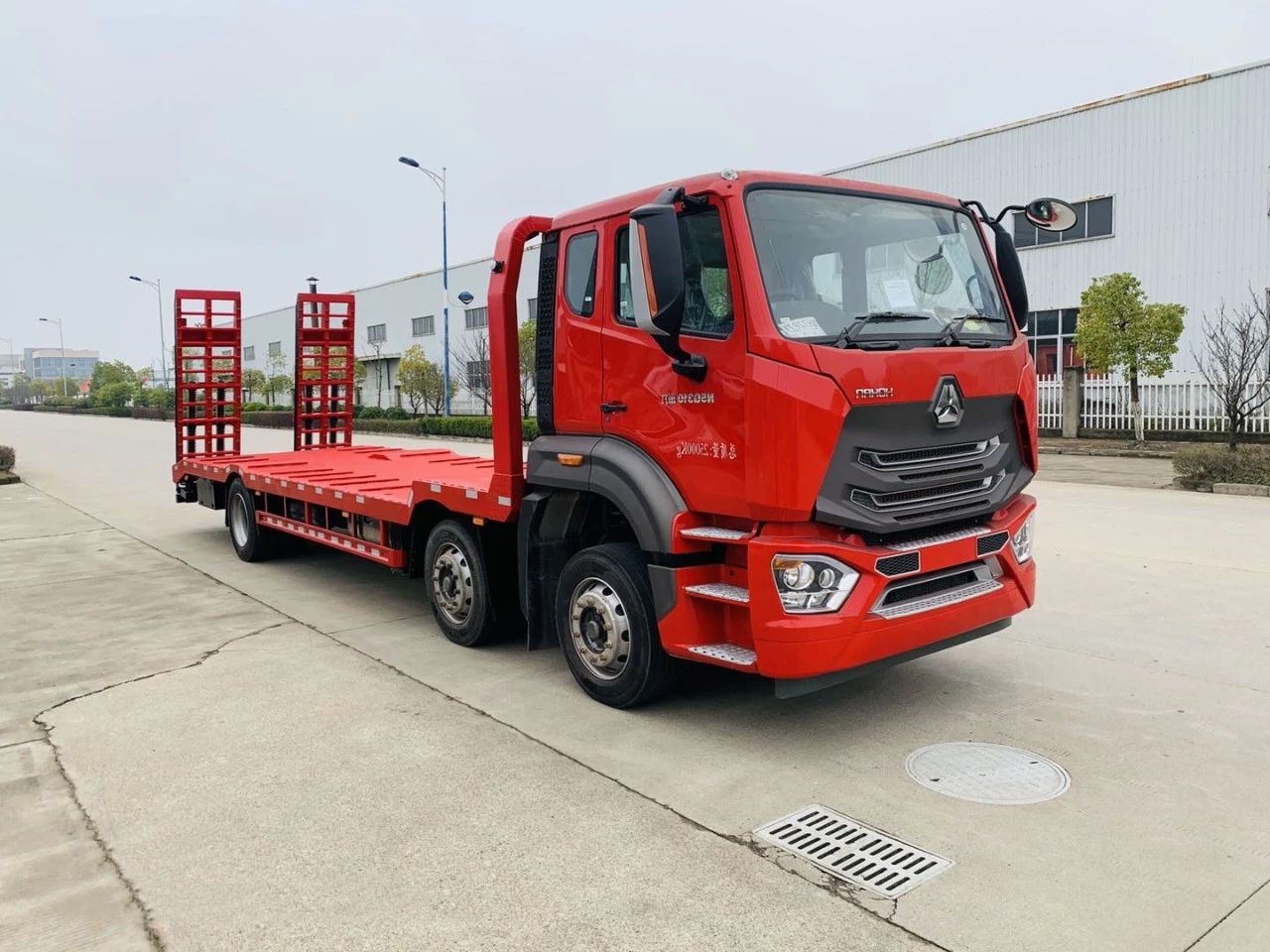

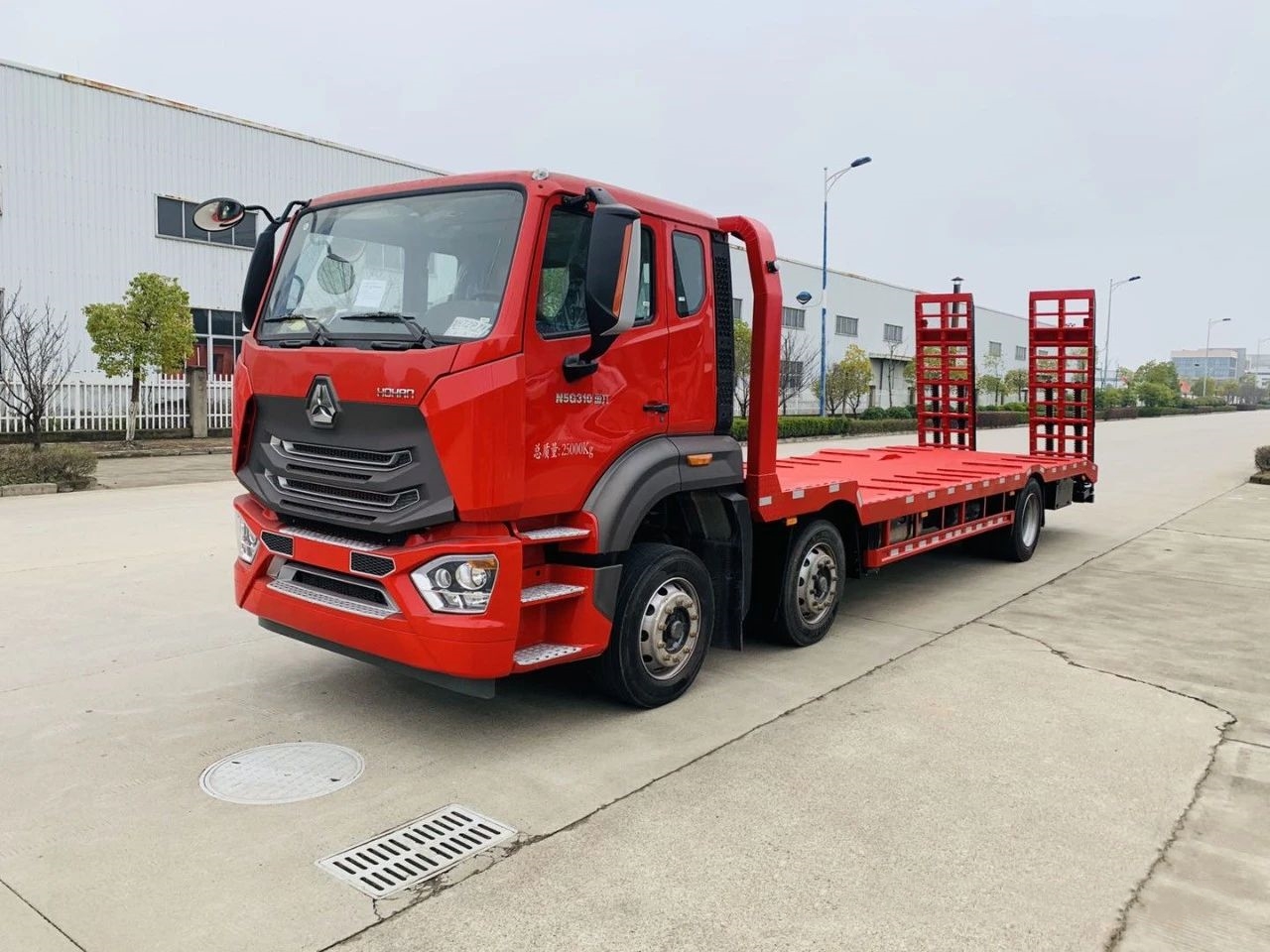

Sinotruk Hohan 6x2 flatbed truck
Aflatbed transport vehicle also known as a flat trailer, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.
Main Parameter
