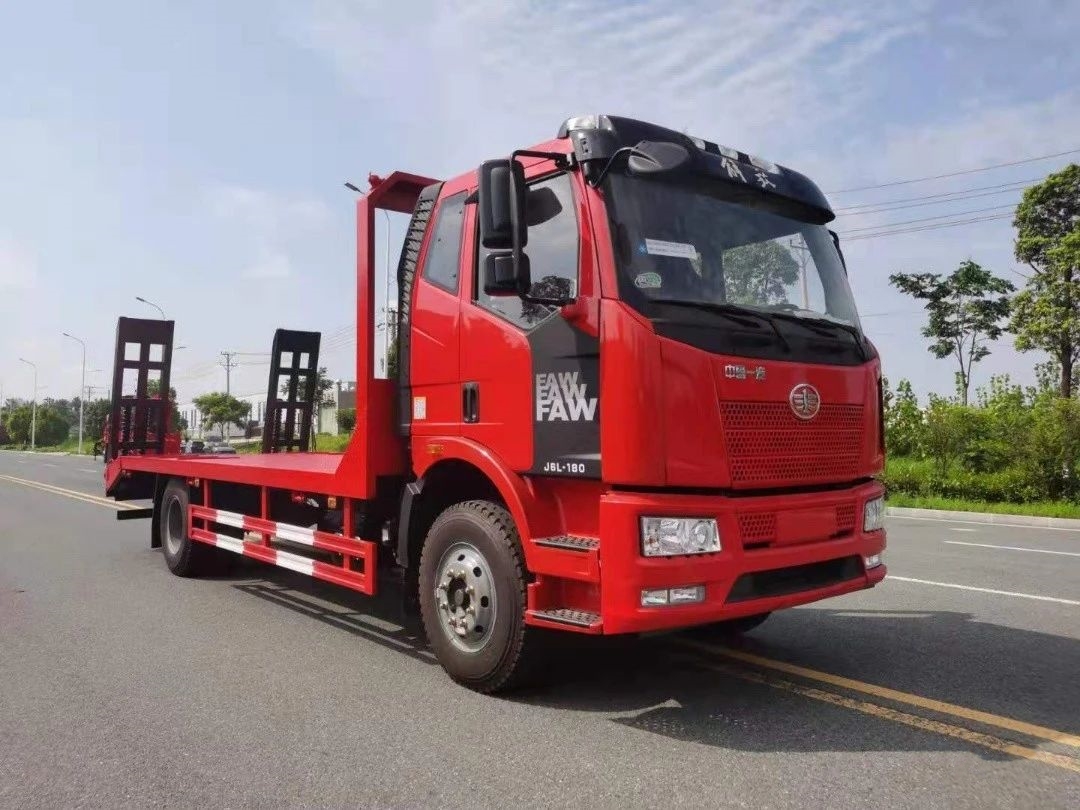

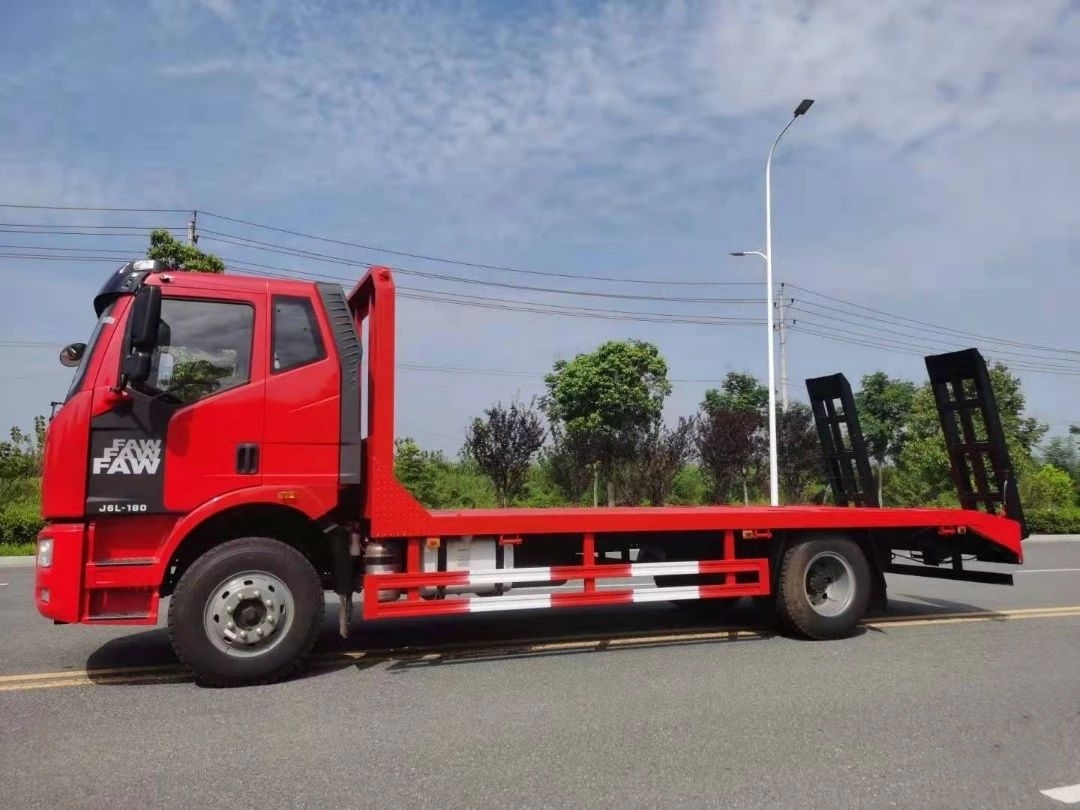

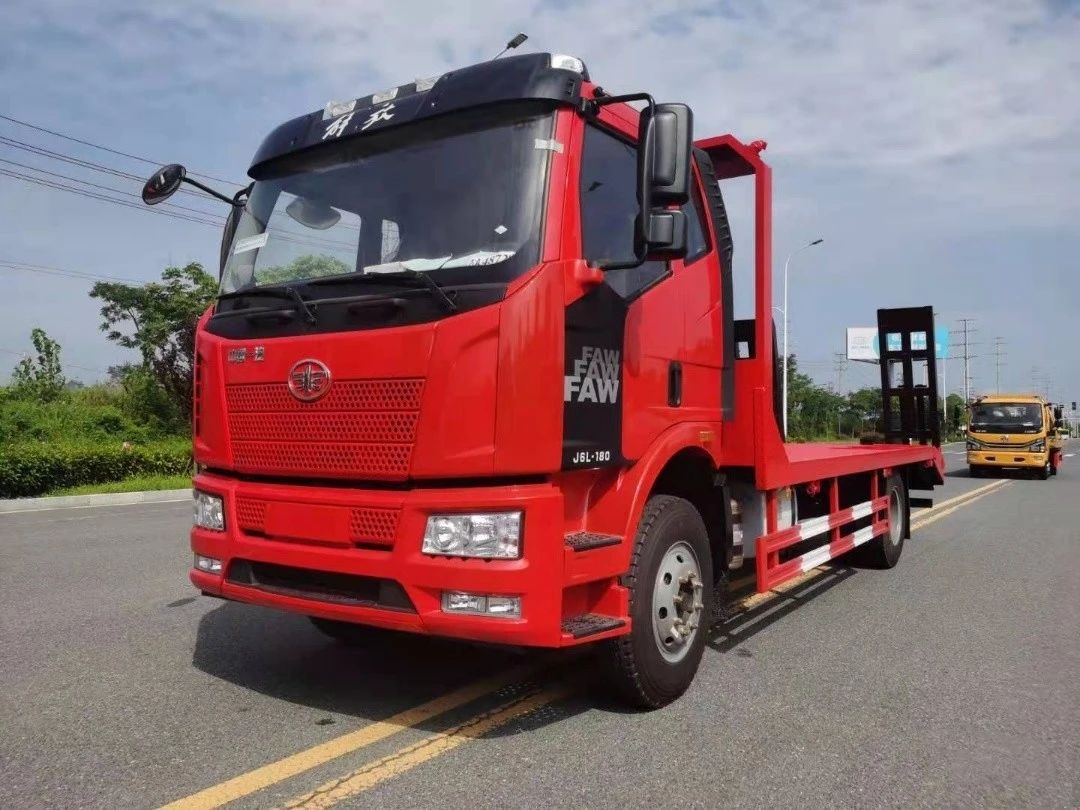

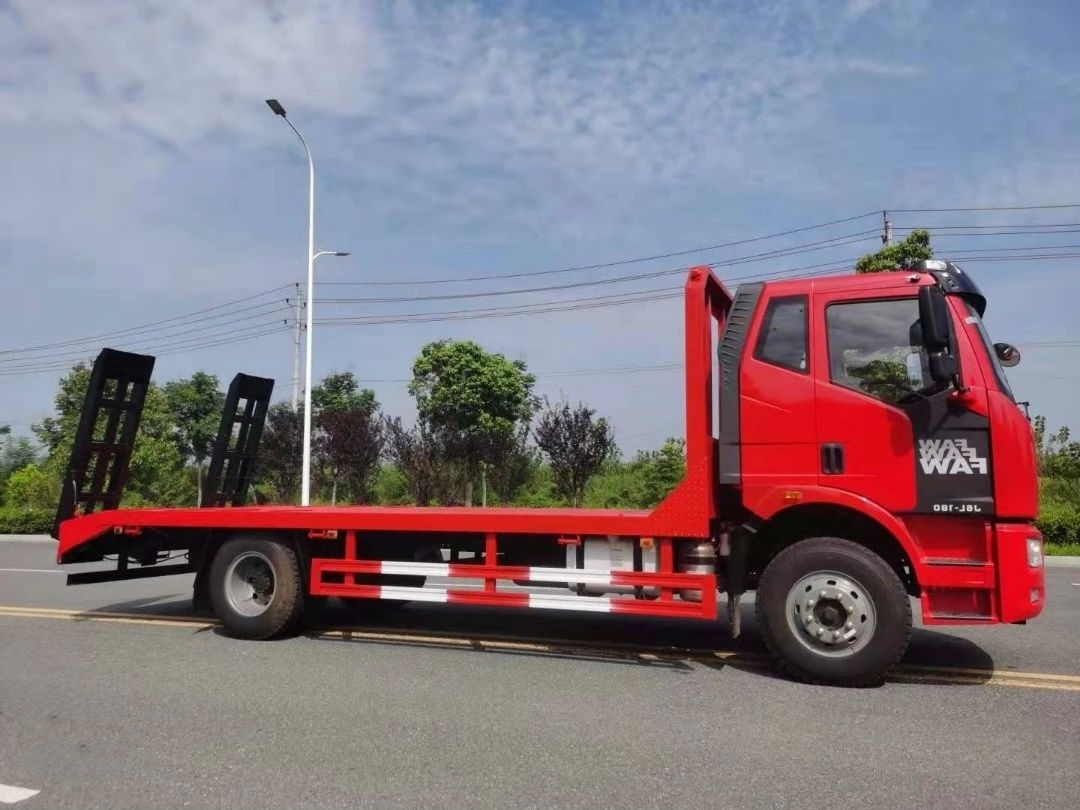

Jiefang J6L 4X2 flatbed transport vehicle

Jiefang J6L 4X2 flatbed transport vehicle

2024-09-18 10:36:10 Source：chusheng

Product description

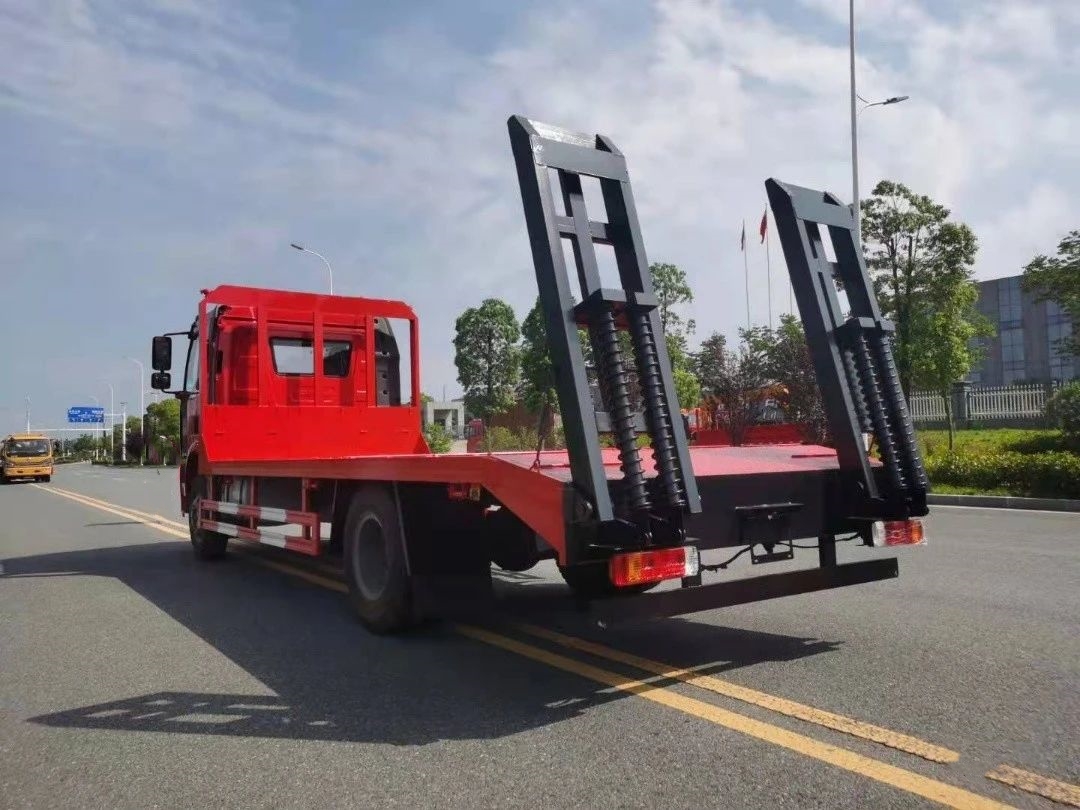

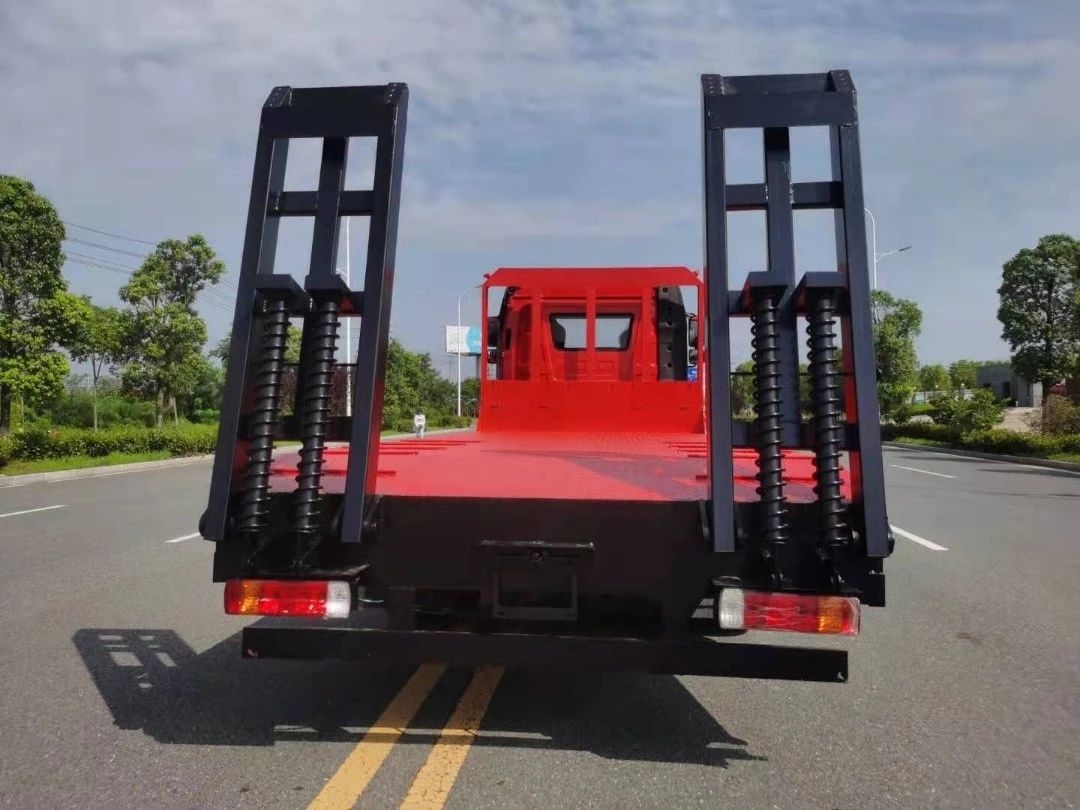

The 2024 new J6L driver's cab, Dachai 220hp engine, a Fast 8-speed gearbox, a 237mm double-layer beam, a 10 ton rear axle, and 10.00R20 steel wire tires. Standard electric doors and windows, remote control central locking, automatic air conditioning, driving recorder, driver airbag seat. The wheelbase can be selected as 4500/5000mm, corresponding to the overall dimensions of the vehicle as 8375/9000 × 2550 × 3000mm, with a corresponding plate length of 5.8/6.5 meters. It can be used as a sunken low flat plate, and a double section hydraulic ladder can be optionally installed at the rear. The total mass is 18 tons, with a rated load of 10.4 tons, suitable for transporting various types of construction machinery and equipment weighing 8-15 tons!

Product Name

Jiefang J6L 4X2 flatbed transport vehicle

Cab

J6L cab

Drive wheel

4X2

Steering wheel

Left/Right hand drive

Seat capacity

2-3 person

Engine

Dachai 220hp

Gearbox

Fast 8-speed gearbox

Carframe

237mm double-layer frame beam

Wheel base

4500/5000(mm)

Axle numbers

Tire sepcification and quantity

10.00R20 steel wire tire, 6+1 spare tire

Vehicle dimension

8375/9000×2550×3000mm

Flatbed dimension

5800/6500×2400,2500,2550×-(mm)

Gross vehicle weight(Kg)

18000(Kg)

Curb weight(Kg)

7600(Kg)

Rated weight(Kg)

10400(Kg)

Notice

The above information is for reference only, and vehicles can be customized depending on your requirements.

Jiefang J6L 4X2 flatbed transport vehicle

A flatbed transport vehicle also known as a flat trailer, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.
