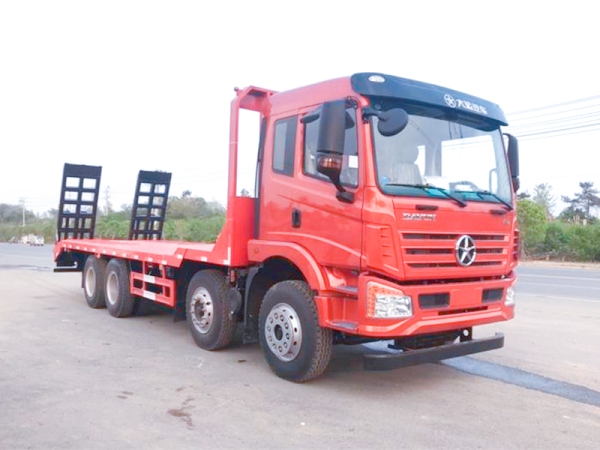

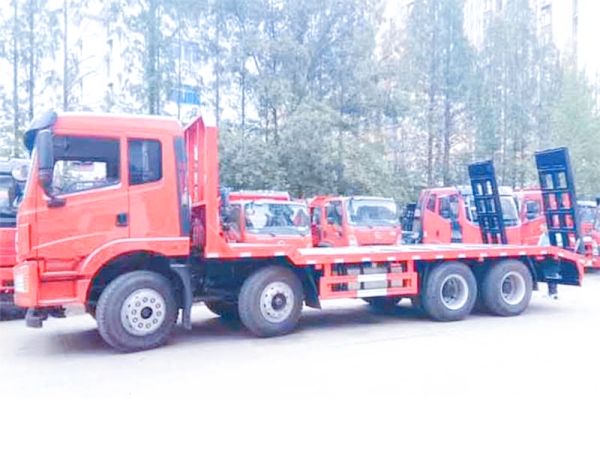

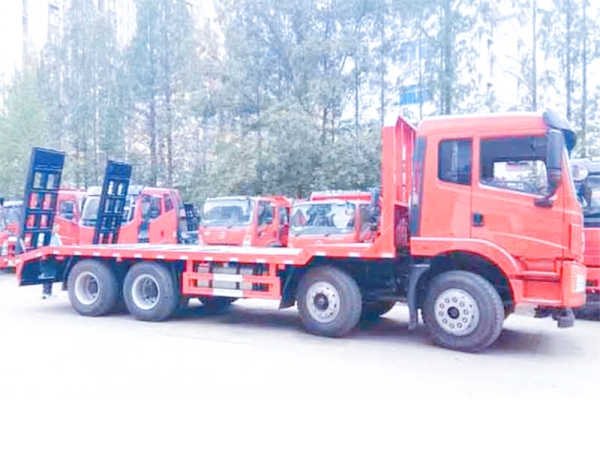

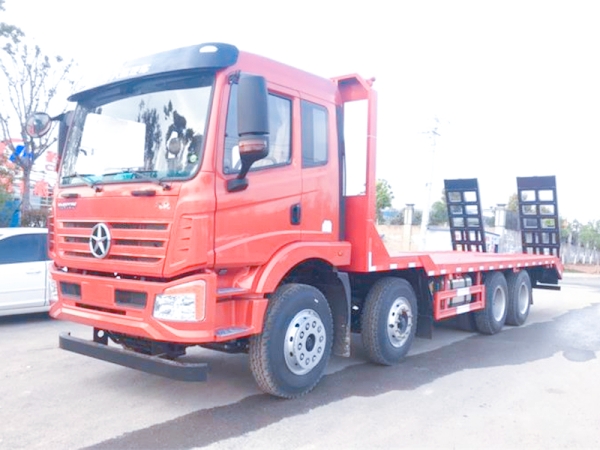

Dayun 8X4 flatbed trailer vehicle

Dayun 8X4 flatbed trailer vehicle

2024-09-18 10:36:10 Source：chusheng

Chassis configuration:

Weichai 320/350 horsepower engine, Fast 10 speed gearbox, 5-ton front axle, 13 ton rear axle, 280mm double-layer beam, 10.00 steel wire tires.
Top configuration:
The upper part is made of 8mm thick patterned plate, which can be manually extended to 3 meters (with optional hydraulic extension). The crossbeam adopts a 120x120x6 square tube, with a built-in 100x100x6 square tube. The crossbeam spacing is 280-300mm, and the double spring manganese steel reinforced ladder is used.

Product Name

Dayun 8X4 flatbed trailer vehicle

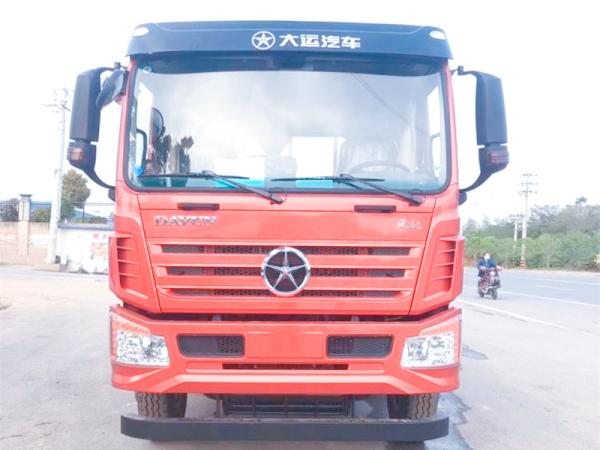

Cab

Dayun cab

Drive wheel

8X4

Steering wheel

Left/Right hand drive

Seat capacity

2-3 person

Engine

WP8.320E61,WP8.350E61, Weichai 320/350hp

Gearbox

Fast 10-speed gearbox

Carframe

280mm double layered beam

Wheel base

1850+3000+1350,1850+3200+1350,1850+3400+1350,1850+3600+1350(mm)

Axle numbers

Tire sepcification and quantity

10.00R20 18PR, 12+1 spare tire

Vehicle dimension

9960,10660,11060,11260,9910,10610,11010,11210×2550×3150,3250,3350(mm)

Flatbed dimension

7400,8100,8500,8700x2550x-mm

Gross vehicle weight(Kg)

31000(Kg)

Curb weight(Kg)

13700,14500(Kg)

Rated weight(Kg)

17170,16370(Kg)

Top configuration

The tablet can reach a maximum length of 8.7 meters and can be optionally equipped with a hydraulic ladder

Notice

The above information is for reference only, and vehicles can be customized depending on your requirements.

Dayun 8X4 flatbed trailer vehicle

A flat trailer also known as a flatbed transport vehicle, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.

Main Parameter
