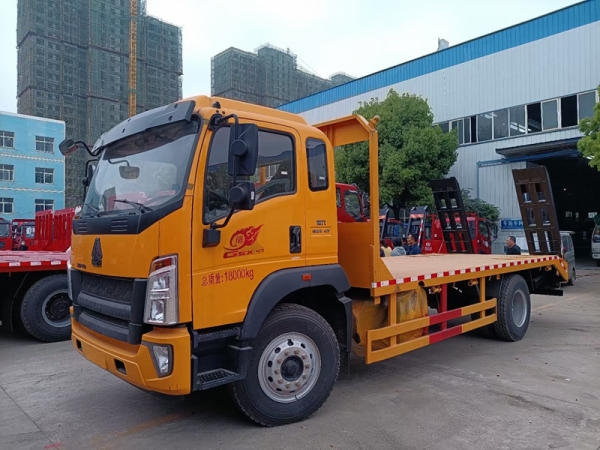

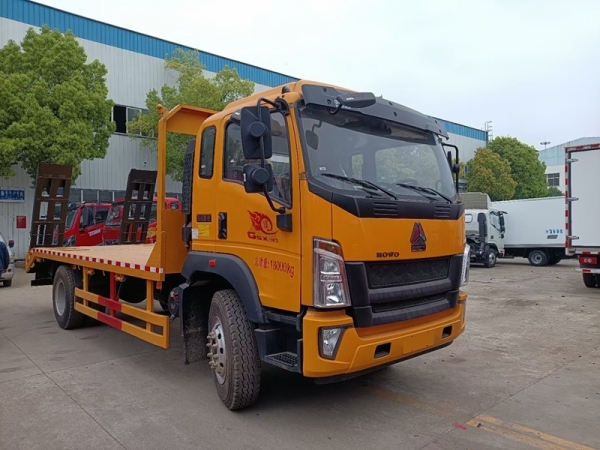

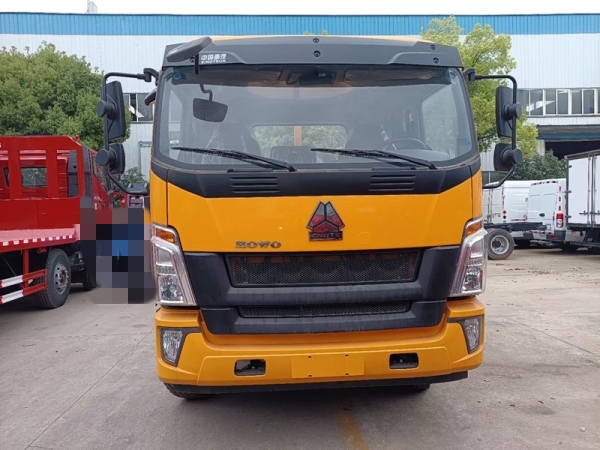

Sinotruk Howo 4X2 flat trailer for transporting excavators
Chassis configuration
Equipped with Weichai 220 horsepower engine, HOWO 8-speed gearbox, 4.5-ton front axle, 10 ton rear axle, 250 double-layer beam, high load-bearing capacity, 10.00 steel wire tires, wheelbase of 4200/4500/4700/5200, four point suspension cab, airbag seats, multifunctional steering wheel, central locking system, original air conditioning, electric glass, remote control key, driving recorder, LED daytime running lights, atmospheric and high-end.
Top configuration

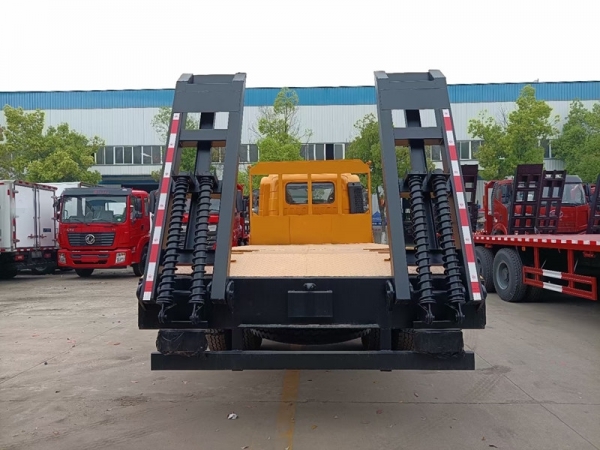

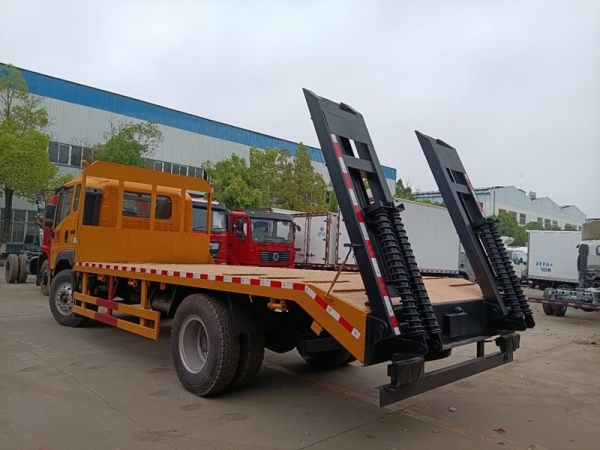

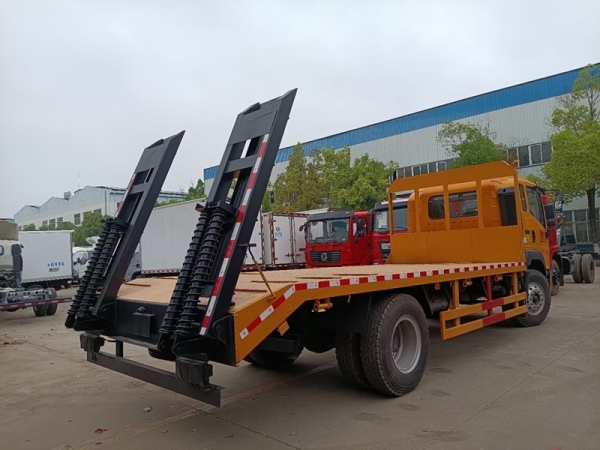

The upper part is made of standard rectangular pipes with a thickness of 100x100mm, and the bottom plate is made of 5mm patterned boards with double spring ladders. The board length can reach 5.1/5.8/6.2 meters, including slopes. There are rope hooks on both sides, and the 140 channel steel frame is not deformed. Hydraulic ladder can be selected. Our company's flatbed transport vehicles have good workmanship and are made of national standard materials, which are suitable for affordable prices.
We have many different brands and tonnages of flatbed trucks, please feel free to inquire.
| Product Name | Sinotruk Howo 4X2 flat trailer for transporting excavators |
| Cab | Sinotruk Howo cab |
| Drive wheel | 4X2 |
| Steering wheel | Left/Right hand drive |
| Seat capacity | 2-3 person |
| Engine Model and displacement | WP4.6NQ220E61, Weichai 220hp |
| Gearbox | Howo 8-speed gearbox |
| Carframe | 250mm double layered beam |
| Wheel base | 4200/4500/4700/5200(mm) |
| Axle numbers | 2 |
| Tire sepcification and quantity | 10.00R20 18PR, 6+1 spare tire |
| Vehicle dimension | 7650,8200,8600,9000×2500,2550×2950,3000,3050,3100(mm) |
| Flatbed dimension | 5200,5750,6200,6750x2440,2500,2550x-mm |
| Gross vehicle weight(Kg) | 18000(Kg) |
| Curb weight(Kg) | 7170,7500,7880(Kg) |
| Rated weight(Kg) | 10700,10635,10370,10305,9990,9925(Kg) |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Sinotruk Howo 4X2 flat trailer for transporting excavators
A flat trailer also known as a flatbed transport vehicle, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.
Main Parameter
