Dongfeng Huashen HV5 8X4 Concave Plate Trailer

Dongfeng Huashen HV5 8X4 Concave Plate Trailer

2024-09-18 10:36:10 Source：chusheng

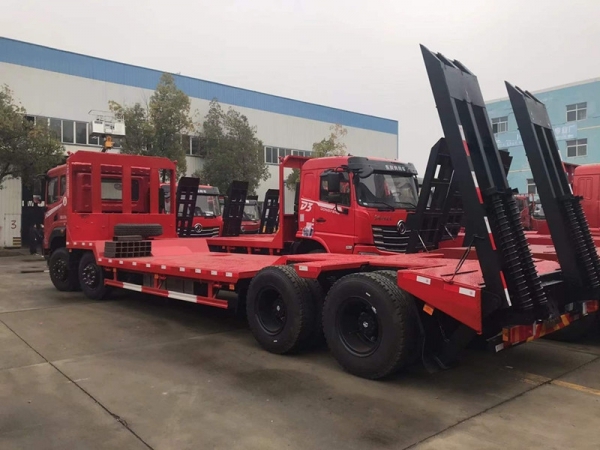

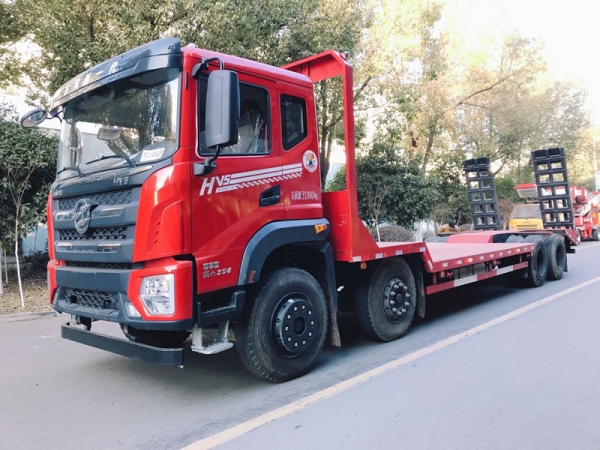

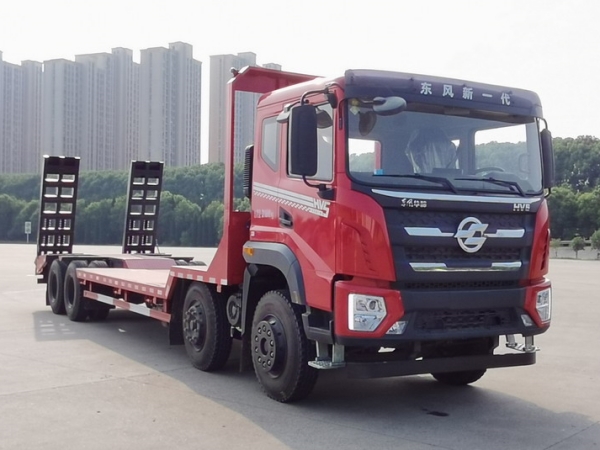

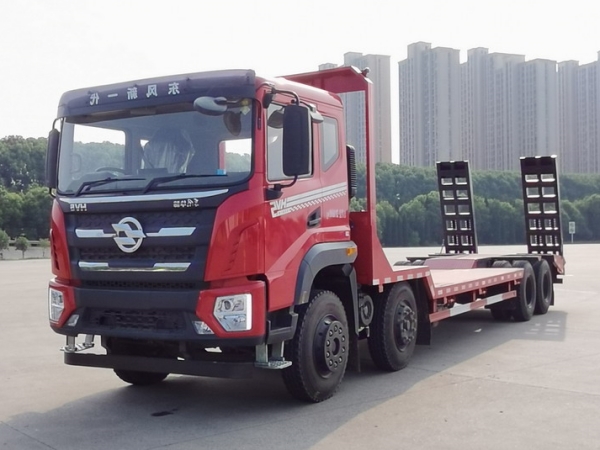

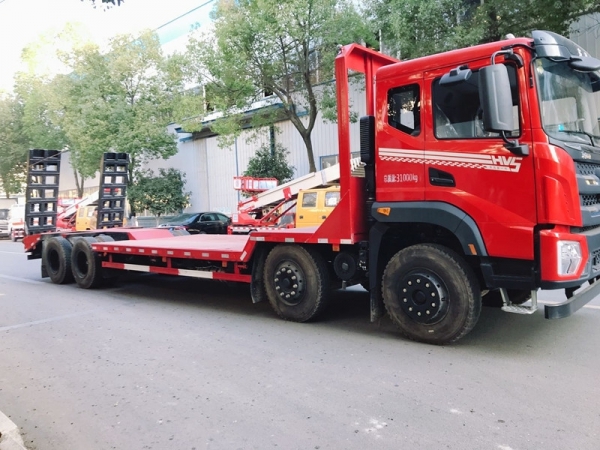

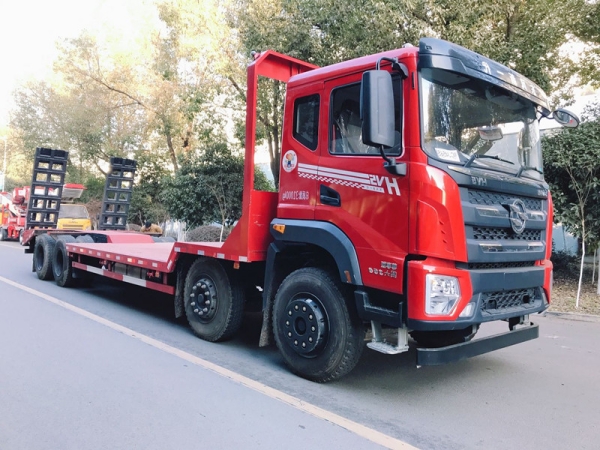

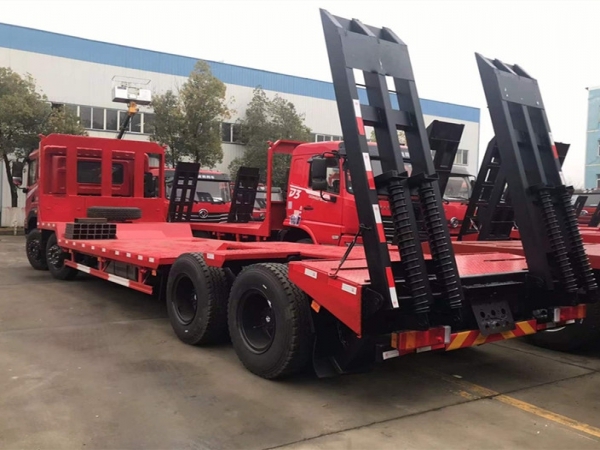

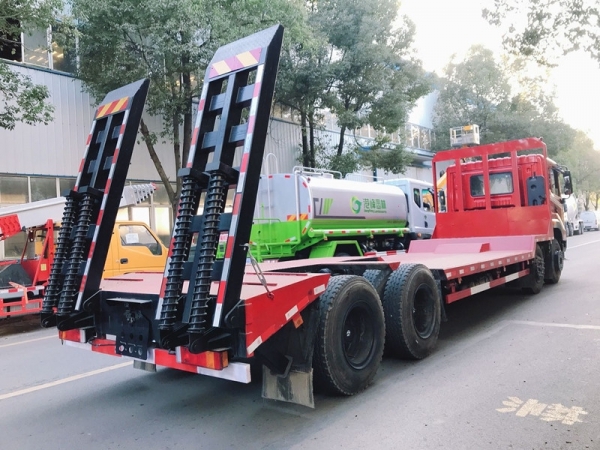

Dongfeng Huashen 8X4 concave trailer, with innovative design, ultra-low height, good stability performance, Yuchai 350 horsepower engine, Faust 12 speed gearbox, wheelbase of 1850+5800+1350, front axle of 5.5 tons, widened rear axle of 13 tons, 10.00 steel wire tires, new sedan level luxury interior workbench, 10 inch super multifunctional screen, reverse image, original air conditioning, remote lock multiple lock in one, multifunctional steering wheel, airbag seats, LED daytime running lights, vehicle size 12000X2550X3200mm

We have many different brands and tonnages of flatbed trucks, please feel free to inquire.

Product Name

Dongfeng Huashen HV5 8X4 Concave Plate Trailer

Cab

Huashen HV5 cab

Drive wheel

8X4

Steering wheel

Left/Right hand drive

Seat capacity

2-3 person

Engine Model and displacement

YCK08350-60, Yuchai 350hp

Gearbox

FAST 12-speed gearbox

Carframe

double-layer beam

Wheel base

1850+5800+1350mm

Axle numbers

Tire sepcification and quantity

10.00R20 18PR,11.00R20 18PR, 12+1 spare tire

Vehicle dimension

12000X2550X3200(mm)

Flatbed dimension

9800x2550x--(mm)

Gross vehicle weight(Kg)

31000(Kg)

Curb weight(Kg)

13300,13540,13850,14340,14600(Kg)

Rated weight(Kg)

17570,17505,17330,17265,17020,16955,16530,16465,16270,16205(Kg)

Notice

The above information is for reference only, and vehicles can be customized depending on your requirements.

Dongfeng Huashen HV5 8X4 Concave Plate Trailer

Concave trailer is a specially designed trailer, characterized by a concave design and strong load-bearing capacity. The trailer bed of the concave trailer adopts a concave design, which can better adapt to the transportation of irregularly shaped goods, avoid the sliding or falling of goods during transportation, and thus improve transportation safety. In addition, the structure of the concave trailer is relatively simple, easy to maintain and upkeep.

Main Parameter
