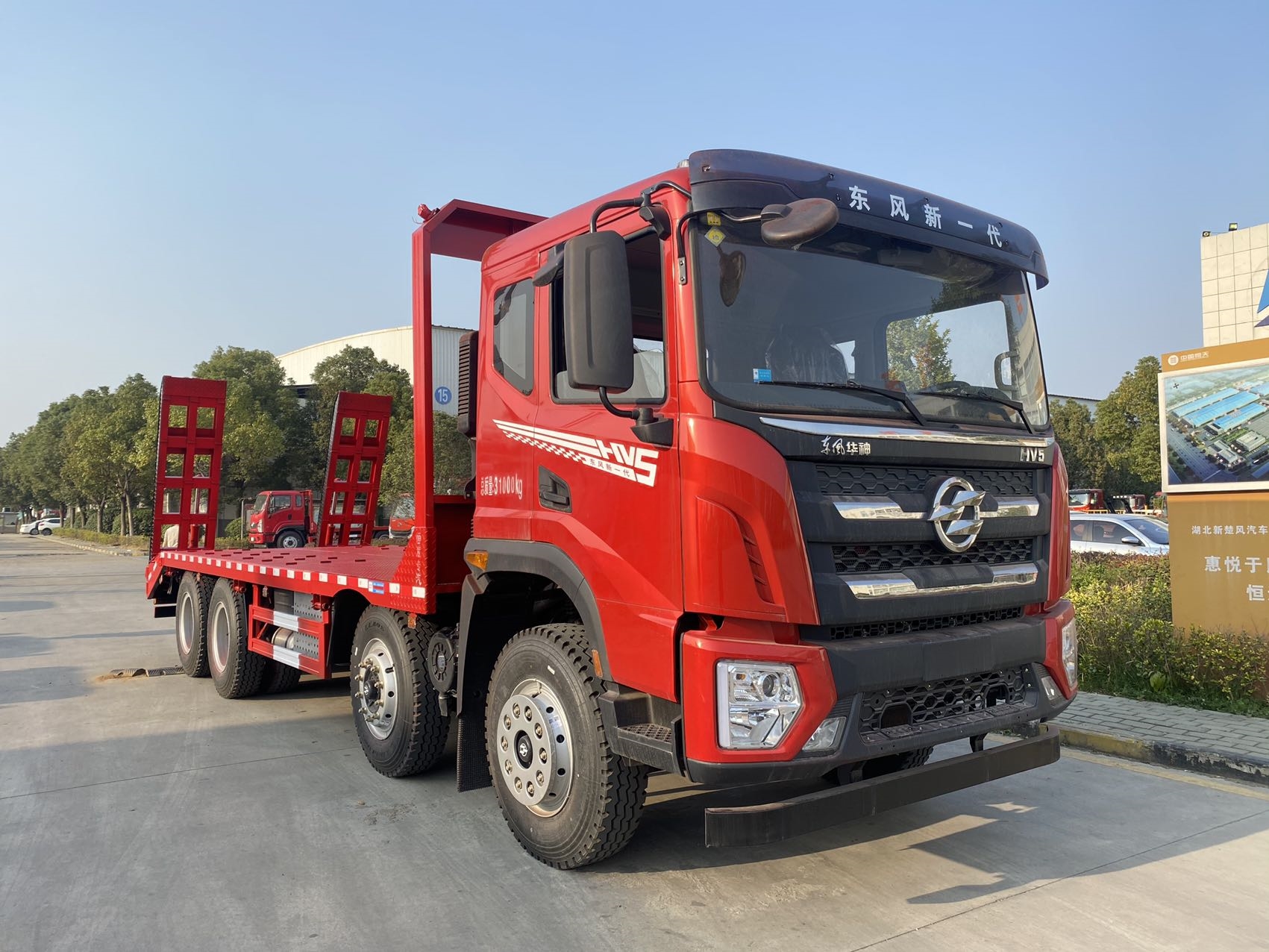

Dongfeng 8X4 flatbed transport vehicle, 25t excavator trailer

Dongfeng 8X4 flatbed transport vehicle, 25t excavator trailer

2024-09-18 10:36:10 Source：chusheng

Classification of flatbed trucks

By drive type: 4×2 flatbed trucks,6×2 flatbed trucks,6×4 flatbed trucks,8×2flatbed trucks,8×4flatbed trucks。

By load capacity: from 5t to 30tflatbed trucks.

By chassis brand: Dongfengflatbed trucks, Jiefangflatbed trucks, JACflatbed trucks, HOWOflatbed trucks, Sinotrukflatbed trucks, FOTONflatbed trucks, etc.

We have many different brands and tonnages of flatbed trucks, please feel free to inquire.

Product Name

Dongfeng 8X4 flatbed transport vehicle, 25t excavator trailer

Chassis brand

Dongfeng

Cab

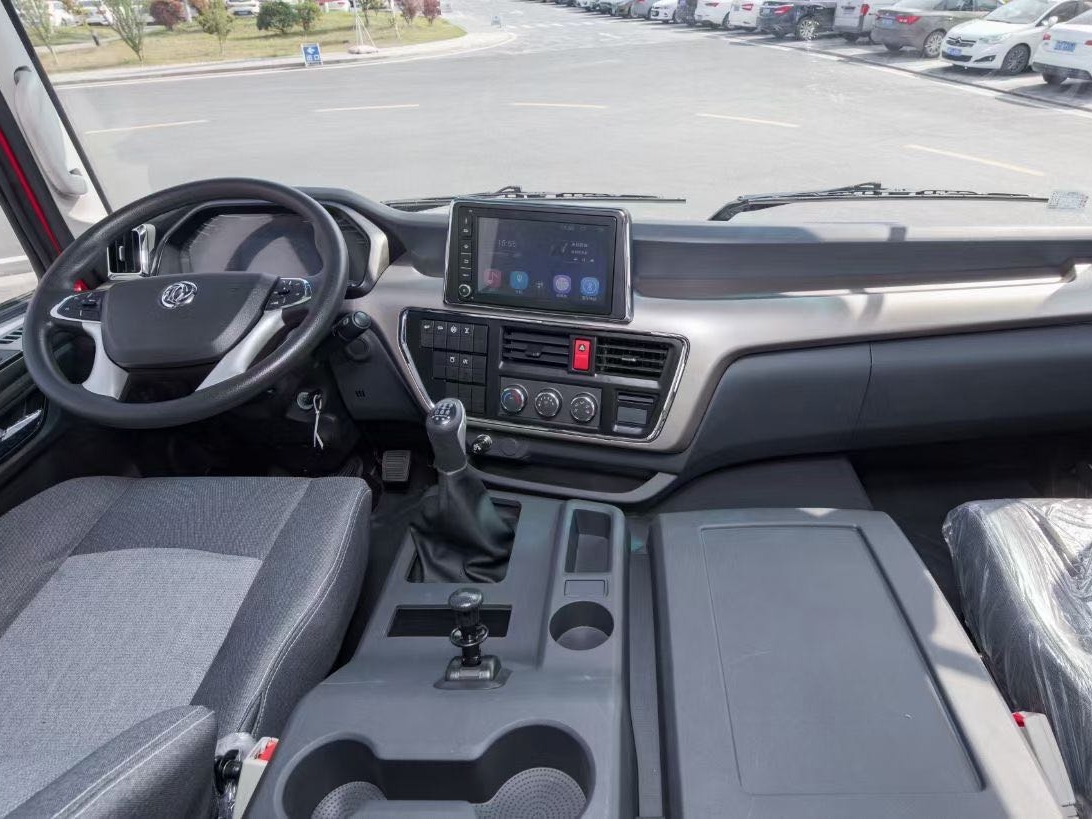

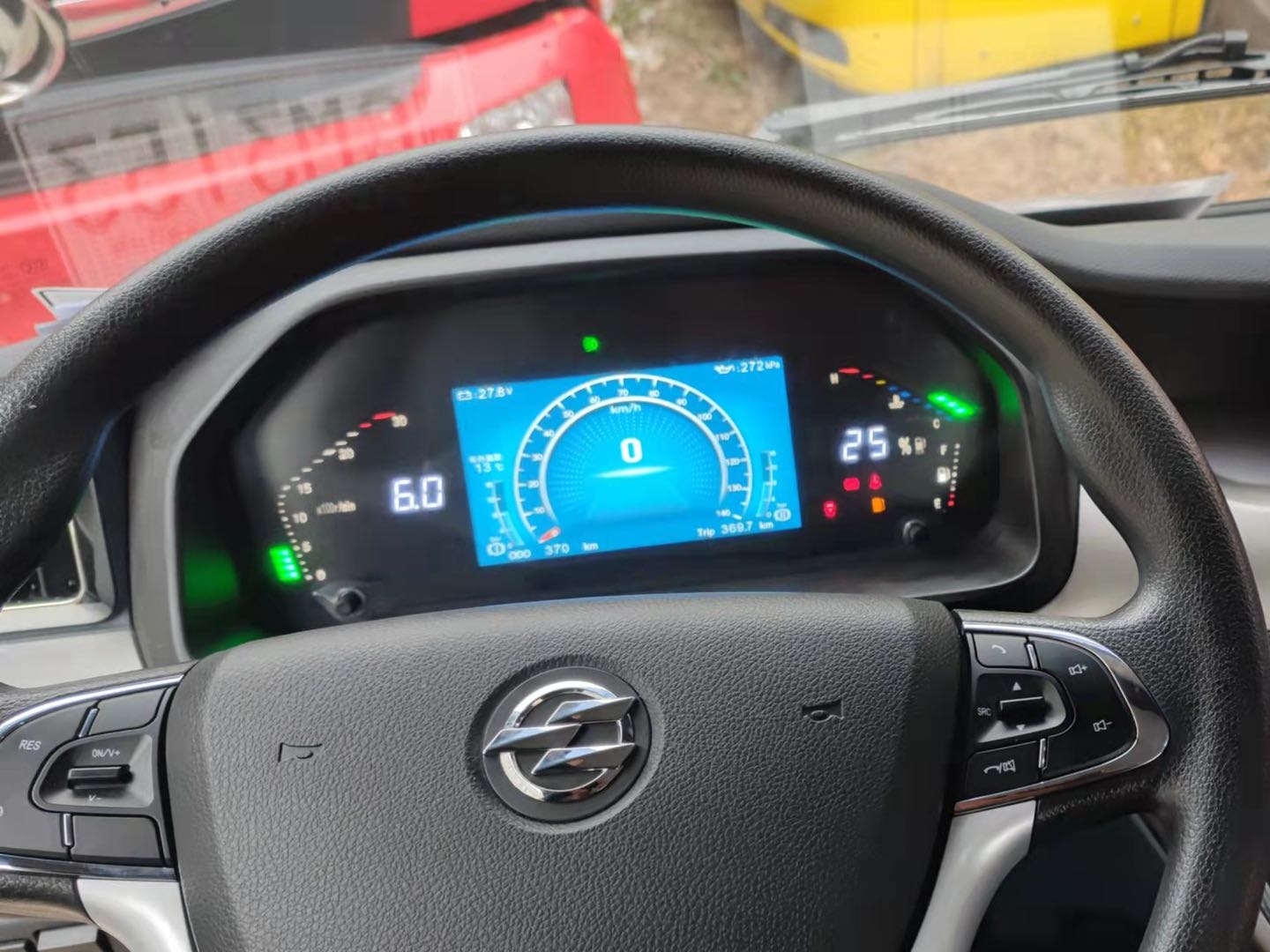

Four-point mechanical suspension, intelligent LCD instrument panel, 10 inch ultra large multifunctional screen+(Reverse image), original air conditioning, remote lock multiple lock in one, multifunctional steering wheel, airbag seats

Drive wheel

8X4

Steering wheel

Left/Right hand drive

Seat capacity

2-3 person

Engine Model and displacement

WP7.300E61, 7.4L

Carframe

280mm double layered high-strength steel beam

Wheel base

1850+3200+1350,1850+3800+1350,1850+4400+1350(mm)

Front wheel track

1940/1940,1960/1960,2040/2040(mm)

Rear wheel track

1860/1860(mm)

Approach angle/departure angle

21/19,21/25,21/17(°)

Front/rear suspension

1410/2740,1410/1990,1410/2150,1410/2900,1410/3200,1410/3500(mm)

Axle numbers

F/R axle load

6500/6500/18000

Tire sepcification and quantity

295/60R22.5, 12 with 1 spare tire

Vehicle dimension

9810,9935,9980,7685,7810,8485,8610,9085,9210,9835,7650,8450,9050,9820×2500,2550×2700,2800,2880,2900,3000,3050,3100,3150,3200,3250,3300(mm)

Flatbed dimension

5200,5300,6000,6100,6600,6700,7350,7450x2500,2550x-(mm)

Gross vehicle weight(Kg)

31000(Kg)

Curb weight(Kg)

11150,11475,11820,12250(Kg)

Rated weight(Kg)

19720,19655,19395,19330,19050,18985,18620,18555(Kg)

Notice

The above information is for reference only, and vehicles can be customized depending on your requirements.

Product Introduction

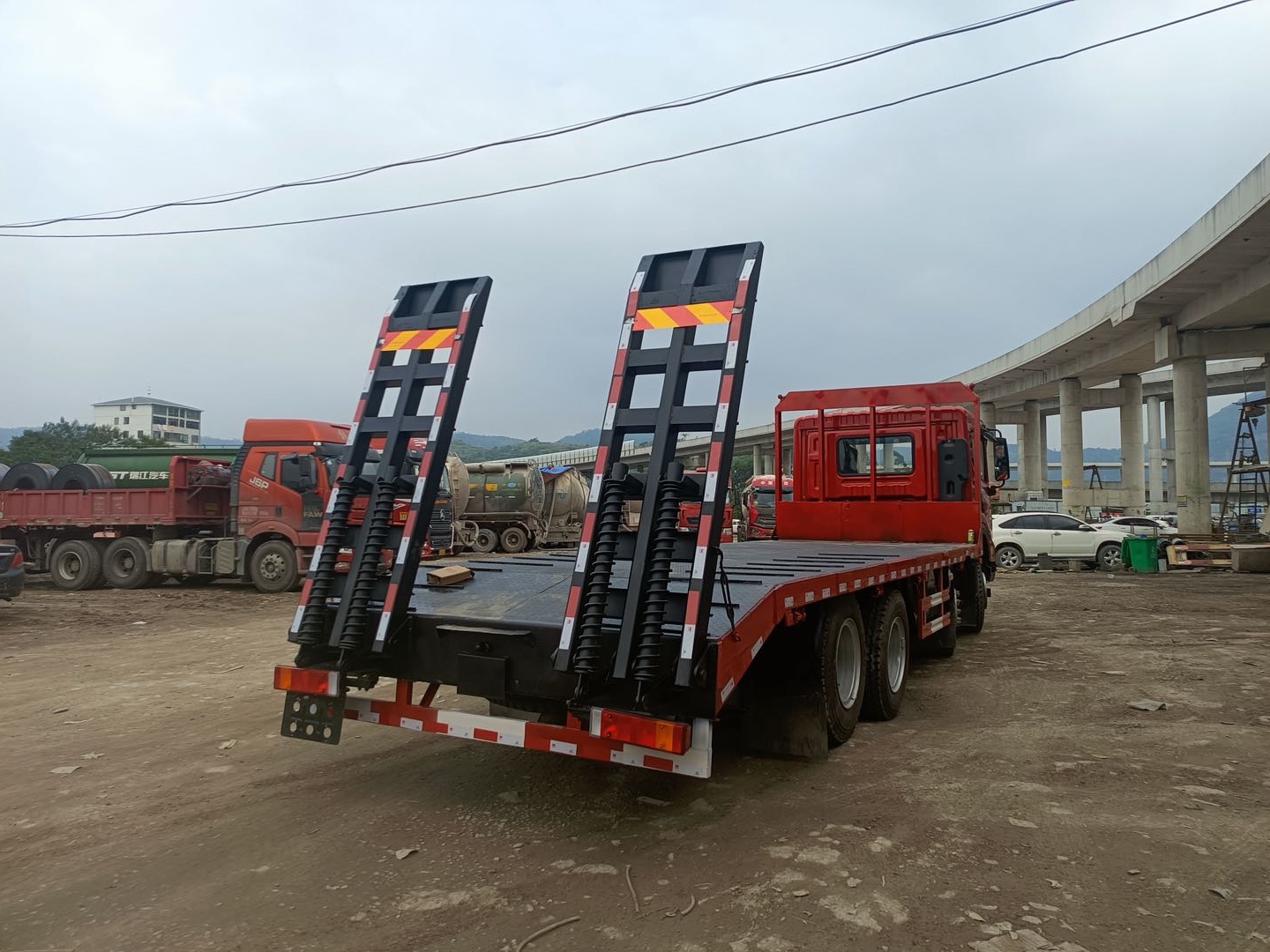

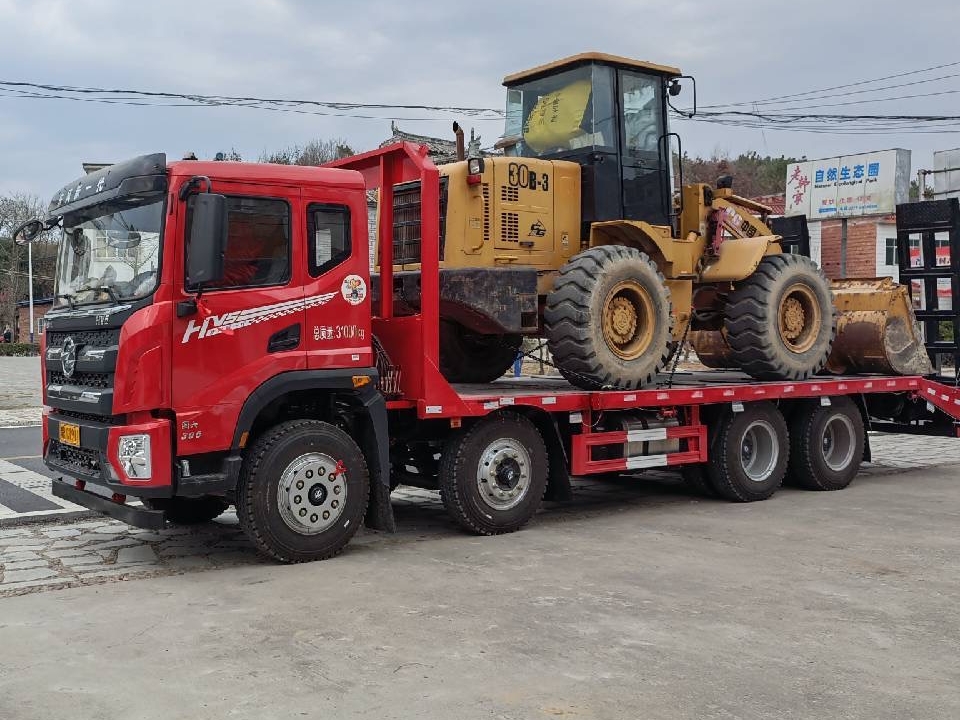

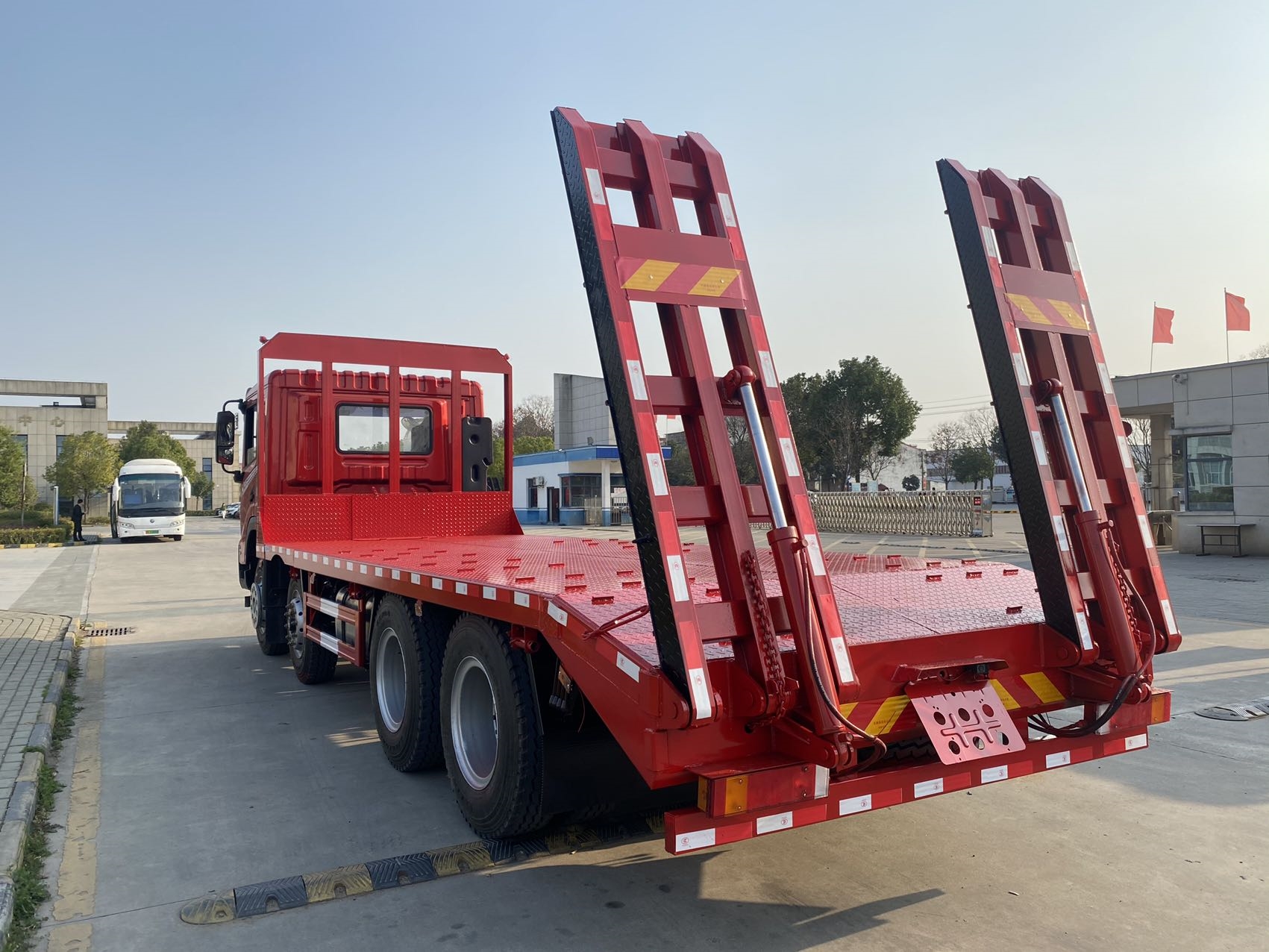

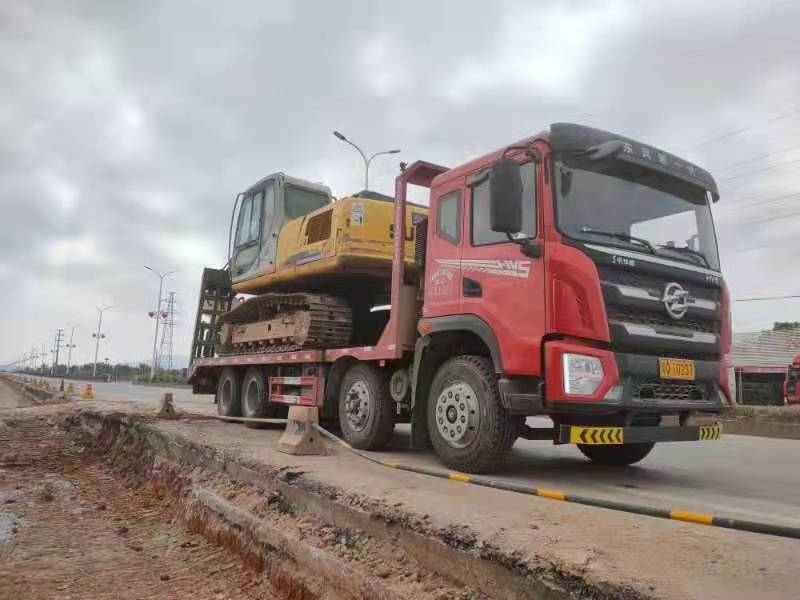

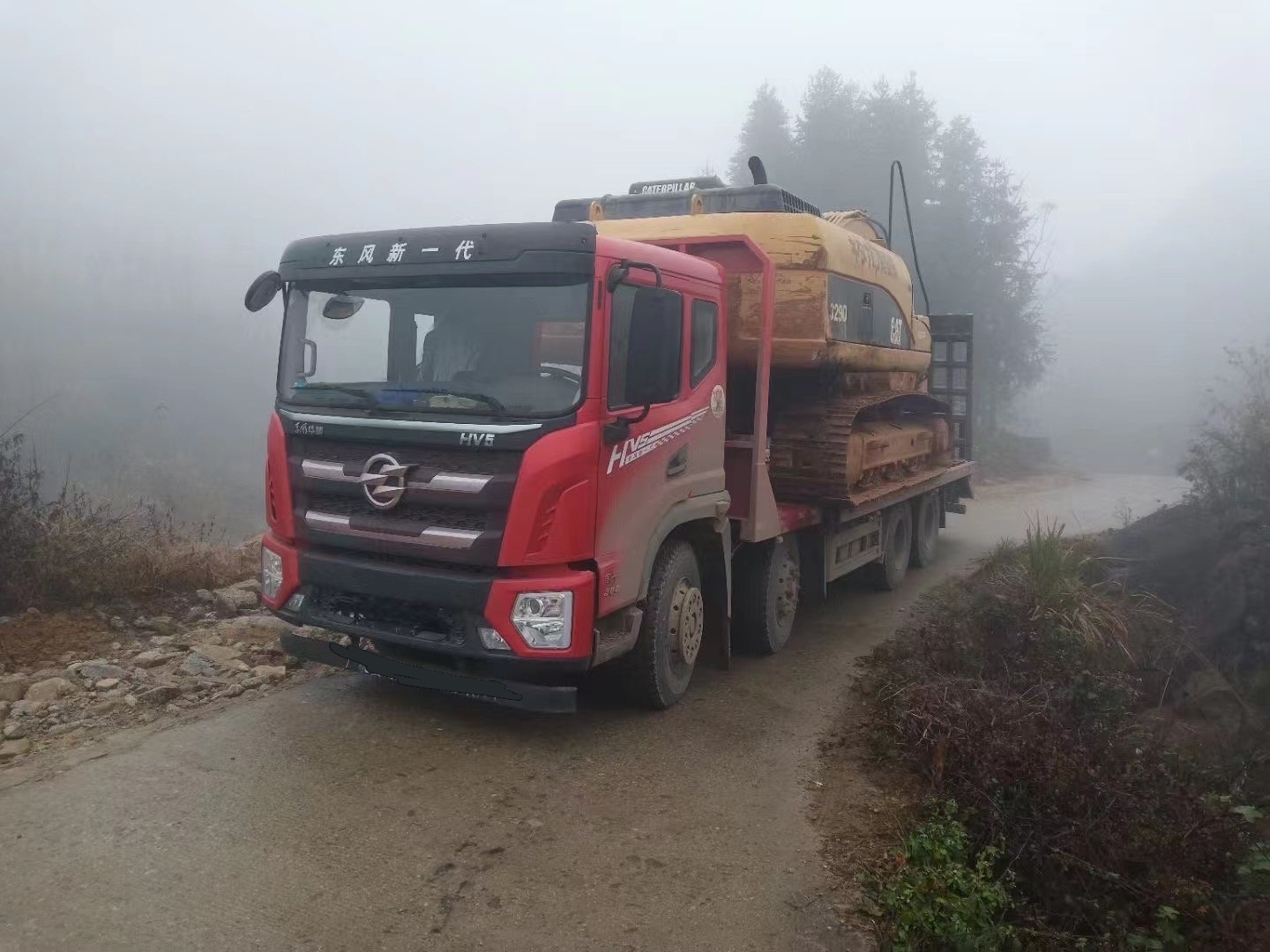

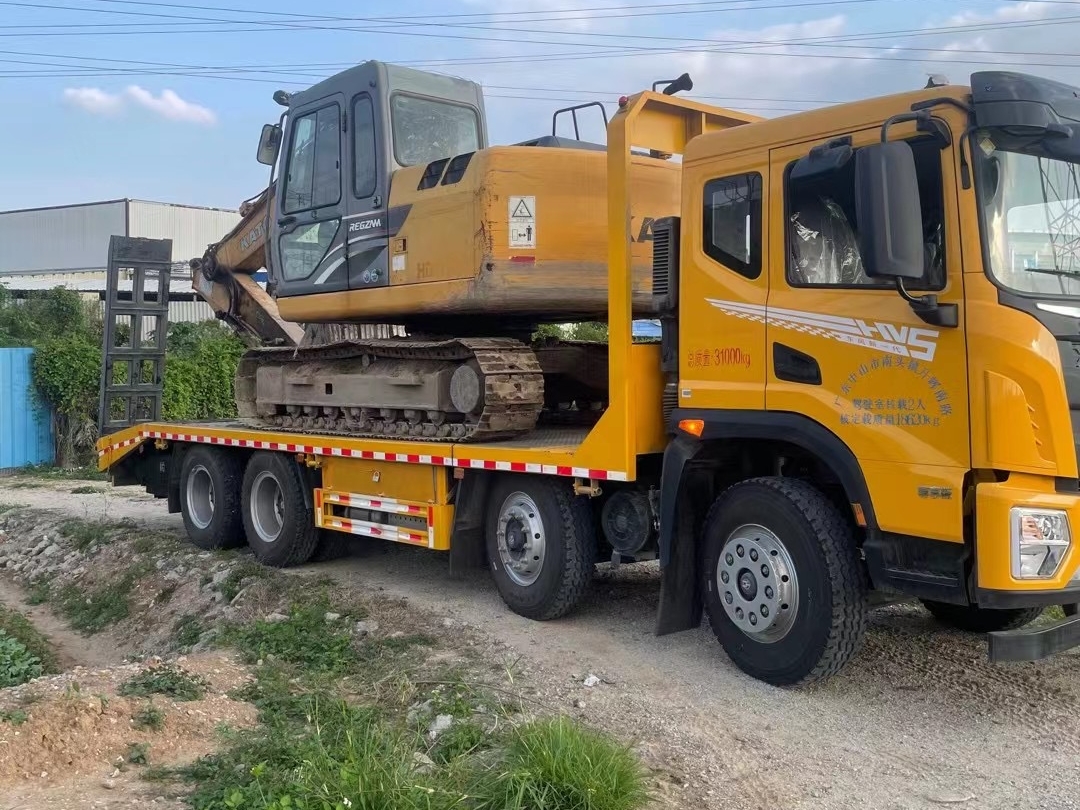

A flatbed transport vehicle, also known as a flatbed trailer, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.

Main Parameter
