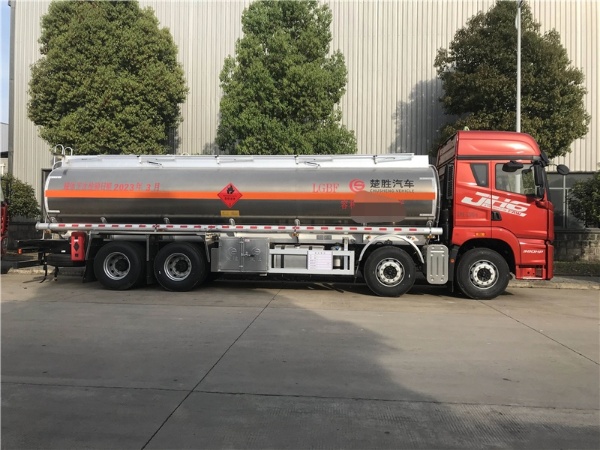

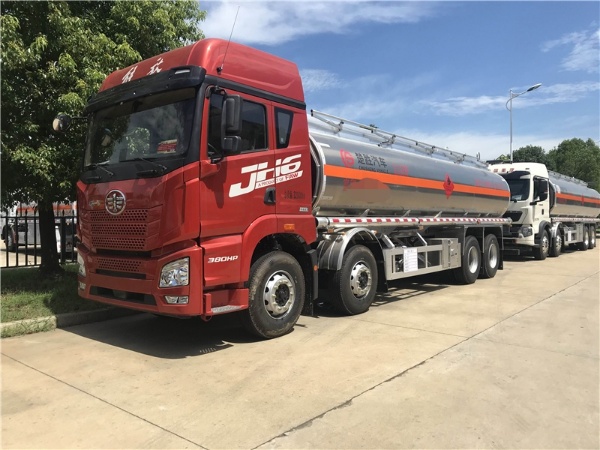

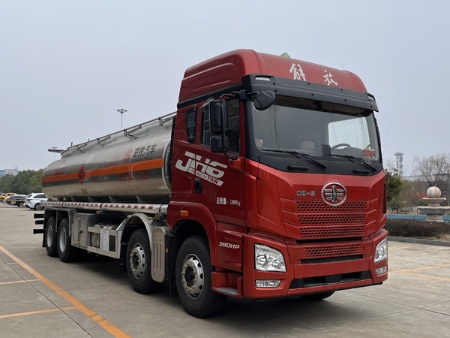

Jiefang 8X4 30m³ Oil Delivery Truck
2024-09-18 10:36:10 Source：chusheng
Standard configuration
1-One high flow
oil pump (capable of pumping in and out)
2-One compartment
(can be made into different compartments)

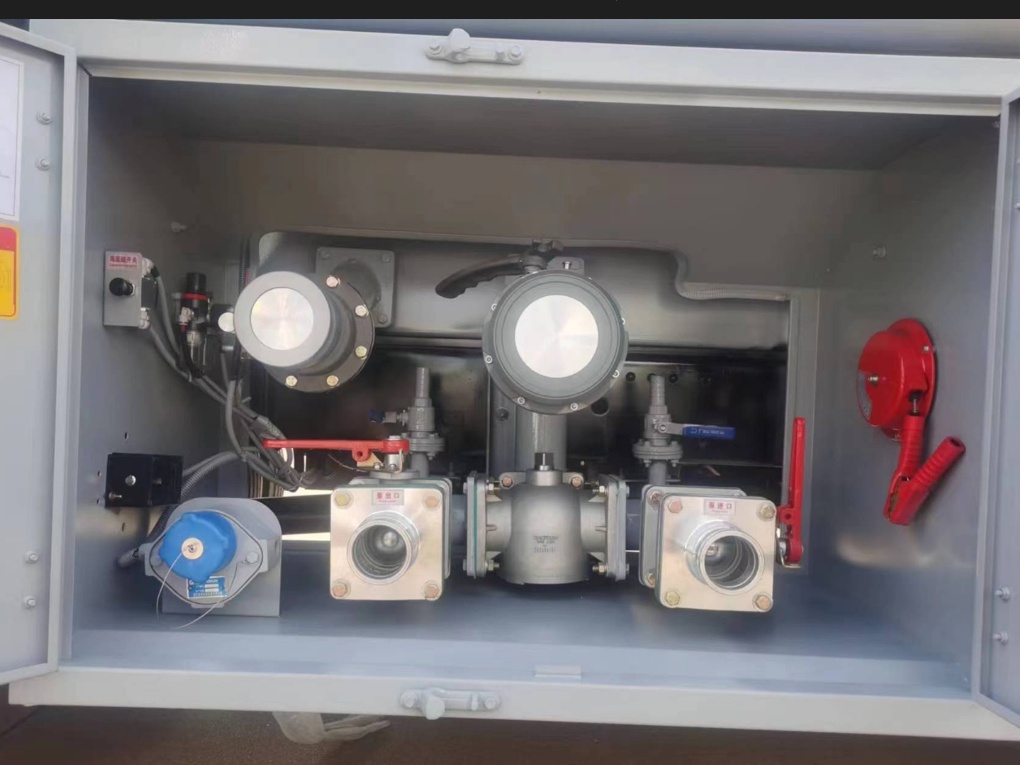

3-A full set of
bottom loading oil system with European standards (including 1 bottom loading
and unloading oil valve,1 oil and gas recovery valve,1 oil and gas recovery interface,1 set of pneumatic combination switch,1 anti-overflow probe rod and 1 five
core socket)

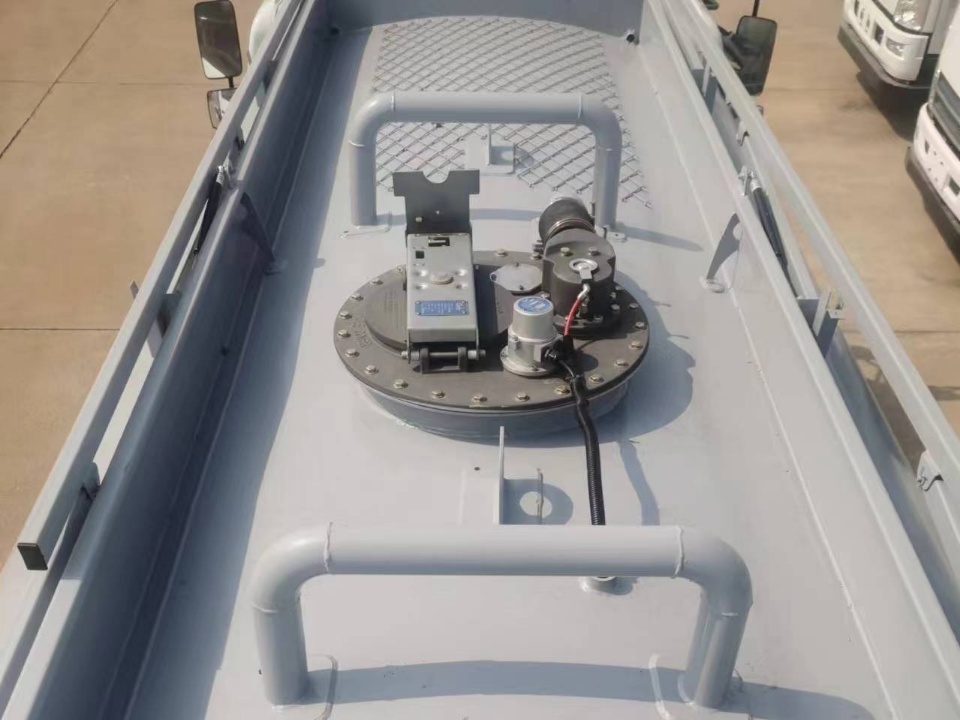

4-A European
standard tank cover
5-A bottom
emergency shut-off valve (with locking function)
6-Folding lifting
protective barriers on both sides of the tank top
7-Tank material: aluminum
alloy/stainless steel/carbon steel
8-Tank is painted
in aluminum alloy color.

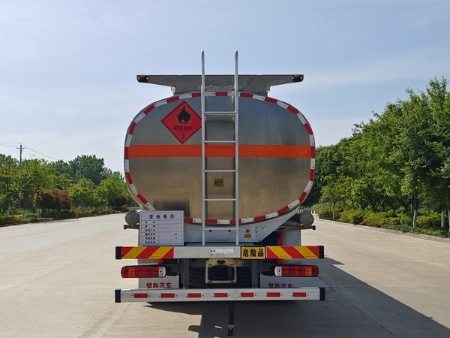

9- Attach 3M-1
grade orange reflective tape in the center of both sides of the tank,three
"flammable liquid" signs,and safety signs.
10-One tool box

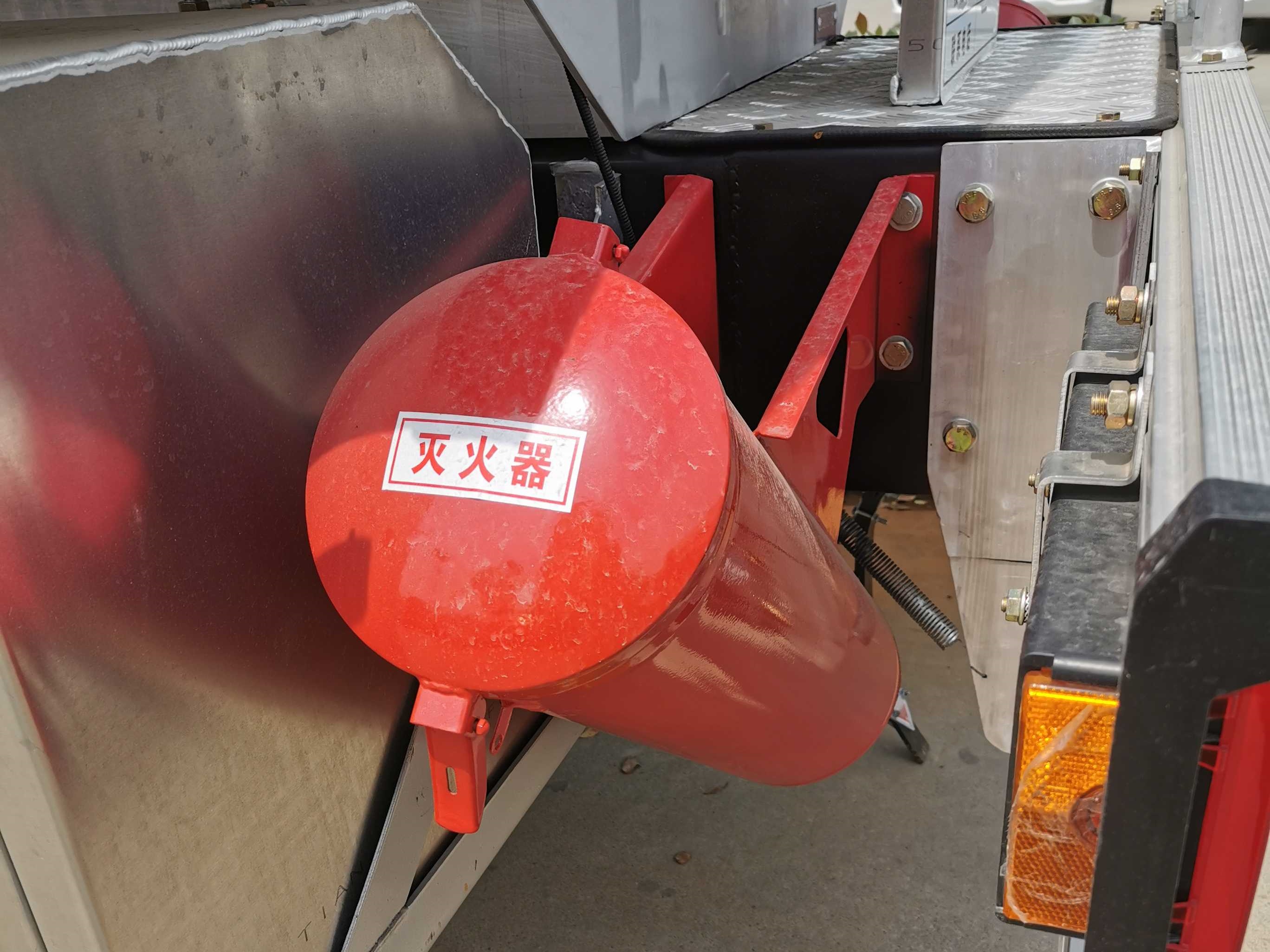

11-Two fire
extinguishers
12-
Can be customized according to customers’ requirements.
| Product Name |
Jiefang 8X4 30m³ Oil Delivery Truck |
| Chassis brand |
Jiefang |

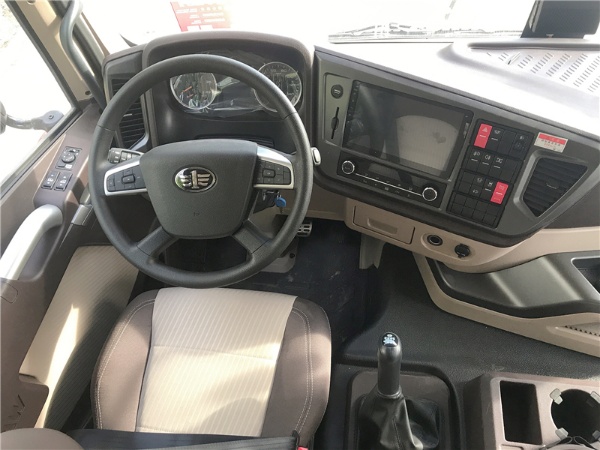

| Cab |
JH6 One and a half rows cab |
| Drive wheel |
8X4 |
| Steering wheel |
Left/Right hand drive |
| Seat capacity |
2-3 person |
| Engine Brand |
Xichai |
| Engine Model |
CA6DL6-38E68 |
| Horse Power (HP) |
380 |
| Engine displacement |
8.57L |
| Emission standard |
Euro 6 (option:Euro3/4/5) |
| Gearbox |
12 forward gears and 1 reverse gear |
| Wheel base |
1900+4500+1350(mm) |
| Front wheel track |
2020/2020,2042/2042,2072/2072(mm) |
| Rear wheel track |
1878/1878,1900/1900(mm) |
| Approach angle/departure angle |
21/8(°) |
| Front/rear suspension |
1495/2400,1515/2380(mm) |
| F/R axle load |
6500/6500/19000 |
| Axle numbers |
4 |
| Tire Specification and Quantity |
12R22.5 18PR, 12 with 1 spare tire |
| Vehicle dimension |
11645X2525X3400/3845mm |
| Tank dimension |
8800×2400×1750mm |
| Gross vehicle weight |
32000(Kg) |
| Curb weight |
11750(Kg) |
| Rated weight |
20120(Kg) |
| Tank volume |
30 cubic meter |
| Tank material |
Aluminum alloy/stainless steel/carbon steel |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Brief Introduction of Oil Truck
Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.
A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.
Main Parameter
