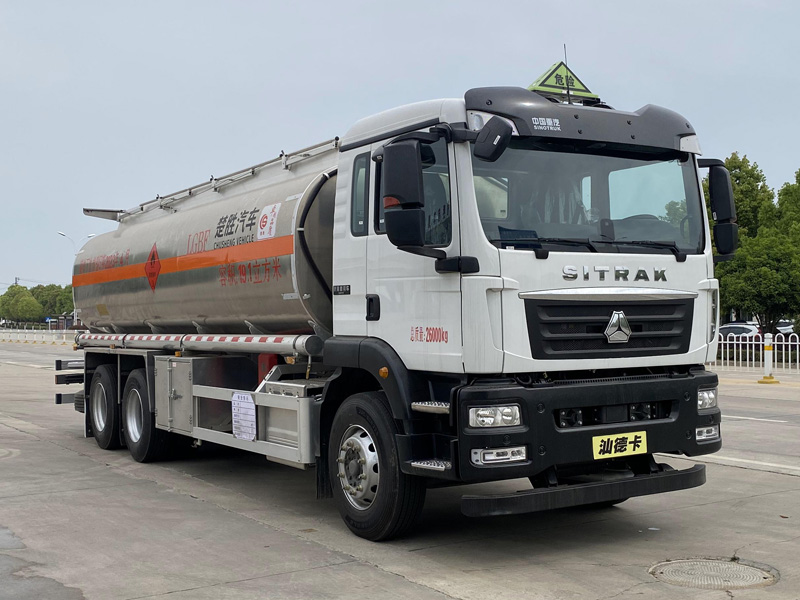

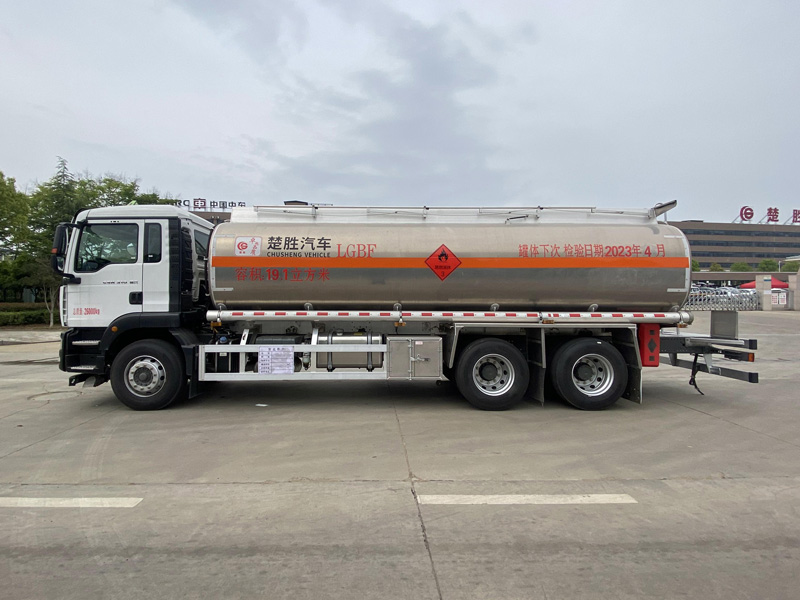

Sinotruck Sitrak 6X4 19.1 cbm Oil Transport Vehicle
2024-09-18 10:36:10 Source：chusheng
Upper configuration
1-Tank volume: 19.1m³ (can be made into many compartments)
2-Tank material: aluminum alloy; stainless steel；carbon
steel
3-The whole set of European configurations for each compartment:

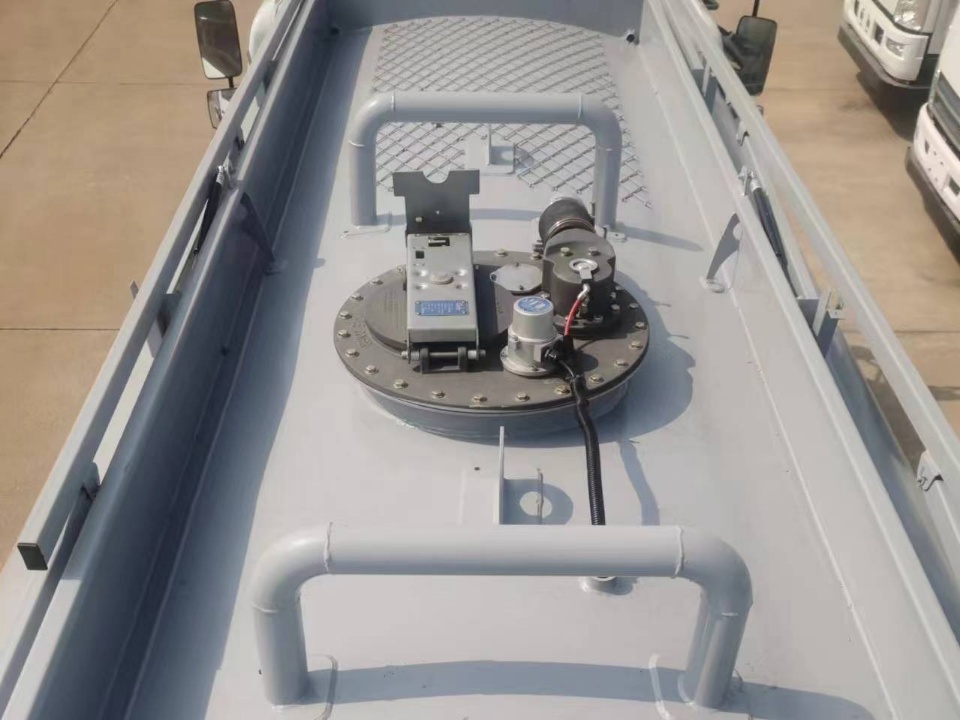

European type manhole, overflow probe system, vapor recovery system,
bottom valve, API adaptors.
4-Emergency
bottom valve and foldable aluminum handrail.
5-You
can choose to install different brands of flow meter.
6-Tank
color: customized.
| Product Name |
Sinotruck Sitrak 6X4 19.1 cbm Oil Transport Vehicle |
| Chassis brand |
Sinotruck Sitrak |
| Cab |
Flat roof cab with sleeping berth |
| Drive wheel |
6X4 |
| Steering wheel |
Left/Right hand drive |
| Seat capacity |
2-3 person |
| Engine Brand |
Sinotruck |
| Engine Model |
MC07.31-60 |
| Horse Power (HP) |
310 |
| Engine displacement |
6.87L |
| Emission standard |
Euro 6 (option:Euro3/4/5) |
| Gearbox |
9 forward gears and 1 reverse gear |
| Wheel base |
4575+1400mm,4975+1400mm |
| Front wheel track |
1998,2035,2065(mm) |
| Rear wheel track |
1850/1850,1880/1880(mm) |
| Approach angle/departure angle |
16/10,16/11(°) |
| Front/rear suspension |
1450/2830,1450/2430(mm) |
| F/R axle load |
7000/19000 |
| Axle numbers |
3 |
| Tire Specification and Quantity |
295/80R22.5, 10 with 1 spare tire |
| Vehicle dimensions |
10255×2525×3360mm |
| Tank dimension |
7200×2200×1500mm |
| Gross vehicle weight |
26000(Kg) |
| Curb weight |
9755(Kg) |
| Rated weight |
16115(Kg) |
| Tank volume |
19.1 cubic meter |
| Tank material |
Aluminum alloy/stainless steel/carbon steel |
| Standard configuration |

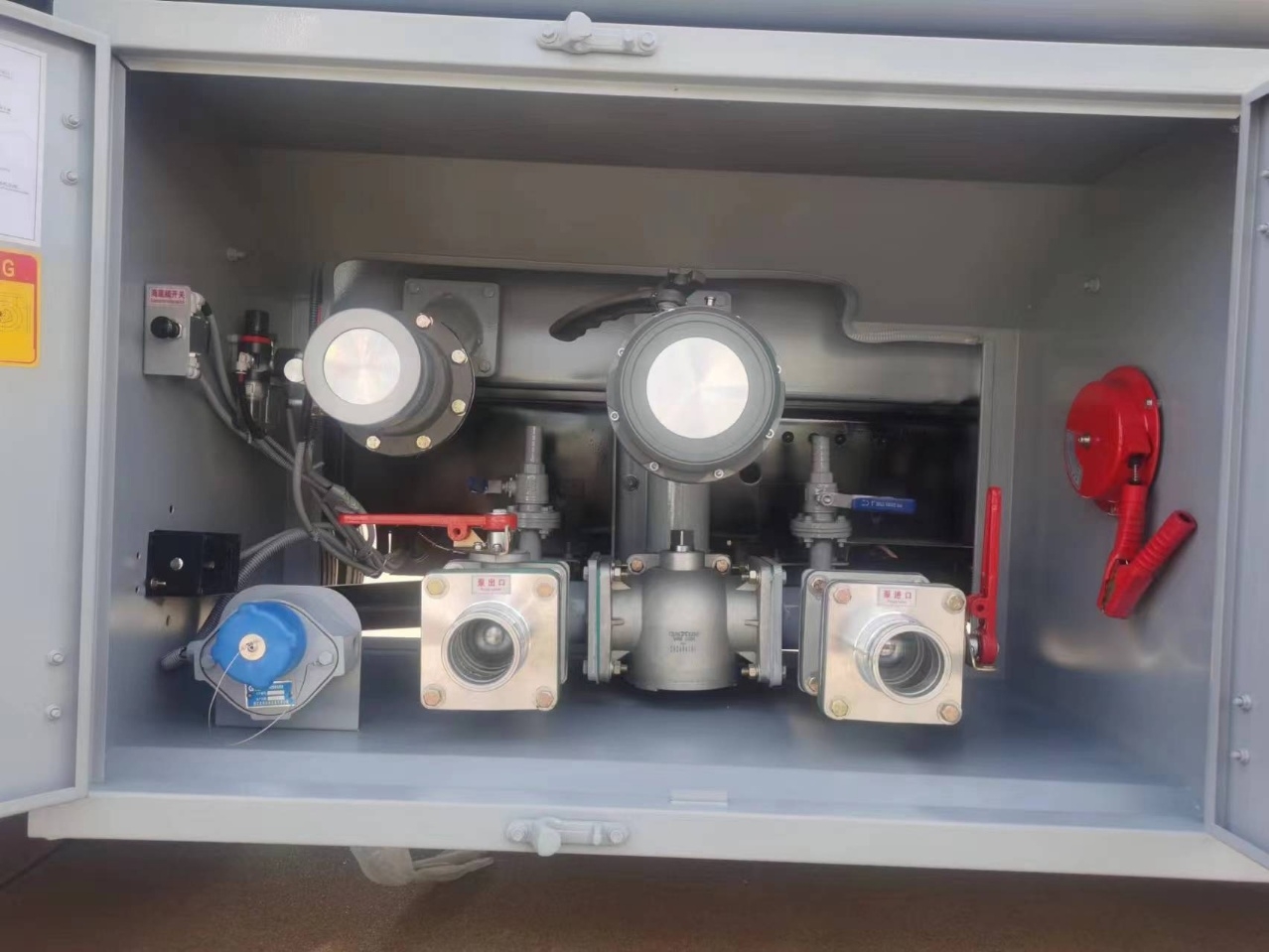

Including a high flow oil pump, one lower loading and unloading oil valve, one oil and gas recovery valve, one oil and gas recovery interface, one set of pneumatic combination switches, one anti overflow probe rod, and one socket, one European standard tank cover, and one subsea valve. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Brief Introduction of Oil Truck
Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.
A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.
Main Parameter
