Dongfeng 12700 Liters Oil Truck

2024-09-18 10:36:10 Source：chusheng

1-Tank volume:12.7m³(can be made into 1 or 2 compartments)

2-Tank material：aluminum alloy; stainless steel；carbon steel

3-The whole set of European configurations for each compartment: European type manhole, overflow probe system, vapor recovery system, bottom valve, API adaptors.
4-Emergency bottom valve and foldable aluminum handrail.
5-You can choose to install different brands of fuel dispensers.
6-Tank color: customized.

Product Name

Dongfeng 12700 Liters Oil Truck

Chassis brand

Dongfeng

Cab

D9 White flat roof, one and a half rows

Drive wheel

4X2

Steering wheel

Left/Right hand drive

Seat capacity

2-3 person

Engine Brand

Cummins

Engine Model

B6.2NS6B230

Horse Power (HP)

230

Engine displacement

6.2L

Engine type

4 stroke, water-cooled, straight line 6 cylinder, diesel

Emission standard

Euro 6 (option:Euro3/4/5)

Gearbox

8 forward gears and 1 reverse gear

Wheel base (mm)

4700

Front wheel track (mm)

1860,1844,1923,1960

Rear wheel track (mm)

1806,1865

Approach angle/departure angle

19/12(°)

F/R axle load

6500/11500

Axle numbers

Tire Specification and Quantity

295/80R22.5, 6 with a spare

Vehicle dimensions (mm)

8350×2500×3155

Tank dimension(mm)

5700×2000×1400

Gross vehicle weight(Kg)

18000

Curb weight(Kg)

7765

Rated weight(Kg)

10105,10040

Tank volume

12700 Liters

Tank material

aluminum alloy/stainless steel/carbon steel

Standard configuration

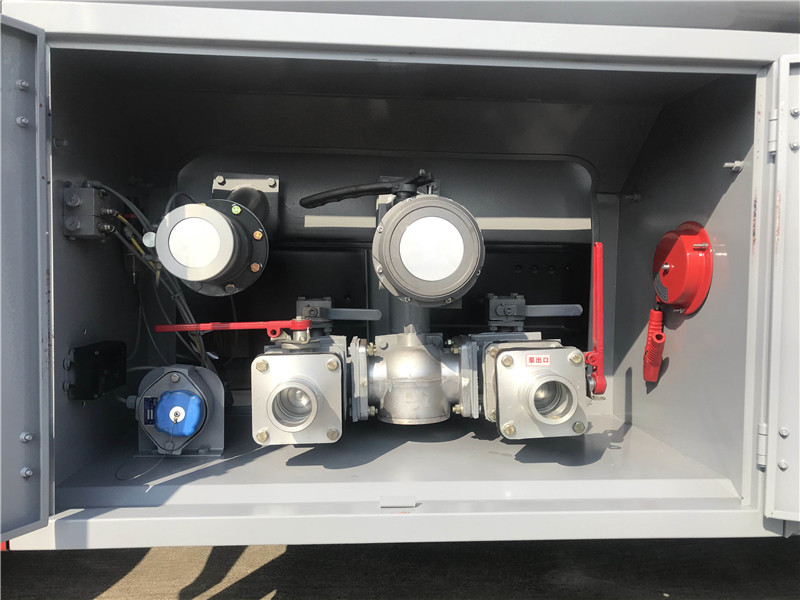

Including a high flow oil pump, one lower loading and unloading oil valve, one oil and gas recovery valve, one oil and gas recovery interface, one set of pneumatic combination switches, one anti overflow probe rod, and one socket, one European standard tank cover, and one subsea valve,

Notice

The above information is for reference only, and vehicles can be customized depending on your requirements.

Brief Introduction of Oil Truck

Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.

A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.
