Dongfeng 4X2 12cbm dust suppression vehicle

2024-10-09 15:48:19 Source：chusheng

Dongfeng 4X2 12cbm dust suppression vehicle

Chassis configuration:

3.Transmission type: 8 forward gears and 1 reverse gear

4.Tyre:10.00 steel wire tire

5.Wheelbase:4700mm

6. Other: Equipped with central locking system, electric doors and windows, original air conditioning, air horn, directional assist, three charging ports, and air brake
Upper configuration:

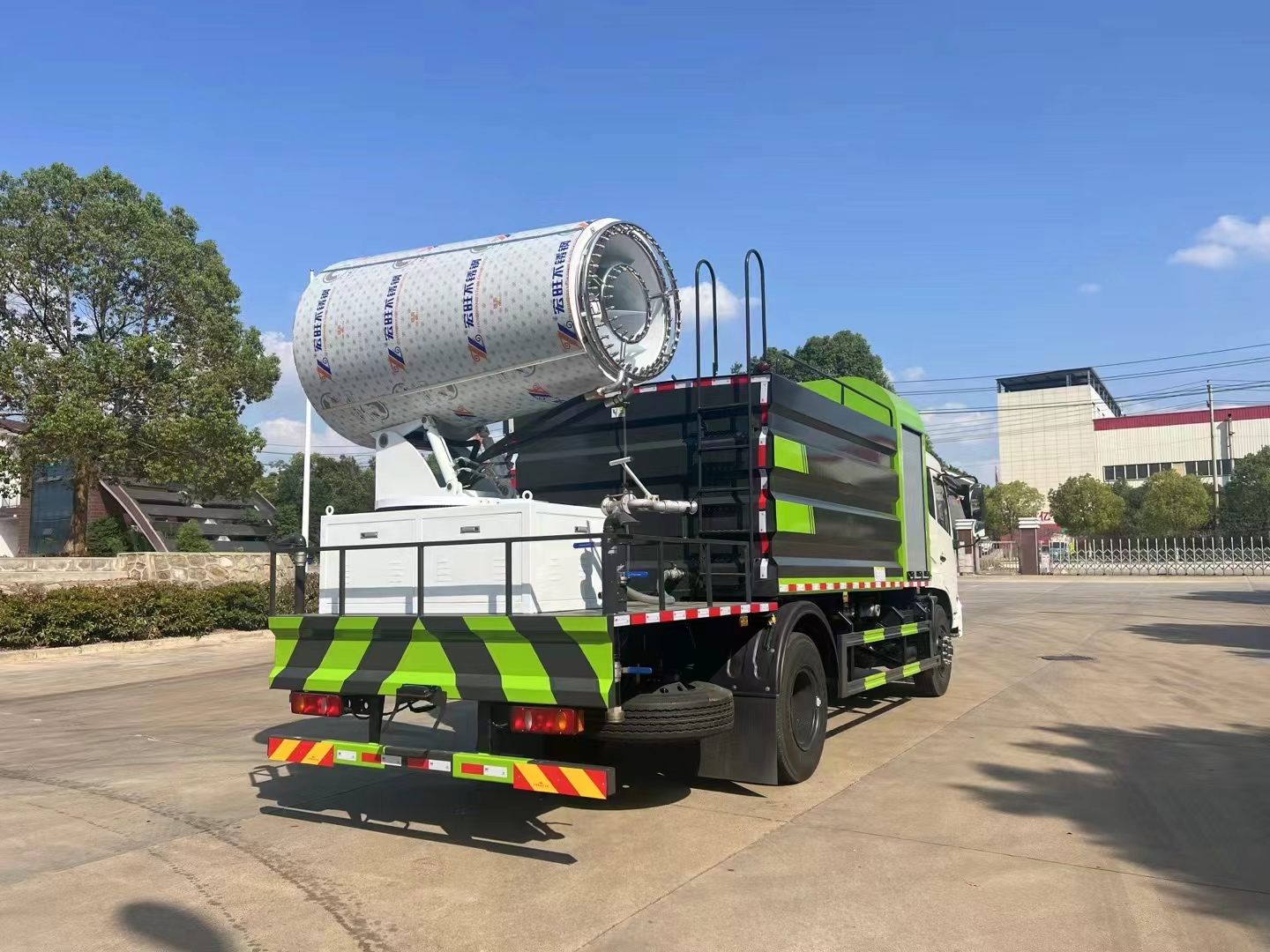

12 cubic square tank body, equipped with high-power sprinkler pump, front flushing, rear spraying, side spraying, anti-aircraft gun 360 degree rotation, adjustable for heavy rain, moderate rain, light rain, fog, column, and a large rear platform that can be equipped with a 100 meter fog gun.

Product Name

Dongfeng 4X2 12cbm dust suppression vehicle

Engine Model

DDi47E210-60

Engine horsepower

210hp

Engine displacement

4.7L

Gearbox

8 forward gears and 1 reverse gear

Tire specification

10.00 steel wire tire

Wheel base (mm)

4700

Gross vehicle weight(Kg)

18000

Curb weight(Kg)

7000

Rated weight(Kg)

10870,10805

Vehicle dimensions (mm)

7800,8300×2500,2550×3200,3300(mm)

Tank volume(cbm)

Fuel type

diesel

Emission standard

Euro 6 (option:Euro3/4/5)

Water pump model

60/90

Tank material

Q235 carbon steel

Notice

The above information is for reference only, and vehicles can be customized depending on your requirements.

Dongfeng 4X2 12cbm dust suppression vehicle

Dust suppression vehicle is a special type of vehicle that suppresses dust pollution by spraying dust suppression solidifying agents and other spraying liquids. Mainly serving railways, roads, and other dust prone areas. In terms of structure, the dust suppression vehicle mainly consists of a swing arm spray device, a liquid storage tank, a self-propelled vehicle, and a control system.

Dust suppression vehicles need to install insulation and heating systems on their tanks, spray nozzles, and pump bodies in northern regions during winter in order to operate normally.
