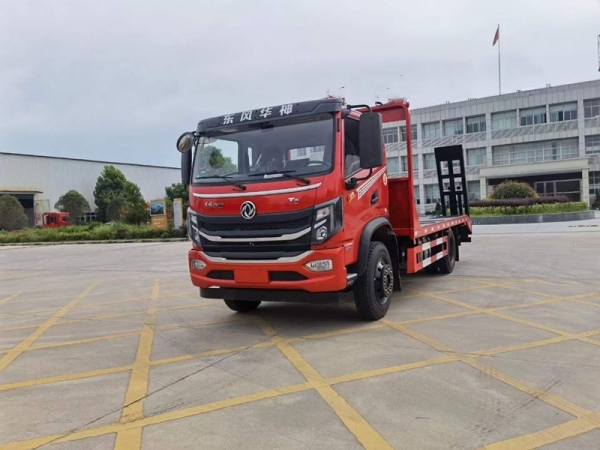

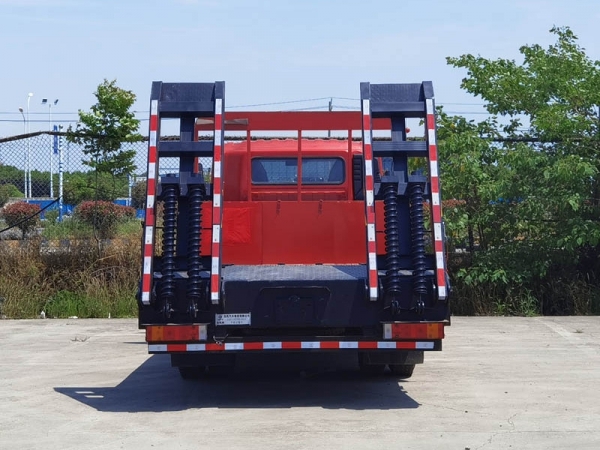

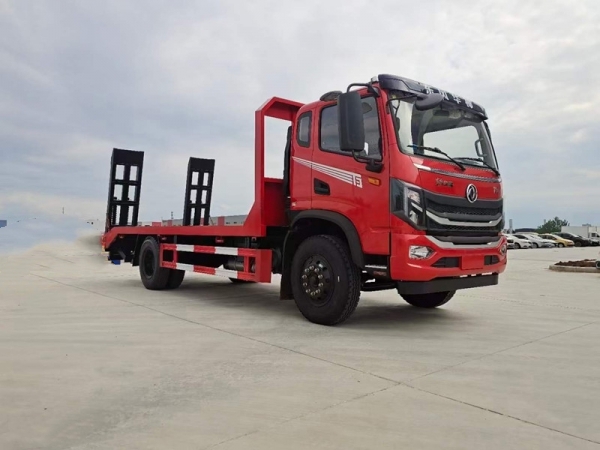

Dongfeng T3 4X2 flatbed vehicle
Chassis configuration:
The new Dongfeng T3 cab is equipped with a 170 horsepower 4-cylinder engine from China VI Yunnei, a Fast 8-speed transmission with high and low gears, an 8-ton rear axle, a double-layer beam, a wheelbase of 3600mm, 825R16 steel wire tires, air conditioning, airbag seats, remote control center console, electric doors and windows, daytime running lights, and a spare tire.
Installation configuration:
The overall dimensions of the vehicle are 6770x2400/2550x2680mm. The board has a slope of 4.7 meters, a total weight of 11.2 tons, a curb weight of 4.7 tons, and a rated load capacity of 6.305 tons. (Optional single section hydraulic ladder, double section folding ladder)
We have many different brands and tonnages of flatbed trucks, please feel free to inquire.
| Product Name | Dongfeng T3 4X2 flatbed vehicle |
| Cab | Dongfeng T3 cab, air conditioning, airbag seats, remote control center console, electric doors and windows |
| Drive wheel | 4x2 |
| Steering wheel | Left/Right hand drive |
| Seat capacity | 2-3 person |
| Engine Model and displacement | D30TCIF1, Yunnei 170hp |
| Gearbox | Fast 8-speed with high and low gears |
| Carframe | double-layer beam |
| Wheel base | 3600mm |
| Axle numbers | 2 |
| Tire sepcification and quantity | 8.25R16 steel wire tires, 6+ 1 spare tire |
| Vehicle dimension | 6770x2400/2550x2680mm |
| Flatbed dimension | 4650,5100x2400,2550x_mm |
| Gross vehicle weight(Kg) | 11200(Kg) |
| Curb weight(Kg) | 4700,4830,5050,5150(Kg) |
| Rated weight(Kg) | 6305,6175,5955,5855,6370,6240,6020,5920(Kg) |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng T3 4X2 flatbed vehicle
A flatbed transport vehicle, also known as a flatbed trailer, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.
Main Parameter
