Advantage
1-Sinotruk HOWO G5X low flatbed, Weichai 220 horsepower, HOWO 8-speed gearbox, wheelbase 4500/5200, 4.5 front axle, 10 ton rear axle, 250 double-layer beam, 295 vacuum tires, airbag seats, four point suspension, multifunctional steering wheel, (cruise control) central door lock, electric doors and windows, remote key, LED daytime running lights, original air conditioning, driving recorder.
2-Vehicle dimensions: 8200/9000 * 2500/2550 * 3050

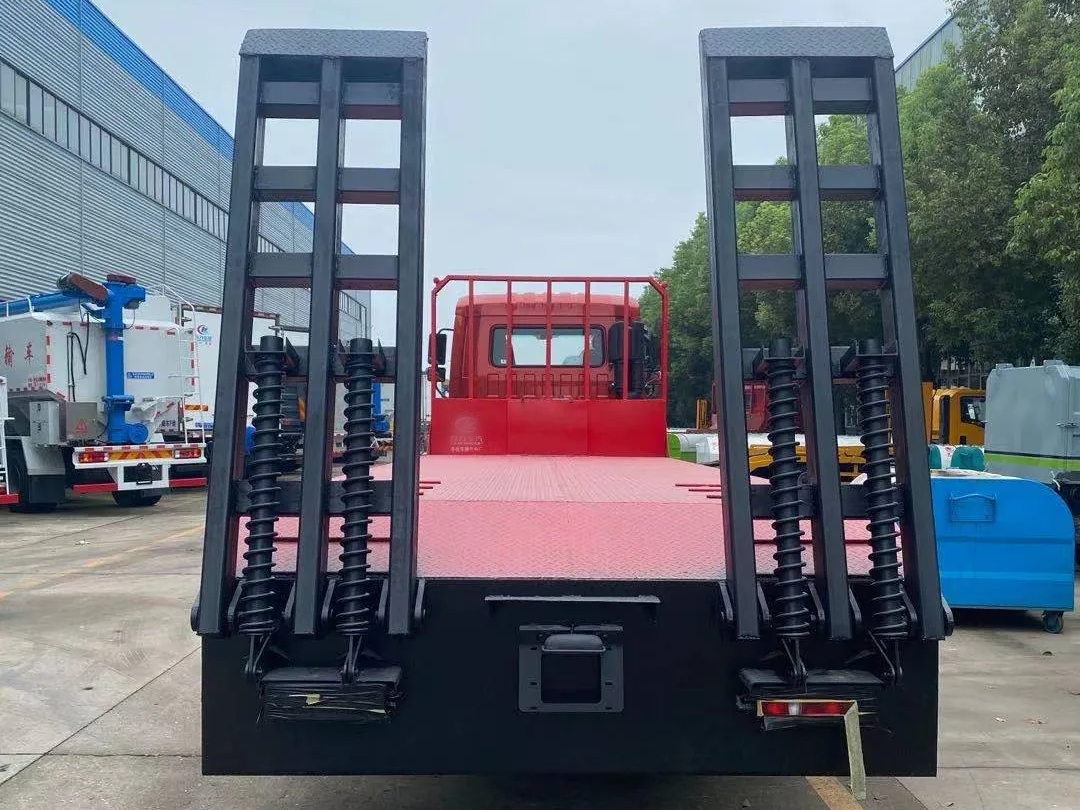

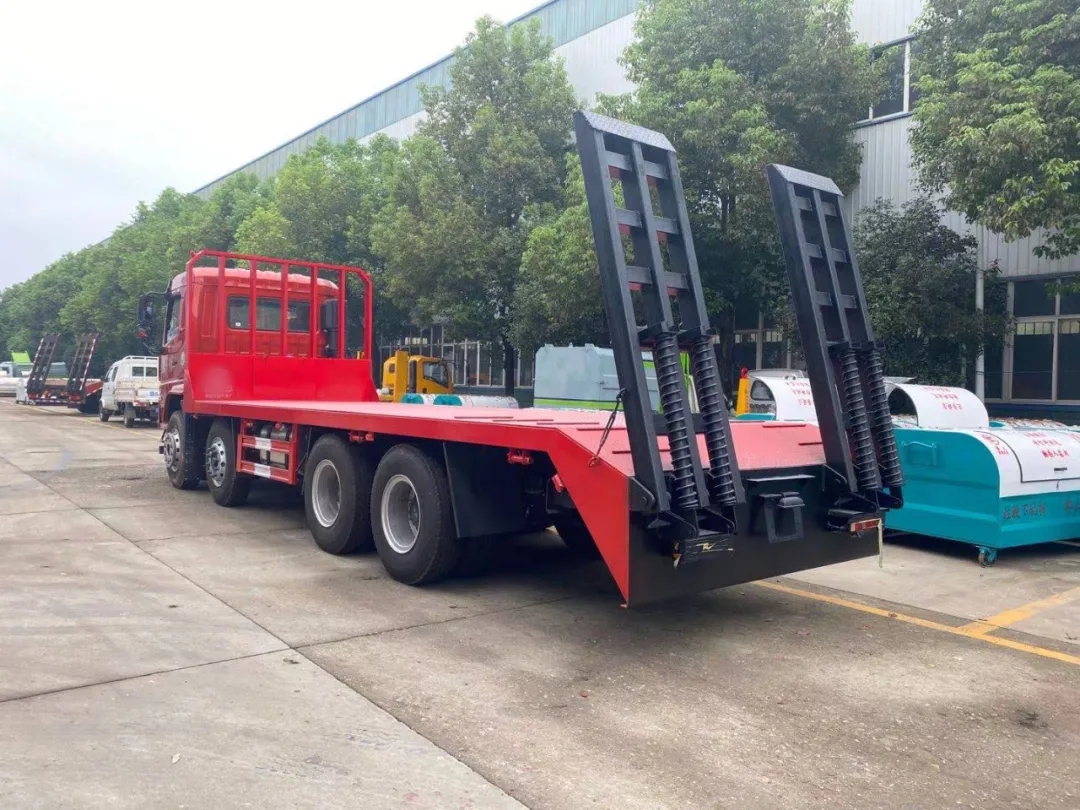

3-Board length including slope 5.6 meters/6 meters/6.5 meters
4-Board height 1 meter above ground.
We have many different brands and tonnages of flatbed trucks, please feel free to inquire.

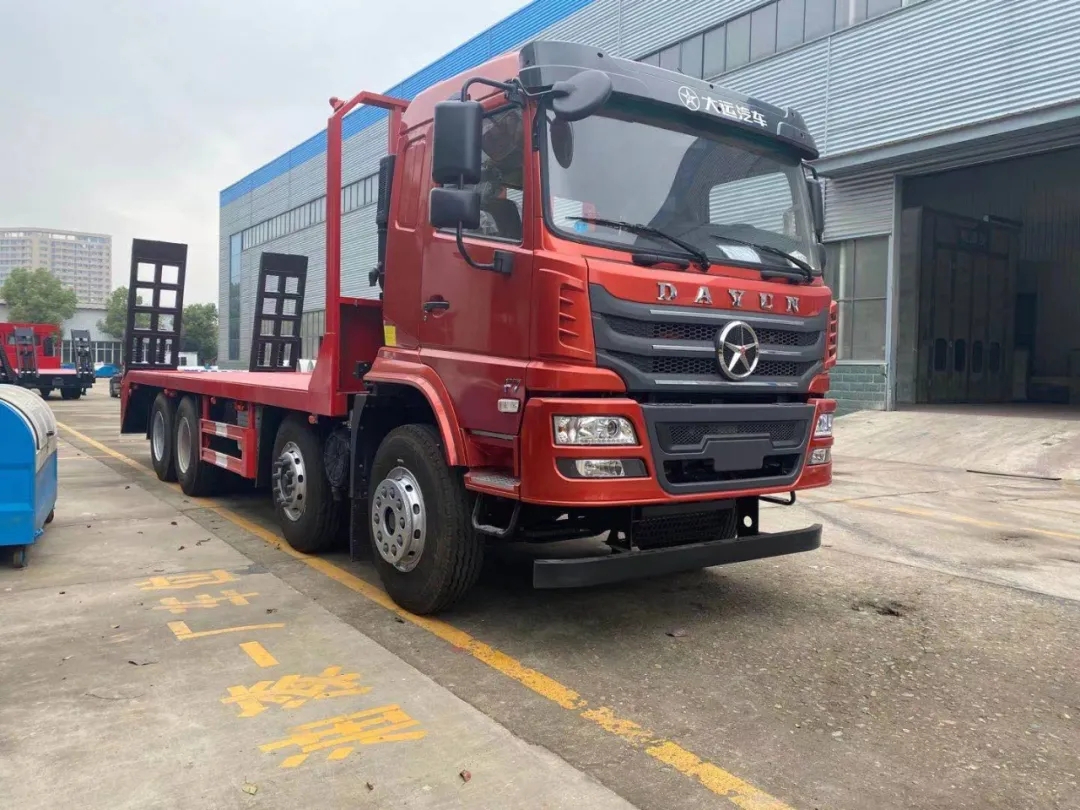

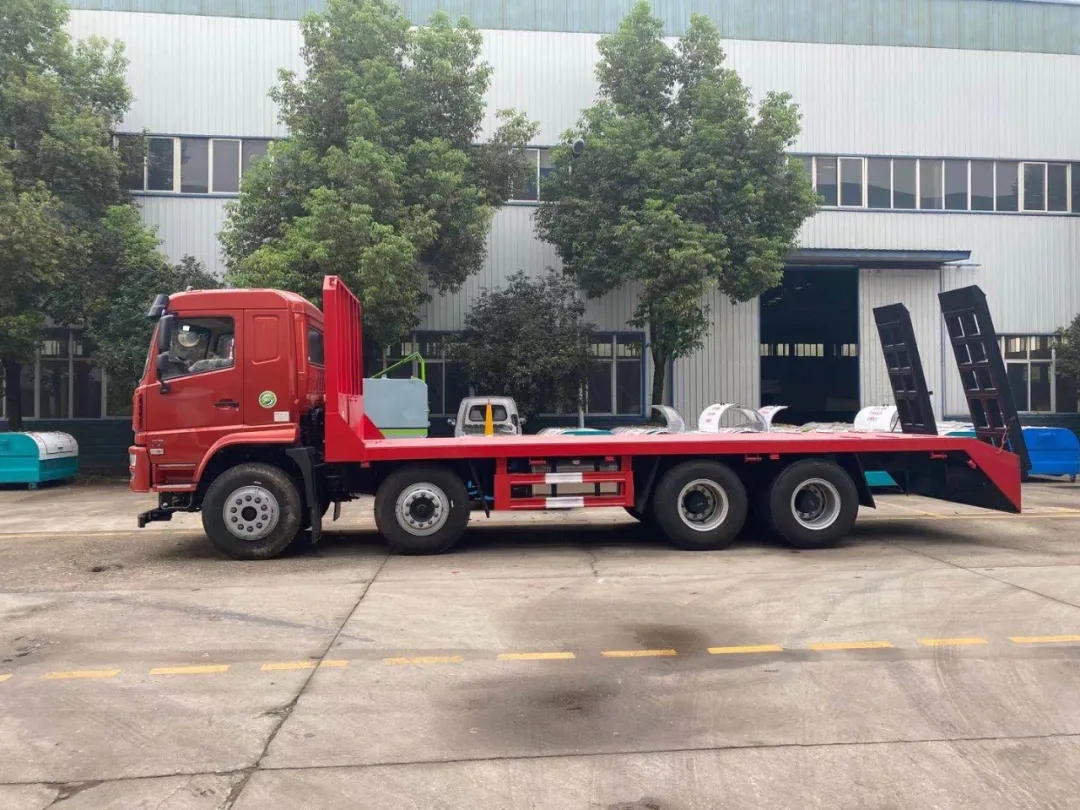

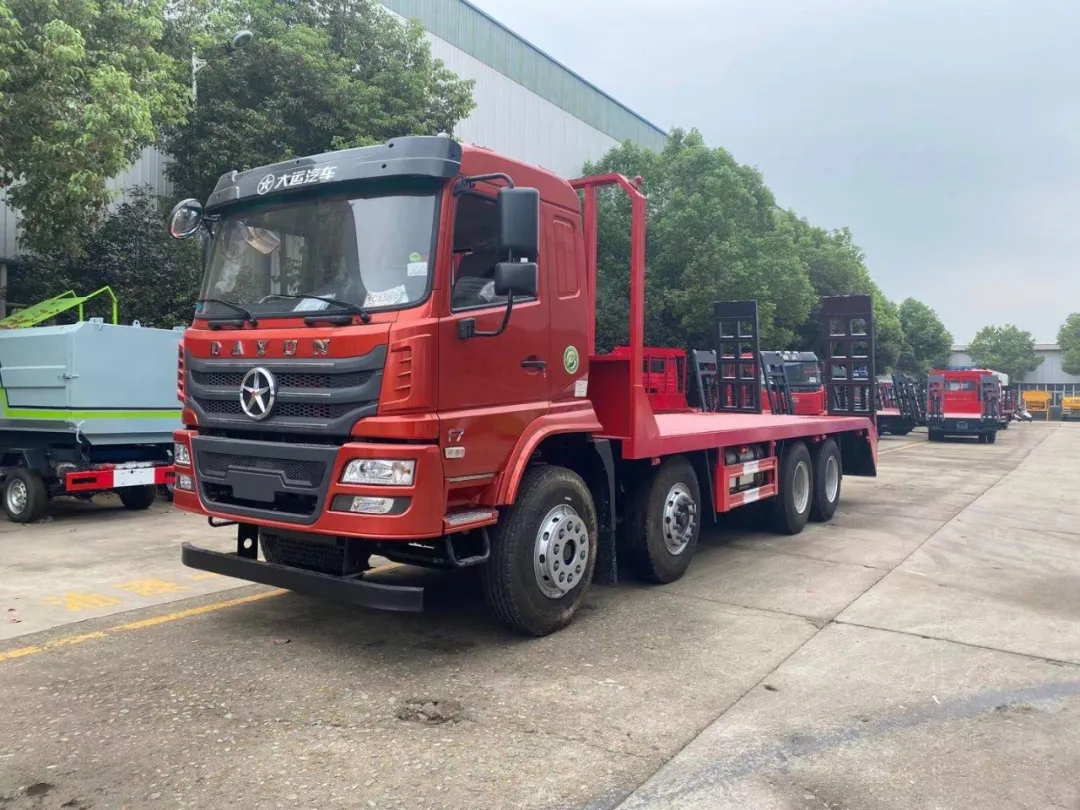

| Product Name | Dayun F7 8X4 flatbed truck,30T flatbed transport vehicle |
| Chassis brand | Dayun F7 |
| Cab | two point suspension cab |
| Drive wheel | 8X4 |
| Steering wheel | Left/Right hand drive |
| Seat capacity | 2-3 person |
| Engine Model and displacement | WP8.350E61 and 7.8L |
| Gearbox | 10 forward gears and 1 reverse gear |
| Carframe | 300mm double layered frame |
| Wheel base | 1850+3200+1350(mm) |
| Front wheel track | 2065/2065,1925/1925(mm) |
| Rear wheel track | 1860/1860(mm) |
| Approach angle/departure angle | 15/12,15/11,15/10(°) |
| Front/rear suspension | 1410/2800,1410/3000(mm) |
| Axle numbers | 4 |
| F/R axle load | 6500/6500/18000 |
| Tire sepcification and quantity | 11.00R20 18PR, 12 with 1 spare tire |
| Vehicle dimension | 10660x2550x3150/3250/3350 (mm) |
| Flatbed dimension | 8100x2550x_____(mm) |
| Gross vehicle weight(Kg) | 31000(Kg) |
| Curb weight(Kg) | 13700,14500(Kg) |
| Rated weight(Kg) | 17170,16370(Kg) |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Product Introduction
A flatbed transport vehicle, also known as a flatbed trailer, bulldozer transport vehicle, excavator transport vehicle, flatbed transport vehicle, hook machine transport vehicle, excavator flatbed truck, excavator trailer, excavator flatbed truck, hook machine flatbed truck, hook machine flatbed trailer, etc., is used to transport non removable machinery such as excavators, loaders, harvesters, etc.
Main Parameter
